כינעזיש
פּאַראַמעטער
| נאָמ.קראָסס-אָפּטיילונג שטח | overall diameter | cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/קמ | A | A |
| 3×35 | 50.0 | 4355 | 0.524 | 172 | 154 |
| 3×50 | 53.0 | 5095 | 0.387 | 205 | 181 |
| 3×70 | 57.5 | 6045 | 0.268 | 253 | 220 |
| 3×95 | 61.5 | 7165 | 0.193 | 307 | 263 |
| 3×120 | 65.0 | 8105 | 0.153 | 352 | 298 |
| 3×150 | 68.0 | 9645 | 0.124 | 397 | 332 |
| 3×185 | 72.0 | 11055 | 0.0991 | 453 | 374 |
| 3×240 | 77.0 | 13165 | 0.0754 | 529 | 431 |
| 3×300 | 84.5 | 15700 | 0.0601 | 599 | 482 |
N2XSEYFGbY 3.6/6kV
| נאָמ.קראָסס-אָפּטיילונג שטח | overall diameter | cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/קמ | A | A |
| 3×35 | 54.5 | 4860 | 0.524 | 172 | 154 |
| 3×50 | 58.0 | 5650 | 0.387 | 205 | 181 |
| 3×70 | 62.5 | 6670 | 0.268 | 253 | 220 |
| 3×95 | 66.0 | 7795 | 0.193 | 307 | 263 |
| 3×120 | 69.5 | 8765 | 0.153 | 352 | 298 |
| 3×150 | 73.0 | 10330 | 0.124 | 397 | 332 |
| 3×185 | 76.5 | 11775 | 0.0991 | 453 | 374 |
| 3×240 | 81.5 | 13855 | 0.0754 | 529 | 431 |
| 3×300 | 88.0 | 16295 | 0.0601 | 599 | 482 |
N2XSEYFGbY 6/10kV
| נאָמ.קראָסס-אָפּטיילונג שטח | overall diameter | cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/קמ | A | A |
| 3×35 | 60.5 | 5570 | 0.524 | 172 | 154 |
| 3×50 | 63.5 | 6.365 | 0.387 | 205 | 181 |
| 3×70 | 67.5 | 7395 | 0.268 | 253 | 220 |
| 3×95 | 71.5 | 8555 | 0.193 | 307 | 263 |
| 3×120 | 75.0 | 9600 | 0.153 | 352 | 298 |
| 3×150 | 78.5 | 11195 | 0.124 | 397 | 332 |
| 3×185 | 82.0 | 12680 | 0.0991 | 453 | 374 |
| 3×240 | 87.0 | 14815 | 0.0754 | 529 | 431 |
| 3×300 | 93.5 | 17320 | 0.0601 | 599 | 482 |
N2XSEYFGbY 8.7/15kV
| נאָמ.קראָסס-אָפּטיילונג שטח | overall diameter | cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/קמ | A | A |
| 3×35 | 65.5 | 6215 | 0.524 | 172 | 154 |
| 3×50 | 68.5 | 7070 | 0.387 | 205 | 181 |
| 3×70 | 73 | 8145 | 0.268 | 253 | 220 |
| 3×95 | 76.5 | 9310 | 0.193 | 307 | 263 |
| 3×120 | 80 | 10385 | 0.153 | 352 | 298 |
| 3×150 | 83.5 | 12050 | 0.124 | 397 | 332 |
| 3×185 | 87 | 13525 | 0.0991 | 453 | 374 |
| 3×240 | 92 | 15700 | 0.0754 | 529 | 431 |
| 3×300 | 98.5 | 18220 | 0.0601 | 599 | 482 |
N2XSEYFGbY 12/20kV

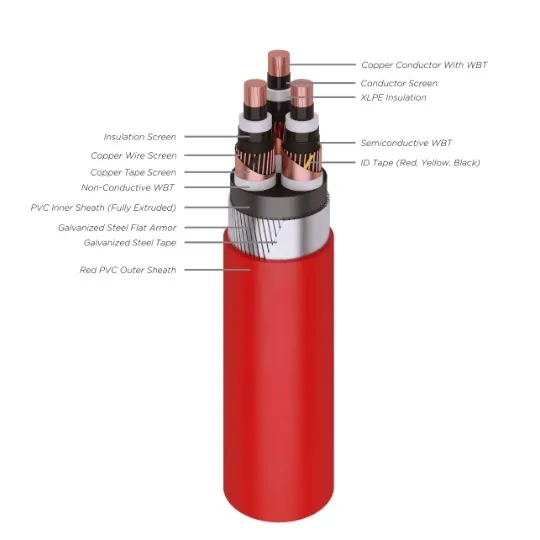

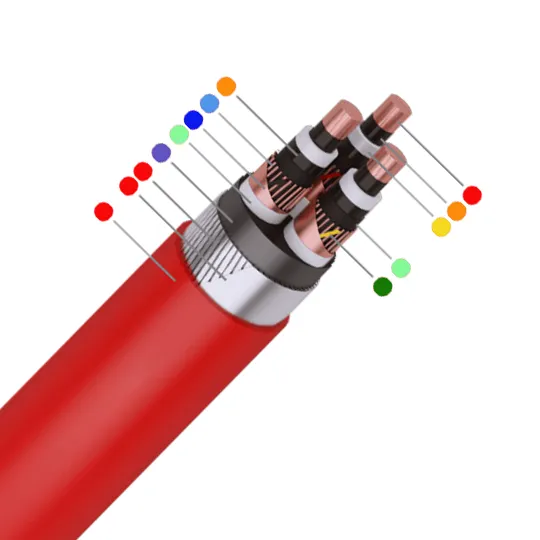

קאַבלע סטרוקטור
● Conductor:Compact stranded copper conductor,CI.2 as per IEC 60228
● אָנפירער פאַרשטעלן: האַלב-אָנפירער
● Insulation:XLPE rated at 90°C
● Conducting Water Blocking Layer:Semi-conductive WBT
● ID Tape:Red/Yellow/Black
● Metallic Screen:Copper Tape Screen
● Metallic Screen:Copper Tape Screen
● Separator/Water Blocking Layer:Non-Conductive WBT
● Separation Sheath(for armoured cable):PVC inner Sheath(Fully extruded)
● Armoring:Galvanized Steel Flat Armor
Galvanized Steel Tape
●Sheath:PVC or FR-PVC type ST2/ST8 to IEC 60502,black
קאָד באַצייכענונג
YJ:XLPE ינסאַליישאַן
V:PVC שייד
22: טאָפּל גאַלוואַנייזד שטאָל דראָט אַרמאָרינג-3 קאָרעס
62: טאָפּל ומבאַפלעקט שטאָל טאַשמע אַרמאָרינג-1 האַרץ
זר: פלאַם קעגנשטעליק
European Union:N2XSEYFGbY
אַפּפּליקאַטיאָן
They are suitable for installation mostly in power supply stations, indoors and in cable ducts,outdoors,underground and in water as well as for installation on cable trays for industries,switchboards and power stations.
נאָרמאַל
International:IEC 60502,EC60228,(IEC60332-3forZR-YJV22,ZR-YJV62only)
China:GB/T12706,(GB/T18380-3forZR-YJV22,ZR-YJV62only)
European standard:DIN VDE0276-620,HD620S2,IEC/EN 60228,IEC/EN 60502-2
Flame Retardant according to IEC/EN 60332-1-2
Indonesian Standard:Conductor:SNI IEC 60228/Insulation:SNI IEC 60502-2
אנדערע סטאַנדאַרדס אַזאַ ווי BS, DIN און ICEA אויף בעטן
טעכניש דאַטן
Rated voltage:3.6/6KV 6/10KV 8.7/15KV 12/20KV
מאַקסימום קאַנדאַקטער טעמפּעראַטור: אונטער נאָרמאַל (90 ℃), נויטפאַל (130 ℃) אָדער קורץ קרייַז ניט מער ווי 5 ס (250 ℃) טנאָים.
Min.Ambient Temp.-20°℃,Installation Temp.0℃
מינ. בענדינג ראַדיוס: 15 × קאַבלע אָד פֿאַר איין האַרץ
12 × קאַבלע אָד פֿאַר מאַלטי האַרץ
סערטיפיקאַץ
CE, RoHS, CCC, KEMA און מער אנדערע אויף בעטן
