پيرا ميٽر
| نمبر ڪراس-سيڪشن ايريا | overall diameter | cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | ايم ايم | km/kg | Ω/ڪلوميٽر | A | A |
| 3×35 | 50.0 | 4055 | 0.524 | 172 | 154 |
| 3×50 | 53.0 | 4770 | 0.387 | 205 | 181 |
| 3×70 | 57.5 | 5695 | 0.268 | 253 | 220 |
| 3×95 | 61.5 | 6755 | 0.193 | 307 | 263 |
| 3×120 | 65.0 | 7675 | 0.153 | 352 | 298 |
| 3×150 | 68.0 | 9215 | 0.124 | 397 | 332 |
| 3×185 | 72.0 | 10605 | 0.0991 | 453 | 374 |
| 3×240 | 78.5 | 13330 | 0.0754 | 529 | 431 |
| 3×300 | 86.0 | 15880 | 0.0601 | 599 | 482 |
N2XSEYBY 3.6/6kV
| نمبر ڪراس-سيڪشن ايريا | overall diameter | cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | ايم ايم | km/kg | Ω/ڪلوميٽر | A | A |
| 3×35 | 54.5 | 4,495 | 0.524 | 172 | 154 |
| 3×50 | 57.5 | 5,265 | 0.387 | 205 | 181 |
| 3×70 | 62 | 6,225 | 0.268 | 253 | 220 |
| 3×95 | 66 | 7,345 | 0.193 | 307 | 263 |
| 3×120 | 69.5 | 8.295 | 0.153 | 352 | 298 |
| 3×150 | 72.5 | 9,835 | 0.124 | 397 | 332 |
| 3×185 | 76 | 11,255 | 0.0991 | 453 | 374 |
| 3×240 | 83.5 | 14,030 | 0.0754 | 529 | 431 |
| 3×300 | 89 | 16,435 | 0.0601 | 599 | 482 |
N2XSEYBY 6/10kV
| نمبر ڪراس-سيڪشن ايريا | overall diameter | cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | ايم ايم | km/kg | Ω/ڪلوميٽر | A | A |
| 3×35 | 60 | 5,165 | 0.524 | 172 | 154 |
| 3×50 | 63 | 5,940 | 0.387 | 205 | 181 |
| 3×70 | 67.5 | 6,940 | 0.268 | 253 | 220 |
| 3×95 | 71.5 | 8,075 | 0.193 | 307 | 263 |
| 3×120 | 75 | 9,055 | 0.153 | 352 | 298 |
| 3×150 | 78 | 10,665 | 0.124 | 397 | 332 |
| 3×185 | 82 | 12,120 | 0.0991 | 453 | 374 |
| 3×240 | 88 | 14,955 | 0.0754 | 529 | 431 |
| 3×300 | 94.5 | 17,470 | 0.0601 | 599 | 482 |
N2XSEYBY 8.7/15kV
| نمبر ڪراس-سيڪشن ايريا | overall diameter | cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | ايم ايم | km/kg | Ω/ڪلوميٽر | A | A |
| 3×35 | 65 | 5,715 | 0.524 | 172 | 154 |
| 3×50 | 68 | 6,545 | 0.387 | 205 | 181 |
| 3×70 | 72.5 | 7,615 | 0.268 | 253 | 220 |
| 3×95 | 76 | 8,750 | 0.193 | 307 | 263 |
| 3×120 | 79.5 | 9,795 | 0.153 | 352 | 298 |
| 3×150 | 84.5 | 12,145 | 0.124 | 397 | 332 |
| 3×185 | 87.5 | 13,620 | 0.0991 | 453 | 374 |
| 3×240 | 92.5 | 15,805 | 0.0754 | 529 | 431 |
| 3×300 | 99.5 | 18,375 | 0.0601 | 599 | 482 |
N2XSEYBY 12/20kV

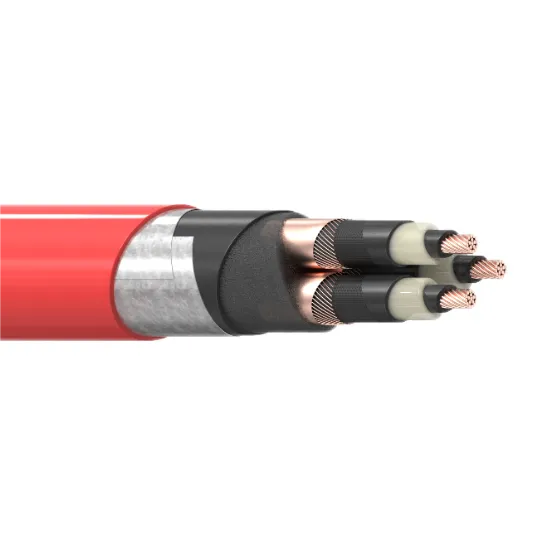

ڪيبل جي جوڙجڪ
● Conductor:Compact stranded copper conductor,CI.2 as per IEC 60228
● ڪنڊڪٽر اسڪرين: سيمي ڪنڊڪٽر
● Insulation:XLPE rated at 90°C
● Conducting Water Blocking Layer:Semi-conductive WBT
● ID Tape:Red/Yellow/Black
● Metallic Screen:Copper Wire Screen
● Metallic Screen:Copper Tape Screen
● Separator/Water Blocking Layer:Non-Conductive WBT
● Separation Sheath(for armoured cable):PVC inner Sheath(Fully extruded)
● Armoring:Double stainless steel tape-1 core
Double galvanized steel tape-3 cores
●Sheath:PVC orFR-PVC type ST2/ST8 to IEC 60502,black
ڪوڊ نامزدگي
YJ: XLPE موصليت
V: پي وي سي شيٿ
22: ڊبل لوهي اسٽيل وائر آرمرنگ-3 ڪور
62: ڊبل اسٽينلیس اسٽيل ٽيپ آرمرنگ-1 ڪور
ZR: شعلا مزاحمتي
European Union:N2XSEYBY/NA2XSEYBY
درخواست
They are suitable for installation mostly in power supply stations, indoors and in cable ducts,outdoors,underground and in water as well as for installation on cable trays for industries,switchboards and power stations.
معياري
International:IEC 60502,EC60228,(IEC60332-3forZR-YJV22,ZR-YJV62only)
China:GB/T12706,(GB/T18380-3forZR-YJV22,ZR-YJV62only)
European standard:DIN VDE0276-620,HD620S2,IEC/EN 60228,IEC/EN 60502-2
Flame Retardant according to IEC/EN 60332-1-2
Indonesian Standard:Conductor:SNI IEC 60228/Insulation:SNI IEC 60502-2
ٻيا معيار جهڙوڪ BS، DIN ۽ ICEA درخواست تي
ٽيڪنيڪل ڊيٽا
Rated voltage:3.6/6KV6/10KV 8.7/15KV 12/20KV
وڌ ۾ وڌ ڪنڊڪٽر جي درجه حرارت: عام (90 ℃)، ايمرجنسي (130 ℃) يا شارٽ سرڪٽ 5s (250 ℃) حالتن کان وڌيڪ نه.
Min.Ambient Temp.-20°℃,Installation Temp.0℃
Min.Bending Radius: 15 × ڪيبل او ڊي سنگل ڪور لاءِ
ملٽي ڪور لاءِ 12 × ڪيبل او ڊي
سرٽيفڪيٽ
CE، RoHS، CCC، KEMA ۽ وڌيڪ ٻيا درخواست تي
