0.6/1 kV LOW VOLTAGE XLPE INSULATED SINGLE-CORE STEEL TAPE ARMOURED CABLE

Steel tape armoured cable, with single core of copper conductors, XLPE insulation, PVC bedding, Stainless steel tape, Low Smoke Zero Halogen (LSZH) outer sheath or PVC sheath. Gives Rated voltage 0.6/1 KV for indoor and outdoor installation, in air and ground.

Model Number: CU/XLPE/PVC/STA/PVC(CU/XLPE/PVC/STA/FR-PVC),0.6/1KV
Category: Energy Cables/Power Cables/Industrial Cable/STA Cable
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters





DOWNLOAD PDF
Details
Tags

Parameter

  Nom.Cross-
   section of
   conductor
Insulation
Thickness
Inner
Covering
Thickness
 Steel Tape Thickness Sheath
Thickness
Approx O.D. Approx
Weight
Max.D.C.
Resistance of  Conductor  (20℃)
Test Voltage  A.C Current Rating
mm² mm mm mm mm mm kg/km Ω/km kV/5min In air(A) In soil(A)
1 ×25 0.9 1 2 ×0.2 1.8 14 442 0.727 3.5 120 155
1 ×35 0.9 1 2 ×0.2 1.8 15 547 0.524 3.5 150 185
1 ×50 1 1 2 ×0.2 1.8 17 688 0.387 3.5 180 220
1 ×70 1.1 1 2 ×0.2 1.8 18 895 0.268 3.5 230 270
1 ×95 1.1 1 2 ×0.2 1.8 20 1125 0.193 3.5 285 320
1 × 120 1.2 1 2 ×0.2 1.8 22 1358 0.153 3.5 335 365
1 × 150 1.4 1 2 ×0.2 1.8 23 1649 0.124 3.5 385 410
1 × 185 1.6 1 2 ×0.5 1.8 25 1984 0.0991 3.5 450 465
1 ×240 1.7 1 2 ×0.5 1.8 28 2489 0.0754 3.5 535 540
1 ×300 1.8 1 2 ×0.5 1.9 30 3036 0.0601 3.5 620 610
1 ×400 2 1.2 2 ×0.2 2.1 35 4230 0.047 3.5 720 695
1 ×500 2.2 1.2 2 ×0.2 2.2 39 5194 0.0366 3.5 835 780
1 ×630 2.4 1.2 2 ×0.2 2.4 45 6504 0.0283 3.5 960 880

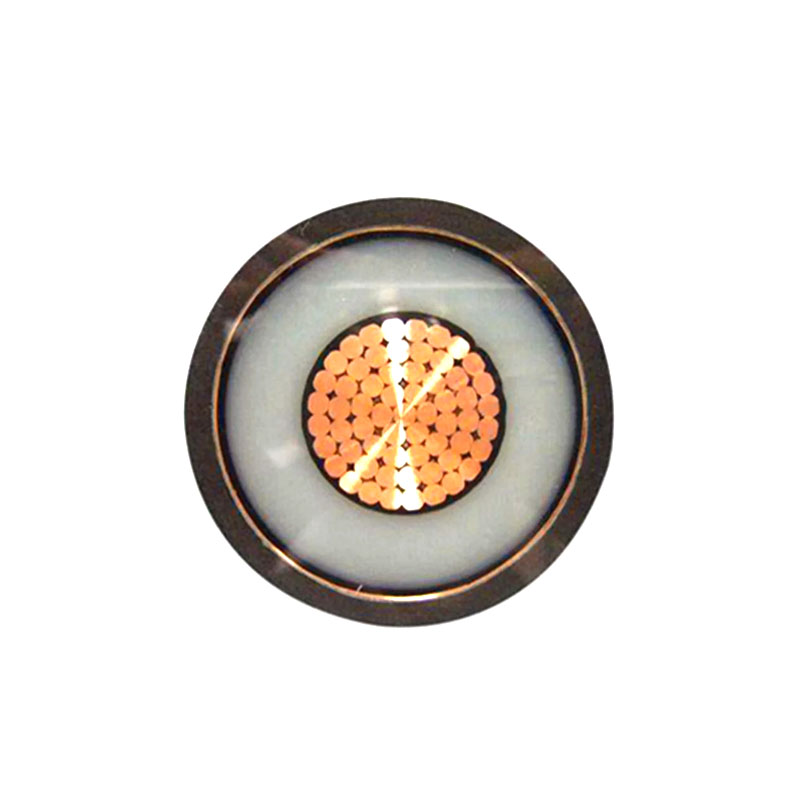

Cable Structure

● Conductor:Compact stranded copper conductor,Cl.2 as per IEC 60228

● Insulation:XLPE(cross-linked polyethylene)rated at 90°℃

● Inner covering:PVC

● Armoring:Double stainless steel tape

● Sheath:PVC or FR-PVC type ST2 to IEC 60502,black

Code Designation

YJ:XLPE insulation

V:PVC sheath

62:Double stainless steel tape armoring

ZR:Flame resistant

Application

Wiring environment apply to shafts,water and soil,able to stand the larger positive pressure.

Standard

International:IEC 60502,IEC 60228,IEC 60332

European standard:BS 5467.IEC /EN 60502-1,IEC/EN 60228,Flame Retardant according to IEC/EN 60332-1-2

China:GB/T 12706.1-2020

Other standards such as BS,DIN and ICEA upon request

Technical Data

Rated voltage:0.6/1 kV

Maximum Conductor Temperature:under normal(90℃),emergency (130°C)or short circuit no more than 5s (250°C)conditions.

Min.Ambient Temp.-15℃,Installation Temp.0℃

Min.Bending Radius:15×cable O.D for single core

Certificates

CE,RoHS,CCC,KEMA and more others at request
