Parameter
| PVC FLAT 2 CORES + EARTH | ||||||
| Cross section (mm2) | Type of conductor | Nom.insulation thick.(mm) | Nom.outer sheath thick.(mm) | Earth cond.sect(mm2) | Nom.over.diam. | Approx.weight(kg/100m) |
| 1 | Solid copper | 0.6 | 0.9 | 1 | 8.9×4.2 | 7.74 |
| 1.5 | Stranded copper | 0.6 | 0.9 | 1.5 | 9.9×4.5 | 8.86/13.29 |
| 2.5 | Stranded copper | 0.7 | 1.0 | 2.5 | 12.2×5.4 | 14.03 |
| 4 | Stranded copper | 0.8 | 1.1 | 2.5 | 13.9×6.3 | 18.65 |
| 6 | Stranded copper | 0.8 | 1.1 | 2.5 | 15.0×6.9 | 23.04 |
| 10 | Stranded copper | 1.0 | 1.2 | 4 | 18.3×8.3 | 36.05 |
| 16 | Stranded copper | 1.0 | 1.3 | 6 | 21.0×9.5 | 51.46 |
|
PVC FLAT 3 CORES +EARTH |
||||||
| Cross section (mm2) | Type of conductor | Nom.insulation thick.(mm) | Nom.outer sheath thick.(mm) | Earth cond.sect(mm2) | Nom.over.diam. | Approx.weight(kg/100m) |
| 1.5 | Stranded copper | 0.6 | 0.9 | 1.5 | 12.6×4.5 | 11.54/18.31 |
| 2.5 | Stranded copper | 0.7 | 1 | 2.5 | 15.7×5.4 | 18.31 |
Cable Structure
Conductor: copper
Conductor shape: Circular
Insulation: V-90
Outer Sheath: PVC
Type of conductor: Class 2
Number of earth cores: 1
Colour: Blue
Conductor flexiblity: Class 2
Code designation
TPS Cable
Application

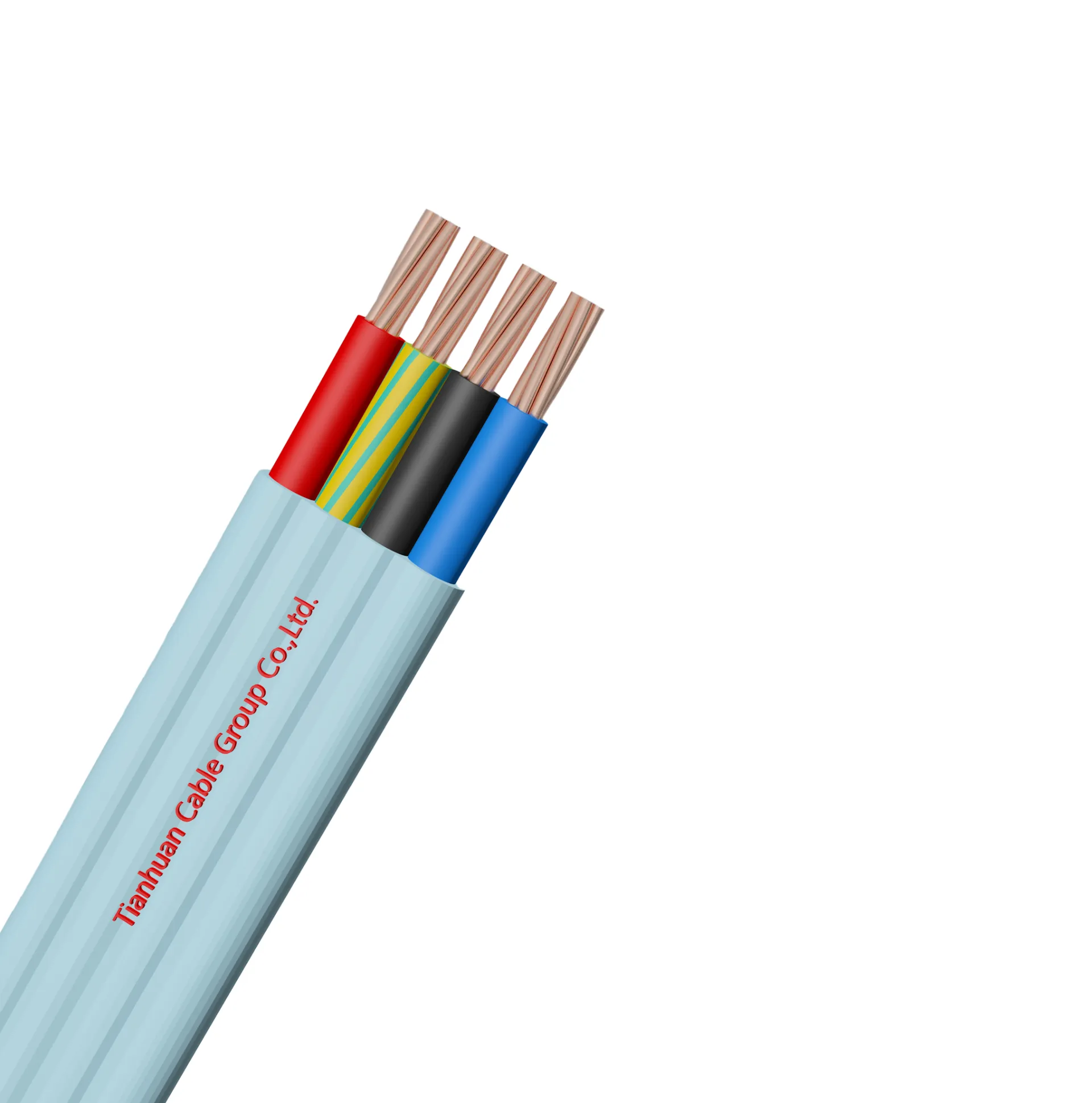

Olex-Blu is a durable and robust 3C+E cable specifically designed for air conditioning and single-phase applications. What’s new? This product is an extension of our current TPS cable, with the added benefit of a blue coloured sheath for easy identification during installation.
Standard
AS/NZS 5000
Other standards such as BS,DIN and ICEA upon request
Technical Data
Rated voltage:450/750V
Bending factor when installed:4(×D)
Bending factor when laying:6(×D)
Certificates
CE, RoHS, CCC,KEMA and more others at request
Packaging Details
Cable is supplied, with wooden reels, wooden drums, steel wooden drums and coils, or as your requirement.
Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
Delivery Time
Normally within 7-14 days(depend on the order quantity). We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Shipping Port
Tianjin, Qingdao, or other ports as per your requirements.
Sea Freight
FOB/C&F/CIF quotation are all available.
Services Available
Proofed samples are as per your production or layout design.
Replying Inquiry within 12 hours, email replied within a hours.
Well-trained & experienced sales be on call.
Research and Development team are available.
Customized projects are highly welcomed.
According your order details, production can be arranged to meet the production line.
Inspection report before shipment can be submitted by our QC department, or as per your appointed third party.
Good after-sale service.
