Read More About pvc insulated industrial cables

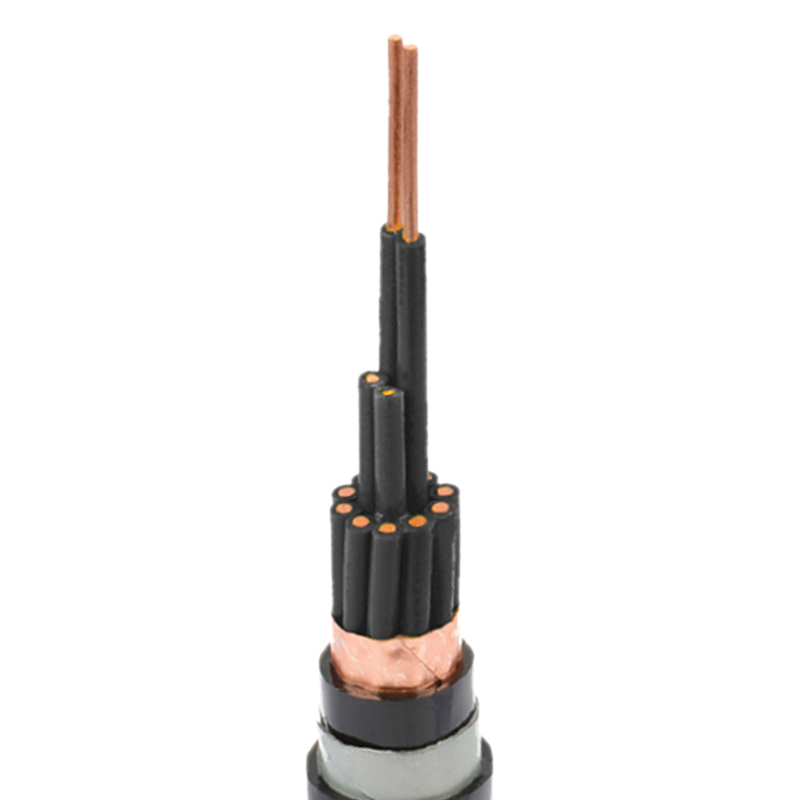

450/750V CY YY SY KVVP KVVP2 ZR-KVVP ZR-KVVP2 PVC Insulated and Sheathed Control Cable

CY KVVP KVVP2 ZR-KVVP ZR-KVVP2 control cable, with multi-cores conductor, PVC Insulated and PVC Sheathed, and copper wire or tape Screen, to meet the requirement of IEC 60502, BS 5308 and GB 9330, suitable for environments when electrical interference free transmission is needed

Model Number: YY/CY/SY/KVVP/KVVP2/ZR-KVVP/ZR-KVVP2
Category: Control Cable
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters





DOWNLOAD PDF
Details
Tags

Parameter

Cross×Nom
cross-sectional
area 		 Nom thickness
of insulation		 Nom thickness
of CU/AL-Plastic tape		 Nom thickness of sheath Pitch diameter Min resistance
of insulation at
70℃ 		 Max.D.C
resistance of at 20℃		 Approx
weight
mm2 mm mm mm min max MΩ/km MΩ/km (kg/km)
4×0.75 0.6 0.05-0.10 1.2 8.1 9.7 0.012 24.5 144
4×1.0 0.6 0.05-0.10 1.2 8.4 10.2 0.011 18.1 153
4×1.5 0.7 0.05-0.10 1.2 9.5 11.4 0.011 12.1 190
4×2.5 0.8 0.05-0.10 1.5 10.9 13.1 0.01 7.41 276
4×4 0.8 0.05-0.10 1.5 12.5 15.1 0.0085 4.61 367
4×6 0.8 0.05-0.10 1.5 13.6 16.5 0.007 3.08 467
4×10 1 0.05-0.10 1.7 17.1 20.7 0.0065 1.83 728
5×0.75 0.6 0.05-0.10 1.2 8.6 10.4 0.012 24.5 153
5×1.0 0.6 0.05-0.10 1.2 9 10.9 0.011 18.1 173
5×1.5 0.7 0.05-0.10 1.5 10.2 12.3 0.011 12.1 226
5×2.5 0.8 0.05-0.10 1.5 11.8 14.2 0.01 7.41 325
5×4 0.8 0.05-0.10 1.5 13.5 16.3 0.0085 4.61 437
5×6 0.8 0.05-0.10 1.5 14.8 17.9 0.007 3.08 576
5×10 1 0.05-0.10 1.7 19.1 23 0.0065 1.83 924
7×0.75 0.6 0.05-0.10 1.2 9.3 11.2 0.012 24.5 178
7×1.0 0.6 0.05-0.10 1.2 9.7 11.7 0.011 18.1 209
7×1.5 0.7 0.05-0.10 1.5 11 13.3 0.011 12.1 239
7×2.5 0.8 0.05-0.10 1.5 13.3 16.1 0.01 7.41 398
7×4 0.8 0.05-0.10 1.5 14.6 17.6 0.0085 4.61 528
7×6 0.8 0.05-0.10 1.5 16 19.4 0.007 3.08 717
7×10 1 0.05-0.10 1.7 20.7 25.1 0.0065 1.83 1145
8×0.75 0.6 0.05-0.10 1.5 10.2 12.3 0.012 24.5 206
8×1.0 0.6 0.05-0.10 1.5 10.7 12.9 0.011 18.1 230
8×1.5 0.7 0.05-0.10 1.5 12.8 15.4 0.011 12.1 312
8×2.5 0.8 0.05-0.10 1.5 14.7 17.8 0.01 7.41 486
8×4 0.8 0.05-0.10 1.7 16.2 19.6 0.0085 4.61 589
8×6 0.8 0.05-0.10 1.7 17.9 21.6 0.007 3.08 790
8×10 1 0.05-0.10 1.7 23.2 28.1 0.0065 1.83 1236
10×0.75 0.6 0.05-0.10 1.5 11.3 13.7 0.012 24.5 214
10×1.0 0.6 0.05-0.10 1.5 12.5 15.1 0.011 18.1 300



Cross×Nom
cross-sectional
area 		 Nom thickness
of insulation		 Nom thickness
of CU/AL-Plastic tape		 Nom thickness of sheath Pitch diameter Min resistance
of insulation at
70℃ 		 Max.D.C
resistance of at 20℃		 Approx
weight
mm2 mm mm mm min max MΩ/km MΩ/km (kg/km)
10×1.5 0.7 0.05-0.10 1.5 14.2 17.2 0.011 12.1 367
10×2.5 0.8 0.05-0.10 1.7 16.5 20 0.01 7.41 572
10×4 0.8 0.05-0.10 1.7 18.6 22.5 0.0085 4.61 787
10×6 0.8 0.05-0.10 1.7 20.5 24.8 0.007 3.08 992
10×10 1 0.05-0.10 1.7 26.3 31.8 0.0065 1.83 1590
12×0.75 0.6 0.05-0.10 1.5 11.7 14.1 0.012 24.5 280
12×1.0 0.6 0.05-0.10 1,5 12.8 15.5 0.011 18.1 315
12×1.5 7 0.05-0.10 1.5 14.6 17.7 0.011 12.1 423
12×2.5 0.8 0.05-0.10 1.7 17 20.6 0.01 7.41 654
12×4 0.8 0.05-0.10 1.7 19.2 23.2 0.0085 4.61 887
12×6 0.8 0.05-0.10 1.7 21.2 25.6 0.007 3.08 1198
14×0.75 0.6 0.05-0.10 1.5 12.2 14.7 0.012 24.5 312
14×1.0 0.6 0.05-0.10 1.5 13.4 16.2 0.011 18.1 398
14×1.5 0.7 0.05-0.10 1.5 15.3 18.5 0.011 12.1 492
14×2.5 0.8 0.05-0.10 1.7 17.8 21.5 0.01 7.41 721
14×4 0.8 0.05-0.10 1.7 20.1 24.3 0.0085 4.61 973
14×6 0.8 0.05-0.10 1.7 22.2 26.9 0.007 3.08 1203
16×0.75 0.6 0.05-0.10 1.5 13.3 16.1 0.012 24.5 340
16×1.0 0.6 0.05-0.10 1.5 14 16.9 0.011 18.1 389
16×1.5 0.7 0.05-0.10 1.5 16.1 19.4 0.011 12.1 489
16×2.5 0.8 0.05-0.10 1.7 19.1 23.1 0.01 7.41 789
19×0.75 0.6 0.05-0.10 1.5 14 16.9 0.012 24.5 386
19×1.0 0.6 0.05-0.10 1.5 14.7 17.7 0.011 18.1 413
19×1.5 0.7 0.05-0.10 1.7 16.8 20.4 0.011 12.1 612
19×2.5 0.8 0.05-0.10 1.7 20.1 24.3 0.01 7.41 986
24×0.75 0.6 0.05-0.10 1.5 16 19.4 0.012 24.5 476
24×1.0 0.6 0.05-0.10 1.7 16.9 20.4 0.011 18.1 580
24×1.5 0.7 0.05-0.10 1.7 19.9 24 0.011 12.1 792
24×2.5 0.8 0.05-0.10 1.7 23.3 28.2 0.01 7.41 1179
27×0.75 0.6 0.05-0.10 1.7 16.3 19.1 0.012 24.5 503



Cross×Nom
cross-sectional
area 		 Nom thickness
of insulation		 Nom thickness
of CU/AL-Plastic tape		 Nom thickness of sheath Pitch diameter Min resistance
of insulation at
70℃ 		 Max.D.C
resistance of at 20℃		 Approx
weight
mm2 mm mm mm min max MΩ/km MΩ/km (kg/km)
27×1.0 0.6 0.05-0.10 1.7 17.2 20.8 0.011 18.1 612
27×1.5 0.7 0.05-0.10 1.7 20.3 24.5 0.011 12.1 886
27×2.5 0.8 0.05-0.10 1.7 23.8 28.8 0.01 7.41 1286
30×0.75 0.6 0.05-0.10 1.7 16.9 20.4 0.012 24.5 600
30×1.0 0.6 0.05-0.10 1.7 17.8 21.5 0.011 18.1 725
30×1.5 0.7 0.05-0.10 1.7 21 25.3 0.011 12.1 891
30× 2.5 0.8 0.05-0.10 1.7 24.6 28.8 0.01 7.41 1384
37×0.75 0.6 0.05-0.10 1.7 18.1 21.9 0.012 24.5 688
37×1.0 0.6 0.05-0.10 1.7 19.5 23.5 0.011 18.1 887
37×1.5 0.7 0.05-0.10 1.7 22.5 27.2 0.011 12.1 1105
37×2.5 0.8 0.05-0.10 2 26.5 32.1 0.01 7.41 1681
44×0.75 0.6 0.05-0.10 1.7 20.5 24.8 0.012 24.5 809
44×1.0 0.6 0.05-0.10 1.7 21.7 26.2 0.011 18.1 987
44×1.5 0.7 0.05-0.10 1.7 25.2 30.4 0.011 12.1 1315
44×2.5 0.8 0.05-0.10 2 30.3 36.7 0.01 7.41 2018
48×0.75 0.6 0.05-0.10 1.7 20.9 25.2 0.012 24.5 910
48×1.0 0.6 0.05-0.10 1.7 22 26.6 0.011 18.1 1028
48×1.5 0.7 0.05-0.10 1.7 25.5 30.9 0.011 12.1 1307
48×2.5 0.8 0.05-0.10 2 30.8 37.2 0.01 7.41 2097
52×0.75 0.6 0.05-0.10 1.7 21.4 25.8 0.012 24.5 935
52×1.0 0.6 0.05-0.10 1.7 22.6 27.3 0.011 18.1 1113
52×1.5 0.7 0.05-0.10 2 26.2 31.7 0.011 12.1 1493
52×2.5 0.8 0.05-0.10 2.2 31.7 38.2 0.01 7.41 2298
61×0.75 0.6 0.05-0.10 1.7 22.6 27.3 0.012 24.5 1025
61×1.0 0.6 0.05-0.10 1.7 23.9 28.9 0.011 18.1 1250
61×1.5 0.7 0.05-0.10 2 28.4 34.3 0.011 12.1 1745
61×2.5 0.8 0.05-0.10 2.2 33.9 41 0.01 7.41 2599

Name

KVVP2 :Copper conductor PVC insulated and sheathed control cable with copper tape shield

ZR-KVVP2 :Copper conductor PVC insulated and sheathed flame retardant control cable

with copper screen

Application

Wiring environment apply to indoors job,in trenches and in ducts,etc.if it go ZR-KVVP2,

flame retardance shall be necessary.

Standard

China:GB/T 9330-2020

Other standards such as IEC,BS,DIN and ICEA upon request
