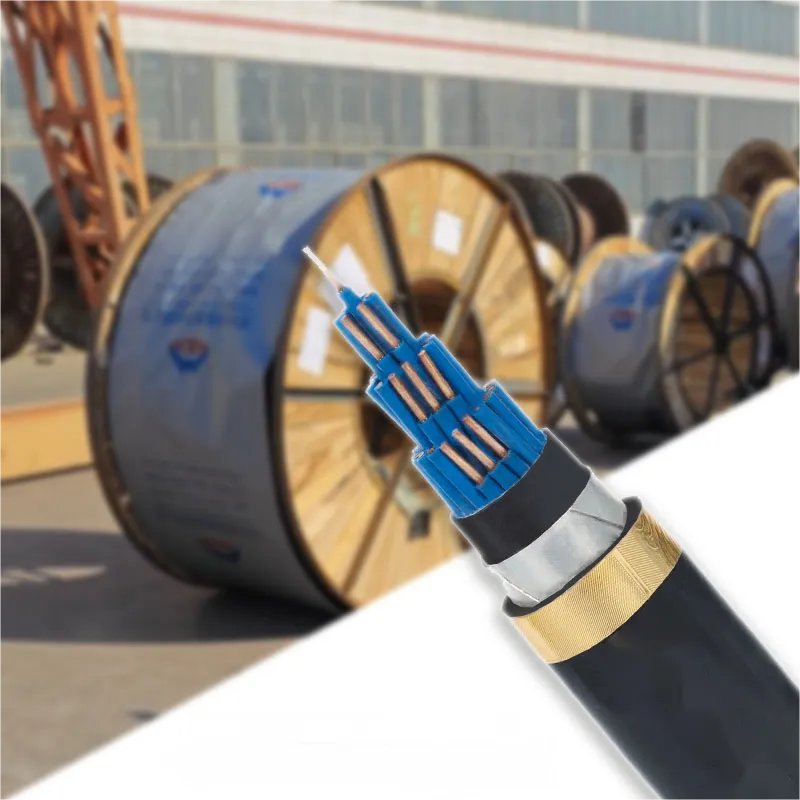

NYBY 0.6/1kV With Cu Conductors,PVC Insulated,STA and PVC Sheathed Steel Armoured Control Cable

NYBY control cable, with multi-cores conductor, PVC Insulated and PVC Sheathed, and steel armoured layer, to meet the requirement of IEC 60502 and IEC 60332-1, Laid in indoors, cable trenches, direct buried pipes, etc., can be used to withstand large mechanical external forces.

Model Number: Control cable 0.6/1kV With Cu Conductors,PVC Insulated,STA and PVC Sheathed
Category: Control Cable
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters





DOWNLOAD PDF
Details
Tags

Parameter

Nom.Cross-section Area Nominal Thickness overall diameter cable Weight DC Resistance at 20℃Insulation min Current Carrying Capacity at 30℃
Insulation Outer Sheath In Air In Ground
mm² mm mm mm km/kg M.Ω.km A A
7 × 1.5 re 0.7 1.8 17 457 1121 11 16
7 × 1.5 rm 0.7 1.8 17 449 1020 11 16
8 × 1.5 re 0.7 1.8 17 448 1121 11 16
8 × 1.5 rm 0.7 1.8 17 440 1020 11 16
10 × 1.5 re 0.7 1.8 17 438 1121 10 14
10 × 1.5 rm 0.7 1.8 17 431 1020 10 14
12 × 1.5 re 0.7 1.8 17 462 1121 10 14
12 × 1.5 rm 0.7 1.8 18 477 1020 10 14
14 × 1.5 re 0.7 1.8 18 505 1121 9 11
14 × 1.5 rm 0.7 1.8 18 520 1020 9 11
16 × 1.5 re 0.7 1.8 19 557 1121 9 11
16 × 1.5 rm 0.7 1.8 19 573 1020 9 11
19 × 1.5 re 0.7 1.8 20 620 1121 8 10
19 × 1.5 rm 0.7 1.8 20 637 1020 8 10
21 × 1.5 re 0.7 1.8 20 673 1121 8 10
21 × 1.5 rm 0.7 1.8 21 691 1020 8 10
24 × 1.5 re 0.7 1.8 22 766 1121 7 9
24 × 1.5 rm 0.7 1.8 23 788 1020 7 9
30 × 1.5 re 0.7 1.8 24 893 1121 7 9
30 × 1.5 rm 0.7 1.8 24 916 1020 7 9
40 × 1.5 re 0.7 1.8 26 1116 1121 6 8
40 × 1.5 rm 0.7 1.8 27 1143 1020 6 8
52 × 1.5 re 0.7 1.9 29 1400 1121 6 8
52 × 1.5 rm 0.7 1.9 31 1440 1020 6 8
61 × 1.5 re 0.7 1.9 31 1601 1121 5 7
61 × 1.5 rm 0.7 2.0 32 1644 1020 5 7
7 × 2.5 re 0.7 1.8 17 516 940 18 22
7 × 2.5 rm 0.7 1.8 18 544 842 18 22
8 × 2.5 re 0.7 1.8 19 573 940 18 22
8 × 2.5 rm 0.7 1.8 19 604 842 18 22
10 × 2.5 re 0.7 1.8 21 661 940 15 18
10 × 2.5 rm 0.7 1.8 22 698 842 15 18
12 × 2.5 re 0.7 1.8 21 729 940 15 18
12 × 2.5 m 0.7 1.8 22 769 842 15 18
14 × 2.5 re 0.7 1.8 22 804 940 14 16
14 × 2.5 rm 0.7 1.8 22 848 842 14 16
16 × 2.5 re 0.7 1.8 23 881 940 14 16
16 × 2.5 m 0.7 1.8 24 930 842 14 16
19 × 2.5 re 0.7 1.8 24 987 940 12 14
19 × 2.5 rm 0.7 1.8 25 1042 842 12 14
21 × 2.5 re 0.7 1.8 25 1566 940 12 14
21 × 2.5 rm 0.7 1.8 27 1125 842 12 14
24 × 2.5 re 0.7 1.8 28 1206 940 11 13
24 × 2.5 rm 0.7 1.9 29 1411 842 11 13
30 × 2.5 re 0.7 1.9 29 1498 940 11 13
30 × 2.5 rm 0.7 1.9 31 1498 842 11 13
40 × 2.5 re 0.7 2.0 33 1774 940 9 10
40 × 2.5 rm 0.7 2.1 34 1881 842 9 10
52 × 2.5 re 0.7 2.2 38 2580 940 9 10
52 × 2.5 rm 0.7 2.2 40 2737 842 9 10
61 × 2.5 re 0.7 2.2 40 2911 940 8 9
61 × 2.5 rm 0.7 2.3 42 3101 842 8 9
7 × 4 rе 0.7 1.8 19 657 784 25 27
7 × 4 rm 0.7 1.8 20 696 704 25 27
8 × 4 rе 0.7 1.8 20 704 784 25 27
8 × 4 rm 0.7 1.8 21 747 704 25 27
10 × 4 re 0.7 1.8 22 849 784 21 23
10 × 4 rm 0.7 1.8 24 901 704 21 23
12 × 4 re 0.7 1.8 23 947 784 21 23
12 × 4 rm 0.7 1.8 25 1005 704 21 23
14 × 4 re 0.7 1.8 24 1053 784 19 21
14 × 4 rm 0.7 1.8 26 1118 704 19 21
16 × 4 re 0.7 1.8 25 1163 784 19 21
16 × 4 rm 0.7 1.8 27 2235 704 19 21
19 × 4 re 0.7 1.8 27 1315 784 17 18
19 × 4 rm 0.7 1.8 28 1452 704 17 18
21 × 4 re 0.7 1.8 28 1431 784 17 18
21 × 4 rm 0.7 1.9 30 1527 704 17 18
24 × 4 re 0.7 1.9 31 1632 784 15 16
24 × 4 rm 0.7 2.0 33 1742 704 15 16
30 × 4 re 0.7 2.0 32 1931 784 15 16
30 × 4 rm 0.7 2.1 35 2058 704 15 16
40 × 4 re 0.7 2.2 37 2814 784 13 14
40 × 4 rm 0.7 2.2 40 3003 704 13 14
52 × 4 re 0.7 2.3 42 3508 784 13 14
52 × 4 rm 0.7 2.4 45 3758 704 13 14
61 × 4 re 0.7 2.4 45 3995 784 11 11
61 × 4 rm 0.7 2.5 48 4285 704 11 11
7 × 6 re 0.7 1.8 20 842 667 32 35
7 × 6 rm 0.7 1.8 21 896 590 32 35
8 × 6 re 0.7 1.8 22 896 667 32 35
8 × 6 rm 0.7 1.8 23 948 590 32 35
10 × 6 re 0.7 1.8 25 1088 667 27 30
10 × 6 rm 0.7 1.8 26 1151 590 27 30
12 × 6 rе 0.7 1.8 26 1225 667 27 30
12 × 6 rm 0.7 1.8 27 1298 590 27 30
14 × 6 re 0.7 1.8 27 1374 667 25 26
14 × 6 rm 0.7 1.8 29 1459 590 25 26
16 × 6 re 0.7 1.8 28 1530 667 25 26
16 × 6 rm 0.7 1.9 30 1626 590 25 26
19 × 6 rе 0.7 1.9 30 1750 667 22 23
19 × 6 rm 0.7 2.0 32 1858 590 22 23
21 × 6 re 0.7 1.9 31 1912 667 22 23
21 × 6 rm 0.7 2.0 33 2028 590 22 23
24 × 6 re 0.7 2.0 34 2181 667 19 21
24 × 6 rm 0.7 2.2 38 2684 590 19 21
30 × 6 re 0.7 2.2 37 2964 667 19 21
30 × 6 rm 0.7 2.2 40 3149 590 19 21
40 × 6 re 0.7 2.3 42 3745 667 17 17
40 × 6 rm 0.7 2.4 45 3994 590 17 17
52 × 6 re 0.7 2.5 47 4719 667 17 17
52 × 6 rm 0.7 2.6 51 5035 590 17 17
61 × 6 re 0.7 2.6 50 5404 667 15 15
61 × 6 rm 0.7 2.7 54 5760 590 15 15

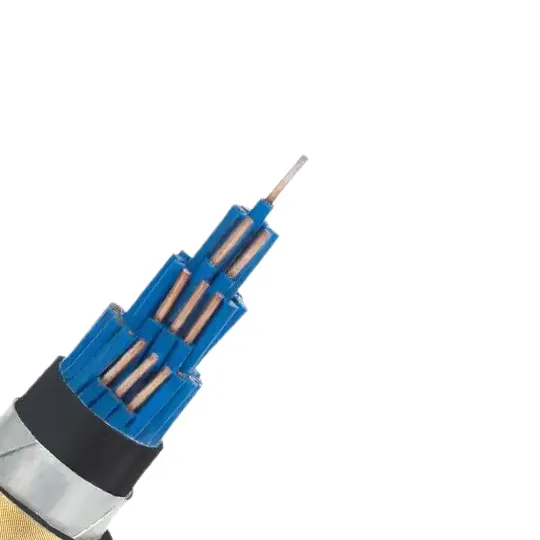

Cable Structure

● Conductor:Annealed plain copper round  solid or round circular strandard

                  [re]Round solid conductor

                  [rm]Circular stranded conductor

● Insulation:PVC

● Filler:PVC

● Sheath:PVC or FR-PVC type ST1/ST2,black

Code Designation

NYBY

Application

Control cable for installations as underground,outdoor,indoor,inducts and where mechanical protection is required or for higher tensile stresses during installation and opertation.

Standard

European standards:IEC 60502-1,VDE 0276-603,IS 1516.1
                              Flame retardant according to IEC 60332-1
Indonesia standards:Conductor SNI IEC 60228,SPLN 41-1,insulation SNI IEC 60502-1;
                    PVC Sheath grade ST2 to IEC 60502-1,grade YM/2 to SPLN 41-2.Blackcolour
Other standards such as IEC,BS,DIN and ICEA upon request

Technical Data

Rated voltage:U0/U 0.6/1kv

Test Voltage:3.5kV

Temperature Rating Maximum Operating:+70℃

Maximum Short-Circuit:+160℃

Min.Bending Radius:12 × overall diameter

Certificates

CE,RoHS,CCC,KEMA and more others at request
