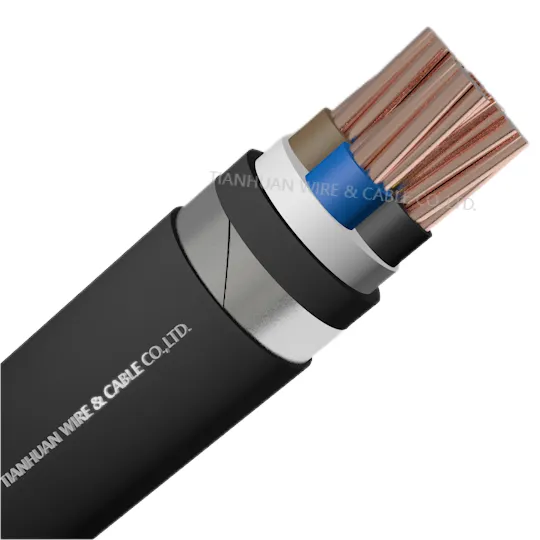

NYBY 0.6/1kv Cu conductors PVC insulated STA and PVC sheathed power cable

Power cable 0.6/1kV with Copper conductors,PVC  insulated STA and PVC sheathed

Model Number:Cu/PVC/STA/PVC,0.6/1kV(NYBY)
Category: Energy Cables/Power Cables/Industrial Cable
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters





DOWNLOAD PDF
Details
Tags

Parameter

Nom.Cross-
section Area
Nominal Thickness      overall
     diameter
cable
Weight
DC Resistance
at 20℃
Insulation min
Current Carrying
Capacity at 30℃
Insulation Outer
Sheath
In Air In Ground
mm² mm mm mm km/kg MΩ/km A
2 × 6 re 1.0  1.8  16.7  557  59  48
2 × 6 rm 1.0  1.8  17.5  587  59  48
2 × 10 re 1.0  1.8  19.0  672  78  66
2 × 10 rm 1.0  1.8  19.4  709  78  66
2 × 16 rm 1.0  1.8  21.3  894  102  90
2 × 25 rm 1.2  1.8  24.8  1248  134  120
2 × 35 rm 1.2  1.8  27.2  1555  160  150
2 × 50 rm 1.4  1.8  30.3  1952  187  180
2 × 70 rm 1.4  1.9  34.5  2600  230  230
2 × 95 rm 1.6  2.1  40.4  3745  280  275
2 × 120 rm 1.6  2.2  43.8  4476  320  320
2 × 150 rm 1.8  2.4  48.4  5418  355  379
2 × 185 rm 2.0  2.5  53.3  6649  409  430
2 × 240 rm 2.2  2.7  59.7  8524  472  510
2 × 300 rm 2.4  2.9  65.8  10229  525  590
3 × 4 rе 1.0  1.8  16.4  499  10  41  34
3 × 4 rm 1.0  1.8  17.2  534  41  34
3 × 6 re 1.0  1.8  17.5  591  52  44
3 × 6 rm 1.0  1.8  18.4  638  52  44
3 × 10 re 1.0  1.8  20.0  807  69  60
3 × 10 rm 1.0  1.8  20.4  835  69  60
3 x 16 rm 1.0  1.8  22.5  1159  89  80
3 × 25 rm 1.2  1.8  26.2  1517  116  105
3 × 35 rm 1.2  1.8  28.6  1894  138  130
3 × 50 sm 1.4  1.9  30.5  2238  165  160
3 x 70 sm 1.4  2.0  33.9  3007  205  200
3 × 95 sm 1.6  2.2  38.9  4256  245  245
3 × 120 sm 1.6  2.3  41.6  5124  285  285
3 × 150 sm 1.8  2.4  45.6  6223  315  325
3 × 185 sm 2.0  2.6  49.4  7613  355  370
3 × 240 sm 2.2  2.8  54.8  9623  415  435
3 × 300 sm 2.4  3.0  59.7  11588  465  500
3 × 150 sm 1.8  2.4  48.9  7407  315  325
3 × 185 sm 2.0  2.6  52.5  8774  355  370
3 × 240 sm 2.2  2.8  57.9  11036  415  435
3 × 300 sm 2.4  3.0  62.5  13137  465  500
4 × 2.5 re 0.8  1.8  16.4  499  10  32  25
4 × 2.5 rm 0.8  1.8  17.2  534  32  25
4 × 4 re 1.0  1.8  16.4  499  10  41  34
4 × 4 rm 1.0  1.8  17.2  534  41  34
4 × 6 re 1.0  1.8  17.5  591  52  44
4 × 6 rm 1.0  1.8  18.4  638  52  44
4 x 10 re 1.0  1.8  190 1075  69  60
4 × 10 rm 1.0  1.8  19.4  1101  69  60
4 × 16 rm 1.0  1.8  21.8  1455  89  80
4 × 25 rm 1.2  1.8  25.9  2093  116  105
4 × 35 rm 1.2  1.9  28.6  2602  138  130
4 × 50 sm 1.4  2.0  300 3080  165  160
4 × 70 sm 1.4  2.2  34.1  4093  205  200
4 × 95 sm 1.6  2.4  38.7  5370  245  245
4 × 120 sm 1.6  2.5  42.6  6563  285  285
4 × 150 sm 1.8  2.6  46.3  7938  315  325
4 × 185 sm 2.0  2.8  52.2  9756  355  370
4 × 240 sm 2.2  3.0  58.5  12409  415  435
4 × 300 sm 2.4  3.2  65.4  15104  465  500
5 × 4 re 1.0  1.8  18.7  656  10  41  34
5 × 4 rm 1.0  1.8  19.7  704  41  34
5 × 6 re 1.0  1.8  20.1  842  52  44
5 × 6 rm 1.0  1.8  21.2  857  52  44
5 × 10 re 1.0  1.8  23.3  1114  69  60
5 × 10 rm 1.0  1.8  23.7  1149  69  60
5 × 16 rm 1.0  1.8  26.3  1498  89  80
5 × 25 rm 1.2  1.8  31.0  2365  116  105
5 × 35 rm 1.2  2.0  34.6  2803  138  130
5 × 50 rm 1.4  2.2  40.4  3909  165  160
5 × 16 rm 1.0  1.8  28.3  1928  89  80
5 × 25 rm 1.2  1.9  33.2  2641  116  105
5 × 35 rm 1.2  2.0  37.4  3520  138  130
5 × 50 rm 1.4  2.1  43.0  4921  165  160

Cable Structure

● Conductor: [re] round solid conductor

                    [rm] circular stranded conductor

                    [Sm]Sector shape conductor

● Insulation: PVC

● Filler:PVC

● Armour:Galvanized steel tape helically applied.

● Out Sheath: PVC or FR-PVC type ST1/ST2/ST8,black

Code Designation

NYBY

Application

The NYBY cable is suitable for installation indoors, in cable channels and in duct in ground in switchgear, power stations and industrial application, in harsh environments where a high level
mechanical protection is required.

Standard

European standards:IEC 60502-1,VDE0276-603,IS1516.1

                            Flame retardant according to IEC/EN 60332-1

Indonesia standards:Conductor SNI IEC 60228,SPLN 41-1,insulation SNI IEC 60502-1;SPLN41-9
                          PVC Sheath grade ST2 to IEC 60502-1,grade YM/2 to SPLN 41-2.Black colour.

Technical Data

Rated voltage:U0/U 0.6/1 kV

Test Voltage:3.5kV

Temperature Rating Maximum Operating: +70℃

                             Maximum Short-Circuit:+160℃

Minimum. Bend Radius:12×overall diameter

Certificates

CE, RoHS,CCC, KEMA and more others at request
