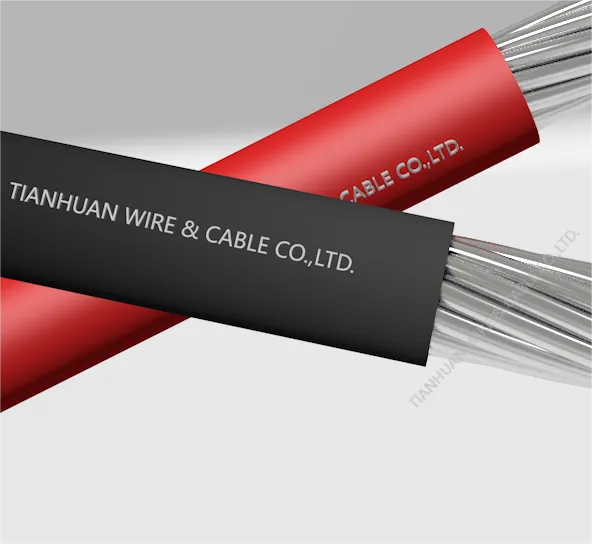

NA2XA 0.6/1kv AL conductors XLPE insulated Single core power cable

Power cable 0.6/1kV with single core AL conductors,XLPE  insulated

Model Number:Cu/XLPE,0.6/1kV(NA2XA)
Category: Energy Cables/Power Cables/Industrial Cable
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters





DOWNLOAD PDF
Details
Tags

Parameter

Nom.Cross-section Area Nominal Thickness Insulation overall diameter cable Weight DC Resistance at 20℃Insulation min Current Carrying Capacity at 30℃ in Air
mm² mm mm km/kg M.Ω.km A
1 × 50 rm 1.0 10.8 151 900 204
1 × 70 rm 1.1 12.7 214 900 257
1 × 95 rm 1.1 14.6 288 800 316
1 × 120 rm 1.2 16.3 362 800 368
1 × 150 rm 1.4 18.3 451 800 421
1 × 185 rm 1.6 20.5 566 800 488
1 × 240 rm 1.7 23.3 736 700 583
1 × 300 rm 1.8 25.7 907 700 675
1 × 400 rm 2.0 29.1 1165 700 790
1 × 500 rm 2.2 32.8 1490 700 921
1 × 630 rm 2.4 37.1 1910 600 1091

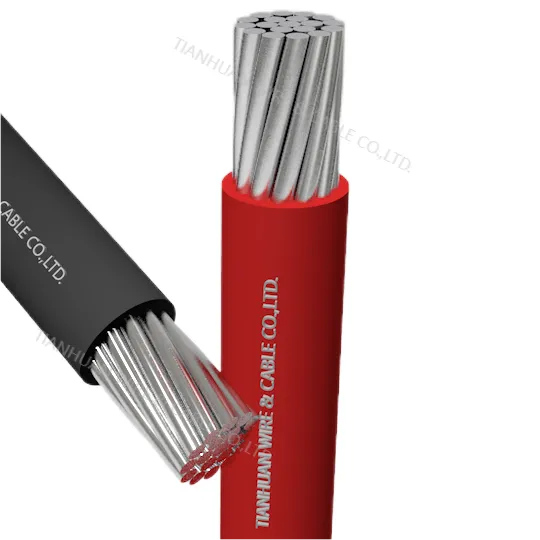

Cable Structure

● Conductor: [rm] circular stranded conductor

● Insulation: XLPE



Code Designation

NA2XA

Application

For Installations as underground,outdoor ,indoor,in ducts and where mechanical protection is required or for higher tensile stresses during installation and operation.

Standard

Indonesia standards:Conductor SNI IEC 60228,SPLN 41-1,insulation SNI IEC 60502-1,SPLN 41-9



Technical Data

Rated voltage:U0/U 0.6/1 kV

Temperature Rating Maximum Operating: +90℃

Maximum Short-Circuit :+250℃

Minimum. Bending Radius:15×overall diameter

Certificates

CE, RoHS,CCC, KEMA and more others at request
