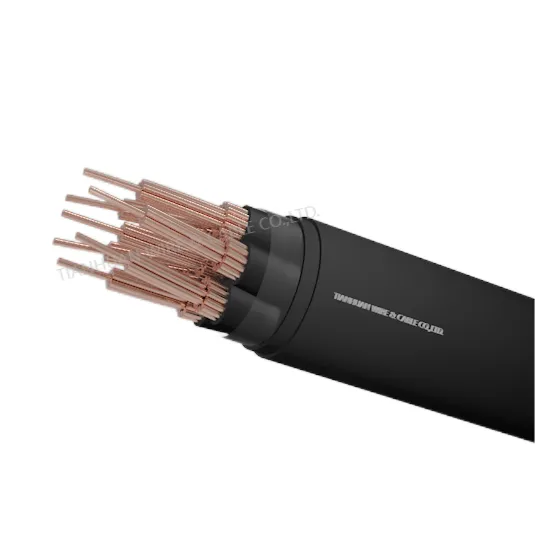

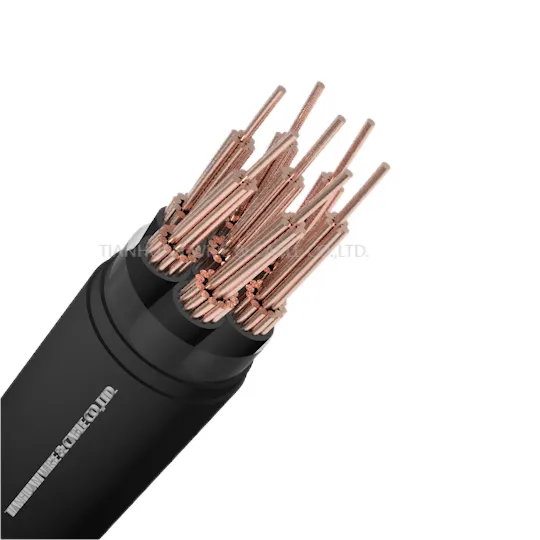

N2XY 0.6/1kV With Cu Conductors,XLPE Insulated and PVC Sheathed non Armoured Control Cable

Copper Conductors,XLPE Insulated and PVC Sheathed non Armoured Control Cable

Model Number: CU/XLPE/PVC 0.6/1kV (N2XY)
Category: Control Cable
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters

CONTACT NOW DOWNLOAD PDF

Details

Tags

Parameter

Nom.Cross-section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃Insulation min	Current Carrying Capacity at 30℃
Nom.Cross-section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	M.Ω.km	A	A
7 × 1.5 re	0.7	1.8	15	305	1121	11	16
7 × 1.5 rm	0.7	1.8	15	324	1020	11	16
8 × 1.5 re	0.7	1.8	16	340	1121	11	16
8 × 1.5 rm	0.7	1.8	16	350	1020	11	16
10 × 1.5 re	0.7	1.8	18	413	1121	10	14
10 × 1.5 rm	0.7	1.8	19	426	1020	10	14
12 × 1.5 re	0.7	1.8	18	457	1121	13	14
12 × 1.5 rm	0.7	1.8	19	471	1020	13	14
14 × 1.5 re	0.7	1.8	19	498	1121	9	11
14 × 1.5 rm	0.7	1.8	20	512	1020	9	11
16 × 1.5 re	0.7	1.8	20	549	1121	9	11
16 × 1.5 rm	0.7	1.8	21	564	1020	9	11
19 × 1.5 re	0.7	1.8	21	610	1121	8	10
19 × 1.5 rm	0.7	1.8	21	626	1020	8	10
21 × 1.5 re	0.7	1.8	22	662	1121	8	10
21 × 1.5 rm	0.7	1.8	22	679	1020	8	10
24 × 1.5 re	0.7	1.8	24	752	1121	7	9
24 × 1.5 rm	0.7	1.8	24	772	1020	7	9
30 × 1.5 re	0.7	1.8	25	877	1121	7	9
30 × 1.5 rm	0.7	1.8	26	898	1020	7	9
40 × 1.5 re	0.7	1.8	27	1096	1121	6	8
40 × 1.5 rm	0.7	1.8	28	1126	1020	6	8
52 × 1.5 re	0.7	1.9	31	2383	1121	6	8
52 × 1.5 rm	0.7	2.0	32	1455	1020	6	8
61 × 1.5 re	0.7	2.0	33	1616	1121	5	7
61 × 1.5 rm	0.7	2.0	34	1653	1020	5	7
7 × 2.5 re	0.7	1.8	16	403	940	18	22
7 × 2.5 rm	0.7	1.8	17	427	842	18	22
8 × 2.5 re	0.7	1.8	17	425	940	18	22
8 × 2.5 rm	0.7	1.8	18	447	842	18	22
10 × 2.5 re	0.7	1.8	19	513	940	15	18
10 × 2.5 rm	0.7	1.8	20	541	842	15	18
12 × 2.5 re	0.7	1.8	20	576	940	15	18
12 × 2.5 rm	0.7	1.8	21	607	842	15	18
14 × 2.5 re	0.7	1.8	21	644	940	14	16
14 × 2.5 rm	0.7	1.8	22	679	842	14	16
16 × 2.5 re	0.7	1.8	22	714	940	14	16
16 × 2.5 rm	0.7	1.8	23	752	842	14	16
19 × 2.5 re	0.7	1.8	23	811	940	12	14
19 × 2.5 rm	0.7	1.8	24	855	842	12	14
21 × 2.5 re	0.7	1.8	24	882	940	12	14
21 × 2.5 rm	0.7	1.8	25	929	842	12	14
24 × 2.5 re	0.7	1.8	26	998	940	11	13
24 × 2.5 rm	0.7	1.8	27	1,054	842	11	13
30 × 2.5 re	0.7	1.8	27	1,187	940	11	13
30 × 2.5 rm	0.7	1.8	29	1,259	842	11	13
40 × 2.5 re	0.7	1.9	30	1,523	940	9	10
40 × 2.5 rm	0.7	1.9	33	1,653	842	9	10
52 × 2.5 re	0.7	2.0	35	1,973	940	9	10
52 × 2.5 rm	0.7	2.0	37	2,093	842	9	10
61 × 2.5 re	0.7	2.0	37	2,269	940	8	9
61 × 2.5 rm	0.7	2.0	39	2,403	842	8	9
7 × 4 re	0.7	1.8	17	531	784	25	27
7 × 4 rm	0.7	1.8	18	567	704	25	27
8 × 4 re	0.7	1.8	19	562	784	25	27
8 × 4 rm	0.7	1.8	20	595	704	25	27
10 × 4 re	0.7	1.8	21	685	784	21	23
10 × 4 rm	0.7	1.8	22	726	704	21	23
12 × 4 re	0.7	1.8	22	777	784	21	23
12 × 4 rm	0.7	1.8	23	824	704	21	23
14 × 4 re	0.7	1.8	23	876	784	19	21
14 × 4 rm	0.7	1.8	24	928	704	19	21
16 × 4 re	0.7	1.8	24	976	784	19	21
16 × 4 rm	0.7	1.8	25	1034	704	19	21
19 × 4 re	0.7	1.8	25	1119	784	17	18
19 × 4 rm	0.7	1.8	26	1184	704	17	18
21 × 4 re	0.7	1.8	27	1220	784	17	18
21 × 4 rm	0.7	1.8	28	1296	704	17	18
24 x 4 re	0.7	1.8	29	1394	784	15	16
24 × 4 rm	0.7	1.8	31	1680	704	15	16
30 × 4 re	0.7	1.9	31	1690	784	15	16
30 × 4 rm	0.7	1.9	33	1828	704	15	16
40 × 4 re	0.7	2.0	35	2211	784	13	14
40 × 4 rm	0.7	2.0	37	2345	704	13	14
52 × 4 re	0.7	2.1	39	2815	784	13	14
52 × 4 rm	0.7	2.1	41	2997	704	13	14
61 × 4 re	0.7	2.2	42	3248	784	11	11
61 × 4 rm	0.7	2.2	45	3511	704	11	11
7 × 6 re	0.7	1.8	19	697	667	32	35
7 × 6 rm	0.7	1.8	20	741	590	32	35
8 × 6 re	0.7	1.8	20	740	667	32	35
8 × 6 rm	0.7	1.8	22	780	590	32	35
10 × 6 re	0.7	1.8	23	906	667	27	30
10 × 6 rm	0.7	1.8	25	956	590	27	30
12 × 6 re	0.7	1.8	23	1038	667	27	30
12 × 6 rm	0.7	1.8	26	1094	590	27	30
14 × 6 re	0.7	1.8	25	1177	667	25	26
14 × 6 rm	0.7	1.8	27	1239	590	25	26
16 × 6 rе	0.7	1.8	26	1317	667	25	26
16 × 6 rm	0.7	1.8	28	1393	590	25	26
19 × 6 re	0.7	1.8	28	1524	667	22	23
19 × 6 rm	0.7	1.8	30	1614	590	22	23
21 × 6 re	0.7	1.8	29	1672	667	22	23
21 × 6 rm	0.7	1.8	32	1807	590	22	23
24 × 6 re	0.7	1.8	33	1954	667	19	21
24 × 6 rm	0.7	1.8	35	2072	590	19	21
30 × 6 re	0.7	2.0	35	2362	667	19	21
30 × 6 rm	0.7	2.0	37	2500	590	19	21
40 × 6 re	0.7	2.1	39	3064	667	17	17
40 × 6 rm	0.7	2.1	42	3240	590	17	17
52 × 6 re	0.7	2.3	44	3970	667	17	17
52 × 6 rm	0.7	2.3	48	4200	590	17	17
61 × 6 re	0.7	2.4	47	4590	667	15	15
61 × 6 rm	0.7	2.4	51	4853	590	15	15

Cable Structure

● Conductor:Annealed plain copeer round soild or round circular stranded

[re]Round solid conductor

[rm]Circular stranded conductor

● Insulation:XLPE

● Filler:PVC

● Armour:Helically copper tape screened with nominal thickness 0.1mm

● Outer Sheath:PVC or FR-PVC type ST1/ST2,black

Code Designation

N2XY

Application

For Installations as underground ,outdoor,indoor,in ducts and where mechanical protection is required or for higher tensile stresses during installation and operation.

Standard

European standards:IEC 60502-1,VDE 0276-603,IEC/EN 60228
Flame retardant according to IEC/EN 60332-1-2
Indonesia standards:Conductor SNI IEC 60228,SPLN 41-1/XLPE Insulation SNI IEC 60502-1;SPLN 41-9/
PVC Sheath grade ST2 to SNI IEC 60502-1,grade YM/2 to SPLN 41-2.Black
Other standards such as IEC,BS,DIN and ICEA upon request

Technical Data

Rated voltage:U0/U 0.6/1kv

Temperature Rating :During installation:-5℃ to+50℃

Fixed Installation:-20℃ to+90℃

Minimum Bending Radius:Fixed:12×overall diameter

Certificates

CE,RoHS,CCC,KEMA and more others at request
