N2XSEBY/NA2XSEBY MEDIUM VOLTAGE Cu/AL CONDUCTOR XLPE INSULATED MULTI-CORE STEEL TAPE ARMOURED CABLE

N2XSEBY/NA2XSEBY MEDIUM VOLTAGE Cu/AL CONDUCTOR XLPE INSULATED MULTI-CORE STEEL TAPE ARMOURED CABLE

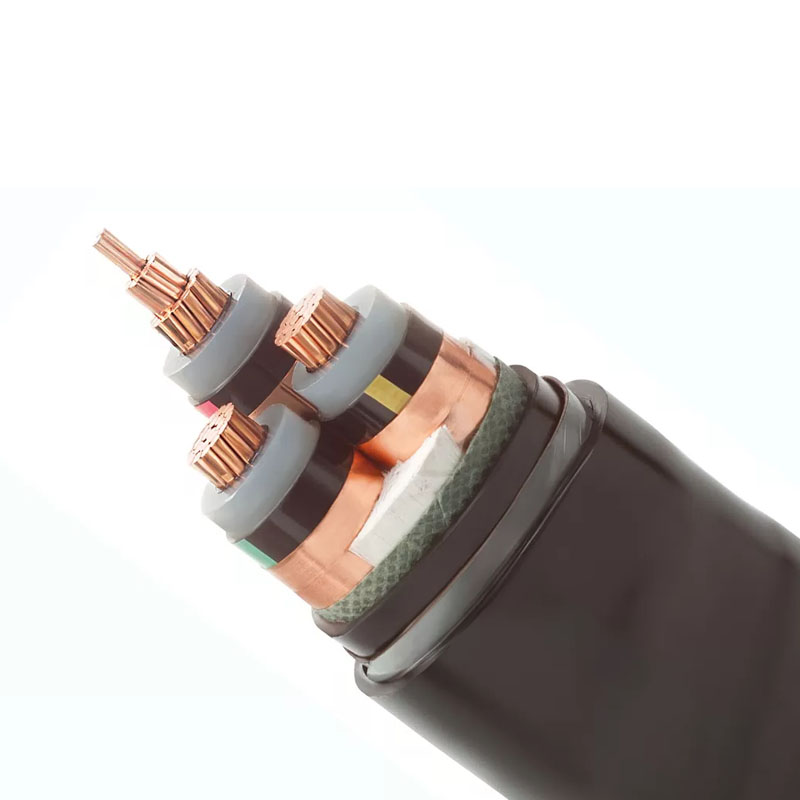

Steel tape armoured cable, with multi cores of copper conductors, Semi-conductor Screen, XLPE insulation, Copper Tape Screen, PVC bedding, Stainless steel tape, Low Smoke Zero Halogen (LSZH) outer sheath or PVC sheath. Gives Rated voltage 3.6/6KV,6/10kV,8.7/15kV,12/20kV,18/30kV,21/35kV,26/35kV for indoor and outdoor installation, in air and ground.

Model Number: N2XSEBY/NA2XSEBY (CU(AL)/XLPE/CTS/PVC/STA/PVC/DSTA/PVC), 3.6/6KV,6/10kV,8.7/15kV,12/20kV,18/30kV,21/35kV,26/35kV
Category: Energy Cables/Power Cables/Industrial Cable/STA Cable
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters





DOWNLOAD PDF
Details
Tags

Parameter

  Nom.Cross-
   section of
   conductor		 Insulation
Thickness		 Inner
Covering
Thickness		 Steel Tape Thickness Sheath
Thickness		 Approx O.D. Approx
Weight		 Max.D.C.
Resistance of  Conductor  (20℃)		 Test Voltage  A.C Current Rating
mm² mm mm mm mm mm kg/km Ω/km kV/5min In air(A) In soil(A)
1×25 2.5 1.0 2 ×0.2 1.8 15.0 726 0.7270 12.5 140 150
1×35 2.5 1.0 2 ×0.2 1.8 16.0 845 0.5240 12.5 170 180
1×50 2.5 1.0 2 ×0.2 1.8 17.0 1000 0.3870 12.5 205 215
1×70 2.5 1.0 2 ×0.2 1.8 19.0 1221 0.2680 12.5 260 265
1×95 2.5 1.0 2 ×0.2 1.8 20.0 1468 0. 1930 12.5 315 315
1×120 2.5 1.0 2 ×0.2 1.8 21.0 1719 0. 1530 12.5 360 360
1×150 2.5 1.0 2 ×0.2 1.9 23.0 2022 0. 1240 12.5 410 405
1×185 2.5 1.0 2 ×0.2 1.9 24.0 2358 0.0991 12.5 470 455
1×240 2.6 1.2 2 ×0.5 2.1 27.0 3169 0.0754 12.5 555 530
1×300 2.8 1.2 2 ×0.5 2.1 29.0 3770 0.0601 12.5 640 595
1×400 3.0 1.2 2 ×0.5 2.3 33.0 4786 0.0470 12.5 745 680
1×500 3.2 1.2 2 ×0.5 2.4 37.0 5875 0.0366 12.5 885 765
3×25 2.5 1.2 2 ×0.5 2.3 41.0 2816 0.7270 12.5 120 125
3×35 2.5 1.3 2 ×0.5 2.3 43.0 3254 0.5240 12.5 140 155
3×50 2.5 1.3 2 ×0.5 2.4 47.0 3842 0.3870 12.5 165 180
3×70 2.5 1.4 2 ×0.5 2.6 50.0 4706 0.2680 12.5 210 220
3×95 2.5 1.5 2 ×0.5 2.7 53.0 5646 0. 1930 12.5 255 265
3×120 2.5 1.5 2 ×0.5 2.8 57.0 6580 0. 1530 12.5 290 300
3×150 2.5 1.6 2 ×0.5 2.9 60.0 7659 0. 1240 12.5 330 340
3×185 2.5 1.7 2 ×0.5 3.0 64.0 8946 0.0991 12.5 375 380
3×240 2.6 1.8 2 ×0.5 3.2 69.0 10972 0.0754 12.5 435 435
3×300 2.8 1.9 2 ×0.5 3.4 75.0 13194 0.0601 12.5 495 485
3×400 3.0 2.0 2 ×0.8 3.7 83.0 17489 0.0470 12.5 565 520

                                                                                        N2XSEBY 3.6/6kV

  Nom.Cross-
   section of
   conductor		 Insulation
Thickness		 Inner
Covering
Thickness		  Steel Tape Thickness Sheath
Thickness		 Approx O.D. Approx
Weight		 Max.D.C.
Resistance of  Conductor  (20℃)		 Test Voltage  A.C Current Rating
mm² mm mm mm mm mm kg/km Ω/km kV/5min In air(A) In soil(A)
1×25 3.4 1.0 2 ×0.2 1.8 16 808 0.727 21 140 150
1×35 3.4 1.0 2 ×0.2 1.8 17 930 0.524 21 170 180
1×50 3.4 1.0 2 ×0.2 1.8 19 1087 0.387 21 205 215
1×70 3.4 1.0 2 ×0.2 1.8 20 1314 0.268 21 260 265
1×95 3.4 1.0 2 ×0.2 1.9 22 1576 0.193 21 315 315
1×120 3.4 1.0 2 ×0.2 1.9 23 1831 0.153 21 360 360
1×150 3.4 1.0 2 ×0.2 1.9 24 2126 0.124 21 410 405
1×185 3.4 1.2 2 ×0.5 2.0 26 2723 0.0991 21 470 455
1×240 3.4 1.2 2 ×0.5 2.1 28 3284 0.0754 21 555 530
1×300 3.4 1.2 2 ×0.5 2.2 30 3877 0.0601 21 640 595
1×400 3.4 1.2 2 ×0.5 2.3 34 4889 0.047 21 745 680
1×500 3.4 1.4 2 ×0.5 2.5 38 5992 0.0366 21 885 765
3×25 3.4 1.6 2 ×0.5 2.5 46 3010 0.727 21 120 125
3×35 3.4 1.6 2 ×0.5 2.6 48 3498 0.524 21 140 155
3×50 3.4 1.8 2 ×0.5 2.6 51 4135 0.387 21 165 180
3×70 3.4 1.8 2 ×0.5 2.8 55 4958 0.268 21 210 220
3×95 3.4 2.0 2 ×0.5 2.9 58 5976 0.193 21 255 265
3×120 3.4 2.0 2 ×0.5 3.0 61 6969 0.153 21 290 300
3×150 3.4 2.0 2 ×0.5 3.1 64 8161 0.124 21 330 340
3×185 3.4 2.2 2 ×0.5 3.2 68 8417 0.0991 21 375 380
3×240 3.4 2.2 2 ×0.5 3.4 73 11340 0.0754 21 435 435
3×300 3.4 2.2 2 ×0.5 3.5 78 14247 0.0601 21 495 485
3×400 3.4 2.2 2 ×0.8 3.8 86 17510 0.047 21 565 520

                                                                                        N2XSEBY 6/10kV

  Nom.Cross-
   section of
   conductor		 Insulation
Thickness		 Inner
Covering
Thickness		  Steel Tape Thickness Sheath
Thickness		 Approx O.D. Approx
Weight		 Max.D.C.
Resistance of  Conductor  (20℃)		 Test Voltage  A.C Current Rating
mm² mm mm mm mm mm kg/km Ω/km kV/5min In air(A) In soil(A)
1×25 4.5 1.0 2 ×0.2 1.9 19 915 0.727 30.5 140 150
1×35 4.5 1.0 2 ×0.2 1.9 20 1040 0.524 30.5 170 180
1×50 4.5 1.0 2 ×0.2 1.9 21 1201 0.387 30.5 205 215
1×70 4.5 1.0 2 ×0.2 2 23 1445 0.268 30.5 260 265
1×95 4.5 1.0 2 ×0.2 2 24 1700 0.193 30.5 315 315
1×120 4.5 1.2 2 ×0.2 2.1 25 2005 0.153 30.5 360 360
1×150 4.5 1.2 2 ×0.5 2.2 27 2538 0.124 30.5 410 405
1×185 4.5 1.2 2 ×0.5 2.2 28 2896 0.0991 30.5 470 455
1×240 4.5 1.2 2 ×0.5 2.3 30 3466 0.0754 30.5 555 530
1×300 4.5 1.2 2 ×0.5 2.4 32 4067 0.0601 30.5 640 595
1×400 4.5 1.4 2 ×0.5 2.5 36 5138 0.047 30.5 745 680
1×500 4.5 1.4 2 ×0.5 2.6 40 6194 0.0366 30.5 885 765
3×25 4.5 1.6 2 ×0.5 2.6 51 3500 0.727 30.5 120 125
3×35 4.5 1.6 2 ×0.5 2.7 53 3980 0.524 30.5 140 155
3×50 4.5 1.8 2 ×0.5 2.8 56 4679 0.387 30.5 165 180
3×70 4.5 1.8 2 ×0.5 3 58 5410 0.268 30.5 210 220
3×95 4.5 2.0 2 ×0.5 3.1 63 6567 0.193 30.5 255 265
3×120 4.5 2.0 2 ×0.5 3.2 66 7541 0.153 30.5 290 300
3×150 4.5 2.0 2 ×0.5 3.3 70 8674 0.124 30.5 330 340
3×185 4.5 2.2 2 ×0.5 3.4 73 9991 0.0991 30.5 375 380
3×240 4.5 2.2 2 ×0.8 3.6 79 11887 0.0754 30.5 435 435
3×300 4.5 2.2 2 ×0.8 3.7 83 14974 0.0601 30.5 495 485
3×400 4.5 2.2 2 ×0.8 4 92 18230 0.047 30.5 565 525

                                                                                        N2XSEBY 8.7/15kV

  Nom.Cross-
   section of
   conductor		 Insulation
Thickness		 Inner
Covering
Thickness		  Steel Tape Thickness Sheath
Thickness		 Approx O.D. Approx
Weight		 Max.D.C.
Resistance of  Conductor  (20℃)		 Test Voltage  A.C Current Rating
mm² mm mm mm mm mm kg/km Ω/km kV/5min In air(A) In soil(A)
1×35 5.5 1.0 2 ×0.2 1.9 22.0 1158 0.524 30.5 170 180
1×50 5.5 1.0 2 ×0.2 1.9 23.0 1323 0.387 30.5 205 215
1×70 5.5 1.0 2 ×0.2 2.0 25.0 1574 0.268 30.5 260 265
1×95 5.5 1.2 2 ×0.5 2.0 26.0 2076 0.193 30.5 315 315
1×120 5.5 1.2 2 ×0.5 2.1 27.0 2368 0.153 30.5 360 360
1×150 5.5 1.2 2 ×0.5 2.1 29.0 2684 0.124 30.5 410 405
1×185 5.5 1.2 2 ×0.5 2.3 30.0 3062 0.0991 30.5 470 455
1×240 5.5 1.2 2 ×0.5 2.4 32.0 3640 0.0754 30.5 555 530
1×300 5.5 1.2 2 ×0.5 2.4 34.0 4231 0.0601 30.5 640 595
1×400 5.5 1.4 2 ×0.5 2.6 38.0 5336 0.047 30.5 745 680
1×500 5.5 1.4 2 ×0.5 2.7 42.0 6405 0.0366 30.5 885 765
3×35 5.5 1.8 2 ×0.5 2.9 58.0 4840 0.524 30.5 140 155
3×50 5.5 1.8 2 ×0.5 3.0 61.0 5463 0.387 30.5 165 180
3×70 5.5 2.0 2 ×0.5 3.1 65.0 6446 0.268 30.5 210 220
3×95 5.5 2.0 2 ×0.5 3.2 68.0 7457 0.193 30.5 255 265
3×120 5.5 2.0 2 ×0.5 3.3 71.0 8459 0.153 30.5 290 300
3×150 5.5 2.2 2 ×0.5 3.4 75.0 10555 0.124 30.5 330 340
3×185 5.5 2.2 2 ×0.5 3.5 78.0 11925 0.0991 30.5 375 380
3×240 5.5 2.2 2 ×0.8 3.7 83.0 13959 0.0754 30.5 435 435
3×300 5.5 2.2 2 ×0.8 3.9 88.0 16314 0.0601 30.5 495 485
3×400 5.5 2.3 2 ×0.8 4.1 95.0 19032 0.047 30.5 565 520

                                                                                        N2XSEBY 18/30kV

  Nom.Cross-
   section of
   conductor		 Insulation
Thickness		 Inner
Covering
Thickness		  Steel Tape Thickness Sheath
Thickness		 Approx O.D. Approx
Weight		 Max.D.C.
Resistance of  Conductor  (20℃)		 Test Voltage  A.C Current Rating
mm² mm mm mm mm mm kg/km Ω/km kV/5min In air(A) In soil(A)
1×50 9.3 1.2 2 ×0.5 2.2 32.0 2229 0.387 73.5 220 215
1×70 9.3 1.2 2 ×0.5 2.3 33.0 2523 0.268 73.5 270 265
1×95 9.3 1.3 2 ×0.5 2.4 35.0 2853 0.193 73.5 330 315
1×120 9.3 1.4 2 ×0.5 2.4 36.0 3172 0.153 73.5 375 360
1×150 9.3 1.4 2 ×0.5 2.5 37.0 3531 0.124 73.5 425 400
1×185 9.3 1.4 2 ×0.5 2.5 39.0 3916 0.0991 73.5 485 455
1×240 9.3 1.4 2 ×0.5 2.6 41.0 4533 0.0754 73.5 560 525
1×300 9.3 1.4 2 ×0.5 2.7 43.0 5177 0.0601 73.5 650 595
1×400 9.3 1.6 2 ×0.5 2.8 46.0 6285 0.047 73.5 760 680
1×500 9.3 1.6 2 ×0.5 2.9 50.0 7351 0.0366 73.5 875 775
3×50 9.3 1.8 2 ×0.8 3.6 82.0 8376 0.387 73.5 185 200
3×70 9.3 1.8 2 ×0.8 3.7 85.0 9442 0.268 73.5 230 250
3×95 9.3 1.8 2 ×0.8 3.8 88.0 10573 0.193 73.5 280 300
3×120 9.3 1.8 2 ×0.8 3.9 92.0 11690 0.153 73.5 310 330
3×150 9.3 2.0 2 ×0.8 4.0 95.0 12957 0.124 73.5 360 380
3×185 9.3 2.0 2 ×0.8 4.1 99.0 14423 0.0991 73.5 400 425
3×240 9.3 2.0 2 ×0.8 4.3 104.0 16717 0.0754 73.5 470 490
3×300 9.3 2.0 2 ×0.8 4.4 108.0 18856 0.0601 73.5 540 555
3×400 9.3 2.0 2 ×0.8 4.7 116.0 20995 0.047 73.5 610 625

                                                                                        N2XSEBY 21/35kV

  Nom.Cross-
   section of
   conductor		 Insulation
Thickness		 Inner
Covering
Thickness		  Steel Tape Thickness Sheath
Thickness		 Approx O.D. Approx
Weight		 Max.D.C.
Resistance of  Conductor  (20℃)		 Test Voltage  A.C Current Rating
mm² mm mm mm mm mm kg/km Ω/km kV/5min In air(A) In soil(A)
1 ×50 10.5 1.2 2 ×0.5 2.3 34.0 2441 0.387 91 220 215
1 ×70 10.5 1.4 2 ×0.5 2.4 36.0 2788 0.268 91 270 265
1 ×95 10.5 1.4 2 ×0.5 2.4 37.0 3083 0.193 91 330 315
1 × 120 10.5 1.4 2 ×0.5 2.5 38.0 3407 0.153 91 375 360
1 × 150 10.5 1.4 2 ×0.5 2.5 40.0 3750 0.124 91 425 400
1 × 185 10.5 1.4 2 ×0.5 2.6 41.0 4163 0.0991 91 485 455
1 ×240 10.5 1.4 2 ×0.5 2.7 44.0 4790 0.0754 91 560 525
1 ×300 10.5 1.6 2 ×0.5 2.8 46.0 5498 0.0601 91 650 595
1 ×400 10.5 1.6 2 ×0.5 2.9 49.0 6568 0.047 91 760 680
1 ×500 10.5 1.6 2 ×0.5 3.0 52.0 7648 0.0366 91 875 775
3 ×50 10.5 2.0 2 ×0.8 3.7 87.0 9975 0.387 91 185 200
3 ×70 10.5 2.0 2 ×0.8 3.9 90.0 10927 0.268 91 230 250
3 ×95 10.5 2.1 2 ×0.8 4.0 95.0 12190 0.193 91 280 300
3 × 120 10.5 2.2 2 ×0.8 4.1 99.0 13451 0.153 91 310 330
3 × 150 10.5 2.2 2 ×0.8 4.2 100.0 14907 0.124 91 360 380
3 × 185 10.5 2.3 2 ×0.8 4.3 106.0 16501 0.0991 91 400 425
3 ×240 10.5 2.4 2 ×0.8 4.5 112.0 18826 0.0754 91 470 490
3 ×300 10.5 2.6 2 ×0.8 4.6 115.0 19114 0.0601 91 545 555
3 ×400 10.5 2.6 2 ×0.8 4.9 123.0 22818 0.047 91 635 625

                                                                                        N2XSEBY 26/35kV

Cable Structure

● Conductor:Compact stranded copper conductor,Cl.2 as per IEC 60228

● Conductor Screen:Semi-conductor

● Insulation:XLPE(cross-linked polyethylene)rated at 90℃

● Insulation Screen:Semi-conductor

● Screen:Copper tape

● Filler:non hygroscopic filler(PP)

● Inner covering:PVC

● Armoring:Double stainless steel tape -1 core

                 Double galvanized steel tape -3 cores

● Sheath:PVC or FR-PVC type ST2/ST8 to IEC 60502.black

Code Designation

China YJ:XLPE insulation

V:PVC sheath

22:Double galvanized steel wire armoring-3 cores

62:Double stainless steel tape armoring-1 core

ZR:Flame resistant

European Union:N2XSEBY/NA2XSEBY

Application

Wiring environment apply to shafts,water and soil,able to stand the larger positive pressure.

Standard

International:IEC 60502,IEC 60228,(IEC 60332-3 for ZR-YJV22,ZR-YJV62 only)

China:GB/T 12706,(GB/T 18380-3 for ZR-YJV22,ZR-YJV62 only)

European standard:DIN VDE0276-620,HD620S2,IEC/EN 60228,IEC/EN 60502-2

                            Flame Retardant according to IEC/EN 60332-1-2

Indonesian Standard:Conductor:SNI IEC 60228/Insulation:SNI IEC 60502-2

Other standards such as BS,DIN and ICEA upon request

Technical Data

Rated voltage:3.6/6KV,6/10kV,8.7/15kV,12/20kV,18/30kV,21/35kV,26/35kV

Maximum Conductor Temperature:under normal (90℃),emergency(130℃)or short circuit no more than 5s (250℃)conditions.

Min.Ambient Temp.-20°℃,Installation Temp.0℃

Min.Bending Radius:15×cable O.D for single core

                             12×cable O.D for multi core

Certificates

CE,RoHS,CCC,KEMA and more others at request

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.


Write your message here and send it to us
Related NEWS
Quick Link
Product Category
  • sns02
  • 领英
  • icon_YouTube
  • whatsapp
  • YouTube(1)
Copyright © 2025 Tianhuan Cable Group Co., Ltd. All Rights Reserved. Sitemap | Privacy Policy

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.


Hit enter to search or ESC to close
