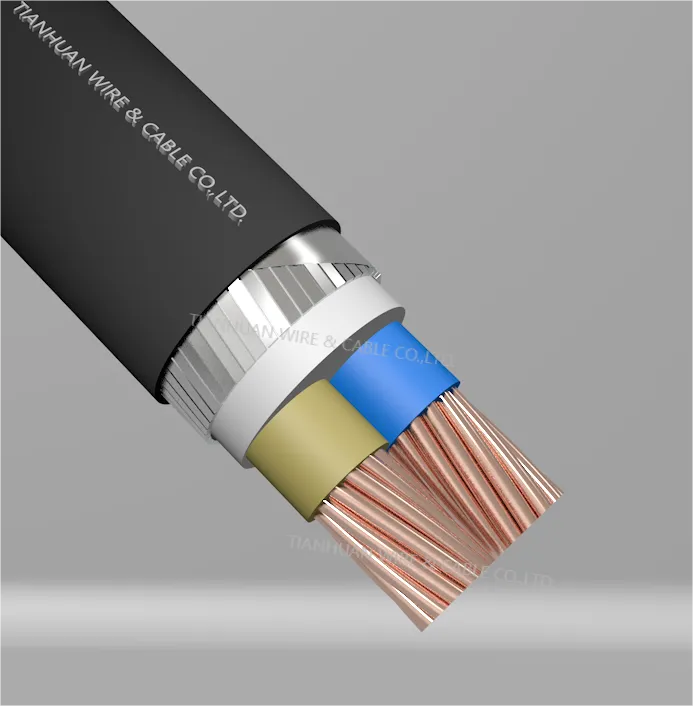

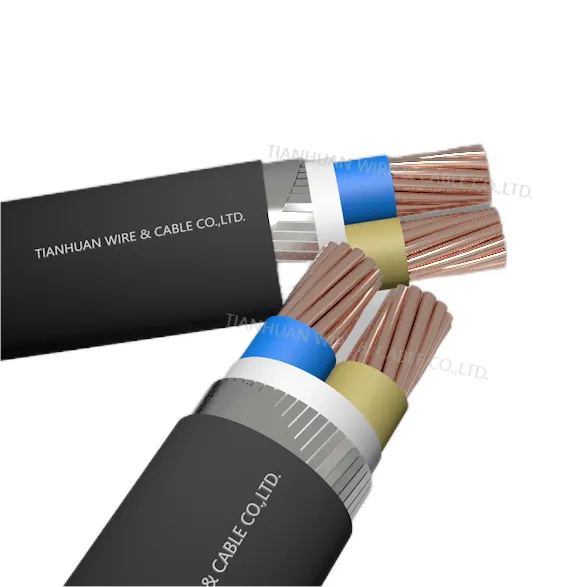

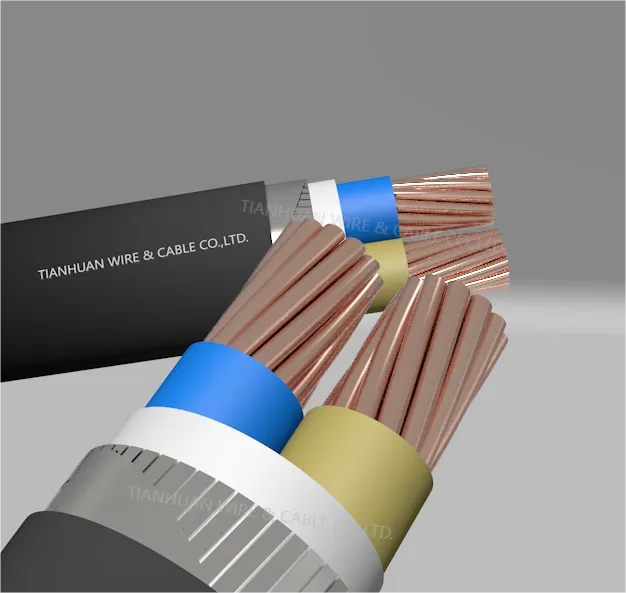

N2XFGBY 0.6/1kv Cu conductors XLPE insulated Galvanized Flar Steel Wire Armor and PVC sheathed power cable

Power cable 0.6/1kV with Copper conductors,XLPE  insulated, Galvanized Flar Steel Wire Armor, PVC sheathed

Model Number:Cu/XLPE/SFA/PVC,0.6/1kV(N2XFGBY)
Category: Energy Cables/Power Cables/Industrial Cable
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters





DOWNLOAD PDF
Details
Tags

Parameter

Nom.Cross-section Area Nominal Thickness overall diameter cable Weight DC Resistance at 20℃Insulation min Current Carrying Capacity at 30℃
Insulation Outer Sheath In Air In Ground
mm² mm² mm mm km/kg M.Ω.km A A
2 × 16 rm 0.7 1.8 22 1091 392 102 116
2 × 25 rm 0.9 1.8 26 1469 400 137 153
2 × 35 rm 0.9 1.9 28 1815 348 109 182
2 × 50 rm 1.0 2.0 32 2245 326 205 213
2 × 70 rm 1.1 2.1 36 2961 303 261 261
2 × 95 rm 1.1 2.3 41 3778 262 313 318
2 × 120 rm 1.2 2.4 45 4599 254 363 363
2 × 150 rm 1.4 2.5 49 5538 266 426 403
3 × 16 rm 0.7 1.8 23 1277 392 91 101
3 × 25 rm 0.9 1.8 27 17445 400 119 132
3 × 35 rm 0.9 1.9 30 2185 348 148 156
3 × 50 rm 1.0 2.0 34 2727 326 182 187
3 × 70 rm 1.1 2.1 39 3662 303 228 233
3 × 70 sm 1.1 2.0 33 3067 303 228 233
3 × 95 rm 1.1 2.3 43 4733 262 278 278
3 × 95 sm 1.1 2.1 37 3953 262 278 278
3 × 120 rm 1.2 2.5 48 5782 254 324 324
3 × 120 sm 1.2 2.3 41 4863 254 324 324
3 × 150 rm 1.4 2.7 53 6977 266 367 358
3 × 150 sm 1.4 2.4 44 5826 266 367 358
3 × 185 rm 1.6 2.8 58 8552 271 421 403
3 × 185 sm 1.6 2.5 49 7129 271 421 403
3 × 240 rm 1.7 3.1 66 10923 252 494 471
3 × 240 sm 1.7 2.7 54 9069 252 494 471
3 × 300 rm 1.8 3.3 73 13378 240 568 529
3 × 300 sm 1.8 2.9 59 11108 240 568 529
4 × 16 rm 0.7 1.8 25 1495 392 91 101
4 × 25 rm 0.9 1.9 30 2103 400 119 132
4 × 35 rm 0.9 2.0 33 2645 348 148 156
4 × 50 rm 1.0 2.1 37 3318 326 182 187
4 × 70 rm 1.1 2.3 42 4485 303 228 233
4 × 70 sm 1.1 2.1 37 3948 303 228 233
4 × 95 rm 1.1 2.5 48 5838 262 278 278
4 × 95 sm 1.1 2.3 41 5113 262 278 278
4 × 120 rm 1.2 2.7 53 7177 254 324 324
4 × 120 sm 1.2 2.4 45 6265 bS7 324 324
4 × 150 rm 1.4 2.7 55 7978 266 367 358
4 × 150 sm 1.4 2.5 50 7891 266 367 358
4 × 185 rm 1.6 3.0 65 10678 271 421 403
4 × 185 sm 1.6 2.7 55 9358 271 421 403
4 × 240 rm 1.7 3.3 73 13691 252 494 471
4 × 240 sm 1.7 2.9 62 11897 252 494 471
4 × 300 rm 1.8 3.6 81 16791 240 568 529
4 × 300 sm 1.8 3.1 67 14609 240 568 529
5 x 10 re 0.7 1.8 23 1180 538 75 88
5 × 10 rm 0.7 1.8 24 1262 473 75 88
5 × 16 rm 0.7 1.8 27 1717 392 91 101
5 × 25 rm 0.9 2.0 32 2465 400 119 132
5 × 35 rm 0.9 2.1 36 3114 348 148 156
5 × 50 rm 1.0 2.3 40 3945 326 182 187
5 × 70 rm 1.1 2.5 47 5360 303 228 233

Cable Structure

● Conductor: [re] round solid conductor

                    [rm] circular stranded conductor

                    [Sm]Sector shape conductor

● Insulation: XLPE

● Filler:PVC

● Armour:A layers of Galvanized flat steel wires 4×0.8 mm with a counter helix layer of galvanized steel tape

● Out Sheath: PVC or FR-PVC type ST1/ST2/ST8,black

Code Designation

N2XFGBY

Application

The N2XFGBY cable is suitable for installation in the ground,indoors,cable trunking and outdoors if increased mechanical protection i required where high-pulling stresses may occur during installation or operation offering.

Standard

European standards:IEC 60502-1,VDE 0276-603

                              Flame retardant according to IEC/EN 60332-1-2

Indonesia standards:Conductor SNI IEC 60228,SPLN 41-1/XLPE insulation SNI IEC 60502-1;

                             SPLN 41-9/PVC Sheath grade ST2 to IEC 60502-1,grade YM/2 to SPLN 41-2

Technical Data

Rated voltage:U0/U 0.6/1 kV

Test Voltage:3.5kV

Temperature Rating Maximum Operating: +90℃

                             Maximum Short-Circuit:+250℃

Minimum. Bend Radius:12×overall diameter

Certificates

CE, RoHS,CCC, KEMA and more others at request
