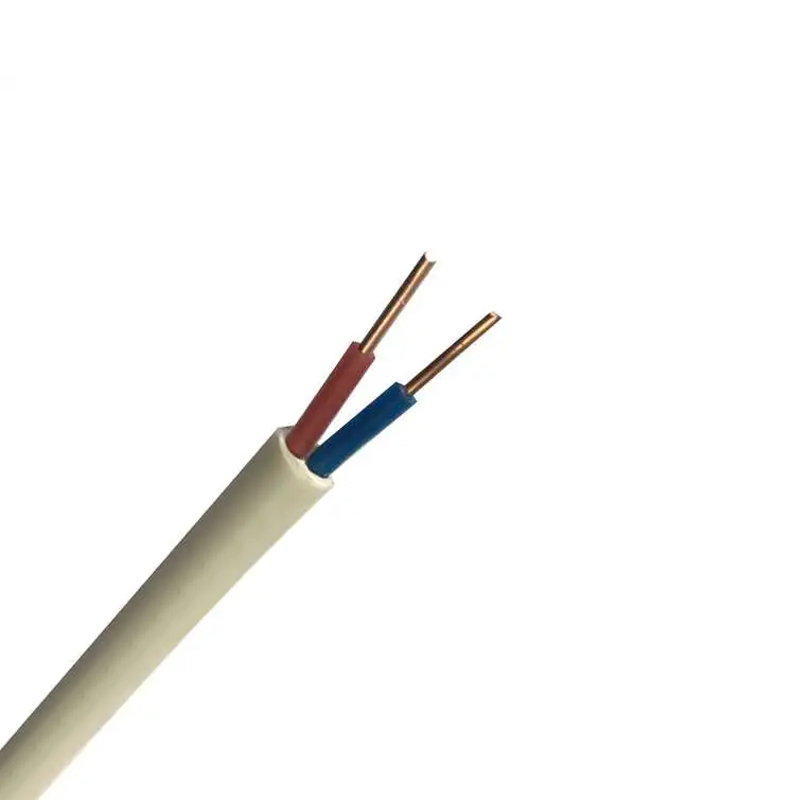

60227 IEC 10 STANDARD 300/500V BVV NYM H05VV-U BUILDING WIRE

Multi cores of solid copper conductor with PVC/C insulation and outer sheath, 300/500V design to the requirement of EN 50525-2-11 and HD 21.5 and IEC 60227-10 for indoor mobile installations and household appliances with medium mechanical strain.

Model Number: BVV/NYM/H05VV-U,300/500v
Category: Indoor Energy Cable/Building Wire
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:Products are in stock.





DOWNLOAD PDF
Details
Tags

Parameter

Nom.Cross-section Area Conductor Type Insulation Thickness Inner covering Thickness Sheath Thickness Approx.O.D Insulation Min. Resistance at 90℃ Max.D.C Resistance of Conductor (20°℃)
Lower Limit Upper Limit
mm²   mm mm mm mm mm MΩ·km Ω/km
2×1.5 1 0.7 0.4 1.2 7.6 10.0 0.011 12.1
2×1.5 2 0.7 0.4 1.2 7.8 10.5 0.010 12.1
2×2.5 1 0.8 0.4 1.2 8.6 11.5 0.010 7.41
2×2.5 2 0.8 0.4 1.2 9.0 12.0 0.009 7.41
2×4 1 0.8 0.4 1.2 9.6 12.5 0.0085 4.61
2×4 2 0.8 0.4 1.2 10.0 13.0 0. 0077 4.61
2×6 1 0.8 0.4 1.2 10.5 13.5 0. 0070 3.08
2×6 2 0.8 0.4 1.2 11.0 14.0 0.0065 3.08
2×10 1 1.0 0.6 1.4 13.0 16.5 0. 0070 1.83
2×10 2 1.0 0.6 1.4 13.5 17.5 0.0065 1.83
2×16 2 1 0.6 1.4 15.5 20 0.0052  1.150
2×25 2 1.2 0.8 1.4 18.5 24 0.0050  0.727
2×35 2 1.2 1 1.6 21 27.5 0.0044  0.524
3×1.5 1 0.7 0.4 1.2 8 10.5 0.0110  12.100
3×1.5 2 0.7 0.4 1.2 8.2 11 0.0100  12.100
3×2.5 1 0.8 0.4 1.2 9.2 12 0.0100  7.410
3×2.5 2 0.8 0.4 1.2 9.4 12.5 0.0090  7.410
3×4 1 0.8 0.4 1.2 9.6 13 0.0085  4.610
3×4 2 0.8 0.4 1.2 10 13.5 0.0077  4.610
3×6 1 0.8 0.4 1.2 10.5 14.5 0.0070  3.080
3×6 2 0.8 0.4 1.2 11.5 15.5 0.0065  3.080
3×10 1 1 0.6 1.4 12 17.5 0.0070  1.830
3×10 2 1 0.6 1.4 14 19 0.0065  1.830
3×16 2 1 0.6 1.4 16.5 21.5 0.0052  1.150
3×25 2 1.2 0.8 1.4 20.5 26 0.0050  0.727
3×35 2 1.2 1 1.6 22 29 0.0044  0.524
4×1.5 1 0.7 0.4 1.2 8.6 11.5 0.0110  12.100
4×1.5 2 0.7 0.4 1.2 9 12 0.0100  12.100
4×2.5 1 0.8 0.4 1.2 10 13 0.0100  7.410
4×2.5 2 0.8 0.4 1.2 10 13.5 0.0090  7.410
4×4 1 0.8 0.4 1.4 11.5 14.5 0.0085  4.610
4×4 2 0.8 0.4 1.4 12 15 0.0077  4.610
4×6 1 0.8 0.6 1.4 12.5 16 0.0070  3.080
4×6 2 0.8 0.6 1.4 13 17 0.0065  3.080
4×10 1 1 0.6 1.4 15.5 19 0.0070  1.830
4×10 2 1 0.6 1.4 16 20.5 0.0065  1.830
4×16 2 1 0.8 1.4 18 23.5 0.0052  1.150
4×25 2 1.2 1 1.6 22.5 28.5 0.0050  0.727
4×35 2 1.2 1 1.6 24.5 32 0.0044  0.524
5×1.5 1 0.7 0.4 1.2 9.4 12 0.0110  12.100
5×1.5 2 0.7 0.4 1.2 9.8 12.5 0.0100  12.100
5×2.5 1 0.8 0.4 1.2 11 14 0.0100  7.410
5×2.5 2 0.8 0.4 1.2 11 14.5 0.0090  7.410
5×4 1 0.8 0.6 1.4 12.5 16 0.0085  4.610
5×4 2 0.8 0.6 1.4 13 17 0.0077  4.610
5×6 1 0.8 0.6 1.4 13.5 17.5 0.0070  3.080
5×6 2 0.8 0.6 1.4 14.5 18.5 0.0065  3.080
5×10 1 1 0.6 1.4 17 21 0.0070  1.830
5×10 2 1 0.6 1.4 17.5 22 0.0065  1.830
5×16 2 1 0.8 1.6 20.5 26 0.0052  1.150
5×25 2 1.2 1 1.6 24.5 31.5 0.0050  0.727
5×35 2 1.2 1.2 1.6 27 35 0.0044  0.524

Cable Structure

Conductor:Plain circular solid copper conductor,conform to IEC 60228 class 1

Plain circular stranded copper conductor,conform to IEC 60228 class 2

Insulation:PVC/C

Inner Covering

Overall Sheath:PVC type ST4

Note:Insulation color as per standards or at request



Code designation

60227 IEC10 (International), BVV ,H05VV-U,300/500V(China),NYM

Application

for fixed electrical intallations,laying the cable in wiring channels,as well as for electrical power distribution in electricity supply networks. Used as fixed wiring cable of rated voltage 300/500V.

Standard

International:IEC 60227,EN 50525-2-11

European Standard:DIN VDE 0281-1,UNE 21031-4,HD 21.4S2,IEC 60227-4.

                             DIN VDE 0295,EN 60228,IEC 227-4 MOD ,VDE 0250-204

Flame Retardant according to IEC/EN 60332-1-2

Indonesian Standard;Conductor SNI IEC 60228/PVC

Insulation SNI 6629.1:SNI 04-6629.4

PVC Sheath Grade ST4 to SNI 04-6629.4.White colour

China:GB/T 5023-2008

Other standards such as BS,DIN and ICEA upon request

Technical Data

Rated voltage:300/500V

Test Voltage-AC:2kV

Temperature Rating:Flexible:-5℃ to +70℃

                              Fixed:-40℃ to +70℃

Min.Bending Radius: Single Core:7.5×overall diameter

                             Multicore:4 ×overal diameter

Certificates

CE,RoHS,CCC,KEMA and more others at request
