Parameter
Nom.Cross-section Area | Insulation Thickness | Mean.O.D. | Insulation Min. Resistance at 90℃ |
Conductor Max. Resistance at 20°C | Approx.Weight | |
Lower Limit | Upper Limit | |||||
mm² | mm | mm | mm | MΩ·km | Ω/km | kg/km |
0.5 | 0.6 | 2.1 | 2.5 | 0.013 | 39.0 | 9.9 |
0.75 | 0.6 | 2.2 | 2.7 | 0.011 | 26.0 | 13.0 |
1 | 0.6 | 2.4 | 2.8 | 0.010 | 19.5 | 15.5 |
1.5 | 0.7 | 2.8 | 3.4 | 0.009 | 13.3 | 21.0 |
2.5 | 0.8 | 3.4 | 4.1 | 0.009 | 7.98 | 32.5 |

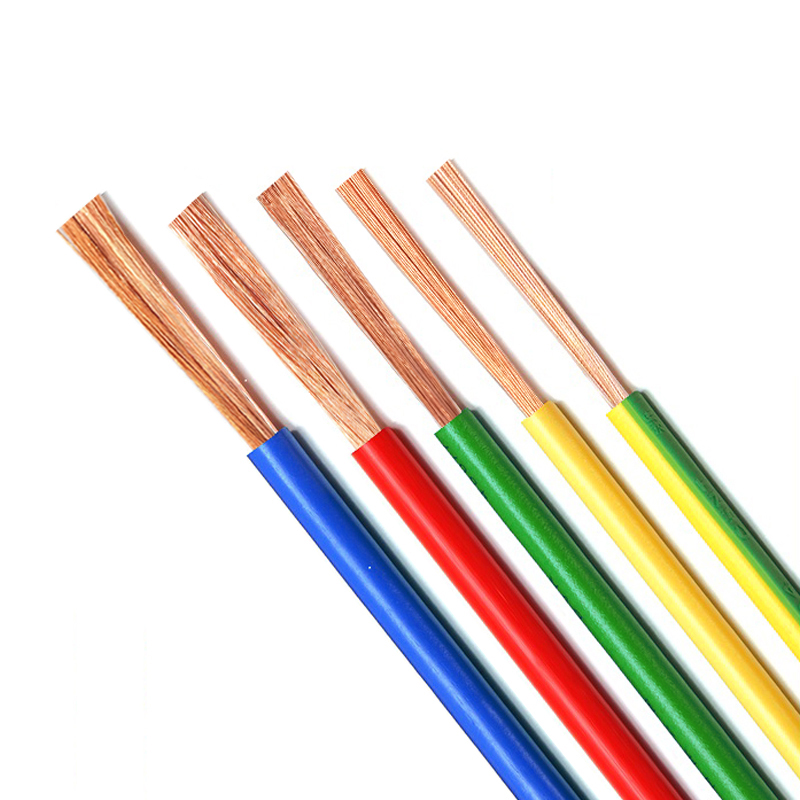

Cable Structure
● Conductor:Flexible copper conductor, conforms to IEC 60228 class 5
● Insulation:PVC/E
Application
Used for the switch control,relay and instrumentation panels of power switch gear and for purposes such as internal connectors in rectifier equipment,motor starters and controllers.
Code designation
60227 IEC 08(International),RV-90,H05V-R,H05V-K,300/500V(China),NYAF
Standard
International:IEC 60227
European Standard:EN 50525-2-31,EN 60228,Flame Retardant according to IEC/EN 60332-1-2
Indonesia Standard:Conductor SNI IEC 60228,PVC Insultion SNI 6629.1;SNI 04-6629.5
China:GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical Data
Rated voltage:300/500 V
Max.Conductor Temp.in normal use:90℃
Min.Bending Radius:6×cable O.D
Certificates
CE,RoHS,CCC,KEMA and more others at request
Packaging Details
Cable is supplied, with wooden reels, wooden drums, steel wooden drums and coils, or as your requirement.
Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
Delivery Time
Normally within 7-14 days(depend on the order quantity). We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Shipping Port
Tianjin, Qingdao, or other ports as per your requirements.
Sea Freight
FOB/C&F/CIF quotation are all available.
Services Available
Proofed samples are as per your production or layout design.
Replying Inquiry within 12 hours, email replied within a hours.
Well-trained & experienced sales be on call.
Research and Development team are available.
Customized projects are highly welcomed.
According your order details, production can be arranged to meet the production line.
Inspection report before shipment can be submitted by our QC department, or as per your appointed third party.
Good after-sale service.
