  • 450/750V YY SY CY ZR-KVV FIRE RESISTANT PVC Insulated and Sheathed Solid Conductor Control Cable

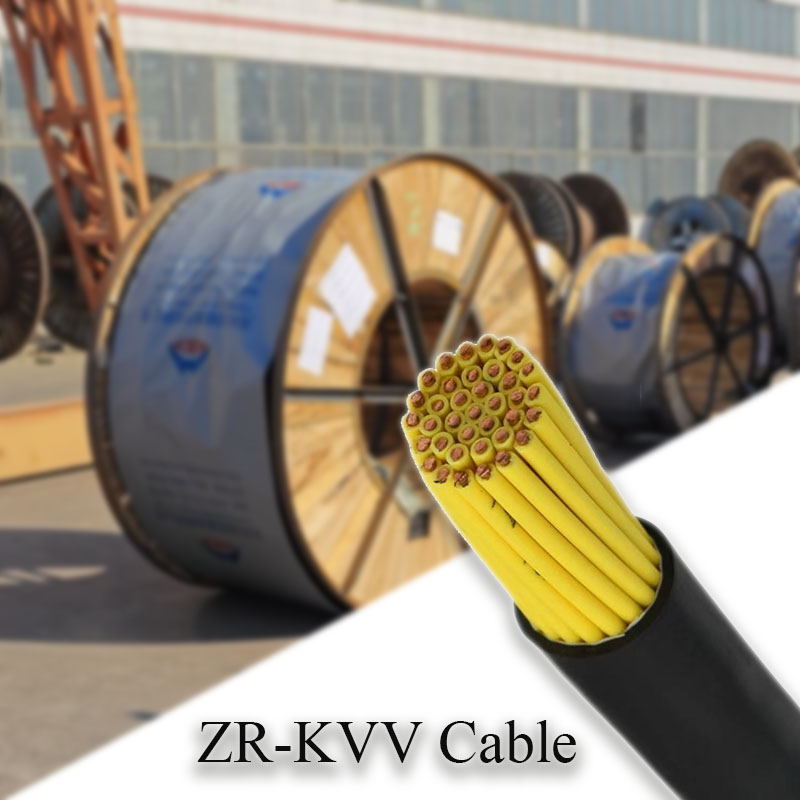

450/750V YY SY CY ZR-KVV FIRE RESISTANT PVC Insulated and Sheathed Solid Conductor Control Cable

ZR-KVV control cable, with multi-cores of solid conductor, Insulated and sheathed by fire resistant PVC, to meet the requirement of IEC 60502, BS 5308 and GB 9330, suitable for wiring of control, signal, protection and measurement systems with rated voltages of 450/750V and below or 0.6/1kV and below. Laid in indoor, cable trenches, pipes, and other fixed occasions.

Model Number: YY/CY/SY/ZR-KVV
Category: Control Cable
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters





DOWNLOAD PDF
Details
Tags

Parameter

Cross×Nom
cross-sectional
area
Nom thickness
of insulation
Nom thickness
of sheath
Pitch diameter Min resistance
of insulation at
70℃
Max.D.C
resistance of at 20℃
Approx
weight
mm² mm mm min max MΩ/km MΩ/km (kg/km)
2 × 0.75 0.6 1.2 6.7 8. 1 0.012 24.5 59
2 × 1.0 0.6 1.2 7 8.5 0.011 18.1 67
2 × 1.5 0.7 1.2 7.9 9.5 0.011 12.1 86
2 × 2.5 0.8 1.2 9 10.9 0.01 7.41 120
2 × 4 0.8 1.2 9.9 11.9 0.0085 4.61 167
2 × 6 0.8 1.2 10.8 13.1 0.007 3.08 220
3 × 0.75 0.6 1.2 7.1 8.5 0.012 24.5 71
3 × 1.0 0.6 1.2 7.4 8.9 0.011 18.1 82
3 × 1.5 0.7 1.2 8.3 10 0.011 12.1 108
3 × 2.5 0.8 1.2 9.5 11.5 0.01 7.41 154
3 × 4 0.8 1.2 10.5 12.4 0.0085 4.61 210
3 × 6 0.8 1.5 11.5 13.9 0.007 3.08 310
4 × 0.75 0.6 1.2 7.6 9.2 0.012 24.5 846
4 × 1.0 0.6 1.2 7.9 9.6 0.011 18.1 100
4 × 1.5 0.7 1.2 9 10.9 0.011 12.1 132
4 × 2.5 0.8 1.2 10.4 12.5 0.01 7.41 193
4 × 4 0.8 1.5 11.4 13.8 0.0085 4.61 315
4 × 6 0.8 1.5 13.2 15.9 0.007 3.08 413
5 × 0.75 0.6 1.2 8.2 9.9 0.012 24.5 99
5 × 1.0 0.6 1.2 8.6 10.3 0.011 18.1 116
5 × 1.5 0.7 1.2 9.7 11.7 0.011 12.1 154
5 × 2.5 0.8 1.5 11.3 13.6 0.01 7.41 243
5 × 4 0.8 1.5 13 15.7 0.0085 4.61 383
5 × 6 0.8 1.5 14.3 17.3 0.007 3.08 505
7 × 0.75 0.6 1.2 8.8  10.6 0.012 24.5 123
7 × 1.0 0.6 1.2 9.2 11.1 0.011 18.1 146
7 × 1.5 0.7 1.2 10.5 12.7 0.011 12.1 196
7 × 2.5 0.8 1.5 12.8 15.5 0.01 7.41 211
7 × 4 0.8 1.5 14. 1 17. 1 0.0085 4.61 473
7 × 6 0.8 1.5 15.6 18.8 0.007 3.08 652



Cross×Nom
cross-sectional
area
Nom thickness
of insulation
Nom thickness
of sheath
Pitch diameter Min resistance
of insulation at
70℃
Max.D.C
resistance of at 20℃
Approx
weight
mm² mm mm min max MΩ/km MΩ/km (kg/km)
8×0.75 0.6 1.2 9.7 11.7 0.012 24.5 142
8×1.0 0.6 1.2 10.2 12.3 0.011 18.1 1168
8×1.5 0.7 1.5 11.7 14.1 0.011 12.1 243
8×2.5 0.8 1.5 14.3 17.2 0.01 7.41 360
8×4 0.8 1.5 15.8 19 0.0085 4.61 545
8x6 0.8 1.7 17.4 21 0.007 3.08 748
10×0.75 0.6 1.2 10.8 13.1 0.012 24.5 187
10×1.0 0.6 1.5 11.4 13.8 0.011 18.1 221
10×1.5 0.7 1.5 13.7 16.6 0.011 12.1 296
10×2.5 0.8 1.5 16 19.4 0.01 7.41 440
10×4 0.8 1.7 17.8 21.5 0.0085 4.61 721
10×6 0.8 1.7 20.1 24.2 0.007 3.08 956
12×0.75 0.6 1.5 11.2 13.5 0.012 24.5 211
12×1.0 0.6 1.5 11.8 14.2 0.011 18.1 250
12×1.5 0.7 1.5 14.2 17.1 0.011 12.1 338
12×2.5 0.8 1.5 16.5 20 0.01 7.41 507
12 × 4 0.8 1.7 18.7 226 0.0085 4.61 825
12×6 0.8 1.7 20.7 25 0.007 3.08 1026
14×0.75 0.6 1.5 11.7 14.1 0.012 24.5 238
14×1.0 0.6 1.5 12.9 15.6 0.011 18.1 328
14×1.5 0.7 1.5 14.8 17.9 0.011 12.1 384
14×2.5 0.8 1.5 17.4 21 0.01 7.41 579
14×4 0.8 1.7 19.6 23.7 0.0085 4.61 959
14×6 0.8 1.7 21.8 26.3 0.007 3.08 1246
16×0.75 0.6 1.5 12.9 15.5 0.012 24.5 2268
16×1.0 0.6 1.5 13.5 16.4 0.011 18.1 315
16×1.5 0.7 1.5 15.6 18.8 0.011 12.1 427
16×2.5 0.8 1.7 18.3 22.1 0.01 7.41 664
19×0.75 0.6 1.5 13.5 16.3 0.012 24.5 299
19×1.0 0.6 1.5 14.2 17.2 0.011 18.1 359



Cross×Nom
cross-sectional
area
Nom thickness
of insulation
Nom thickness
of sheath
Pitch diameter Min resistance
of insulation at
70℃
Max.D.C
resistance of at 20℃
Approx
weight
mm² mm mm min max MΩ/km MΩ/km (kg/km)
19×1.5 0.7 1.5 16.4 19.8 0.011 12.1 490
19×2.5 0.8 1.7 19.6 23.7 0.01 7.41 765
24×0.75 0.6 1.5 15.6 18.8 0.012 24.5 373
24×1.0 0.6 1.5 16.4 19.8 0.011 18.1 447
24×1.5 0.7 1.7 19.4 23.4 0.011 12.1 632
24×2.5 0.8 1.7 22.8 27.6 0.01 7.41 961
27×0.75 0.6 1.5 15.9 19.2 0.012 24.5 407
27×1.0 0.6 1.5 16.7 20.2 0.011 18.1 491
27×1.5 0.7 1.7 19.8 23.9 0.011 12.1 674
27×2.5 0.8 1.7 23.3 28.2 0.01 7.41 1061
30×0.75 0.6 1.5 16.4 19.8 0.012 24.5 445
30×1.0 0.6 1.7 17.5 20.5 0.011 18.1 554
30×1.5 0.7 1.7 20 23 0.011 12.1 761
30×2.5 0.8 1.7 24 27 0.01 7.41 1167
37×0.75 0.6 1.7 17.5 20.5 0.012 24.5 544
37×1.0 0.6 1.7 19 23 0.011 18.1 6,58
37×1.5 0.7 1.7 22 26.6 0.011 12.1 908
37×2.5 0.8 1.7 26.1 31.5 0.01 7.41 1401
44×0.75 0.6 1.7 20.1 24.2 0.012 24.5 642
44×1.0 0.6 1.7 21.2 25.6 0.011 18.1 777
44×1.5 0.7 1.7 24.7 29.8 0.011 12.1 1074
44×2.5 0.8 2 29.9 36.1 0.01 7.41 1702
52×0.75 0.6 1.7 20.9 25.3 0.012 24.5 737
52×1.0 0.6 1.7 22.1 26.7 0.011 18.1 896
52×1.5 0.7 1.7 25.8 31.1 0.011 12.1 1243
52×2.5 0.8 2 31.2 37.7 0.01 7.41 1973
61×0.75 0.6 1.7 21.9 26.5 0.012 24.5 843
61×1.0 0.6 1.7 23.2 28 0.011 18.1 1027
61×1.5 0.7 2 27 32.7 0.011 12.1 1468
61×2.5 0.8 2.2 33.1 40 0.01 7.41 2306

Name

Copper conductor PVC insulated and sheathed flame retardant control cable

Application

Wiring environment apply to indoors job,in trenches and in ducts,etc.all of them ask for flame retardance

Standard

China:GB/T 9330-2020

Other standards such as IEC,BS,DIN and ICEA upon request
