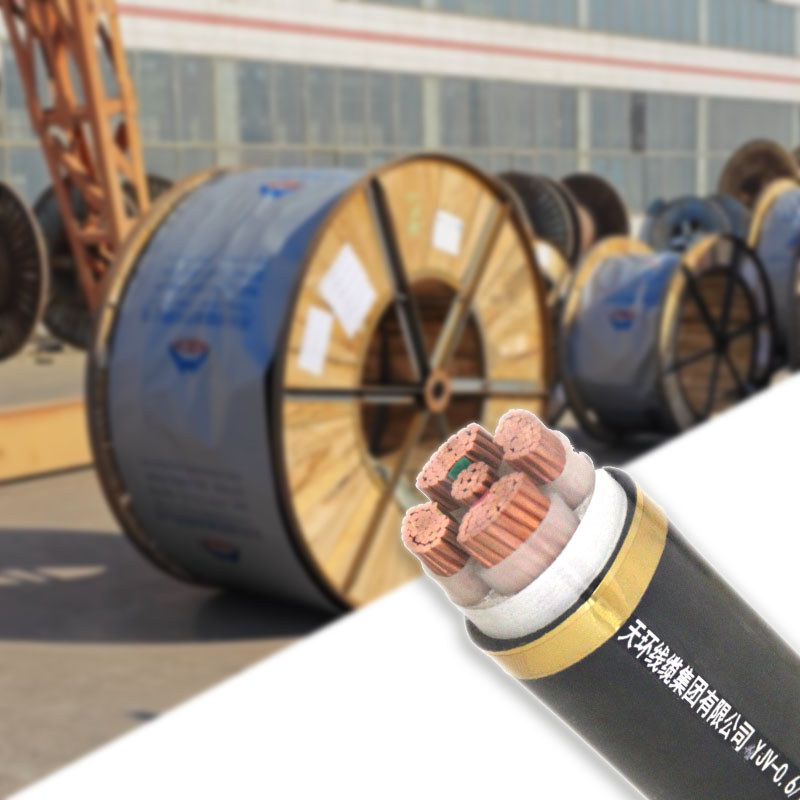

0.6/1 kV LOW VOLTAGE XLPE INSULATED UNARMORED POWER CABLE

Non Armoured cable with multi cores of copper conductors, XLPE insulation,Low Smoke Zero Halogen (LSZH) outer sheath or PVC sheath. Gives Rated voltage 0.6/1 KV for indoor and outdoor installation, in air and ground

Model Number: CU/XLPE/PVC(CU/XLPE/FR-PVC),0.6/1kV
Category: Energy Cables/Power Cables/Industrial Cable
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters

CONTACT NOW DOWNLOAD PDF

Details

Tags

Parameter

Nom.Cross- section of conductor	Insulation Thickness	Sheath Thickness	Approx O.D.	Approx Weight	Max.D.C. Resistance of Conductor (20℃)	Test Voltage A.C	Current Rating
mm²	mm	mm	mm	kg/km	Ω/km	kV/5min	In air (A)	In soil(A)
1×1.5	0.7	1.4	6	53	12.1	3.5	22	33
1×2.5	0.7	1.4	6	68	7.41	3.5	31	43
1×4	0.7	1.4	7	87	4.61	3.5	41	56
1×6	0.7	1.4	7	110	3.08	3.5	52	70
1×10	0.7	1.4	8	155	1.83	3.5	71	94
1×16	0.7	1.4	9	220	1.15	3.5	92	120
1×25	0.9	1.4	10	345	0.727	3.5	120	155
1×35	0.9	1.4	12	424	0.524	3.5	150	185
1×50	1	1.4	13	555	0.387	3.5	180	220
1×70	1.1	1.4	14	770	0.268	3.5	230	270
1×95	1.1	1.5	16	1040	0.193	3.5	285	320
1×120	1.2	1.5	18	1290	0.153	3.5	335	365
1×150	1.4	1.6	20	1590	0.124	3.5	385	410
1×185	1.6	1.6	22	1944	0.0991	3.5	450	465
1×240	1.7	1.7	25	2510	0.0754	3.5	535	540
1×300	1.8	1.8	27	3042	0.0601	3.5	620	610
1×400	2	1.9	31	3869	0.047	3.5	720	695
1×500	2.2	2.1	35	4910	0.0366	3.5	835	780
1×630	2.4	2.2	40	6220	0.0283	3.5	960	880
1×800	2.6	2.4	45	7870	0.0221	3.5	1110	970
1×1000	2.8	2.6	51	9804	0.0176	3.5	1230	1060
2×2.5	0.7	1.8	11.8	151	7.41	3.5	26	35
2×4	0.7	1.8	12.7	198	4.61	3.5	34	45
2×6	0.7	1.8	13.7	250	3.08	3.5	43	57
2×10	0.7	1.8	15	374	1.83	3.5	60	77
2×16	0.7	1.8	17	518	1.15	3.5	83	105
2×25	0.9	1.8	20	772	0.727	3.5	105	125
2×35	0.9	1.8	22	1006	0.524	3.5	125	155
2×50	1	1.8	20	1365	0.387	3.5	160	185
2×70	1.1	1.8	21	1872	0.268	3.5	200	225
2×95	1.1	1.8	24	2475	0.193	3.5	245	270
2×120	1.2	1.8	27	3089	0.153	3.5	285	310
2×150	1.4	1.9	30	3834	0.124	3.5	325	345
3×1.5	0.7	1.5	10	145	12.1	3.5	20	27
3×2.5	0.7	1.5	11	185	7.41	3.5	26	35
3×4	0.7	1.5	12	250	4.61	3.5	34	45
3×6	0.7	1.5	13	320	3.08	3.5	43	57
3×10	0.7	1.8	16	450	1.83	3.5	60	77
3×16	0.7	1.8	18	640	1.15	3.5	83	105
3×25	0.9	1.8	21	940	0.727	3.5	105	125
3×35	0.9	1.8	23	1260	0.524	3.5	125	155
3×50	1	1.8	23	1670	0.387	3.5	160	185
3×70	1.1	1.8	26	2280	0.268	3.5	200	225
3×95	1.1	1.9	30	3020	0.193	3.5	245	270
3×120	1.2	2	32	3790	0.153	3.5	285	310
3×150	1.4	2.2	37	4750	0.124	3.5	325	345
3×185	1.6	2.3	41	5654	0.0991	3.5	375	390
3×240	1.7	2.4	46	7243	0.0754	3.5	440	450
3×300	1.8	2.6	51	9465	0.0601	3.5	505	515
3×400	2	3	64	12066	0.047	3.5	570	575
4×4	0.7	1.8	13	253	4.61	3.5	34	45
4×6	0.7	1.8	14	337	3.08	3.5	43	57
4×10	0.7	1.8	17	501	1.83	3.5	60	77
4×16	0.7	1.8	20	778	1.15	3.5	83	105
4×25	0.9	1.8	23	1160	0.727	3.5	105	125
4×35	0.9	1.8	25	1554	0.524	3.5	125	155
4×50	1	1.8	23	2148	0.387	3.5	160	185
4×70	1.1	1.8	27	2928	0.268	3.5	200	225
4×95	1.1	1.9	31	3854	0.193	3.5	245	270
4×120	1.2	2	33	4925	0.153	3.5	285	310
4×150	1.4	2.2	38	6238	0.124	3.5	325	345
4×185	1.6	2.3	42	7562	0.0991	3.5	375	390
4×240	1.7	2.5	47	9836	0.0754	3.5	440	450
4×300	1.8	2.6	52	12550	0.0601	3.5	505	515
4×400	2	3.1	66	15929	0.047	3.5	570	575
5×4	0.7	1.8	14.5	349	4.61	3.5	34	45
5×6	0.7	1.8	15.8	460	3.08	3.5	43	57
5×10	0.7	1.8	19	699	1.83	3.5	60	77
5×16	0.7	1.8	22	1013	1.15	3.5	83	105
5×25	0.9	1.8	25	1566	0.727	3.5	105	125
5×35	0.9	1.9	28	2083	0.524	3.5	125	155
5×50	1	2	31	2921	0.387	3.5	160	185
5×70	1.1	2.1	36	3974	0.268	3.5	200	225
5×95	1.1	2.2	39	5297	0.193	3.5	245	270
5×120	1.2	2.4	44	6638	0.153	3.5	285	310
5×150	1.4	2.5	49	8290	0.124	3.5	325	345
5×185	1.6	2.7	55	10215	0.0991	3.5	375	390
5×240	1.7	3	64	13130	0.0754	3.5	440	450
5×300	1.8	3.2	70	16670	0.0601	3.5	505	515
3×4+1×2.5	0.7	1.8	13	236	4.61	3.5	34	45
3×6+1×4	0.7	1.8	14	316	3.08	3.5	43	57
3×10+1×6	0.7	1.8	17	461	1.83	3.5	60	77
3×16+1×10	0.7	1.8	19	679	1.15	3.5	83	105
3×25+1×16	0.9	1.8	22	1065	0.727	3.5	105	125
3×35+1×16	0.9	1.8	24	1360	0.524	3.5	125	155
3×50+1×25	1	1.8	25	1901	0.387	3.5	160	185
3×70+1×35	1.1	1.9	28	2585	0.268	3.5	200	225
3×95+1×50	1.1	2	32	3518	0.193	3.5	245	270
3×120+1×70	1.2	2.1	35	4443	0.153	3.5	285	310
3×150+1×70	1.4	2.2	40	5326	0.124	3.5	325	345
3×185+1×95	1.6	2.4	43	6682	0.0991	3.5	375	390
3×240+1×120	1.7	2.5	48	8501	0.0754	3.5	440	450
3×300+1×150	1.8	2.7	54	11155	0.0601	3.5	505	515
3×400+1×240	2	3.1	66	14470	0.047	3.5	570	575
3×4+2×2.5	0.7	1.8	13.9	309	4.61	3.5	34	45
3×6+2×4	0.7	1.8	15.3	413		3.5	43	57
3×10+2×6	0.7	1.8	18	603	1.83	3.5	60	77
3×16+2×10	0.7	1.8	21	888	1.15	3.5	83	105
3×25+2×16	0.9	1.8	24	1342	0.727	3.5	105	125
3×35+2×16	0.9	1.8	26	1647	0.524	3.5	125	155
3×50+2×35	1	1.9	29	2386	0.387	3.5	160	185
3×70+2×35	1.1	2	32	3201	0.268	3.5	200	225
3×95+2×50	1.1	2.1	36	4269	0. 193	3.5	245	270
3×120+2×70	1.2	2.3	41	5437	0. 153	3.5	285	310
3×150+2×70	1.4	2.4	44	6519	0. 124	3.5	325	345
3×185+2×95	1.6	2.5	49	8101	0.0991	3.5	375	390
3×240+2×120	1.7	2.7	54	10340	0.0754	3.5	440	450
3×300+2×150	1.8	2.8	56	12810	0.0601	3.5	505	515
4×4+1×2.5	0.7	1.8	14.5	331	4.61	3.5	34	45
4×6+1×4	0.7	1.8	15.9	435	3.08	3.5	43	57
4×10+1×6	0.7	1.8	18	649	1.83	3.5	60	77
4×16+1×10	0.7	1.8	21	965	1.15	3.5	83	105
4×25+1×16	0.9	1.8	25	1456	0.727	3.5	105	125
4×35+1×16	0.9	1.8	27	1863	0.524	3.5	125	155
4×50+1×25	1	1.9	29	2633	0.387	3.5	160	185
4×70+1×35	1.1	2	32	3565	0.268	3.5	200	225
4×95+1×50	1.1	2.1	36	4735	0. 193	3.5	245	270
4×120+1×70	1.2	2.3	41	5977	0. 153	3.5	285	310
4×150+1×70	1.4	2.4	44	7276	0. 124	3.5	325	345
4×185+1×95	1.6	2.5	49	9055	0.0991	3.5	375	390
4×240+1×120	1.7	2.7	54	11567	0.0754	3.5	440	450
4×300+1×150	1.8	3.1	66	14321	0.0601	3.5	505	515

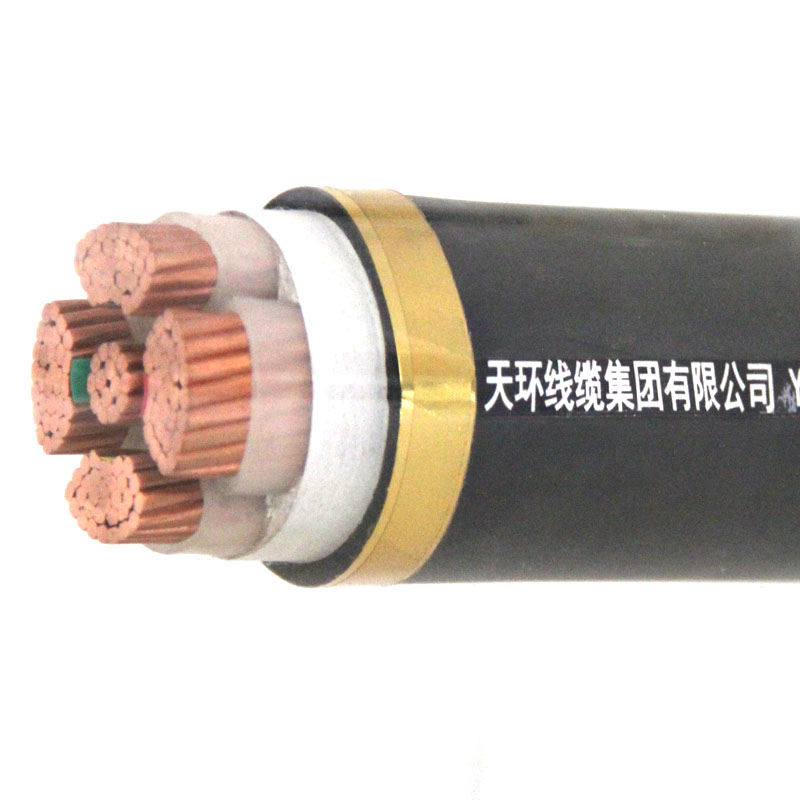

Cable Structure

● Conductor: Compact stranded copper conductor,Cl.2 as per IEC 60228

● Insulation: XLPE(cross-linked polyethylene)rated at 90°

● Filler:non hygroscopic filler(PP)

● Sheath: PVC or FR-PVC type ST₂ to IEC 60502,black

Code Designation

YJ: XLPE insulation

V: PVC sheath

ZR: Flame resistant

Application

For indoors and outdoors wiring work.Able to stand certain level traction during installation,but not external mechanical forces.single core cable wiring job in magnetic ducts is forbidden.

Standard

International:IEC 60502,IEC 60228,(IEC 60332-3 for ZR-YJV only)

China:GB/T12706,(GB/T 18380-3 for ZR-YJV only)

Other standards such as BS, DIN and ICEA upon request

Technical Data

Rated voltage:0.6/1 kV

Maximum Conductor Temperature: under normal (90℃), emergency(130℃), or short circuit no more than 5s(250℃)conditions.

Min. Ambient Temp.-15℃,Installation Temp.0℃

Min. Bending Radius:20×cable O.D for single core

15×cable O.D for multi core

Certificates

CE, RoHS,CCC, KEMA and more others at request
