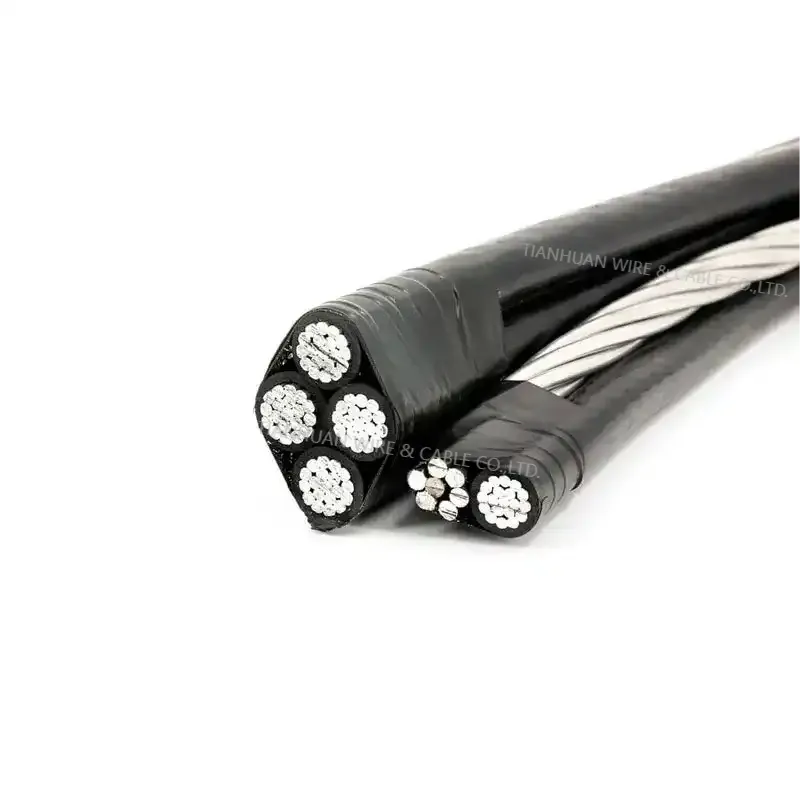

0.6/1(1.2)kV NFA2X-T/NFA2X ABC CABLE AERIAL BUNDLED CABLE

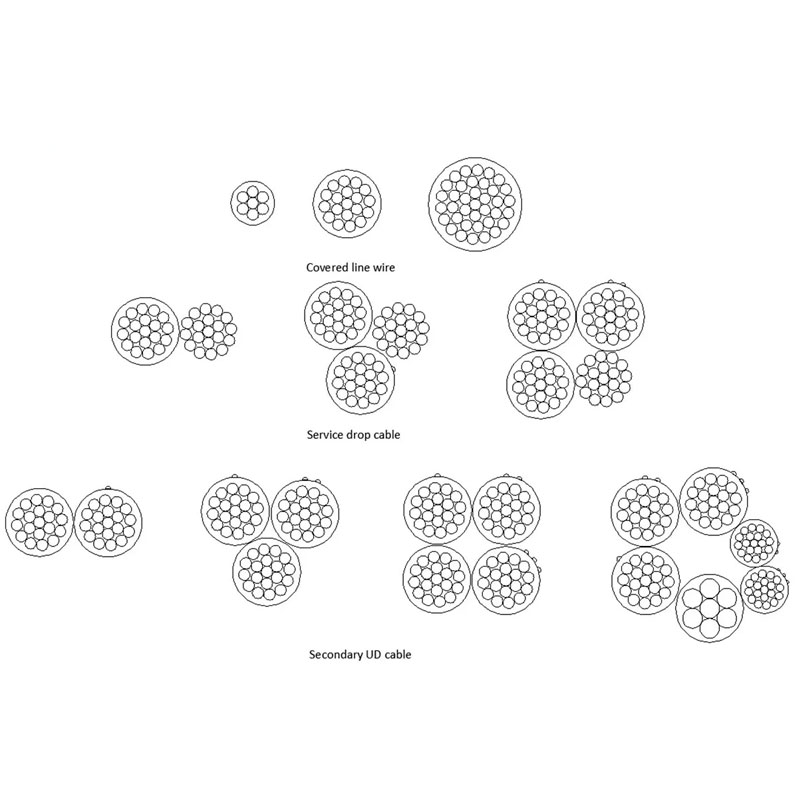

Aerial bundled cables , also called aerial bundled conductors or ABC, overhead power lines using several insulated phase conductors bundled tightly together, to meet the requirement of IEC 60502, widely used in temporary power distribution to street lighting and secondary pole-pole service cables.

Model Number: ABC
Category: Aerial cable/Overhead cable/Energy cable
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters

CONTACT NOW DOWNLOAD PDF

Details

Tags

Parameter

Number of cores	Nom.Cross-section Area	Minimum number of wires	Insulation Thickness	Diameter of insulated core	Conductor Max. Resistance at 20°C	Current rating at still wind, ambient temperature=30℃ Conductor temperature=75°℃
	mm²		mm	mm	Ω/km	A
1	16	6	1	6.8	1.91	61
3	16	6	1	6.8	1.91	61
3	25	6	1.2	8.5	1.20	84
3	35	6	1.2	9.5	0.868	104
3	50	6	1.4	11.2	0.614	129
3	70	12	1.4	13.0	0.443	167
3	95	15	1.6	15.1	0.320	209
3	120	15	1.6	16.6	0.253	246
3	150	30	1.8	18.4	0.206	283
3	185	30	2.0	20.6	0.164	332

Minimum number of wires	Nom.Cross-section Area	Insulation Thickness	Diameter of insulated core	Conductor Max. Resistance at 20°C	Calculated breaking load
	mm²	mm	mm	Ω/km	kN
6	25	1.2	8.5	1.312	6.4
6	25	1.2	8.5	1.312	6.4
6	25	1.2	8.5	1.312	6.4
6	25	1.2	8.5	1.312	6.4
6	35	1.2	9.5	0.943	8.9
6	50	1.4	11.2	0.693	12.1
12	70	1.4	13.1	0.469	18.0
12	70	1.4	13.1	0.469	18.0
15	95	1.6	15.1	0.349	24.2
15	120	1.6	16.6	0.273	30.8

Approx. overall diameter	Approx. weight of cable	Packing length
mm	kg/km	m/drum
15.3	160	1000
19.0	290	1000
23.2	400	1000
25.6	500	1000
30.0	680	1000
34.9	920	1000
40.6	1270	500
44.1	1510	500
49.2	1870	500
54.9	2340	500
