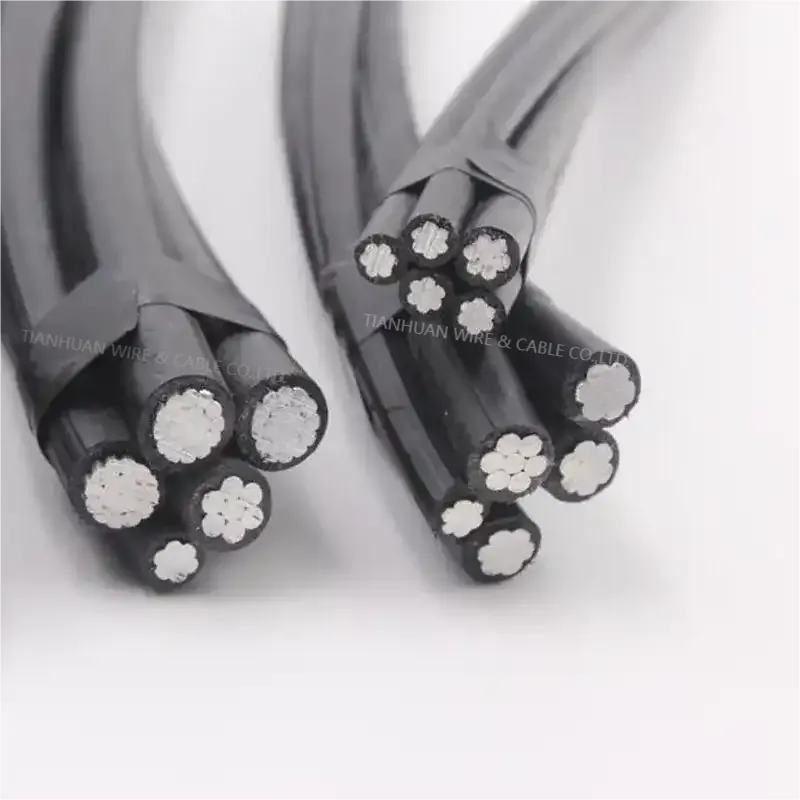

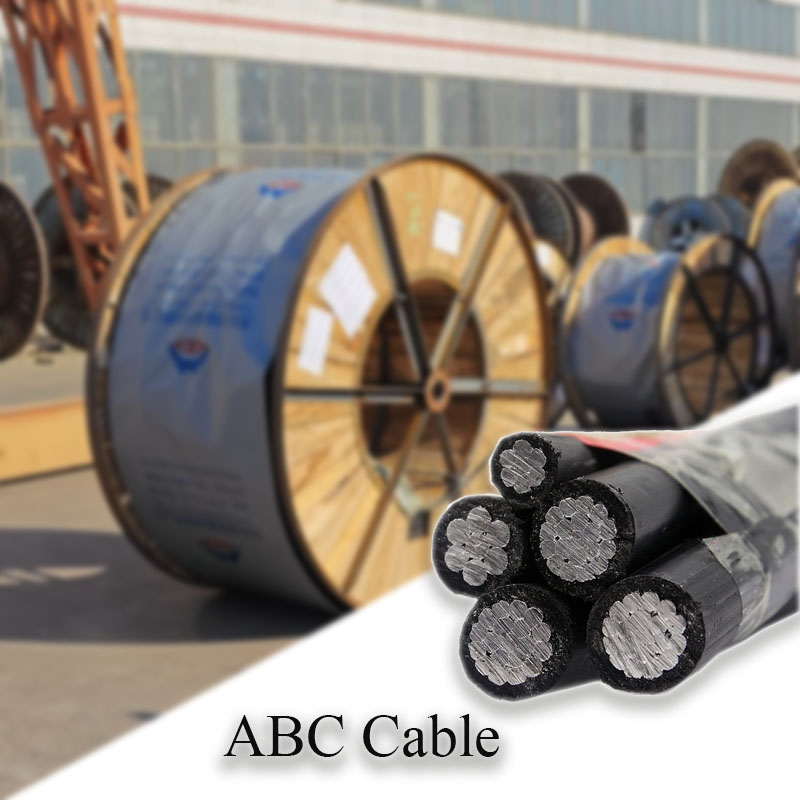

0.6/1(1.2)kV ABC CABLE AERIAL BUNDLED CABLE With Street Lighting Conductor

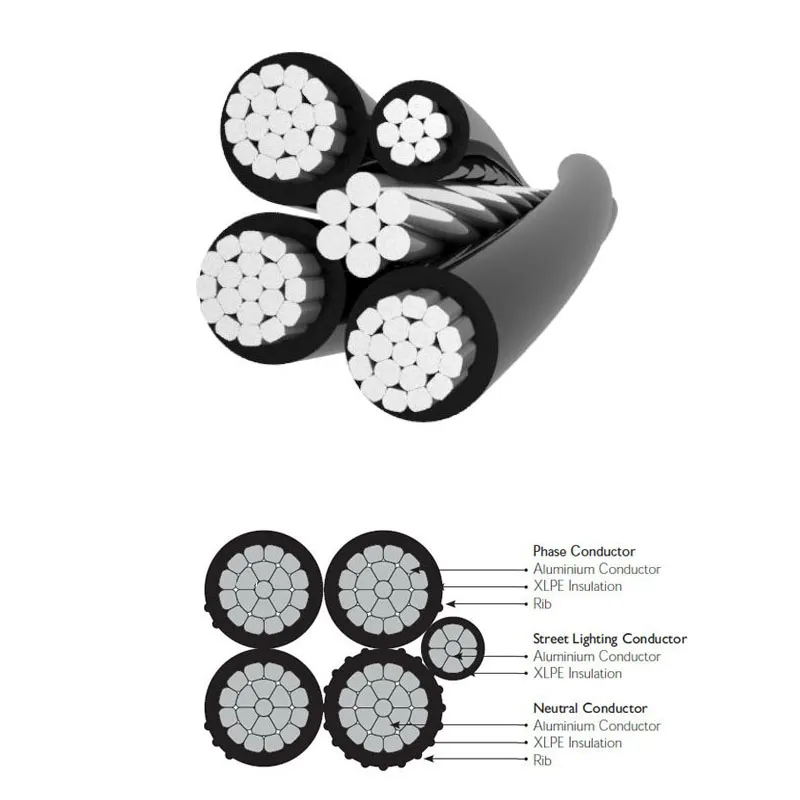

Aerial bundled cables , also called aerial bundled conductors or ABC, overhead power lines using several insulated phase conductors bundled tightly together, with street lighting conductor, to meet the requirement of IEC 60502, widely used in temporary power distribution to street lighting and secondary pole-pole service cables.

Model Number: ABC
Category: Aerial cable/Overhead cable/Energy cable
Place of Origin: XingTai, China
Brand Name: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters

CONTACT NOW DOWNLOAD PDF

Details

Tags

Parameter

Number of cores	Nom.Cross-section Area	Minimum number of wires	Insulation Thickness	Diameter of insulated core	Conductor Max. Resistance at 20°C	Current rating at still wind, ambient temperature=30℃ Conductor temperature=75°℃
	mm²		mm	mm	Ω/km	A
3	25	6	1.2	8.5	1.2	84
3	35	6	1.2	9.5	0.868	104
3	50	6	1.4	11.2	0.641	129
3	70	12	1.4	13.0	0.443	167
3	95	15	1.6	15.1	0.320	209
3	120	15	1.6	16.6	0.253	246
3	150	30	1.8	18.4	0.206	283
3	185	30	2.0	20.6	0.164	332

Nom.Cross-section Area	Minimum number of wires	Insulation Thickness	Diameter of insulated core	Conductor Max. Resistance at 20°C	Calculated breaking load
mm²		mm	mm	Ω/km	kN
25	6	1.2	8.5	1.312	6.4
25	6	1.2	8.5	1.312	6.4
35	6	1.2	9.5	0.943	8.9
50	6	1.4	11.2	0.693	12.1
70	12	1.4	13.1	0.469	18.0
70	12	1.4	13.1	0.469	18.0
95	15	1.6	15.1	0.349	24.2
120	15	1.6	16.6	0.273	30.8

Nom.Cross-section Area	Minimum number of wires	Insulation Thickness	Diameter of insulated core	Conductor Max. Resistance at 20°C
mm²		mm	mm	Ω/km
25	6	1.2	8.5	1.312
25	6	1.2	8.5	1.312
35	6	1.2	9.5	0.943
50	6	1.4	11.2	0.693
70	12	1.4	13.1	0.469
70	12	1.4	13.1	0.469
95	15	1.6	15.1	0.349
120	15	1.6	16.6	0.273

Approx. overall diameter	Approx. weight of cable	Packing length
mm	kg/km	m/drum
23.2	470	1000
25.6	560	1000
30.0	740	1000
34.9	980	1000
40.6	1330	500
44.1	1580	500
49.2	1940	500
54.9	2410	500
