Intsik
Parameter
| Nom.Cross-section Area | Maximum Diameter of Wire | Nominal Thickness | overall diameter | cable Weight | Resistance at 20℃ | ||
| Pagkakabukod | 1 | DC conductor max | Insulation min | ||||
| mm² | mm | mm | mm | mm | km/kg | Ω/km | MΩ/km |
| 5 x 0.75 | 0.20 | 0.6 | 0.9 | 8.1 | 98 | 26 | 11 |
| 5 x 1 | 0.20 | 0.6 | 0.9 | 8.5 | 112 | 19.5 | 10 |
| 5 x 1.5 | 0.25 | 0.7 | 1.1 | 10.1 | 164 | 13.3 | 10 |
| 5 x 2.5 | 0.25 | 0.8 | 1.2 | 12.2 | 246 | 7.98 | 9 |
| 5 x 4 | 0.30 | 0.8 | 1.2 | 13.5 | 334 | 4.95 | 8 |
| 5 x 6 | 0.30 | 0.8 | 1.4 | 15.4 | 460 | 3.30 | 7 |
| 5 x 10 | 0.40 | 1.0 | 1.6 | 19.7 | 767 | 1.91 | 7 |
| 7 x 0.75 | 0.20 | 0.6 | 1.0 | 9.1 | 125 | 26.0 | 11 |
| 7 x 1 | 0.20 | 0.6 | 1.0 | 9.5 | 144 | 19.5 | 10 |
| 7 x 1.5 | 0.25 | 0.7 | 1.2 | 11.3 | 203 | 13.3 | 10 |
| 7 x 2.5 | 0.25 | 0.8 | 1.2 | 13.6 | 314 | 7.98 | 9 |
| 10 x 0.75 | 0.20 | 0.6 | 1.1 | 11.7 | 183 | 26.0 | 11 |
| 10 x 1 | 0.20 | 0.6 | 1.1 | 12.2 | 211 | 19.5 | 10 |
| 10 x 1.5 | 0.25 | 0.7 | 1.3 | 14.5 | 305 | 13.3 | 10 |
| 10 x 2.5 | 0.25 | 0.8 | 1.5 | 17.6 | 465 | 7.98 | 9 |
| 12 x 0.75 | 0.20 | 0.6 | 1.1 | 12 | 208 | 26.0 | 11 |
| 12 x 1 | 0.20 | 0.6 | 1.2 | 12.8 | 247 | 19.5 | 10 |
| 12 x 1.5 | 0.25 | 0.7 | 1.3 | 14.9 | 349 | 13.3 | 10 |
| 12 x 2.5 | 0.25 | 0.8 | 1.5 | 18.1 | 535 | 7.98 | 9 |

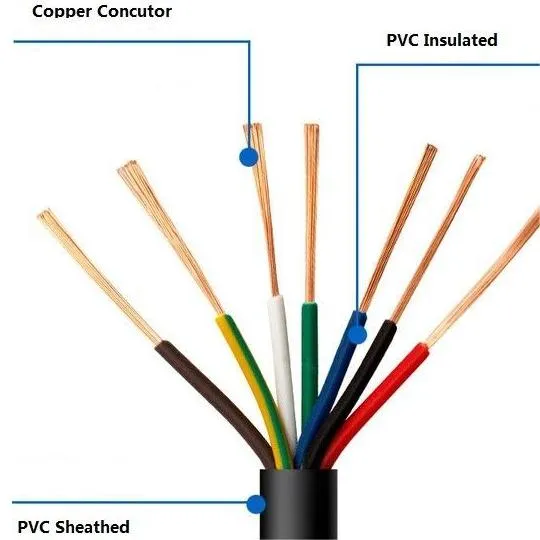

Istraktura ng Cable
● Conductor:Flexible copper conductor,conform to IEC 60228 class 5
● Insulation:PVC
● Sheath:PVC or FR-PVC type ST5,black
Pagtatalaga ng Code
NYYHY,H07VV-F
Aplikasyon
Power cord or internal wiring with medium mechanical stress for electrical equipmens,machineries,luminaires and other portable appliances used in dry indoor premises.Permanent exposed wiring in humid environment,installation in tray or under plaster for industrial three phase 380-415 VAC or single phase 220-240 VAC multipurpose applications,inherently flame retardent in compliance with IEC 60332-1
Pamantayan
IEC 60227-6:2001,SNI 04-6629.5
Teknikal na data
Na-rate na boltahe: 450/750V
Max.Conductor Temp.sa normal na paggamit:70℃
Bending Radius:approx.8×cable diameter
Mga sertipiko
CE, RoHS, CCC, KEMA at higit pang iba sa kahilingan
