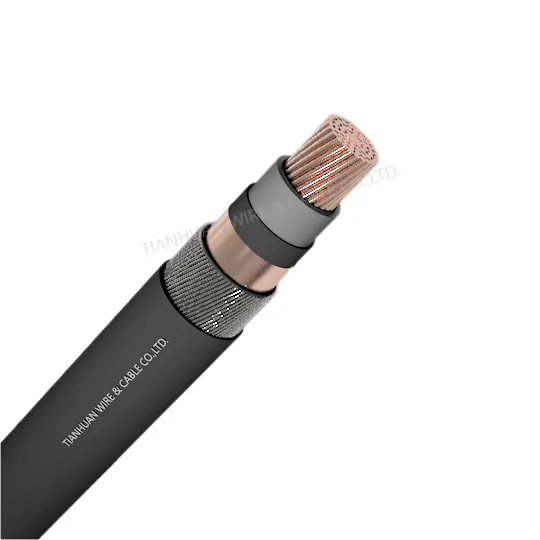

SWA-MULTI-CORE CABLE MEDIUM VOLTAGE CU CONDUCTOR XLPE INSULATED SWA ARMOURED CABLE

SWA cable or steel wire armoured cable, with Multi cores of copper conductors, XLPE insulation, Semi-conductor Screen, Copper tape Screen, PVC bedding, Stainless steel or aluminum alloy armoured wire, Low Smoke Zero Halogen (LSZH) outer sheath or PVC sheath. Gives Rated voltage 3.6/6kV, 6/10kV，8.7/15kV,12/20kV, 18/30kV,21/35kV, 26/35kV for indoor and outdoor installation, in air and ground.

Model Number: CU/XLPE/CTS/PVC/SWA(AWA)PVC(FR-PVC),3.6/6kV, 6/10kV，8.7/15kV,12/20kV, 18/30kV,21/35kV, 26/35kV
Icyiciro: Intsinga z'ingufu / insinga z'amashanyarazi / Umugozi w'inganda / Umugozi wa SWA
Aho bakomoka: XingTai, Ubushinwa
Izina ryirango: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters

SHAKA NONAHA DOWNLOAD PDF

Ibisobanuro

Etiquetas

Parameter

Izina.Umusaraba- igice cya umuyobozi	Kwikingira Umubyimba	Imbere Igipfukisho Umubyimba	We. Bya Intwaro	Sheath Umubyimba	Hafi ya OD	Hafi Ibiro	Max.DC Kurwanya Umuyobozi (20 ℃)	Ikizamini cya voltage AC	Urutonde rwubu
mm²	mm	mm	mm	mm	mm	kg / km	Ω / km	kV / 5min	Mu kirere (A)	Mu butaka (A)
1 × 25	2.5	1.2	1.60	1.8	24.0	1396	0.7270	12.5	140	150
1 × 35	2.5	1.2	1.60	1.8	25.0	1550	0.5240	12.5	170	180
1 × 50	2.5	1.2	1.60	1.8	26.0	1754	0.3870	12.5	205	215
1 × 70	2.5	1.2	1.60	1.9	28.0	2054	0.2680	12.5	260	265
1 × 95	2.5	1.2	1.60	1.9	29.0	2367	0. 1930	12.5	315	315
1 × 120	2.5	1.2	1.60	2.0	31.0	2701	0. 1530	12.5	360	360
1 × 150	2.5	1.2	2.00	2.0	33.0	3301	0. 1240	12.5	410	405
1 × 185	2.5	1.2	2.00	2.1	35.0	3756	0.0991	12.5	470	455
1 × 240	2.6	1.2	2.00	2.2	38.0	4458	0.0754	12.5	555	530
1 × 300	2.8	1.2	2.00	2.3	40.0	5223	0.0601	12.5	640	595
1 × 400	3.0	1.3	2.50	2.4	45.0	6804	0.0470	12.5	745	680
1 × 500	3.2	1.3	2.50	2.5	50.0	8094	0.0366	12.5	885	765
3 × 25	2.5	1.2	2.00	2.3	44.0	3655	0.7270	12.5	120	125
3 × 35	2.5	1.3	2.50	2.4	47.0	4598	0.5240	12.5	140	155
3 × 50	2.5	1.3	2.50	2.5	50.0	5259	0.3870	12.5	165	180
3 × 70	2.5	1.4	2.50	2.7	54.0	6244	0.2680	12.5	210	220
3 × 95	2.5	1.5	2.50	2.8	57.0	7283	0. 1930	12.5	255	265
3 × 120	2.5	1.5	2.50	2.9	61.0	8317	0. 1530	12.5	290	300
3 × 150	2.5	1.6	2.50	3.0	64.0	9492	0. 1240	12.5	330	340
3 × 185	2.5	1.7	2.50	3.1	67.0	10901	0.0991	12.5	375	380
3 × 240	2.6	1.8	3. 15	3.4	74.0	14046	0.0754	12.5	435	435
3 × 300	2.8	1.9	3. 15	3.6	80.0	16533	0.0601	12.5	495	485

3.6/6kV

Izina.Umusaraba- igice cya umuyobozi	Kwikingira Umubyimba	Imbere Igipfukisho Umubyimba	We. Bya Intwaro	Sheath Umubyimba	Hafi ya OD	Hafi Ibiro	Max.DC Kurwanya Umuyobozi (20 ℃)	Ikizamini cya voltage AC	Urutonde rwubu
mm²	mm	mm	mm	mm	mm	kg / km	Ω / km	kV / 5min	Mu kirere (A)	Mu butaka (A)
1 × 25	3.4	1.2	1.60	1.8	26.0	1531	0.727	21	140	150
1 × 35	3.4	1.2	1.60	1.8	27.0	1687	0.524	21	170	180
1 × 50	3.4	1.2	1.60	1.9	28.0	1907	0.387	21	205	215
1 × 70	3.4	1.2	1.60	1.9	30.0	2200	0.268	21	260	265
1 × 95	3.4	1.2	1.60	2	31.0	2531	0. 193	21	315	315
1 × 120	3.4	1.2	2.00	2	34.0	3103	0. 153	21	360	360
1 × 150	3.4	1.2	2.00	2.1	35.0	3488	0. 124	21	410	405
1 × 185	3.4	1.2	2.00	2.2	37.0	3950	0.0991	21	470	455
1 × 240	3.4	1.2	2.00	2.2	40.0	4623	0.0754	21	555	530
1 × 300	3.4	1.2	2.00	2.3	42.0	5351	0.0601	21	640	595
1 × 400	3.4	1.3	2.50	2.4	47.0	6901	0.047	21	745	680
1 × 500	3.4	1.3	2.50	2.5	51.0	8145	0.0366	21	885	765
3 × 25	3.4	1.3	2.50	2.5	49.0	4579	0.727	21	120	125
3 × 35	3.4	1.3	2.50	2.6	52.0	5095	0.524	21	140	155
3 × 50	3.4	1.4	2.50	2.7	54.0	5802	0.387	21	165	180
3 × 70	3.4	1.5	2.50	2.8	58.0	6788	0.268	21	210	220
3 × 95	3.4	1.5	2.50	2.9	62.0	7812	0. 193	21	255	265
3 × 120	3.4	1.6	2.50	3.1	65.0	8929	0. 153	21	290	300
3 × 150	3.4	1.7	2.50	3.2	68.0	10125	0. 124	21	330	340
3 × 185	3.4	1.7	3. 15	3.3	72.0	12403	0.0991	21	375	380
3 × 240	3.4	1.8	3. 15	3.5	78.0	14646	0.0754	21	435	435
3 × 300	3.4	1.9	3. 15	3.7	83.0	17014	0.0601	21	495	485

6/10kV

Izina.Umusaraba- igice cya umuyobozi	Kwikingira Umubyimba	Imbere Igipfukisho Umubyimba	We. Bya Intwaro	Sheath Umubyimba	Hafi ya OD	Hafi Ibiro	Max.DC Kurwanya Umuyobozi (20 ℃)	Ikizamini cya voltage AC	Urutonde rwubu
mm²	mm	mm	mm	mm	mm	kg / km	Ω / km	kV / 5min	Mu kirere (A)	Mu butaka (A)
1 × 25	4.5	1.2	1.60	1.9	28	1714	0.727	30.5	140	150
1 × 35	4.5	1.2	1.60	1.9	29	1874	0.524	30.5	170	180
1 × 50	4.5	1.2	1.60	1.9	30	2086	0.387	30.5	205	215
1 × 70	4.5	1.2	2.00	2	33	2641	0.268	30.5	260	265
1 × 95	4.5	1.2	2.00	2. 1	35	2990	0.193	30.5	315	315
1 × 120	4.5	1.2	2.00	2. 1	36	3332	0.153	30.5	360	360
1 × 150	4.5	1.2	2.00	2.2	38	3723	0.124	30.5	410	405
1 × 185	4.5	1.2	2.00	2.2	40	4174	0.0991	30.5	470	455
1 × 240	4.5	1.2	2.00	2.3	42	4874	0.0754	30.5	555	530
1 × 300	4.5	1.3	2.50	2.4	45	6056	0.0601	30.5	640	595
1 × 400	4.5	1.3	2.50	2.5	49	7195	0.047	30.5	745	680
1 × 500	4.5	1.4	2.50	2.6	54	8485	0.0366	30.5	885	765
3 × 25	4.5	1.4	2.50	2.7	54	5224	0.727	30.5	120	125
3 × 35	4.5	1.5	2.50	2.8	57	5790	0.524	30.5	140	155
3 × 50	4.5	1.5	2.50	2.9	60	6485	0.387	30.5	165	180
3 × 70	4.5	1.6	2.50	3	64	7501	0.268	30.5	210	220
3 × 95	4.5	1.6	2.50	3.1	67	8548	0.193	30.5	255	265
3 × 120	4.5	1.7	2.50	3.2	70	9663	0.153	30.5	290	300
3 × 150	4.5	1.8	3.15	3.4	75	11811	0.124	30.5	330	340
3 × 185	4.5	1.8	3.15	3.5	78	13282	0.0991	30.5	375	380
3 × 240	4.5	1.9	3.15	3.7	84	15567	0.0754	30.5	435	435
3 × 300	4.5	2	3.15	3.8	88	17937	0.0601	30.5	495	485

8.7/15kV

Izina.Umusaraba- igice cya umuyobozi	Kwikingira Umubyimba	Imbere Igipfukisho Umubyimba	We. Bya Intwaro	Sheath Umubyimba	Hafi ya OD	Hafi Ibiro	Max.DC Kurwanya Umuyobozi (20 ℃)	Ikizamini cya voltage AC	Urutonde rwubu
mm²	mm	mm	mm	mm	mm	kg / km	Ω / km	kV / 5min	Mu kirere (A)	Mu butaka (A)
1 × 35	5.5	1.2	1.60	2.0	31	2291	0.524	42	170	180
1 × 50	5.5	1.2	1.60	2.0	33	2515	0.387	42	205	215
1 × 70	5.5	1.2	2.00	2.1	35	2847	0.268	42	260	265
1 × 95	5.5	1.2	2.00	2.1	37	3186	0.193	42	315	315
1 × 120	5.5	1.2	2.00	2.2	39	3547	0.153	42	360	360
1 × 150	5.5	1.2	2.00	2.2	40	3928	0.124	42	410	405
1 × 185	5.5	1.2	2.00	2.3	42	4402	0.0991	42	470	455
1 × 240	5.5	1.3	2.50	2.4	45	5554	0.0754	42	555	530
1 × 300	5.5	1.3	2.50	2.5	47	6323	0.0601	42	640	595
1 × 400	5.5	1.4	2.50	2.6	52	7501	0.047	42	745	680
1 × 500	5.5	1.4	2.50	2.7	56	8776	0.0366	42	885	765
3 × 35	5.5	1.5	2.50	2.9	62	6374	0.524	42	140	155
3 × 50	5.5	1.6	2.50	3.0	64	7122	0.387	42	165	180
3 × 70	5.5	1.7	2.50	3.2	68	8190	0.268	42	210	220
3 × 95	5.5	1.7	2.50	3.3	71	9258	0.193	42	255	265
3 × 120	5.5	1.8	3.15	3.4	76	11311	0.153	42	290	300
3 × 150	5.5	1.9	3.15	3.5	80	12594	0.124	42	330	340
3 × 185	5.5	1.9	3.15	3.7	83	14125	0.0991	42	375	380
3 × 240	5.5	2.0	3.15	3.8	88	16412	0.0754	42	435	435
3 × 300	5.5	2.1	3.15	4.0	93	18855	0.0601	42	495	485

12/20kV

Izina.Umusaraba- igice cya umuyobozi	Kwikingira Umubyimba	Imbere Igipfukisho Umubyimba	We. Bya Intwaro	Sheath Umubyimba	Hafi ya OD	Hafi Ibiro	Max.DC Kurwanya Umuyobozi (20 ℃)	Ikizamini cya voltage AC	Urutonde rwubu
mm²	mm	mm	mm	mm	mm	kg / km	Ω / km	kV / 5min	Mu kirere (A)	Mu butaka (A)
1 × 50	8	1.2	2	2.2	40	2857	0.387	63	220	215
1 × 70	8	1.2	2	2.3	42	3166	0.268	63	270	265
1 × 95	8	1.2	2	2.3	43	3499	0.193	63	330	315
1 × 120	8	1.3	2.5	2.4	46	4264	0.153	63	375	360
1 × 150	8	1.4	2.5	2.5	48	4671	0.124	63	425	400
1 × 185	8	1.4	2.5	2.5	49	5121	0.0991	63	485	455
1 × 240	8	1.4	2.5	2.6	52	5780	0.0754	63	560	525
1 × 300	8	1.4	2.5	2.7	54	6482	0.0601	63	650	595
1 × 400	8	1.4	2.5	2.8	58	7657	0.047	63	760	680
1 × 500	8	1.6	2.5	2.9	61	8894	0.0366	63	875	775
3 × 50	8	1.8	3. 15	3.5	80	9376	0.387	63	185	200
3 × 70	8	1.8	3. 15	3.6	84	10426	0.268	63	230	250
3 × 95	8	1.8	3. 15	3.7	87	11475	0. 193	63	285	300
3 × 120	8	1.8	3. 15	3.8	90	12598	0. 153	63	310	380
3 × 150	8	1.8	3. 15	3.9	93	13855	0. 124	63	360	425
3 × 185	8	2	3. 15	4	96	15233	0.0991	63	400	490
3 × 240	8	2	3. 15	4.2	102	17481	0.0754	63	470	555
3 × 300	8	2	3. 15	4.4	107	19731	0.0601	63	540	625

18/30kV

Izina.Umusaraba- igice cya umuyobozi	Kwikingira Umubyimba	Imbere Igipfukisho Umubyimba	We. Bya Intwaro	Sheath Umubyimba	Hafi ya OD	Hafi Ibiro	Max.DC Kurwanya Umuyobozi (20 ℃)	Ikizamini cya voltage AC	Urutonde rwubu
mm²	mm	mm	mm	mm	mm	kg / km	Ω / km	kV / 5min	Mu kirere (A)	Mu butaka (A)
1 × 50	9.3	1.2	2	2.3	43	3329	0.387	73.5	220.0	215
1 × 70	9.3	1.2	2	2.4	46	3687	0.268	73.5	270.0	265
1 × 95	9.3	1.3	2.5	2.5	48	4510	0.193	73.5	330.0	315
1 × 120	9.3	1.3	2.5	2.5	50	4891	0.153	73.5	375.0	360
1 × 150	9.3	1.3	2.5	2.6	51	5323	0.124	73.5	425.0	400
1 × 185	9.3	1.4	2.5	2.6	53	5850	0.0991	73.5	485.0	455
1 × 240	9.3	1.4	2.5	2.7	55	6620	0.0754	73.5	560.0	525
1 × 300	9.3	1.5	2.5	2.8	56	7456	0.0601	73.5	650.0	595
1 × 400	9.3	1.5	2.5	2.9	61	8642	0.047	73.5	760.0	680
1 × 500	9.3	1.6	2.5	3	64	10006	0.0366	73.5	875.0	775
3 × 50	9.3	1.8	3.15	3.7	87	10642	0.387	73.5	185.0	200
3 × 70	9.3	1.8	3.15	3.8	90	11799	0.268	73.5	230.0	250
3 × 95	9.3	1.8	3.15	3.9	93	12984	0.193	73.5	285.0	300
3 × 120	9.3	1.8	3.15	4	97	14117	0.153	73.5	310.0	380
3 × 150	9.3	2	3.15	4.2	100	15585	0.124	73.5	360.0	425
3 × 185	9.3	2	3.15	4.3	104	17044	0.0991	73.5	400.0	490
3 × 240	9.3	2	3.15	4.4	109	19178	0.0754	73.5	470.0	555
3 × 300	9.3	2	3.15	4.6	113	21389	0.0601	73.5	540.0	625

21/35kV

Izina.Umusaraba- igice cya umuyobozi	Kwikingira Umubyimba	Imbere Igipfukisho Umubyimba	We. Bya Intwaro	Sheath Umubyimba	Hafi ya OD	Hafi Ibiro	Max.DC Kurwanya Umuyobozi (20 ℃)	Ikizamini cya voltage AC	Urutonde rwubu
mm²	mm	mm	mm	mm	mm	kg / km	Ω / km	kV / 5min	Mu kirere (A)	Mu butaka (A)
1 × 50	10.5	1.3	2.5	2.4	47	4049	0.387	91	220	215
1 × 70	10.5	1.3	2.5	2.5	49	4433	0.268	91	270	265
1 × 95	10.5	1.3	2.5	2.5	51	4809	0.193	91	330	315
1 × 120	10.5	1.4	2.5	2.6	52	5247	0.153	91	375	360
1 × 150	10.5	1.4	2.5	2.6	54	5663	0.124	91	425	400
1 × 185	10.5	1.4	2.5	2.7	55	6191	0.0991	91	485	455
1 × 240	10.5	1.5	2.5	2.8	58	7003	0.0754	91	560	525
1 × 300	10.5	1.5	2.5	2.9	60	7819	0.0601	91	650	595
1 × 400	10.5	1.6	2.5	3	64	9051	0.047	91	760	680
1 × 500	10.5	1.6	2.5	3.1	67	10398	0.0366	91	875	775
3 × 50	10.5	1.8	3.15	3.9	92	11660	0.387	91	185	200
3 × 70	10.5	1.8	3.15	4	96	12860	0.268	91	230	250
3 × 95	10.5	1.9	3.15	4.1	99	14036	0.193	91	285	300
3 × 120	10.5	2.0	3.15	4.2	103	15306	0.153	91	310	380
3 × 150	10.5	2.0	3.15	4.4	106	16662	0.124	91	360	425
3 × 185	10.5	2.0	3.15	4.5	109	18130	0.0991	91	400	490
3 × 240	10.5	2.0	3.15	4.6	114	20258	0.0754	91	470	555
3 × 300	10.5	2.0	3.15	4.8	119	22517	0.0601	91	540	625
