| Nom.Cross-section FARITRY NY |
overall savaivony |
cable lanja |
DC Resistance at 20℃ Conductor min |
Current Carrying Capacity at 30℃ |
|
| In Air | In Ground | ||||
| mm² | MG | km/kg | Ω/km | A | |
| 3×25 | 43 | 3660 | 0.727 | 133 | 132 |
| 3×35 | 45 | 4175 | 0.524 | 172 | 170 |
| 3×50 | 49 | 5260 | 0.387 | 205 | 201 |
| 3×70 | 53 | 6330 | 0.268 | 256 | 245 |
| 3 × 95 | 57 | 7555 | 0.193 | 312 | 294 |
| 3×120 | 60 | 8640 | 0.153 | 359 | 334 |
| 3×150 | 63 | 9840 | 0.124 | 409 | 375 |
| 3×185 | 68 | 11510 | 0.0991 | 468 | 424 |
| 3×240 | 76 | 14490 | 0.0754 | 552 | 492 |
| 3×300 | 82 | 17587 | 0.0601 | 627 | 552 |
N2XSERGbY 3.6/6kV
| Nom.Cross-section FARITRY NY |
overall savaivony |
cable lanja |
DC Resistance at 20℃ Conductor min |
Current Carrying Capacity at 30℃ |
|
| In Air | In Ground | ||||
| mm² | MG | km/kg | Ω/km | A | |
| 3×25 | 48 | 4600 | 0.727 | 134 | 133 |
| 3×35 | 51 | 5220 | 0.524 | 173 | 171 |
| 3×50 | 54 | 5925 | 0.387 | 206 | 202 |
| 3×70 | 57 | 6985 | 0.268 | 257 | 246 |
| 3 × 95 | 62 | 8310 | 0.193 | 313 | 295 |
| 3×120 | 65 | 9415 | 0.153 | 360 | 335 |
| 3×150 | 68 | 10572 | 0.124 | 410 | 376 |
| 3×185 | 75 | 13015 | 0.0991 | 469 | 425 |
| 3×240 | 78 | 15424 | 0.0754 | 553 | 493 |
| 3×300 | 85 | 18210 | 0.0601 | 628 | 553 |
N2XSERGbY 6/10kV
| Nom.Cross-section FARITRY NY |
overall savaivony |
cable lanja |
DC Resistance at 20℃ Conductor min |
Current Carrying Capacity at 30℃ |
|
| In Air | In Ground | ||||
| mm² | MG | km/kg | Ω/km | A | |
| 3×25 | 54 | 5432 | 0.727 | 134 | 132 |
| 3×35 | 56 | 5992 | 0.524 | 173 | 171 |
| 3×50 | 59 | 6723 | 0.387 | 206 | 202 |
| 3×70 | 63 | 7922 | 0.268 | 257 | 246 |
| 3 × 95 | 67 | 9210 | 0.193 | 313 | 295 |
| 3×120 | 70 | 10355 | 0.153 | 360 | 335 |
| 3×150 | 73 | 11530 | 0.124 | 410 | 376 |
| 3×185 | 79 | 14275 | 0.0991 | 469 | 425 |
| 3×240 | 84 | 16650 | 0.0754 | 553 | 492 |
| 3×300 | 90 | 19354 | 0.0601 | 629 | 554 |
N2XSERGbY 8.7/15kV
| Nom.Cross-section FARITRY NY |
overall savaivony |
cable lanja |
DC Resistance at 20℃ Conductor min |
Current Carrying Capacity at 30℃ |
|
| In Air | In Ground | ||||
| mm² | MG | km/kg | Ω/km | A | |
| 3×35 | 61 | 6748 | 0.524 | 173 | 171 |
| 3×50 | 64 | 7588 | 0.387 | 206 | 202 |
| 3×70 | 68 | 8720 | 0.268 | 257 | 246 |
| 3 × 95 | 72 | 10075 | 0.193 | 313 | 295 |
| 3×120 | 76 | 12082 | 0.153 | 360 | 335 |
| 3×150 | 79 | 13325 | 0.124 | 410 | 376 |
| 3×185 | 84 | 15310 | 0.0991 | 469 | 425 |
| 3×240 | 89 | 17685 | 0.0754 | 553 | 492 |
| 3×300 | 95 | 20480 | 0.0601 | 629 | 554 |
N2XSEFGbY 12/20kV
| Nom.Cross-section FARITRY NY |
overall savaivony |
cable lanja |
DC Resistance at 20℃ Conductor min |
Current Carrying Capacity at 30℃ |
|
| In Air | In Ground | ||||
| mm² | MG | km/kg | Ω/km | A | |
| 3×50 | 78 | 10,645 | 0.387 | 207 | 202 |
| 3×70 | 82 | 12,000 | 0.268 | 257 | 246 |
| 3 × 95 | 86 | 13,465 | 0.193 | 313 | 295 |
| 3×120 | 89 | 14.76 | 0.153 | 360 | 335 |
| 3×150 | 92 | 16,070 | 0.124 | 410 | 376 |
| 3×185 | 97 | 18,075 | 0.0991 | 469 | 425 |
| 3×240 | 101 | 20,550 | 0.0754 | 553 | 492 |
| 3×300 | 107 | 23,615 | 0.0601 | 629 | 554 |
N2XSEFGbY 18/30kV

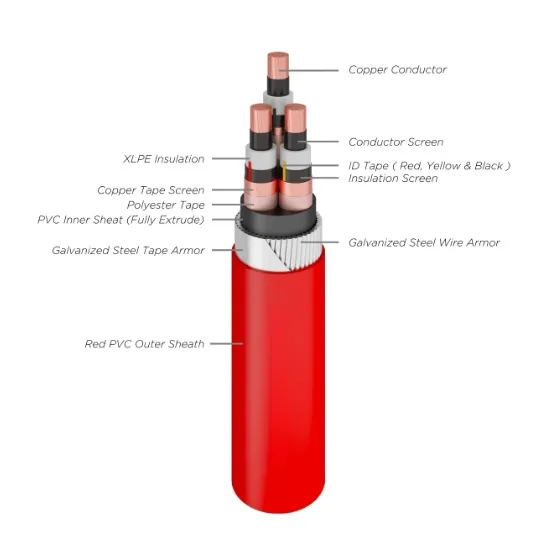

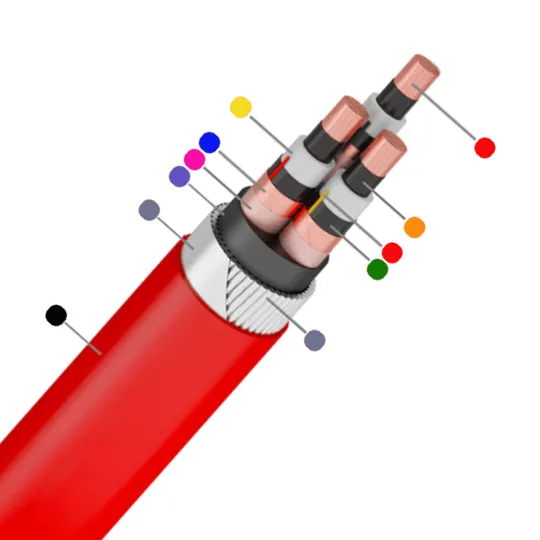

Cable Structure
● Conductor:Compact stranded copper conductor,CI.2 as per IEC 60228
● Ecran Conductor: Semi-conductor
● Insulation:XLPE rated at 90°C
● ID Tape:Red/Yellow/Black
● Metallic Screen:Copper Tape Screen
● Polyster Tape
● Separation Sheath(for armoured cable):PVC inner Sheath(Fully extruded)
● Armoring:Galvanized Steel Flat Armor
Galvanized Steel Tape
●Sheath:PVC or FR-PVC type ST2/ST8 to IEC 60502,black
Fanendrena kaody
YJ: XLPE insulation
V: PVC fonony
22: Tafo roa vy vy armoring-3 cores
62: Fametahana kasety tsy misy vy roa sosona-1 fototra
ZR: mahatohitra lelafo
European Union:N2XSERGBY/NA2XSERGBY
Fampiharana
For installation in the ground, indoors,cable trunking and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.
Malagasy
International:IEC 60502,EC60228,(IEC60332-3forZR-YJV22,ZR-YJV62only)
China:GB/T12706,(GB/T18380-3forZR-YJV22,ZR-YJV62only)
European standard:DIN VDE0276-620,HD620S2,IEC/EN 60228,IEC/EN 60502-2
Flame Retardant according to IEC/EN 60332-1-2
Indonesian Standard:Conductor:SNI IEC 60228/Insulation:SNI IEC 60502-2
Fenitra hafa toy ny BS, DIN ary ICEA amin'ny fangatahana
Data ara-teknika
Rated voltage:3.6/6KV6/10KV 8.7/15KV 12/20KV 18/30kV
Maximum Conductor mari-pana: eo ambanin'ny ara-dalàna (90 ℃), maika (130 ℃) na fohy circuit tsy mihoatra ny 5s (250 ℃) fepetra.
Min.Ambient Temp.-20°℃,Installation Temp.0℃
Min. Bending Radius: 15 × tariby OD ho an'ny fototra tokana
12 × tariby OD ho an'ny fototra maro
taratasy fanamarinana
CE, RoHS, CCC, KEMA ary maro hafa amin'ny fangatahana
