כינעזיש
פּאַראַמעטער
| נאָמ.קראָסס-אָפּטיילונג שטח | overall diameter | cable Weight | DC Resistance at 20℃ Conductor min |
| mm² | mm | km/kg | Ω/קמ |
| 3×0.75 | 8.7 | 91 | 26 |
| 3×1 | 9 | 98 | 19.5 |
| 3×1.5 | 10.1 | 122 | 13.3 |
| 3×2.5 | 11.3 | 176 | 7.98 |
| 3×4 | 22 | 225 | 4.95 |
| 4×0.75 | 9.2 | 120 | 26 |
| 4×1 | 9.6 | 110 | 19.5 |
| 4×1.5 | 10.8 | 150 | 13.3 |
| 4×2.5 | 12.2 | 209 | 7.98 |
| 4×4 | 14 | 311 | 4.95 |
| 4×6 | 15.7 | 429 | 3.3 |
| 4×10 | 19.5 | 759 | 1.91 |
| 4×16 | 21.9 | 1093 | 1.21 |
| 4×25 | 30 | 1593 | 0.78 |
| 4×35 | 33 | 2390 | 0.554 |
| 4×50 | 40 | 3400 | 0.386 |
| 4×70 | 46 | 4750 | 0.272 |
| 5×0.75 | 9.9 | 134 | 26 |
| 5×1 | 10.4 | 136 | 19.5 |
| 5×1.5 | 11.7 | 176 | 13.3 |
| 5×2.5 | 13.3 | 252 | 7.98 |
| 5×4 | 15.3 | 398 | 4.95 |
| 5×6 | 17.9 | 602 | 3.3 |
| 5×10 | 23 | 927 | 1.91 |
| 5×16 | 27 | 1583 | 1.21 |
| 5×25 | 33.8 | 2040 | 0.78 |
| 5×35 | 36.9 | 2887 | 0.554 |
| 7×0.75 | 11.1 | 177 | 26 |
| 7×1 | 12.1 | 179 | 19.5 |
| 7×1.5 | 13.5 | 192 | 13.3 |
| 7×2.5 | 15.2 | 335 | 7.98 |
| 7×4 | 16.8 | 524 | 4.95 |
| 7×6 | 19.7 | 802 | 3.3 |
| 12×0.75 | 13.4 | 248 | 26 |
| 12×1 | 14.5 | 287 | 19.5 |
| 12×1.5 | 16.6 | 363 | 13.3 |
| 12×2.5 | 18.7 | 544 | 7.98 |
| 18×0.75 | 15.6 | 350 | 26 |
| 18×1 | 17.3 | 408 | 19.5 |
| 18×1.5 | 19.7 | 520 | 13.3 |
| 18×2.5 | 22 | 788 | 7.98 |
| 25×0.75 | 18.9 | 478 | 26 |
| 25×1 | 21.1 | 567 | 19.5 |
| 25×1.5 | 23.9 | 740 | 13.3 |
| 34×0.75 | 21.5 | 626 | 26 |
| 34×1 | 24 | 751 | 19.5 |
| 34×1.5 | 27.2 | 959 | 13.3 |
| 42×0.75 | 23.3 | 760 | 26 |
| 42×1 | 25.9 | 890 | 19.5 |
| 42×1.5 | 29.5 | 1110 | 13.3 |
| 50×0.75 | 25.6 | 871 | 26 |
| 50×1 | 28.5 | 1076 | 19.5 |
| 50×1.5 | 32.5 | 1399 | 13.3 |
| 61×0.75 | 28.2 | 1060 | 26 |
| 61×1.5 | 36.8 | 1680 | 19.5 |

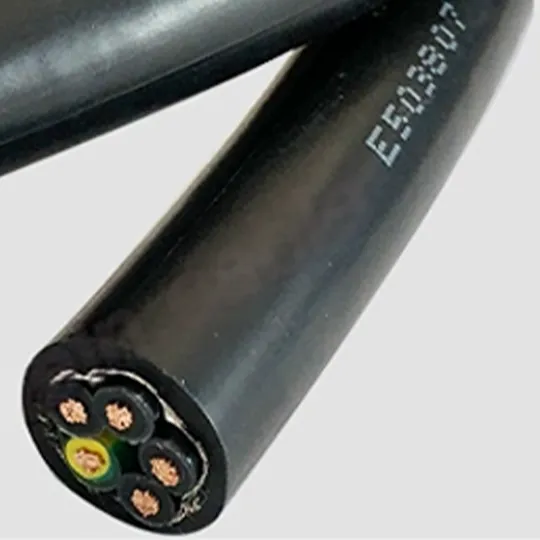

קאַבלע סטרוקטור
● Conductor:Class 5 flexible stranded bare copper
● Insulation:PVC
● Sheath:Special PVC-Compound
קאָד באַצייכענונג
YSLY
אַפּפּליקאַטיאָן
Flexible power,process control and instrumentation cable for industry,machinery and outdoor environment.The YSLY cable is resistant against most usual chemicals,oil and grease
נאָרמאַל
European standard :IEC/EN 60811-404
Fire Retardant according to:IEC/EN 60332-1-2
אנדערע סטאַנדאַרדס אַזאַ ווי IEC, BS, DIN און ICEA אויף בעטן
טעכניש דאַטן
Voltage Rating Uo/U:0.6/1kV
Temperature Rating:Fixed:-20℃ to+70℃
Installation:-5℃ to+70℃
Minimum Bending Radius :Fixed:4×overall diameter
Flexed:7.5×overall diameter
סערטיפיקאַץ
CE, RoHS, CCC, KEMA און מער אנדערע אויף בעטן
