Tham số
| Danh mục Diện tích mặt cắt ngang | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃Insulation min | Current Carrying Capacity at 30℃ | ||
| Vật liệu cách nhiệt | Outer Sheath | In Air | In Ground | ||||
| mm² | mm | mm | mm | km/kg | M.Ω.km | A | A |
| 7 × 1.5 re | 0.8 | 1.8 | 14.5 | 324 | 12 | 17 | 13 |
| 7 × 1.5 rm | 0.8 | 1.8 | 15 | 341 | 11 | 17 | 13 |
| 8 × 1.5 re | 0.8 | 1.8 | 15.5 | 362 | 12 | 16 | 12 |
| 8 × 1.5 rm | 0.8 | 1.8 | 16 | 381 | 11 | 16 | 12 |
| 10 × 1.5 re | 0.8 | 1.8 | 17.4 | 434 | 12 | 15 | 12 |
| 10 × 1.5 rm | 0.8 | 1.8 | 18.1 | 458 | 11 | 15 | 12 |
| 12 × 1.5 re | 0.8 | 1.8 | 17.9 | 480 | 12 | 14 | 11 |
| 12 × 1.5 rm | 0.8 | 1.8 | 18.6 | 506 | 11 | 14 | 11 |
| 14 × 1.5 re | 0.8 | 1.8 | 18.7 | 542 | 12 | 13 | 11 |
| 14 × 1.5 rm | 0.8 | 1.8 | 19.5 | 572 | 11 | 13 | 11 |
| 16 × 1.5 re | 0.8 | 1.8 | 19.5 | 599 | 12 | 12 | 10 |
| 16 × 1.5 rm | 0.8 | 1.8 | 20.3 | 632 | 11 | 12 | 10 |
| 19 × 1.5 re | 0.8 | 1.8 | 20.4 | 670 | 12 | 12 | 9 |
| 19 × 1.5 rm | 0.8 | 1.8 | 21.3 | 707 | 11 | 12 | 9 |
| 21 × 1.5 re | 0.8 | 1.8 | 21.4 | 728 | 12 | 11 | 9 |
| 21 × 1.5 rm | 0.8 | 1.8 | 22.3 | 768 | 11 | 11 | 9 |
| 24 × 1.5 re | 0.8 | 1.8 | 23.4 | 821 | 12 | 11 | 8 |
| 24 × 1.5 rm | 0.8 | 1.8 | 24.4 | 866 | 11 | 11 | 8 |
| 30 × 1.5 re | 0.8 | 1.8 | 24.6 | 970 | 12 | 11 | 8 |
| 30 × 1.5 rm | 0.8 | 1.8 | 25.7 | 1024 | 11 | 11 | 8 |
| 40 × 1.5 re | 0.8 | 1.8 | 27.3 | 1226 | 12 | 11 | 8 |
| 40 × 1.5 rm | 0.8 | 1.8 | 28.5 | 1294 | 11 | 11 | 8 |
| 52 × 1.5 re | 0.8 | 1.9 | 32 | 1585 | 12 | 11 | 8 |
| 52 × 1.5 rm | 0.8 | 1.9 | 33.4 | 1673 | 11 | 11 | 8 |
| 61 × 1.5 re | 0.8 | 2.0 | 33 | 1815 | 12 | 11 | 8 |
| 61 × 1.5 rm | 0.8 | 2.0 | 34.6 | 1916 | 11 | 11 | 8 |
| 7 × 2.5 re | 0.8 | 1.8 | 15.8 | 421 | 10 | 26 | 21 |
| 7 × 2.5 rm | 0.8 | 1.8 | 16.5 | 450 | 9 | 26 | 21 |
| 8 × 2.5 re | 0.8 | 1.8 | 16.9 | 471 | 10 | 23 | 18 |
| 8 × 2.5 rm | 0.8 | 1.8 | 17.7 | 505 | 9 | 23 | 18 |
| 10 × 2.5 re | 0.8 | 1.8 | 19.1 | 570 | 10 | 21 | 17 |
| 10 × 2.5 rm | 0.8 | 1.8 | 20.1 | 611 | 9 | 21 | 17 |
| 12 × 2.5 re | 0.8 | 1.8 | 19.7 | 637 | 10 | 20 | 16 |
| 12 × 2.5 rm | 0.8 | 1.8 | 20.7 | 682 | 9 | 20 | 16 |
| 14 × 2.5 re | 0.8 | 1.8 | 20.5 | 724 | 10 | 18 | 15 |
| 14 × 2.5 rm | 0.8 | 1.8 | 21.6 | 777 | 9 | 18 | 15 |
| 16 × 2.5 re | 0.8 | 1.8 | 21.5 | 804 | 10 | 17 | 14 |
| 16 × 2.5 rm | 0.8 | 1.8 | 22.6 | 863 | 9 | 17 | 14 |
| 19 × 2.5 re | 0.8 | 1.8 | 22.5 | 907 | 10 | 17 | 13 |
| 19 × 2.5 rm | 0.8 | 1.8 | 23.6 | 974 | 9 | 17 | 13 |
| 21 × 2.5 re | 0.8 | 1.8 | 23.6 | 989 | 10 | 16 | 12 |
| 21 × 2.5 rm | 0.8 | 1.8 | 24.9 | 1062 | 9 | 16 | 12 |
| 24 × 2.5 re | 0.8 | 1.8 | 25.9 | 1118 | 10 | 15 | 11 |
| 24 × 2.5 rm | 0.8 | 1.8 | 27.3 | 1200 | 9 | 15 | 11 |
| 30 × 2.5 re | 0.8 | 1.8 | 27.3 | 1335 | 10 | 14 | 11 |
| 30 × 2.5 rm | 0.8 | 1.8 | 28.8 | 1433 | 9 | 14 | 11 |
| 40 × 2.5 re | 0.8 | 1.9 | 30.5 | 1718 | 10 | 14 | 11 |
| 40 × 2.5 rm | 0.8 | 1.9 | 32.3 | 1846 | 9 | 14 | 11 |
| 52 × 2.5 re | 0.8 | 2.0 | 35.8 | 2220 | 10 | 14 | 11 |
| 52 × 2.5 rm | 0.8 | 2.0 | 37.9 | 2384 | 9 | 14 | 11 |
| 61 × 2.5 re | 0.8 | 2.1 | 37 | 2552 | 10 | 14 | 11 |
| 61 × 2.5 rm | 0.8 | 2.1 | 39.1 | 2741 | 9 | 14 | 11 |

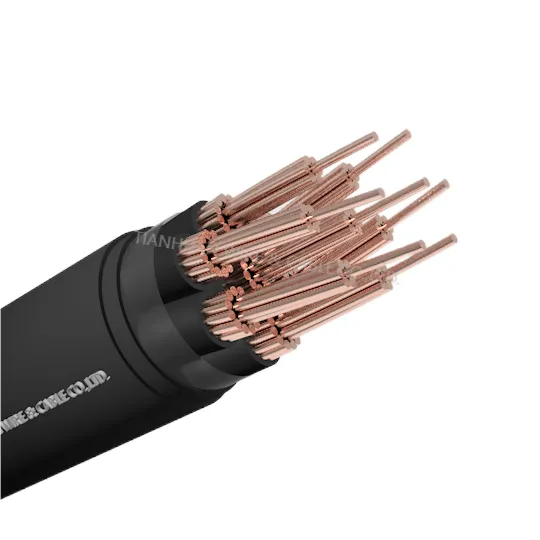

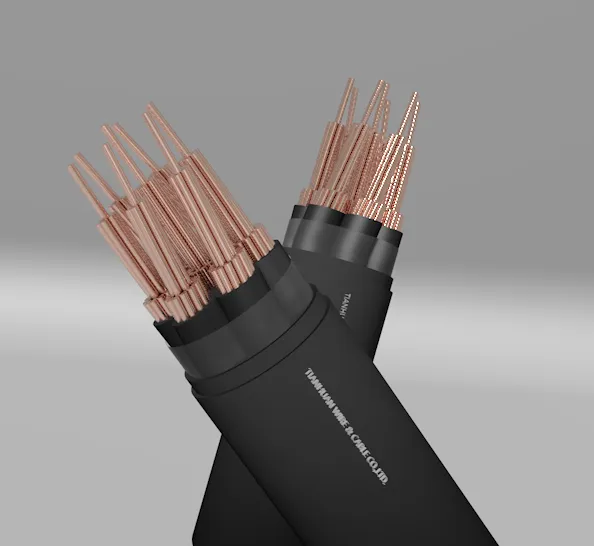

Cấu trúc cáp
● Conductor:Annealed plain copper round solid or round circular strandard
[re]Round solid conductor
[rm]Circular stranded conductor
● Insulation:PVC
● Filler:PVC
● Sheath:PVC or FR-PVC type ST1/ST2,black
Mã chỉ định
NYY
Ứng dụng
Indoor and outdoor induct installation or of laying in the ground where not sustain mechanical damage.
Tiêu chuẩn
European standard:IEC 60502-1,VDE 0276-603,HD 603,IEC 60228
Flame Retardant according to IEC/EN 60332-1-2
Indonesian Standard:Conductor:SNI IEC 60228/PVC Insulation:SNI IEC 60502-1/
PVC SheathGrade ST1 to SNI IEC 60502-1.Black
Thông số kỹ thuật
Rated voltage:U0/U 0.6/1kv
Temperature Rating Maximum Operating:
Fixed；-15℃ to +70℃/Flexed:-5℃ to +50℃
Min.Bending Radius
Fixed:12 × overall diameter
Chứng chỉ
CE, RoHS, CCC, Kema và nhiều thứ khác theo yêu cầu
