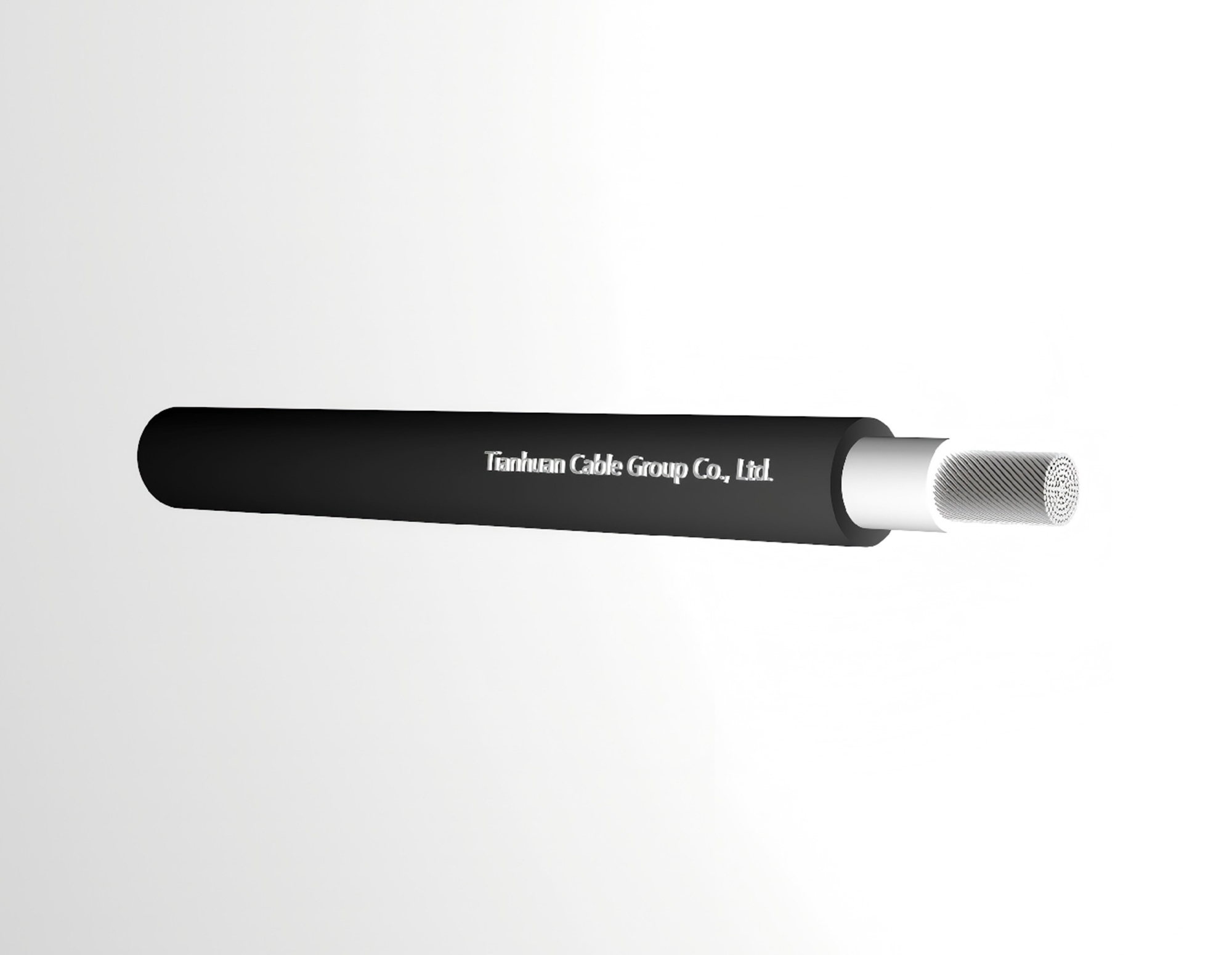

CABLE STRUCTURE:
Conductor: Aluminum alloy soft conductor in 2 PFG 2642, class 5
Insulation: crosslinked halogen-free low smoke flame retardant polyolefin
Sheath Jacket: crosslinked halogen-free low smoke flame retardant polyolefin
Technical Data Nominal Voltage: DC 1500V
Test voltage: AC 6.5kV/5minor DC 15kV/5min without breakdown
Temperature Rating: -40℃ to+90℃, life do 25 Years(TUV)
Fire performance: IEC 60332-1
Salt spray discharge: IEC 61034; EN 50268-2
Low fire load: DIN 51900
| Nom.Cross-section Area | Finnish Cable OD | Max DC Resistance at 20℃ | Current Carrying Capacity | Approx. Weight |
| mm² | mm | Ω/KM | A | kg/km |
| 1×4 | 5.6 | 8.1 | 42 | 39.1 |
| 1×6 | 6.2 | 5.05 | 57 | 48.82 |
| 1×10 | 7.3 | 3.08 | 72 | 69.3 |
| 2×4 | 5.6×11.4 | 8.1 | 33 | 79.89 |
| 2×6 | 6.2×12.6 | 5.05 | 45 | 99.54 |
| 2×10 | 7.3×14.8 | 3.08 | 58 | 140.78 |
Application Apply to photovoltaic power generation, solar system, interconnects solar panels and electrical components in the photovoltaic system. The size of single core cable often go from 4 mm2 to 70 mm2, and the size of dual core cable go 4 mm2 to 10 mm2, with ozone resistance, acid and alkali resistance and environmental climate and other external environment characteristics.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
