CABLE STRUCTURE:
Conductor: Class 5 flexible tinned copper conductor
Insulation: Halogen-free cross-linked compound
Sheath: Halogen-free cross-linked, flame retardant compound
Technical Data Voltage Rating: Uo/U DC: 1500/1500V AC: 1000/1000V
Maximum Voltage: (Umax) 1800V
Test Voltage: 6.5kV AC
Temperature Rating Fixed: -40℃ to+90℃
Minimum Bending Radius: 5x overall diameter
Maximum Conductor Temperature: +120℃(for 20000h)
| Nom.Cross-section Area | Nominal Overall Diameter | Nominal Weight | Tensile Strength in Operation | Maximum Conductor DC Resistance at 20℃ | Maximum Donductor DC Resistance at 90℃ |
| mm2 | mm | kg/km | N | Ω/km | Ω/km |
| 1×1.5 | 4.6 | 36 | 22 | 13.7 | 17.468 |
| 1×2.5 | 5 | 46 | 37 | 8.21 | 10.468 |
| 1×4 | 5.6 | 62 | 60 | 5.09 | 6.49 |
| 1×6 | 6.1 | 82 | 90 | 3.39 | 4.322 |
| 1×10 | 7.1 | 125 | 150 | 1.95 | 2.486 |
| 1×16 | 8.5 | 190 | 240 | 1.24 | 1.581 |
| 1×25 | 10.4 | 285 | 375 | 0.795 | 1.013 |
| 1×35 | 11.5 | 385 | 525 | 0.565 | 0.72 |
| 1×50 | 13.7 | 540 | 750 | 0.393 | 0.501 |
| 1×70 | 15.8 | 740 | 1050 | 0.277 | 0.353 |
| 1×95 | 17.3 | 965 | 1350 | 0.21 | 0.267 |
| 1×120 | 19.1 | 1210 | 1800 | 0.164 | 0.209 |
| 1×150 | 21.4 | 1495 | 2250 | 0.132 | 0.168 |
| 1×185 | 24.9 | 1885 | 2775 | 0.108 | 0.137 |
| 1×240 | 27.3 | 2395 | 3600 | 0.0817 | 0.104 |

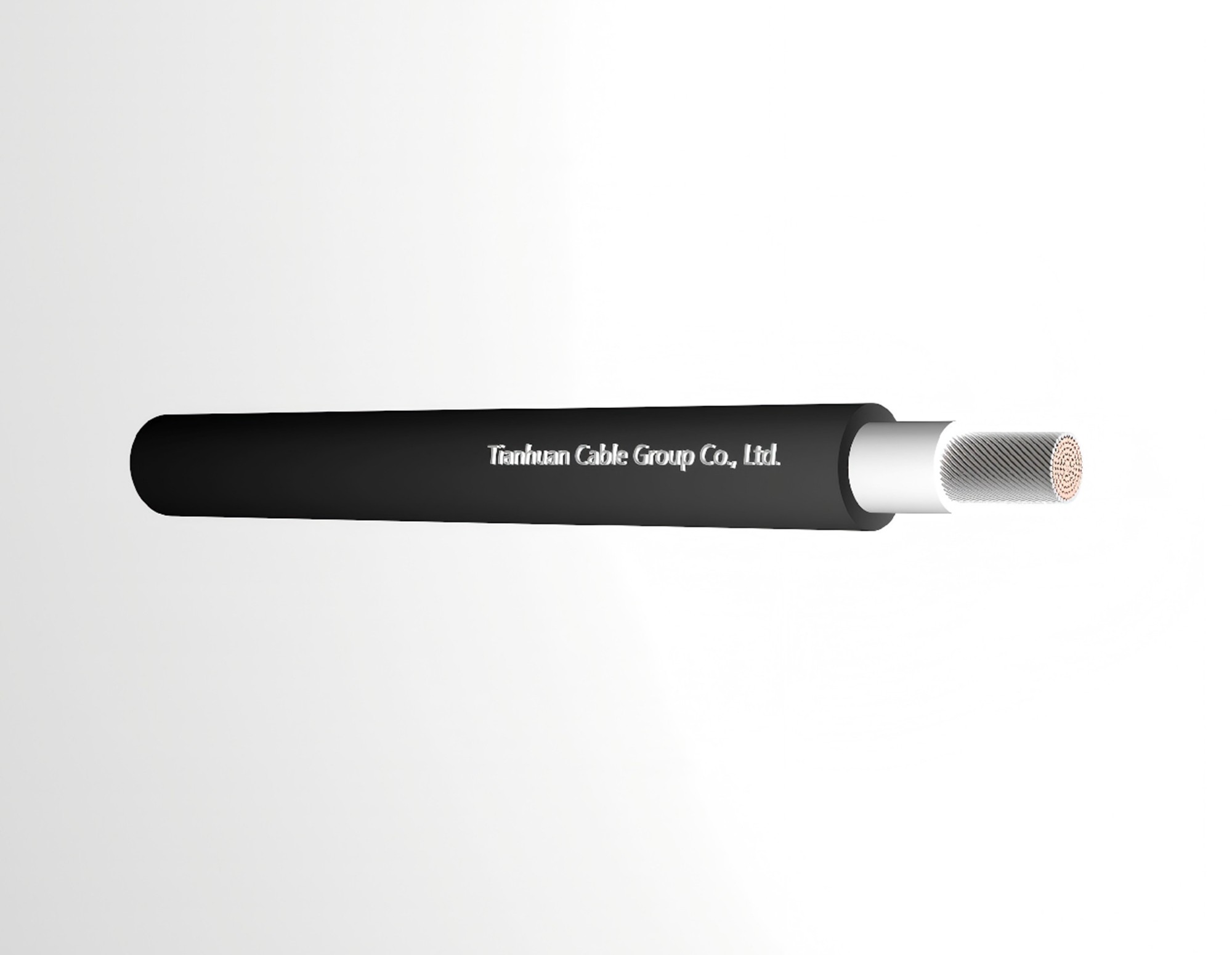

Application Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems. Impact tested-Suitable for direct burial. For installationsd where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. Water resistant to AD8.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
