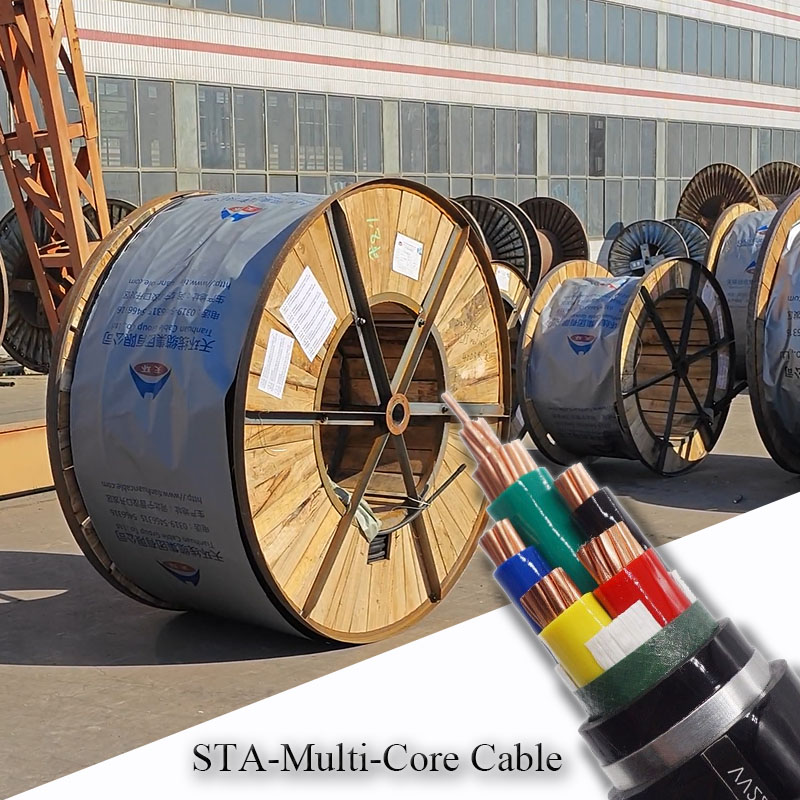

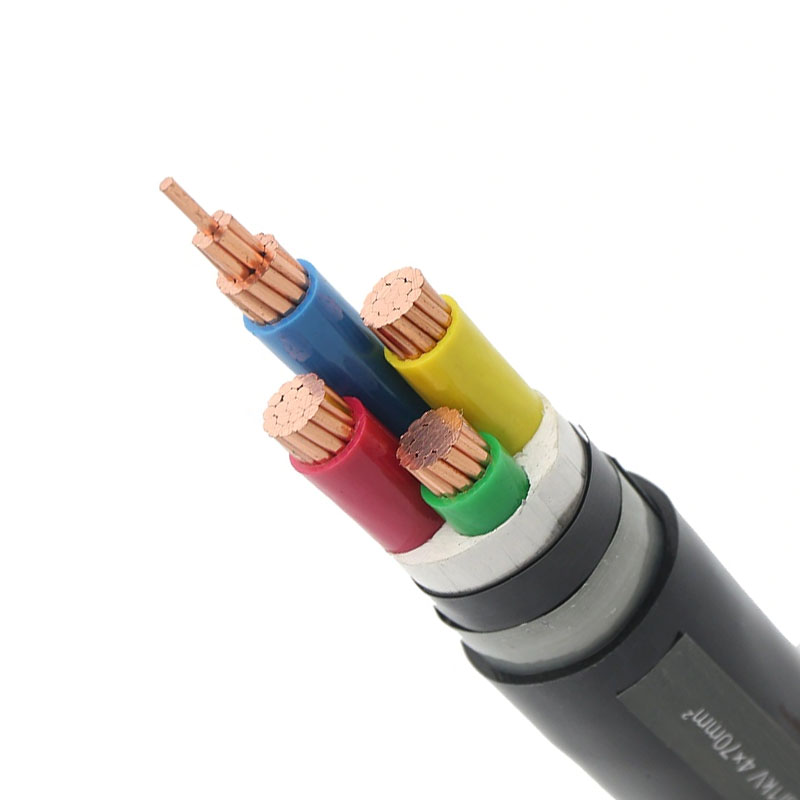

0.6/1 kV LOW VOLTAGE XLPE INSULATED MULTI-CORE STEEL TAPE ARMOURED CABLE

0,6

Umugozi wibyuma bya kaburimbo, hamwe na cores nyinshi ziyobora umuringa, izirinda XLPE, uburiri bwa PVC, icyuma kitagira umuyonga, Umwotsi muke wa Zero Halogen (LSZH) icyuma cyo hanze cyangwa PVC. Itanga voltage yagereranijwe 0,6 / 1 KV kugirango ushyire mu nzu no hanze, mu kirere no hasi.

Umubare w'icyitegererezo: CU / XLPE / PVC / STA / PVC (CU / XLPE / PVC / STA / FR-PVC), 0.6 / 1KV
Icyiciro: Intsinga z'ingufu / insinga z'amashanyarazi / Umugozi w'inganda / Umugozi wa STA
Aho bakomoka: XingTai, Ubushinwa
Izina ryirango: TIANHUAN
Certification ISO,CE,IEC,TUV

Minimum order quantity:5000 meters

SHAKA NONAHA DOWNLOAD PDF

Ibisobanuro

Etiquetas

Parameter

Izina.Umusaraba- igice cya umuyobozi	Kwikingira Umubyimba	Imbere Igipfukisho Umubyimba	Umubyimba w'icyuma	Sheath Umubyimba	Hafi ya OD	Hafi Ibiro	Max.DC Kurwanya Umuyobozi (20 ℃)	Ikizamini cya voltage AC	Urutonde rwubu
mm²	mm	mm	mm	mm	mm	kg / km	Ω / km	kV / 5min	Mu kirere (A)	Mu butaka (A)
2 × 4	0.7	1.2	2 × 0.2	1.8	15	433	4.61	3.5	34	45
2 × 6	0.7	1.2	2 × 0.2	1.8	16	500	3.08	3.5	43	57
2 × 10	0.7	1.4	2 × 0.2	1.8	19	673	1.83	3.5	60	77
2 × 16	0.7	1.4	2 × 0.2	1.8	21	857	1.15	3.5	83	105
2 × 25	0.9	1.6	2 × 0.2	1.8	24	1173	0.727	3.5	105	125
2 × 35	0.9	1.6	2 × 0.2	1.8	26	1449	0.524	3.5	125	155
2 × 50	1	1.8	2 × 0.2	1.8	25	1877	0.387	3.5	160	185
2 × 70	1.1	1.8	2 × 0.2	1.8	27	2454	0.268	3.5	200	225
2 × 95	1.1	2	2 × 0.2	1.9	30	2483	0.193	3.5	245	270
2 × 120	1.2	2	2 × 0.2	2	33	4213	0.153	3.5	285	310
2 × 150	1.4	2	2 × 0.5	2.2	38	5087	0.124	3.5	325	345
3 × 1.5	0.7	1	2 × 0.2	1.5	13	273	12.1	3.5	20	27
3 × 2.5	0.7	1	2 × 0.2	1.5	14	321	7.41	3.5	26	35
3 × 4	0.7	1.2	2 × 0.2	1.5	15	390	4.61	3.5	34	45
3 × 6	0.7	1.2	2 × 0.2	1.5	16	471	3.08	3.5	43	57
3 × 10	0.7	1.4	2 × 0.2	1.5	18	622	1.83	3.5	60	77
3 × 16	0.7	1.4	2 × 0.2	2	22	1005	1.15	3.5	83	105
3 × 25	0.9	1.6	2 × 0.2	2	25	1371	0.727	3.5	105	125
3 × 35	0.9	1.6	2 × 0.2	2	27	1724	0.524	3.5	125	155
3 × 50	1	1.8	2 × 0.2	2	30	2247	0.387	3.5	160	185
3 × 70	1.1	1.8	2 × 0.2	2.5	35	3023	0.268	3.5	200	225
3 × 95	1.1	2	2 × 0.5	2.5	39	3825	0.193	3.5	245	270
3 × 120	1.2	2	2 × 0.5	2.5	42	4642	0.153	3.5	285	310
3 × 150	1.4	2	2 × 0.5	3	48	5767	0.124	3.5	325	345
3 × 185	1.6	2.2	2 × 0.5	3	51	6895	0.0991	3.5	375	390
3 × 240	1.7	2.2	2 × 0.5	3	56	8617	0.0754	3.5	440	450
3 × 300	1.8	2.2	2 × 0.5	3	59	10928	0.0601	3.5	505	515
3 × 400	2	2.2	2 × 0.5	3.2	61	13556	0.047	3.5	570	575
4 × 4	0.7	1	2 × 0.2	1.5	16	454	4.61	3.5	34	45
4 × 6	0.7	1	2 × 0.2	1.5	17	557	3.08	3.5	43	57
4 × 10	0.7	1	2 × 0.2	2	20	791	1.83	3.5	60	77
4 × 16	0.7	1	2 × 0.2	2	23	1210	1.15	3.5	83	105
4 × 25	0.9	1	2 × 0.2	2	27	1672	0.727	3.5	105	125
4 × 35	0.9	1	2 × 0.2	2	29	2127	0.524	3.5	125	155
4 × 50	1	1	2 × 0.2	2	33	2802	0.387	3.5	160	185
4 × 70	1.1	1.2	2 × 0.2	2.5	38	3785	0.268	3.5	200	225
4 × 95	1.1	1.2	2 × 0.5	2.5	42	4829	0.193	3.5	245	270
4 × 120	1.2	1.4	2 × 0.5	3	47	6033	0.153	3.5	285	310
4 × 150	1.4	1.4	2 × 0.5	3	52	7356	0.124	3.5	325	345
4 × 185	1.6	1.6	2 × 0.5	3	56	8808	0.0991	3.5	375	390
4 × 240	1.7	1.6	2 × 0.5	3	62	11182	0.0754	3.5	440	450
4 × 300	1.8	1.7	2 × 0.5	3.1	64	14176	0.0601	3.5	505	515
4 × 400	2	1.7	2 × 0.5	3.5	69	17815	0.047	3.5	570	575
5 × 4	0.7	1	2 × 0.2	1.5	18.1	588	4.61	3.5	34	45
5 × 6	0.7	1	2 × 0.2	1.5	19.4	720	3.08	3.5	43	57
5 × 10	0.7	1	2 × 0.2	2	22.9	1014	1.83	3.5	60	77
5 × 16	0.7	1	2 × 0.2	2	25.8	1392	1.15	3.5	83	105
5 × 25	0.9	1	2 × 0.2	2	30.5	2002	0.727	3.5	105	125
5 × 35	0.9	1	2 × 0.2	2	33.7	2581	0.524	3.5	125	155
5 × 50	1	1	2 × 0.5	2	38.6	3722	0.387	3.5	160	185
5 × 70	1.1	1.2	2 × 0.5	2.5	43.4	4897	0.268	3.5	200	225
5 × 95	1.1	1.2	2 × 0.5	2.5	48.6	6338	0.193	3.5	245	270
5 × 120	1.2	1.4	2 × 0.5	3	54.4	7851	0.153	3.5	285	310
5 × 150	1.4	1.4	2 × 0.5	3	60.1	9661	0.124	3.5	325	345
5 × 185	1.6	1.6	2 × 0.5	3	66.7	11770	0.0991	3.5	375	390
5 × 240	1.7	1.6	2 × 0.5	3	74.7	14900	0.0754	3.5	440	450
5 × 300	1.8	1.7	2 × 0.5	3.1	83.2	18000	0.0601	3.5	505	515
3 × 4 + 1 × 2.5	0.7	1	2 × 0.2	1.5	16	443	4.61	3.5	34	45
3 × 6 + 1 × 4	0.7	1	2 × 0.2	1.5	17	531	3.08	3.5	43	57
3 × 10 + 1 × 6	0.7	1	2 × 0.2	2	20	741	1.83	3.5	60	77
3 × 16 + 1 × 10	0.7	1	2 × 0.2	2	23	1135	1.15	3.5	83	105
3 × 25 + 1 × 16	0.9	1	2 × 0.2	2	26	1556	0.727	3.5	105	125
3 × 35 + 1 × 16	0.9	1	2 × 0.2	2	28	1896	0.524	3.5	125	155
3 × 50 + 1 × 25	1	1	2 × 0.2	2	31	2518	0.387	3.5	160	185
3 × 70 + 1 × 35	1.1	1.2	2 × 0.2	2.5	36	3293	0.268	3.5	200	225
3 × 95 + 1 × 50	1.1	1.2	2 × 0.5	2.5	40	4349	0.193	3.5	245	270
3 × 120 + 1 × 70	1.2	1.2	2 × 0.5	2.5	44	5365	0.153	3.5	285	310
3 × 150 + 1 × 70	1.4	1.4	2 × 0.5	3	49	6468	0.124	3.5	325	345
3 × 185 + 1 × 95	1.6	1.4	2 × 0.5	3	52	7854	0.0991	3.5	375	390
3 × 240 + 1 × 120	1.7	1.6	2 × 0.5	3.5	68	9814	0.0754	3.5	440	450
3 × 300 + 1 × 150	1.8	1.7	2 × 0.5	3.5	71	12781	0.0601	3.5	505	515
3 × 400 + 1 × 240	2	1.7	2 × 0.5	3.5	76	16359	0.047	3.5	570	575
3 × 4 + 2 × 2.5	0.7	1	2 × 0.2	1.5	17.5	855	4.61	3.5	34	45
3 × 6 + 2 × 4	0.7	1	2 × 0.2	1.5	18.9	1009	3.08	3.5	43	57
3 × 10 + 2 × 6	0.7	1	2 × 0.2	2	21.6	1461	1.83	3.5	60	77
3 × 16 + 2 × 10	0.7	1	2 × 0.2	2	24.6	1877	1.15	3.5	83	105
3 × 25 + 2 × 16	0.9	1	2 × 0.2	2	28.7	2583	0.727	3.5	105	125
3 × 35 + 2 × 16	0.9	1	2 × 0.2	2	30.7	3001	0.524	3.5	125	155
3 × 50 + 2 × 25	1	1	2 × 0.2	2	36.2	4392	0.387	3.5	160	185
3 × 70 + 2 × 35	1.1	1.2	2 × 0.2	2.5	40.3	5519	0.268	3.5	200	225
3 × 95 + 2 × 50	1.1	1.2	2 × 0.5	2.5	44.9	7543	0.193	3.5	245	270
3 × 120 + 2 × 70	1.2	1.2	2 × 0.5	2.5	50.3	9203	0.153	3.5	285	310
3 × 150 + 2 × 70	1.4	1.4	2 × 0.5	3	54	10485	0.124	3.5	325	345
3 × 185 + 2 × 95	1.6	1.4	2 × 0.5	3	60.2	13945	0.0991	3.5	375	390
3 × 240 + 2 × 120	1.7	1.6	2 × 0.5	3.5	67.2	15643	0.0754	3.5	440	450
3 × 300 + 2 × 150	1.8	1.7	2 × 0.5	3.5	75.2	18204	0.0601	3.5	505	515
4 × 4 + 1 × 2.5	0.7	1	2 × 0.2	1.5	18.4	565	4.61	3.5	34	45
4 × 6 + 1 × 4	0.7	1	2 × 0.2	1.5	19.8	692	3.08	3.5	43	57
4 × 10 + 1 × 6	0.7	1	2 × 0.2	2	22.8	953	1.83	3.5	60	77
4 × 16 + 1 × 10	0.7	1	2 × 0.2	2	25.8	1318	1.15	3.5	83	105
4 × 25 + 1 × 16	0.9	1	2 × 0.2	2	30.4	1877	0.727	3.5	105	125
4 × 35 + 1 × 16	0.9	1	2 × 0.2	2	34. 1	2324	0.524	3.5	125	155
4 × 50 + 1 × 25	1	1.0	2 × 0.2	2.0	38.7	3415	0.387	3.5	160	185
4 × 70 + 1 × 35	1.1	1.2	2 × 0.5	2.5	44.2	4432	0.268	3.5	200	225
4 × 95 + 1 × 50	1.1	1.2	2 × 0.5	2.5	49.8	5747	0.193	3.5	245	270
4 × 120 + 1 × 70	1.2	1.2	2 × 0.5	2.5	55.4	7112	0.153	3.5	285	310
4 × 150 + 1 × 70	1.4	1.4	2 × 0.5	3.0	60.1	8556	0.124	3.5	325	345
4 × 185 + 1 × 95	1.6	1.4	2 × 0.5	3.0	66.9	10510	0.0991	3.5	375	390
4 × 240 + 1 × 120	1.7	1.6	2 × 0.5	3.5	74.8	13232	0.0754	3.5	440	450
4 × 300 + 1 × 150	1.8	1.7	2 × 0.5	3.5	78.4	16452	0.0601	3.5	505	515
