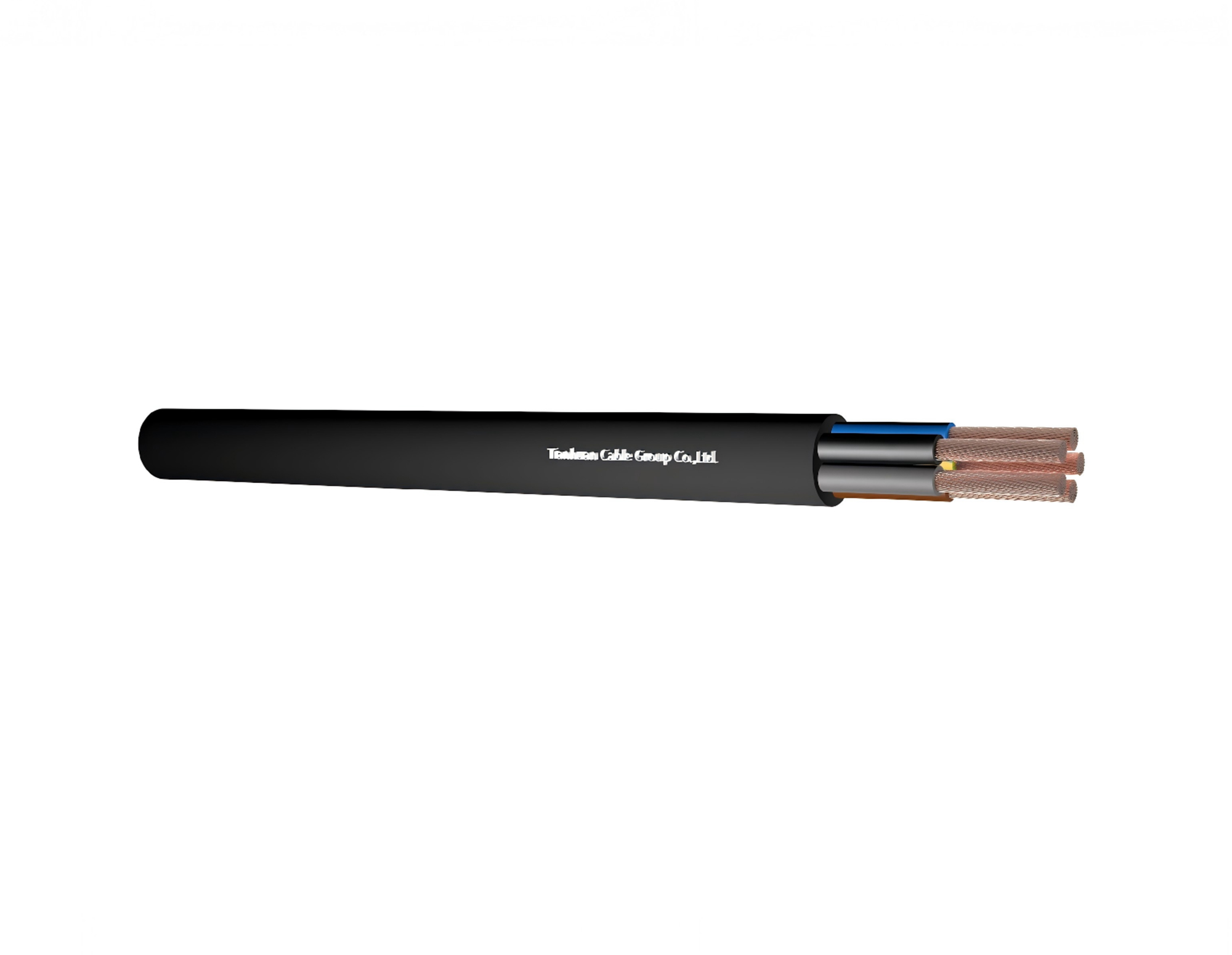

CABLE STRUCTURE:
Conductor: Class 5 flexible copper conductor
Insulation: EPR(Ethylene Propylene Rubber)
Sheath: PCP(Polychloroprene)
Technical Data Voltage Rating: Uo/U450/750V Suitable for 1kV infixed application.
Temperature RatingFixed: -30℃ to+90℃Flexed: -15℃ to+90℃
Minimum Bending Radius: Fixed: 4x overall diameter
Flexed: 6x overall diameter
| Nom.Cross-section Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Weight |
| mm² | mm | mm | kg/km |
| 1×1.5 | 0.8 | 5.8 | 52 |
| 1×2.5 | 0.9 | 6.5 | 67 |
| 1×4 | 1 | 7.4 | 92 |
| 1×6 | 1 | 8.1 | 119 |
| 1×10 | 1.2 | 9.8 | 185 |
| 1×16 | 1.2 | 11.35 | 258 |
| 1×25 | 1.4 | 13.3 | 375 |
| 1×35 | 1.4 | 14.6 | 485 |
| 1×50 | 1.6 | 17.2 | 669 |
| 1×70 | 1.6 | 19.35 | 892 |
| 1×95 | 1.8 | 22.2 | 1160 |
| 1×120 | 1.8 | 24.3 | 1436 |
| 1×150 | 2 | 25.9 | 1748 |
| 1×185 | 2.2 | 29.7 | 2142 |
| 1×240 | 2.4 | 31.5 | 2698 |
| 1×300 | 2.6 | 36.5 | 3348 |
| 1×400 | 2.8 | 40.4 | 4293 |
| 1×500 | 3 | 42.6 | 5262 |
| 1×630 | 3 | 47.2 | 6790 |
| 2×1 | 0.8 | 8.1 | 94 |
| 2×1.5 | 0.8 | 9 | 120 |
| 2×2.5 | 0.9 | 10.7 | 173 |
| 2×4 | 1 | 12.3 | 239 |
| 2×6 | 1 | 13.8 | 313 |
| 2×10 | 1.2 | 18.6 | 563 |
| 2×16 | 1.2 | 21.7 | 830 |
| 2×25 | 1.4 | 25.8 | 1211 |
| 3×1 | 0.8 | 8.74 | 117 |
| 3×1.5 | 0.8 | 9.68 | 147 |
| 3×2.5 | 0.9 | 11.48 | 123 |
| 3×4 | 1 | 13.2 | 297 |
| 3×6 | 1 | 14.78 | 390 |
| 3×10 | 1.2 | 19.9 | 705 |
| 3×16 | 1.2 | 23.31 | 1031 |
| 3×25 | 1.4 | 27.7 | 1512 |
| 3×35 | 1.4 | 30.2 | 1907 |
| 3×50 | 1.6 | 35.8 | 2651 |
| 3×70 | 1.6 | 40.1 | 3484 |
| 3×95 | 1.8 | 46.4 | 4594 |
| 4×1 | 0.8 | 9.63 | 142 |
| 4×1.5 | 0.8 | 10.63 | 180 |
| 4×2.5 | 0.9 | 12.6 | 260 |
| 4×4 | 1 | 14.6 | 336 |
| 4×6 | 1 | 16.4 | 449 |
| 4×10 | 1.2 | 21.8 | 833 |
| 4×16 | 1.2 | 25.4 | 1138 |
| 4×25 | 1.4 | 30.7 | 1714 |
| 4×35 | 1.4 | 33.4 | 2204 |
| 4×50 | 1.6 | 39.6 | 3029 |
| 4×70 | 1.6 | 44.9 | 4121 |
| 4×95 | 1.8 | 51.9 | 5361 |
| 4×120 | 1.8 | 55.3 | 6546 |
| 4×150 | 2 | 60.8 | 8095 |
| 4×185 | 2.2 | 65.7 | 9652 |
| 4×240 | 2.4 | 75.7 | 12614 |
| 5×1.5 | 0.8 | 11.8 | 206 |
| 5×2.5 | 0.9 | 14 | 297 |
| 5×4 | 1 | 16.2 | 422 |
| 5×6 | 1 | 18.2 | 567 |
| 5×10 | 1.2 | 24 | 1010 |
| 5×16 | 1.2 | 28.2 | 1400 |
| 5×25 | 1.4 | 33.9 | 2096 |
| 5×35 | 1.4 | 37.2 | 2700 |
| 5×50 | 1.6 | 44 | 3730 |
| 5×70 | 1.6 | 48 | 5033 |
| 5×95 | 1.6 | 53.2 | 6271 |
| 7×1.5 | 0.8 | 15.13 | 315 |
| 7×2.5 | 0.9 | 17.6 | 445 |
| 12×1.5 | 0.8 | 18.2 | 493 |
| 12×2.5 | 0.9 | 21.4 | 702 |
| 19×1.5 | 0.8 | 22.1 | 710 |
Application These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses.Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams.Also for use in drainage and water treatment, cold environments and severe industrial environments.AD8 rated and suitable for installation in buried ducts.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
