The Type
CABLE STRUCTURE:
Conductor: Class 5 flexible stranded copper
Insulation: EVA(ethylene Vinyl Acetate)rubber EI8 Type
Technical Data Voltage Rating: 450/750V
Maximum operating temperature: 110℃
Maximum conductor short-circuit temperature: 250℃
Minimum installation temperature: 5℃
| Nom.Cross-section Area | Minimum Overall Diameter | Maximum Overall Diameter | Nominal Cable Weight |
| mm² | mm | mm | kg/km |
| 1×1.5 | 3 | 3.7 | 25 |
| 1×2.5 | 3.6 | 4.5 | 39 |
| 1×4 | 4.3 | 5.4 | 59 |
| 1×6 | 4.8 | 6 | 81 |
| 1×10 | 6 | 7.6 | 132 |
| 1×16 | 7.1 | 8.9 | 197 |
| 1×25 | 8.8 | 11 | 303 |
| 1×35 | 10.1 | 12.6 | 410 |
| 1×50 | 11.9 | 14.9 | 580 |
| 1×70 | 13.6 | 17 | 788 |
| 1×95 | 15.5 | 19.3 | 1060 |
| 1×120 | 17.1 | 21.4 | 1318 |
| 1×150 | 19 | 23.8 | 1645 |
| 1×185 | 21 | 26.3 | 2026 |
| 1×240 | 23.9 | 29.9 | 2615 |

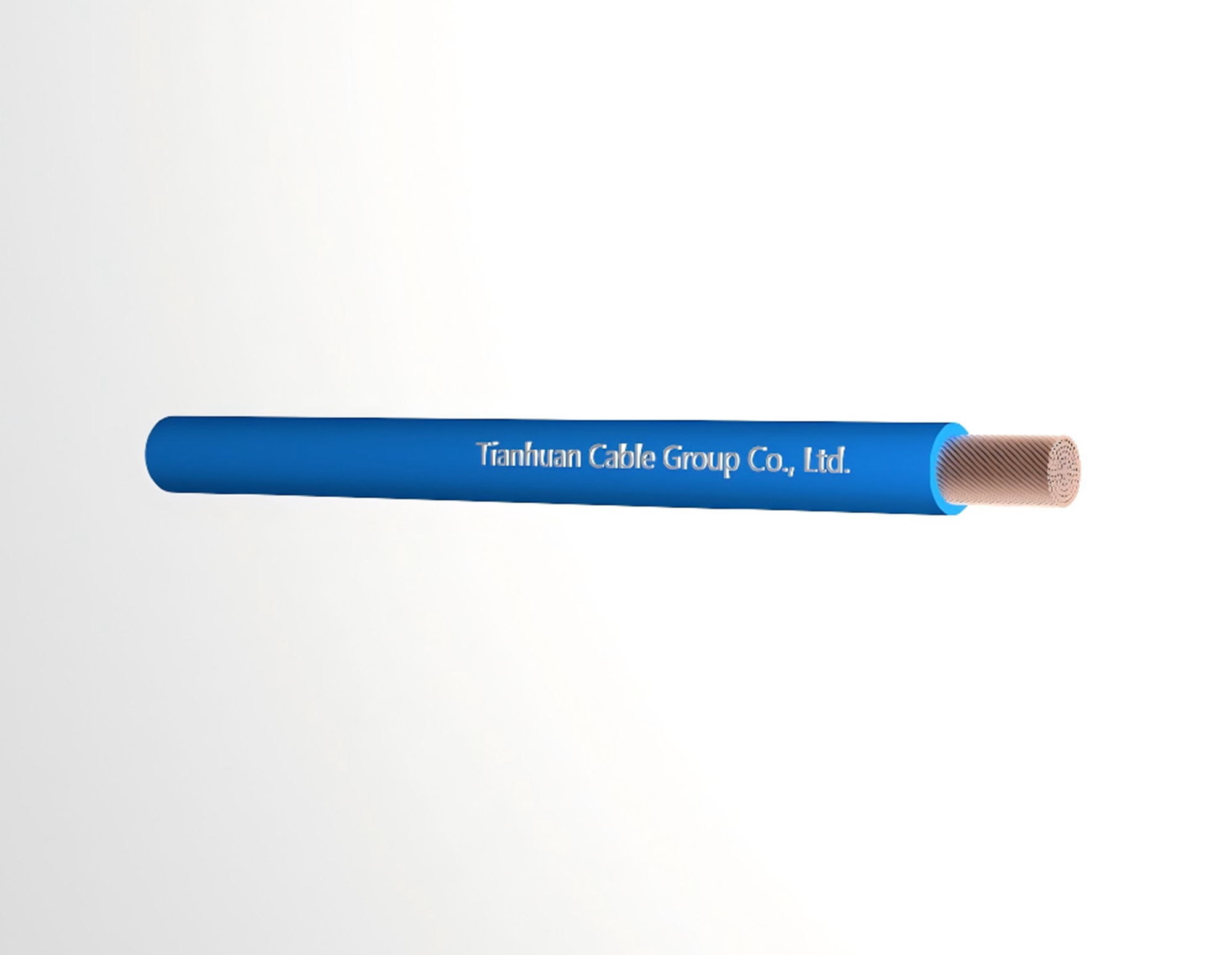

Application Single core H07G cable with solid, stranded or flexible stranded copper conductor for internal installations in dry, clean environments requiring a rated voltage of450/750V. EVA insulation supports a maximum operating temperature of +110℃.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
