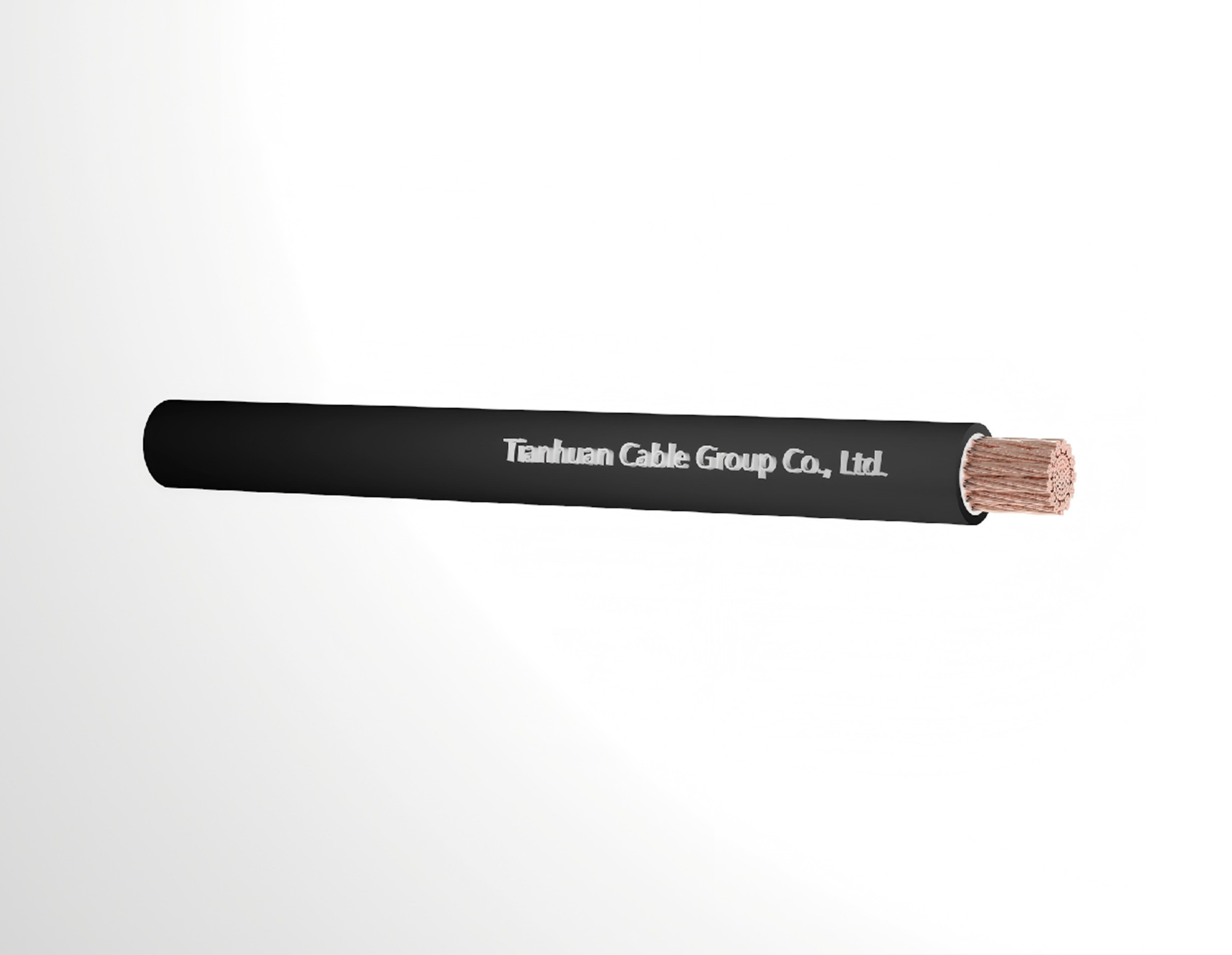

CABLE STRUCTURE:
Conductor: Copper wire bare, extra finely stranded
Separation: PET(Polyester Tape)
Sheath: EM5 EN standard/SE3or SE4 China Standard
Technical Data Voltage Rating: 100V
Temperature Rating: Fixed: -40℃ to+85℃
Fixed: -20℃ to +85℃
Minimum Bending Radius: Flexed: 6x overall diameter
| Nom.Cross-section Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Cable Weight | Maximum Diameter of Wires in Conductor | Maximum Resistance of Conductor at 20ºC |
| mm2 | mm | mm | kg/km | mm | ohms/km |
| 1×10 | 2 | 9 | 146 | 0.21 | 1.91 |
| 1×16 | 2 | 10 | 204 | 0.21 | 1.21 |
| 1×25 | 2 | 11.5 | 290 | 0.21 | 0.78 |
| 1×35 | 2 | 12.5 | 384 | 0.21 | 0.554 |
| 1×50 | 2.2 | 14.5 | 535 | 0.21 | 0.386 |
| 1×70 | 2.4 | 16.5 | 716 | 0.21 | 0.272 |
| 1×95 | 2.6 | 18.5 | 943 | 0.21 | 0.206 |
| 1×120 | 2.8 | 20.5 | 1235 | 0.51 | 0.161 |
| 1×150 | 3 | 23 | 1556 | 0.51 | 0.129 |
Application These cables are used as a connection to welding robots in the automotive industry, shipyards and for manually/automatically operated lines and spot welding. These cables are ideal for use as an interconnecting battery cable or in battery storage systems. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
