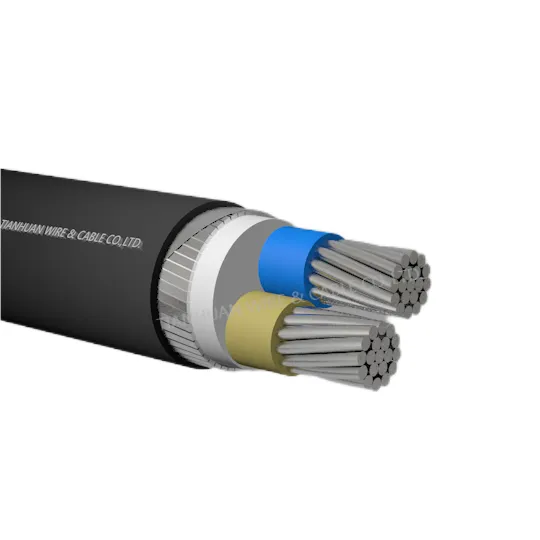

NA2XFGBY 0.6/1kv AL conductors XLPE insulated Galvanized Flar Steel Wire Armor and PVC sheathed power cable
Параметр
| Нэр. Хөндлөн огтлолын талбай | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃Insulation min | Current Carrying Capacity at 30℃ | ||
| Тусгаарлагч | Outer Sheath | In Air | In Ground | ||||
| мм² | мм² | мм | мм | km/kg | M.Ω.km | A | A |
| 2 × 25 rm | 0.9 | 1.8 | 23.9 | 996 | 394 | 119 | 130 |
| 2 × 35 rm | 0.9 | 1.8 | 26.2 | 1181 | 339 | 145 | 157 |
| 2 × 50 rm | 1.0 | 1.8 | 29.4 | 1461 | 313 | 175 | 185 |
| 2 × 70 rm | 1.1 | 1.9 | 33.2 | 1824 | 293 | 220 | 229 |
| 2 × 95 rm | 1.1 | 2.0 | 37.6 | 2302 | 255 | 272 | 276 |
| 2 × 120 rm | 1.2 | 2.1 | 41.3 | 2736 | 247 | 317 | 320 |
| 2 × 150 rm | 1.4 | 2.3 | 45.6 | 3269 | 259 | 362 | 351 |
| 2 × 185 rm | 1.6 | 2.4 | 50.6 | 3967 | 264 | 420 | 400 |
| 2 × 240 rm | 1.7 | 2.6 | 56.6 | 4898 | 246 | 497 | 467 |
| 2 × 300 rm | 1.8 | 2.7 | 62.3 | 5882 | 234 | 577 | 532 |
| 3 × 25 rm | 0.9 | 1.8 | 25.2 | 1094 | 394 | 100 | 110 |
| 3 × 35 rm | 0.9 | 1.8 | 27.6 | 1306 | 339 | 123 | 132 |
| 3 × 50 sm | 1.0 | 1.9 | 29.9 | 1464 | 313 | 149 | 156 |
| 3 × 70 sm | 1.1 | 2.0 | 33.5 | 1839 | 293 | 189 | 193 |
| 3 × 95 sm | 1.1 | 2.1 | 36.5 | 2214 | 255 | 233 | 232 |
| 3 × 120 sm | 1.2 | 2.2 | 39.5 | 2623 | 247 | 271 | 268 |
| 3 × 150 sm | 1.4 | 2.4 | 43.7 | 3166 | 259 | 310 | 296 |
| 3 × 185 sm | 1.6 | 2.5 | 47.5 | 3717 | 264 | 359 | 336 |
| 3 × 240 sm | 1.7 | 2.7 | 53.1 | 4666 | 246 | 429 | 429 |
| 3 × 300 sm | 1.8 | 2.9 | 57.5 | 5511 | 234 | 496 | 447 |
| 4 × 25 rm | 0.9 | 1.8 | 27.2 | 1245 | 394 | 100 | 110 |
| 4 × 35 rm | 0.9 | 1.8 | 29.9 | 1495 | 339 | 123 | 132 |
| 4 × 50 sm | 1.0 | 2.0 | 31.7 | 1699 | 313 | 149 | 156 |
| 4 × 70 sm | 1.1 | 2.1 | 35.9 | 2186 | 293 | 189 | 193 |
| 4 × 95 sm | 1.1 | 2.2 | 40.0 | 2703 | 255 | 233 | 232 |
| 4 × 120 sm | 1.2 | 2.4 | 44.4 | 3317 | 247 | 271 | 268 |
| 4 × 150 sm | 1.4 | 2.5 | 48.8 | 3965 | 259 | 310 | 296 |
| 4 × 185 sm | 1.6 | 2.7 | 53.8 | 4729 | 264 | 359 | 336 |
| 4 × 240 sm | 1.7 | 2.9 | 61.4 | 6036 | 246 | 429 | 429 |
| 4 × 300 sm | 1.8 | 3.1 | 66.8 | 7051 | 234 | 496 | 447 |
Кабелийн бүтэц
● Conductor:[rm] circular stranded conductor
[Sm]Sector shape conductor
● Insulation: XLPE
● Filler:PVC
● Armour:A layers of Galvanized flat steel wires 4×0.8 mm with a counter helix layer of galvanized steel tape
● Out Sheath: PVC or FR-PVC type ST1/ST2/ST8,black
Кодын тэмдэглэгээ
NA2XFGBY
Өргөдөл
The NA2XFGBY cable is suitable for installation in the ground,indoors,cable trunking and outdoors if increased mechanical protection i required where high-pulling stresses may occur during installation or operation offering.
Стандарт
European standards:IEC 60502-1,VDE 0276-603
Flame retardant according to IEC 60332-1
Indonesia standards:Conductor SNI IEC 60228/XLPE insulation SNI IEC 60502-1
/PVC Sheath grade ST2 to IEC 60502-1,Black
Техникийн өгөгдөл
Rated voltage:U0/U 0.6/1 kV
Test Voltage:3.5kV
Temperature Rating Maximum Operating: +90℃
Maximum Short-Circuit:+250℃
Сертификатууд
CE, RoHS, CCC, KEMA болон бусад хүсэлтээр
