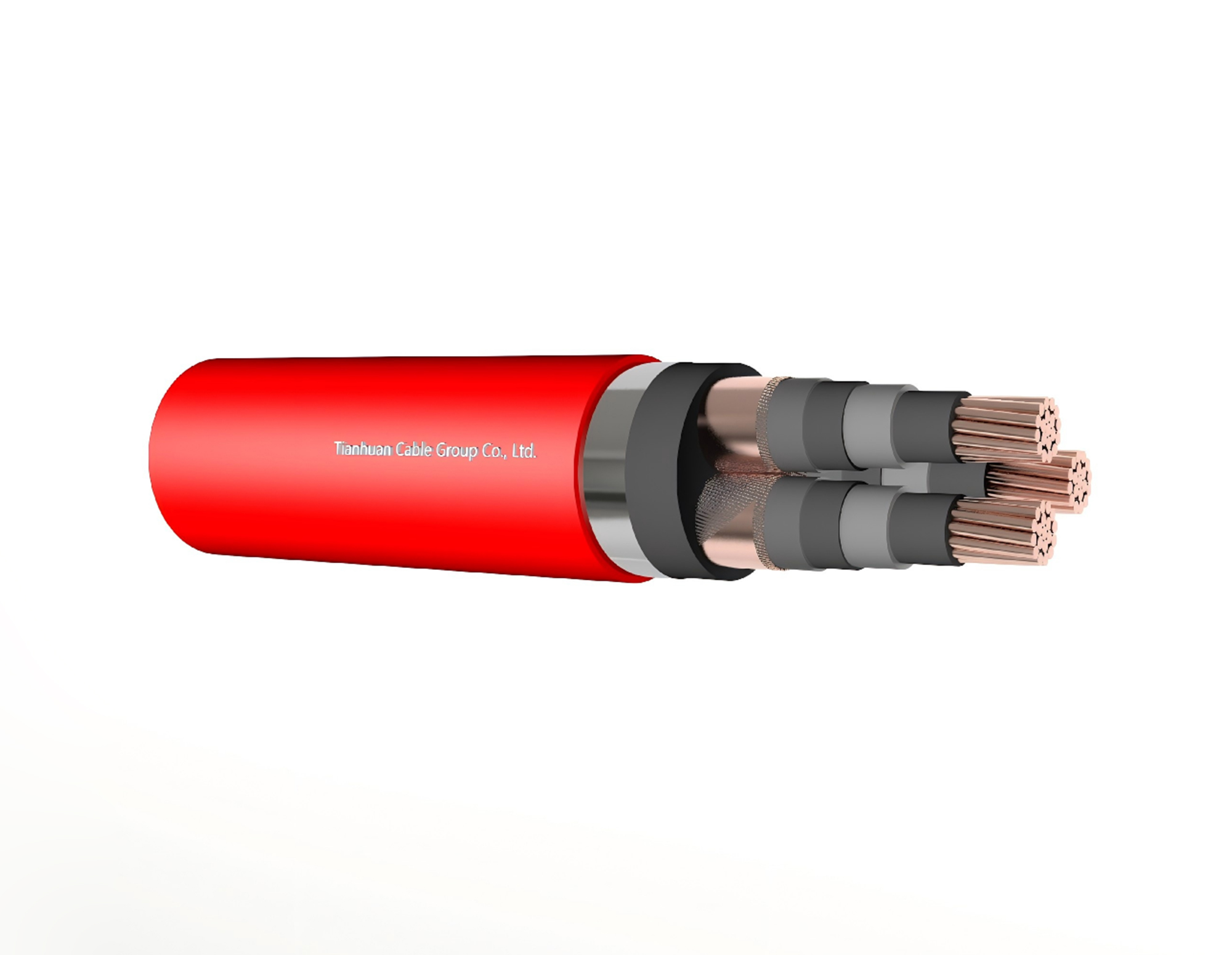

CABLE STRUCTURE:
Conductor: Compact stranded copper conductor, CI.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE rated at 90℃
Conducting Water Blocking Layer: Semi-conductive WBT
ID Tape: Red/Yellow/Black Metallic Screen: Copper Wire Screen
Metallic Screen: Copper Tape Screen
Separator/Water Blocking Layer: Non-Conductive WBT
Separation Sheath(for armoured cable): PVC inner Sheath(Fully extruded)
Armoring: Double stainless steel tape-1 core Double galvanized steel tape-3 cores
Sheath: PVC or FR-PVC type ST2/ST8 to IEC 60502, black
Technical Data Rated voltage: 3.6/6, 6/10, 8.7/15, 12/20KV
Maximum Conductor Temperature: under normal(90℃), emergency(130℃)or short circuit no more than 5s(250℃) conditions
Min.Ambient Temp.-20℃Installation Temp.0℃
Min.Bending Radius: 15x cable O.D for single core 12x cable O.D for multi core
| Nom.Cross-section Area | Overall Diameter | Cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/km | A | |
| 3×35 | 50 | 4055 | 0.524 | 172 | 154 |
| 3×50 | 53 | 4770 | 0.387 | 205 | 181 |
| 3×70 | 57.5 | 5695 | 0.268 | 253 | 220 |
| 3×95 | 61.5 | 6755 | 0.193 | 307 | 263 |
| 3×120 | 65 | 7675 | 0.153 | 352 | 298 |
| 3×150 | 68 | 9215 | 0.124 | 397 | 332 |
| 3×185 | 72 | 10605 | 0.0991 | 453 | 374 |
| 3×240 | 78.5 | 13330 | 0.0754 | 529 | 431 |
| 3×300 | 86 | 15880 | 0.0601 | 599 | 482 |
| N2XSEYBY 3.6/6KV | |||||
| Nom.Cross-section Area | Overall Diameter | Cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/km | A | |
| 3×35 | 54.5 | 4495 | 0.524 | 172 | 154 |
| 3×50 | 57.5 | 5265 | 0.387 | 205 | 181 |
| 3×70 | 62 | 6225 | 0.268 | 253 | 220 |
| 3×95 | 66 | 7345 | 0.193 | 307 | 263 |
| 3×120 | 69.5 | 8.295 | 0.153 | 352 | 298 |
| 3×150 | 72.5 | 9835 | 0.124 | 397 | 332 |
| 3×185 | 76 | 11255 | 0.0991 | 453 | 374 |
| 3×240 | 83.5 | 14030 | 0.0754 | 529 | 431 |
| 3×300 | 89 | 16435 | 0.0601 | 599 | 482 |
| N2XSEYBY 6/10KV | |||||
| Nom.Cross-section Area | Overall Diameter | Cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/km | A | |
| 3×35 | 60 | 5165 | 0.524 | 172 | 154 |
| 3×50 | 63 | 5940 | 0.387 | 205 | 181 |
| 3×70 | 67.5 | 6940 | 0.268 | 253 | 220 |
| 3×95 | 71.5 | 8075 | 0.193 | 307 | 263 |
| 3×120 | 75 | 9055 | 0.153 | 352 | 298 |
| 3×150 | 78 | 10665 | 0.124 | 397 | 332 |
| 3×185 | 82 | 12120 | 0.0991 | 453 | 374 |
| 3×240 | 88 | 14955 | 0.0754 | 529 | 431 |
| 3×300 | 94.5 | 17470 | 0.0601 | 599 | 482 |
| N2XSEYBY 8.7/15KV | |||||
| Nom.Cross-section Area | Overall Diameter | Cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/km | A | |
| 3×35 | 65 | 5715 | 0.524 | 172 | 154 |
| 3×50 | 68 | 6545 | 0.387 | 205 | 181 |
| 3×70 | 72.5 | 7615 | 0.268 | 253 | 220 |
| 3×95 | 76 | 8750 | 0.193 | 307 | 263 |
| 3×120 | 79.5 | 9795 | 0.153 | 352 | 298 |
| 3×150 | 84.5 | 12145 | 0.124 | 397 | 332 |
| 3×185 | 87.5 | 13620 | 0.0991 | 453 | 374 |
| 3×240 | 92.5 | 15805 | 0.0754 | 529 | 431 |
| 3×300 | 99.5 | 18375 | 0.0601 | 599 | 482 |
| N2XSEYBY 12/20KV | |||||
Application They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.
