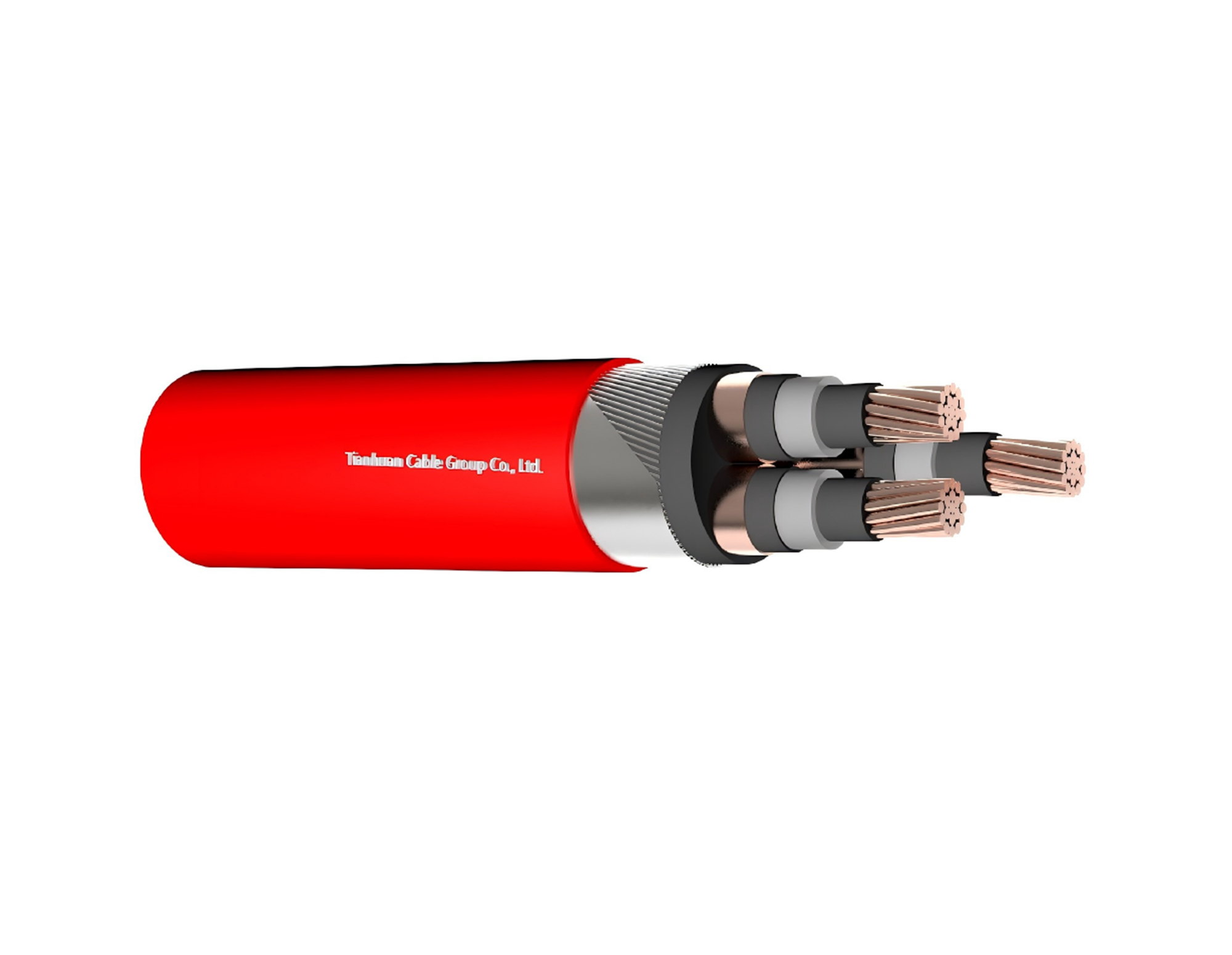

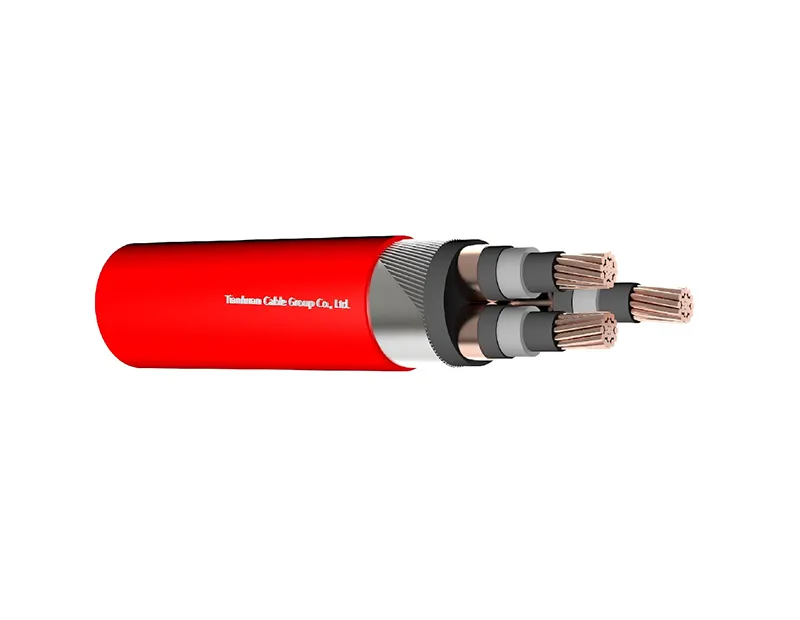

CABLE STRUCTURE:
Conductor: Compact stranded copper conductor, CI.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE rated at 90℃
ID Tape: Red/Yellow/Black
Metallic Screen: Copper Tape Screen Polyster Tape
Separation Sheath(for armoured cable): PVC inner Sheath(Fully extruded)
Armoring: Galvanized Steel Round Wire
Armor Galvanized Steel Tape
Sheath: PVC or FR-PVC type ST2/ST8 to IEC 60502, black
Technical Data Rated voltage: 3.6/6, 6/10, 8.7/15, 12/20, 18/30KV
Maximum Conductor Temperature: under normal(90℃), emergency(130℃)or short circuit no more than 5s(250℃)conditions.
Min.Ambient Temp.-20℃Installation Temp.0℃
Min.Bending Radius: 15x cable O.D for single core12 x cable O.D for multi core
| Nom.Cross-section Area | Overall Diameter | Cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/km | A | |
| 3×25 | 48 | 4600 | 0.727 | 134 | 133 |
| 3×35 | 51 | 5220 | 0.524 | 173 | 171 |
| 3×50 | 54 | 5925 | 0.387 | 206 | 202 |
| 3×70 | 57 | 6985 | 0.268 | 257 | 246 |
| 3×95 | 62 | 8310 | 0.193 | 313 | 295 |
| 3×120 | 65 | 9415 | 0.153 | 360 | 335 |
| 3×150 | 68 | 10572 | 0.124 | 410 | 376 |
| 3×185 | 75 | 13015 | 0.0991 | 469 | 425 |
| 3×240 | 78 | 15424 | 0.0754 | 553 | 493 |
| 3×300 | 85 | 18210 | 0.0601 | 628 | 553 |
| N2XSERGbY 6/10KV | |||||
| Nom.Cross-section Area | Overall Diameter | Cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/km | A | |
| 3×35 | 61 | 6748 | 0.524 | 173 | 171 |
| 3×50 | 64 | 7588 | 0.387 | 206 | 202 |
| 3×70 | 68 | 8720 | 0.268 | 257 | 246 |
| 3×95 | 72 | 10075 | 0.193 | 313 | 295 |
| 3×120 | 76 | 12082 | 0.153 | 360 | 335 |
| 3×150 | 79 | 13325 | 0.124 | 410 | 376 |
| 3×185 | 84 | 15310 | 0.0991 | 469 | 425 |
| 3×240 | 89 | 17685 | 0.0754 | 553 | 492 |
| 3×300 | 95 | 20480 | 0.0601 | 629 | 554 |
| N2XSERGbY 12/20KV | |||||
| Nom.Cross-section Area | Overall Diameter | Cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/km | A | |
| 3×25 | 54 | 5432 | 0.727 | 134 | 132 |
| 3×35 | 56 | 5992 | 0.524 | 173 | 171 |
| 3×50 | 59 | 6723 | 0.387 | 206 | 202 |
| 3×70 | 63 | 7922 | 0.268 | 257 | 246 |
| 3×95 | 67 | 9210 | 0.193 | 313 | 295 |
| 3×120 | 70 | 10355 | 0.153 | 360 | 335 |
| 3×150 | 73 | 11530 | 0.124 | 410 | 376 |
| 3×185 | 79 | 14275 | 0.0991 | 469 | 425 |
| 3×240 | 84 | 16650 | 0.0754 | 553 | 492 |
| 3×300 | 90 | 19354 | 0.0601 | 629 | 554 |
| N2XSERGbY 8.7/15KV | |||||
| Nom.Cross-section Area | Overall Diameter | Cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/km | A | |
| 3×35 | 61 | 6748 | 0.524 | 173 | 171 |
| 3×50 | 64 | 7588 | 0.387 | 206 | 202 |
| 3×70 | 68 | 8720 | 0.268 | 257 | 246 |
| 3×95 | 72 | 10075 | 0.193 | 313 | 295 |
| 3×120 | 76 | 12082 | 0.153 | 360 | 335 |
| 3×150 | 79 | 13325 | 0.124 | 410 | 376 |
| 3×185 | 84 | 15310 | 0.0991 | 469 | 425 |
| 3×240 | 89 | 17685 | 0.0754 | 553 | 492 |
| 3×300 | 95 | 20480 | 0.0601 | 629 | 554 |
| N2XSERGbY 18/30KV | |||||
| Nom.Cross-section Area | Overall Diameter | Cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacity at 30℃ | |
| In Air | In Ground | ||||
| mm² | mm | km/kg | Ω/km | A | |
| 3×25 | 43 | 3660 | 0.727 | 133 | 132 |
| 3×35 | 45 | 4175 | 0.524 | 172 | 170 |
| 3×50 | 49 | 5260 | 0.387 | 205 | 201 |
| 3×70 | 53 | 6330 | 0.268 | 256 | 245 |
| 3×95 | 57 | 7555 | 0.193 | 312 | 294 |
| 3×120 | 60 | 8640 | 0.153 | 359 | 334 |
| 3×150 | 63 | 9840 | 0.124 | 409 | 375 |
| 3×185 | 68 | 11510 | 0.0991 | 468 | 424 |
| 3×240 | 76 | 14490 | 0.0754 | 552 | 492 |
| 3×300 | 82 | 17587 | 0.0601 | 627 | 552 |
| N2XSERGbY 3.6/6KV | |||||
Application For installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.
