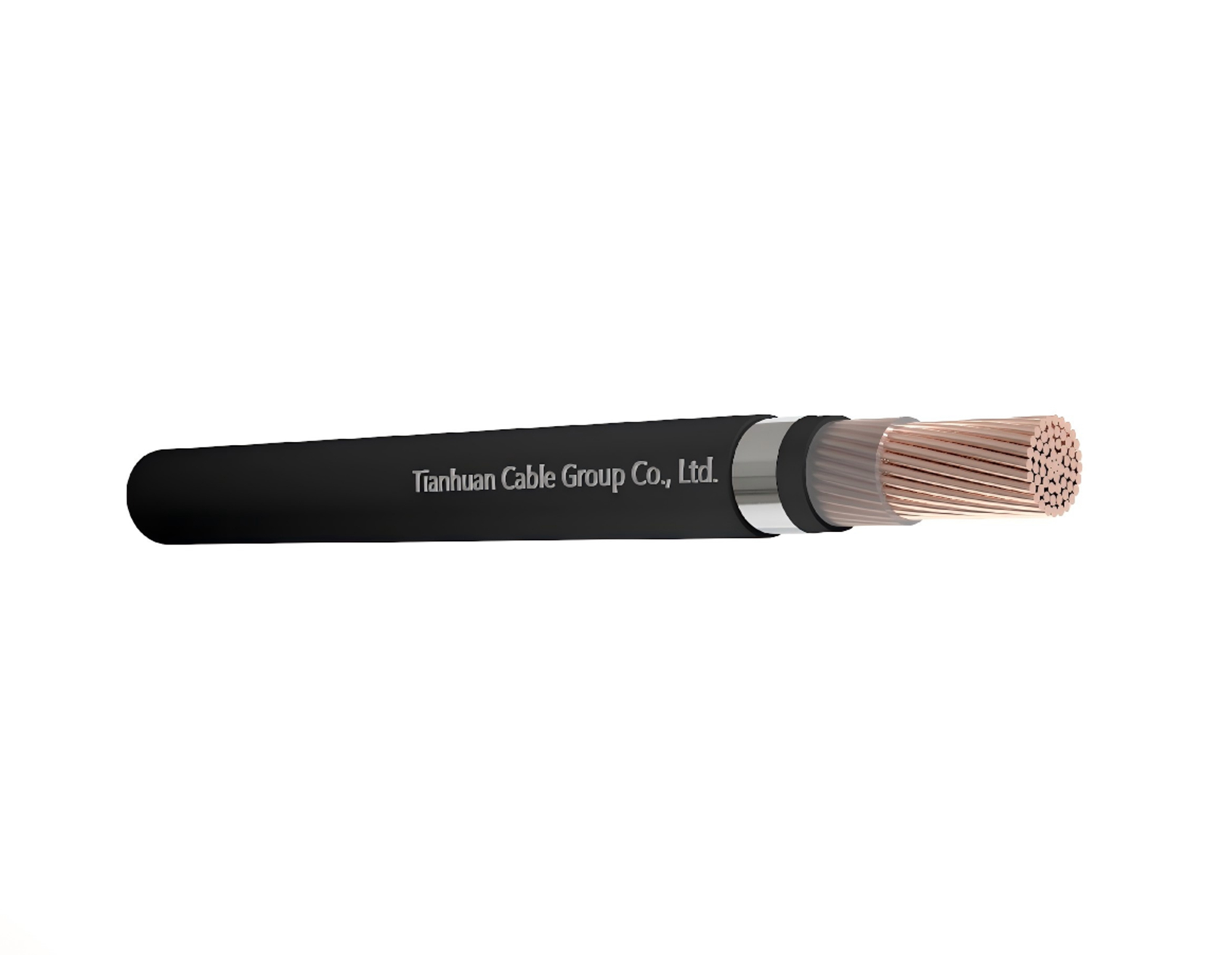

YJV62 CU/XLPE/PVC/STA/PVC(CU/XLPE/PVC/STA/FR-PVC) 0.6/1KV

CABLE STRUCTURE:

Conductor: Compact stranded copper conductor, C1.2 as per IEC 60228

Insulation: XLPE(cross-linked polyethylene)rated at 90℃

Inner covering: PVC

Armoring: Double stainless steel tape

Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Inquire Now + Download +

Technical Data

Application

Get a quote

Technical Data

Rated voltage: 0.6/1 kV

Maximum Conductor Temperature: under normal(90℃), emergency(130C)or short circuit no more than 5s(250℃)conditions.

Min.Ambient Temp.: -15℃

Installation Temp.: 0℃

Min.Bending Radius: 15x cable O.D for single core

Nom.Cross- section of conductor	Insulation Thickness	Inner Covering Thickness	Steel Tape Thickness	Sheath Thickness	Approx O.D.	Approx Weight	Max.D.C. Resistance of Conductor (20℃)	Test Voltage A.C	Current Rating
mm2	mm	mm	mm	mm	mm	kg/km	Ω/km	kV/5min	In air(A)	In soil(A)
1×25	0.9	1	2×0.2	1.8	14	442	0.727	3.5	120	155
1×35	0.9	1	2×0.2	1.8	15	547	0.524	3.5	150	185
1×50	1	1	2×0.2	1.8	17	688	0.387	3.5	180	220
1×70	1.1	1	2×0.2	1.8	18	895	0.268	3.5	230	270
1×95	1.1	1	2×0.2	1.8	20	1125	0.193	3.5	285	320
1×120	1.2	1	2×0.2	1.8	22	1358	0.153	3.5	335	365
1×150	1.4	1	2×0.2	1.8	23	1649	0.124	3.5	385	410
1×185	1.6	1	2×0.5	1.8	25	1984	0.0991	3.5	450	465
1×240	1.7	1	2×0.5	1.8	28	2489	0.0754	3.5	535	540
1×300	1.8	1	2×0.5	1.9	30	3036	0.0601	3.5	620	610
1×400	2	1.2	2×0.2	2.1	35	4230	0.047	3.5	720	695
1×500	2.2	1.2	2×0.2	2.2	39	5194	0.0366	3.5	835	780
1×630	2.4	1.2	2×0.2	2.4	45	6504	0.0283	3.5	960	880

Application

Wiring environment apply to shafts, water and soil, able to stand the larger positive pressure.
