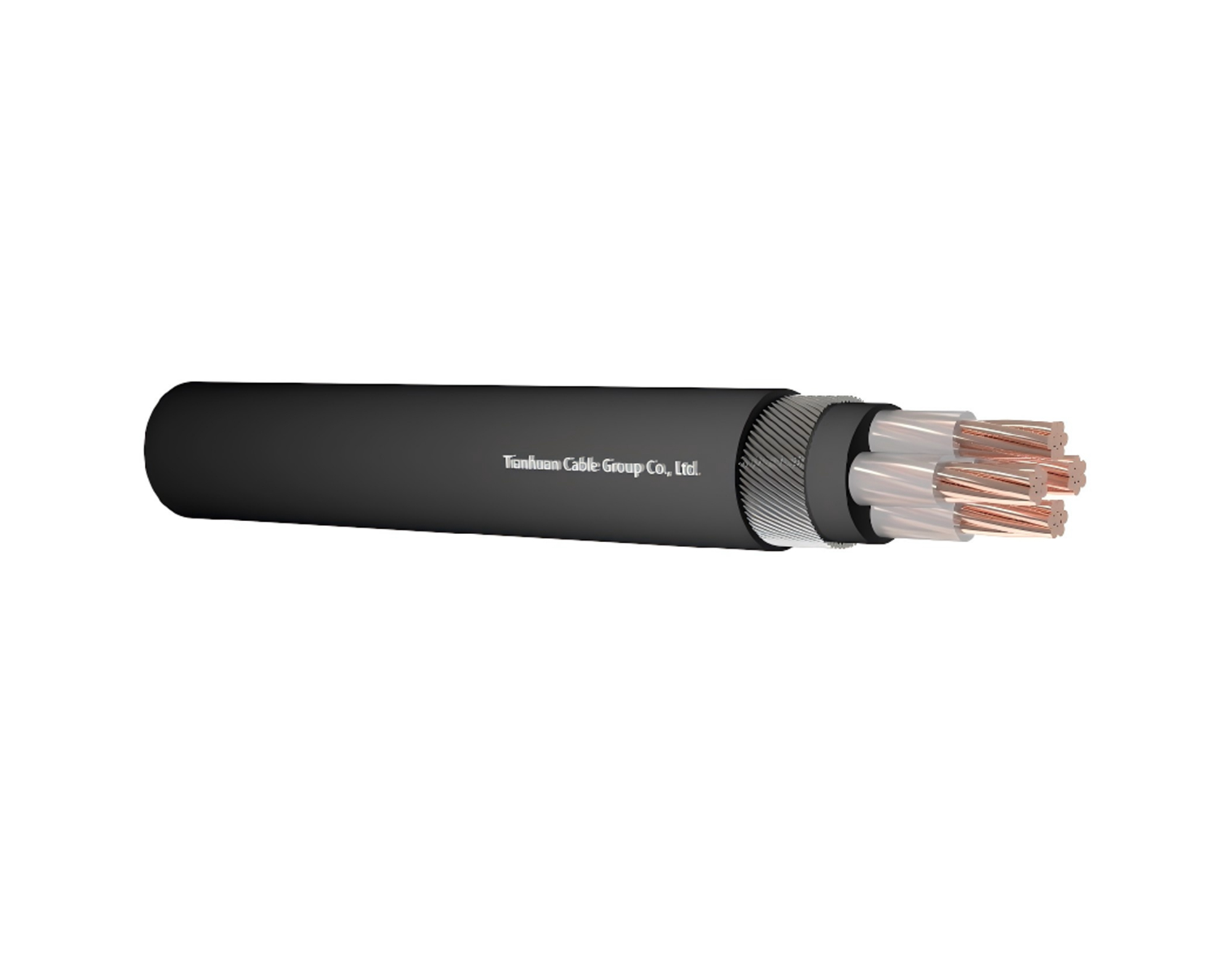

YJV32 CU/XLPE/PVC/SWA/PVC(CU/XLPE/PVC/SWA/FR-PVC)0.6/1KV

Technical Data

Application

Get a quote

Technical Data

Rated voltage: 0.6/1kV

Maximum Conductor Temperature: under normal(90℃), emergency(130℃)or short circuit no more than5s(250℃)conditions.

Min.Ambient Temp.: 0℃, after installation and only when cable is in a fixed position.

Min.Bending Radius: 12×cable O.D for multi core

Nom.Cross- section of conductor	Insulation Thickness	Inner Covering Thickness	Dia.Of Armor Wire	Sheath Thickness	Approx O.D.	Approx Weight	Max.D.C. Resistance of Conductor (20℃)	Test Voltage A.C	Current Rating
mm²	mm	mm	mm	mm	mm	kg/km	Ω/km	kV/5min	In air(A)	In soil(A)
2×1.5	0.7	1	0.9	1.8	15	330	12.1	3.5	20	27
2×2.5	0.7	1	0.9	1.8	16	376	7.41	3.5	26	35
2×4	0.7	1	0.9	1.8	17	554	4.61	3.5	34	45
2×6	0.7	1	0.9	1.8	18.2	633	3.08	3.5	43	57
2×10	0.7	1	1.25	1.8	21	797	1.83	3.5	60	77
2×16	0.7	1	1.6	1.8	23.5	1124	1.15	3.5	83	105
2×25	0.9	1	1.6	1.8	26	1417	0.727	3.5	105	125
2×35	0.9	1	1.6	1.8	30.5	1694	0.524	3.5	125	155
2×50	1	1	1.6	1.8	27	1787	0.387	3.5	160	185
2×70	1.1	1	1.6	2	30	2181	0.268	3.5	200	225
2×95	1.1	1.2	1.6	2.1	34	2768	0.193	3.5	245	270
2×120	1.2	1.2	2	2.2	36.5	3500	0.153	3.5	285	310
2×150	1.4	1.2	2	2.4	42	4233	0.124	3.5	325	345
2×185	1.6	1.2	2	2.5	45	4979	0.0991	3.5	375	390
3×1.5	0.7	1	0.9	1.8	15.8	359	12.1	3.5	20	27
3×2.5	0.7	1	0.9	1.8	16.8	415	7.41	3.5	26	35
3×4	0.7	1	0.9	1.8	18	611	4.61	3.5	34	45
3×6	0.7	1	0.9	1.8	19	718	3.08	3.5	43	57
3×10	0.7	1	1.25	1.8	22	937	1.83	3.5	60	77
3×16	0.7	1	1.6	1.8	24.5	1318	1.15	3.5	83	105
3×25	0.9	1	1.6	1.8	29.2	1707	0.727	3.5	105	125
3×35	0.9	1	1.6	1.8	32.5	2071	0.524	3.5	125	155
3×50	1	1	1.6	1.9	33	2405	0.387	3.5	160	185
3×70	1.1	1	1.6	2	37	3084	0.268	3.5	200	225
3×95	1.1	1.2	1.6	2.1	43	4126	0.193	3.5	245	270
3×120	1.2	1.2	2	2.3	45	4901	0.153	3.5	285	310
3×150	1.4	1.4	2	2.4	51	6365	0.124	3.5	325	345
3×185	1.6	1.4	2	2.6	56	7555	0.0991	3.5	375	390
3×240	1.7	1.4	2.5	2.8	62	9284	0.0754	3.5	440	450
3×300	1.8	1.6	2.5	3	67	11226	0.0601	3.5	505	515
3×400	2	1.6	2.5	3.2	74	15714	0.047	3.5	570	575
4×4	0.7	1	0.9	1.8	18	699	4.61	3.5	34	45
4×6	0.7	1	1.25	1.8	19	820	3.08	3.5	43	57
4×10	0.7	1	1.25	1.8	22	1233	1.83	3.5	60	77
4×16	0.7	1	1.6	1.8	24.5	1550	1.15	3.5	83	105
4×25	0.9	1	1.6	1.8	29.2	2036	0.727	3.5	105	125
4×35	0.9	1	2	1.9	32.5	2501	0.524	3.5	125	155
4×50	1	1	2	2	33	3064	0.387	3.5	160	185
4×70	1.1	1	2	2.1	37	3974	0.268	3.5	200	225
4×95	1.1	1.2	2	2.3	43	5032	0.193	3.5	245	270
4×120	1.2	1.2	2.5	2.4	45	6327	0.153	3.5	285	310
4×150	1.4	1.4	2.5	2.5	51	7765	0.124	3.5	325	345
4×185	1.6	1.4	2.5	2.7	56	9205	0.0991	3.5	375	390
4×240	1.7	1.4	2.5	3	62	11444	0.0754	3.5	440	450
4×300	1.8	1.6	2.5	3.2	67	13830	0.0601	3.5	505	515
4×400	2	1.6	3.15	3.5	74	19673	0.047	3.5	570	575
5×4	0.7	1	1.25	1.8	20	783	4.61	3.5	34	45
5×6	0.7	1	1.25	1.8	22.4	946	3.08	3.5	43	57
5×10	0.7	1	1.6	1.8	25.8	1398	1.83	3.5	60	77
5×16	0.7	1	1.6	1.8	29	1784	1.15	3.5	83	105
5×25	0.9	1	1.6	1.8	34.2	2378	0.727	3.5	105	125
5×35	0.9	1	1.6	1.9	37.8	3237	0.524	3.5	125	155
5×50	1	1.2	2	2.1	43.2	3994	0.387	3.5	160	185
5×70	1.1	1.2	2	2.3	49	5514	0.268	3.5	200	225
5×95	1.1	1.4	2.5	2.5	55	6816	0.193	3.5	245	270
5×120	1.2	1.4	2.5	2.6	61	8174	0.153	3.5	285	310
5×150	1.4	1.4	2.5	2.8	67.8	9859	0.124	3.5	325	345
5×185	1.6	1.6	2.5	3	74.3	11805	0.0991	3.5	375	390
5×240	1.7	1.6	3.2	3.3	83	15706	0.0754	3.5	440	450
3×4+1×2.5	0.7	1	0.9	1.8	18.7	624	4.61	3.5	34	45
3×6+1×4	0.7	1	0.9	1.8	20	752	3.08	3.5	43	57
3×10+1×6	0.7	1	1.25	1.8	23.3	1154	1.83	3.5	60	77
3×16+1×10	0.7	1	1.25	1.8	25.8	1456	1.15	3.5	83	105
3×25+1×16	0.9	1	1.6	1.8	30	1905	0.727	3.5	105	125
3×35+1×16	0.9	1	1.6	1.8	33	2259	0.524	3.5	125	155
3×50+1×25	1	1	1.6	1.9	35.5	2705	0.387	3.5	160	185
3×70+1×35	1.1	1.2	2	2	41	3729	0.268	3.5	200	225
3×95+1×50	1.1	1.2	2	2.1	46	4732	0.193	3.5	245	270
3×120+1×70	1.2	1.4	2	2.3	51	6071	0.153	3.5	285	310
3×150+1×70	1.4	1.4	2.5	2.4	56.5	7198	0.124	3.5	325	345
3×185+1×95	1.6	1.4	2.5	2.6	62	8558	0.0991	3.5	375	390
3×240+1×120	1.7	1.6	2.5	2.8	68	10580	0.0754	3.5	440	450
3×300+1×150	1.8	1.6	2.5	3	75	12742	0.0601	3.5	505	515
3×4+2×2.5	0.7	1	0.9	3.2	18.7	735	4.61	3.5	34	45
3×6+2×4	0.7	1	1.25	1.8	21	879	3.08	3.5	43	57
3×10+2×6	0.7	1	1.25	1.8	24.2	1263	1.83	3.5	60	77
3×16+2×10	0.7	1	1.6	1.8	27.5	1616	1.15	3.5	83	105
3×25+2×16	0.9	1	1.6	1.8	32.5	2142	0.727	3.5	105	125
3×35+2×16	0.9	1	1.6	1.8	35.5	2492	0.524	3.5	125	155
3×50+2×25	1	1	2	1.9	40	3408	0.387	3.5	160	185
3×70+2×35	1.1	1	2	2.2	45.6	4338	0.268	3.5	200	225
3×95+2×50	1.1	1.2	2	2.4	50	5374	0.193	3.5	245	270
3×120+2×70	1.2	1.2	2.5	2.6	56.9	7145	0.153	3.5	285	310
3×150+2×70	1.4	1.4	2.5	2.7	62.4	8076	0.124	3.5	325	345
3×185+2×95	1.6	1.4	2.5	3	67.6	9779	0.0991	3.5	375	390
3×240+2×120	1.7	1.4	2.5	3.2	73.8	12024	0.0754	3.5	440	450
3×300+2×150	1.8	1.6	3.15	3.4	83	14366	0.0601	3.5	505	515
4×4+1×2.5	0.7	1	0.9	1.8	20	752	4.61	3.5	34	45
4×6+1×4	0.7	1	1.25	1.8	21.5	913	3.08	3.5	43	57
4×10+1×6	0.7	1	1.25	1.8	25	1323	1.83	3.5	60	77
4×16+1×10	0.7	1	1.6	1.8	28.6	1691	1.15	3.5	83	105
4×25+1×16	0.9	1	1.6	1.8	33.5	2256	0.727	3.5	105	125
4×35+1×16	0.9	1	1.6	1.9	36	2957	0.524	3.5	125	155
4×50+1×25	1	1	2	2.2	42	3643	0.387	3.5	160	185
4×70+1×35	1.1	1.2	2	2.4	47	4614	0.268	3.5	200	225
4×95+1×50	1.1	1.2	2	2.6	51.2	6140	0.193	3.5	245	270
4×120+1×70	1.2	1.4	2.5	2.8	59	7544	0.153	3.5	285	310
4×150+1×70	1.4	1.4	2.5	3	64	8733	0.124	3.5	325	345
4×185+1×95	1.6	1.4	2.5	3.1	71	10597	0.0991	3.5	375	390
4×240+1×120	1.7	1.6	2.5	3.3	78	13029	0.0754	3.5	440	450
4×300+1×150	1.8	1.6	3.15	3.5	88	17172	0.0601	3.5	505	515

Application

Wiring environment apply to shafts, water and soil, able to stand the larger positive pressure.
