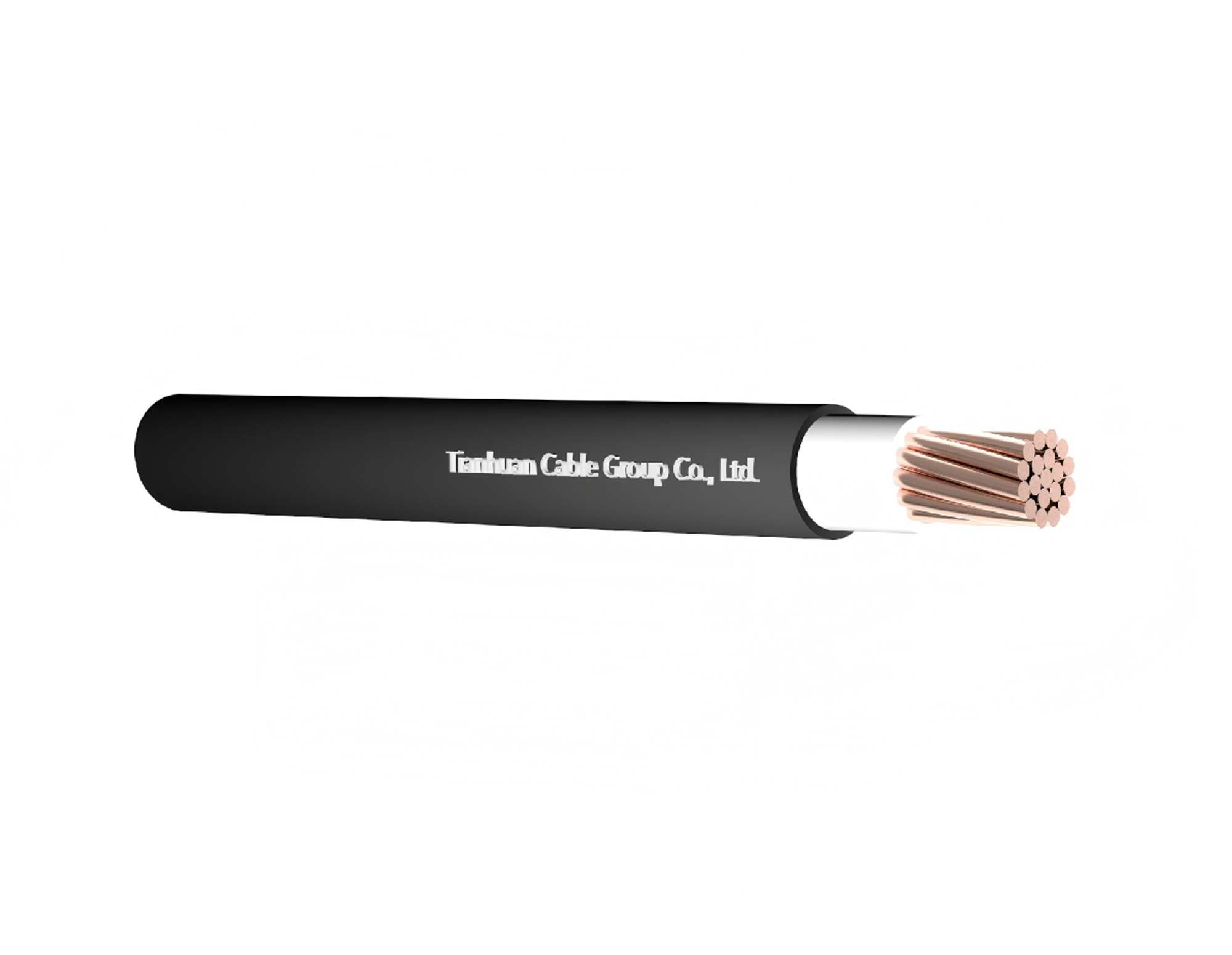

NYY Cu/PVC/PVC 0.6/1 kV

Application

Technical Data

Voltage Rating: Uo/U 0.6/1kVTemperature Rating Fixed: -15℃ to+70℃

Flexed: -5℃ to +50℃

Minimum Bending Radius: 12×overall diameter

Nom.Cross-section Area	Nominal Thickness		Overall Diameter	Cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross-section Area	Insulation	Outer Sheath	Overall Diameter	Cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	Ω/km	A
1×1.5 re	0.8	1.4	5.8	50	12	27	27
1×1.5 rm	0.8	1.4	6	52	11	24	27
1×2.5 re	0.8	1.4	6.2	63	10	27	35
1×2.5 rm	0.8	1.4	6.5	67	9	27	35
1×4 re	1	1.4	7.1	87	10	37	46
1×4 rm	1	1.4	7.4	92	9	37	46
1×6 re	1	1.4	7.6	110	9	46	57
1×6 rm	1	1.4	8	117	8	46	57
1×10 re	1	1.4	8.5	157	7	64	76
1×10 rm	1	1.4	8.8	163	6	64	76
1×16 rm	1	1.4	10	227	5	84	98
1×25 rm	1.2	1.4	11.6	336	5	114	127

1×35 rm	1.2	1.4	12.7	437	4	140	152
1×50 rm	1.4	1.4	14.3	562	4	172	180
1×70 rm	1.4	1.4	16	768	4	218	220
1×95 rm	1.6	1.5	18.5	1049	4	270	264
1×120 rm	1.6	1.5	20	1280	3	315	300
1×150 rm	1.8	1.6	22.5	1275	3	362	336
1×185 rm	2	1.7	24.5	1959	3	420	379
1×240 rm	2.2	1.8	28	2538	3	503	439
1×300 rm	2.4	1.9	31	3157	3	580	494
1×400 rm	2.6	2	34	3995	3	674	558
1×500 rm	2.8	2.1	38	5075	3	781	629
1×630 rm	2.8	2.3	43	6449	3	901	704
2×1.5 re	0.8	1.8	10.8	159	12	27	21
2×1.5 rm	0.8	1.8	11.1	168	11	27	21
2×2.5 re	0.8	1.8	11.6	196	10	36	29
2×2.5 rm	0.8	1.8	12.1	209	9	36	29
2×4 re	1	1.8	13.3	269	10	47	38
2×4 rm	1	1.8	13.9	289	9	47	38
2×6 re	1	1.8	14.3	333	9	59	48
2×6 rm	1	1.8	15.1	359	8	59	48
2×10 re	1	1.8	16.1	452	7	78	66
2×10 rm	1	1.8	16.8	485	6	78	66
2×16 rm	1	1.8	18.9	657	5	102	90
2×25 rm	1.2	1.8	22.3	959	5	134	120
2×35 rm	1.2	1.8	24.5	1224	4	160	150
2×50 rm	1.4	1.8	27.7	4578	4	187	180
2×70 rm	1.4	1.9	31.4	2131	4	230	230
2×95 rm	1.6	2	36.4	2905	4	280	275
2×120 rm	1.6	2.1	39.7	3531	3	320	320
2×150 rm	1.8	2.2	43.7	4321	3	355	379
2×185 rm	2	2.4	48.6	5368	3	409	430
2×240 rm	2.2	2.6	55.1	6964	3	472	510
2×300 rm	2.4	2.7	60.8	8605	3	525	590
3×1.5 re	0.8	1.8	11.2	181	12	24	18
3×1.5 rm	0.8	1.8	11.6	191	11	24	18
3×2.5 re	0.8	1.8	12.1	229	10	32	25
3×2.5 rm	0.8	1.8	12.6	245	9	32	25
3×4 re	1	1.8	14	319	10	41	34
3×4 rm	1	1.8	14.6	342	9	41	34
3×6 re	1	1.8	15.1	401	9	52	44
3×6 rm	1	1.8	15.9	433	8	52	44
3×10 re	1	1.8	17.1	578	7	69	60
3×10 rm	1	1.8	17.8	596	6	69	60
3×16 rm	1	1.8	20	822	5	89	80
3×25 rm	1.2	1.8	23.6	1213	5	116	105
3×35 rm	1.2	1.8	26	15.65	4	138	130
3×50 rm	1.4	1.8	25.3	1898	4	165	160
3×70 rm	1.4	2	28.6	2580	4	205	200
3×95 rm	1.6	2.1	32.7	3485	4	245	245
3×120 rm	1.6	2.2	35.5	4312	3	285	285
3×150 rm	1.8	2.3	39.2	5300	3	315	325
3×185 rm	2	2.5	43.8	6478	3	355	370
3×240 rm	2.2	2.7	49.3	8491	3	415	435
3×300 rm	2.4	3.1	55	10652	3	535	600
4×1.5 re	0.8	1.8	12	213	12	24	18
4×1.5 rm	0.8	1.8	12.4	224	11	24	18
4×2.5 re	0.8	1.8	13	273	10	32	25
4×2.5 rm	0.8	1.8	13.6	292	9	32	25
4×4 re	1	1.8	15.1	385	10	41	34
4×4 rm	1	1.8	15.8	413	9	41	34
4×6 re	1	1.8	16.3	490	9	52	44
4×6 rm	1	1.8	17.2	527	8	52	44
4×10 re	1	1.8	20.3	724	7	69	60
4×10 rm	1	1.8	21	743	6	69	60
4×16 rm	1	1.8	24	1035	5	89	80
4×25 rm	1.2	1.8	28	1541	S	116	105
4×35 rm	1.2	1.8	30	1999	4	138	130
4×50 rm	1.4	1.9	32	2498	4	165	160
4×70 rm	1.4	2.1	36	3374	4	205	200
4×95 rm	1.6	2.2	40	4536	4	245	245
4×120 rm	1.6	2.3	44	5676	3	285	285
4×150 rm	1.8	2.5	49	6910	3	315	325
4×185 rm	2	2.7	53	8596	3	355	370
4×240 rm	2.2	2.9	60	11087	3	415	435
4×300 rm	2.4	3.1	66	13549	3	465	500
5×1.5 re	0.8	1.8	12.8	255	12	24	18
5×1.5 rm	0.8	1.8	13.3	268	11	24	18
5×2.5 re	0.8	1.8	14	329	10	32	25
5×2.5 rm	0.8	1.8	14.6	352	9	32	25
5×4 re	1	1.8	16.3	470	10	41	34
5×4 rm	1	1.8	17.1	505	9	41	34
5×6 re	1	1.8	17.7	602	9	52	44
5×6 rm	1	1.8	18.6	650	8	52	44
5×10 re	1	1.8	20.4	893	7	69	60
5×10 rm	1	1.8	21.1	912	6	69	60
5×16 rm	1	1.8	23.8	1279	5	89	80
5×25 rm	1.2	1.8	28.3	1914	5	116	105
5×35 rm	1.2	1.9	31.5	2505	4	138	130
5×50 rm	1.4	2	36.4	3273	4	165	160

Application

The NYY cable is Power and control cable for fixed installation.Can be used indoors, outdoors, underground, in concrete and in water.
