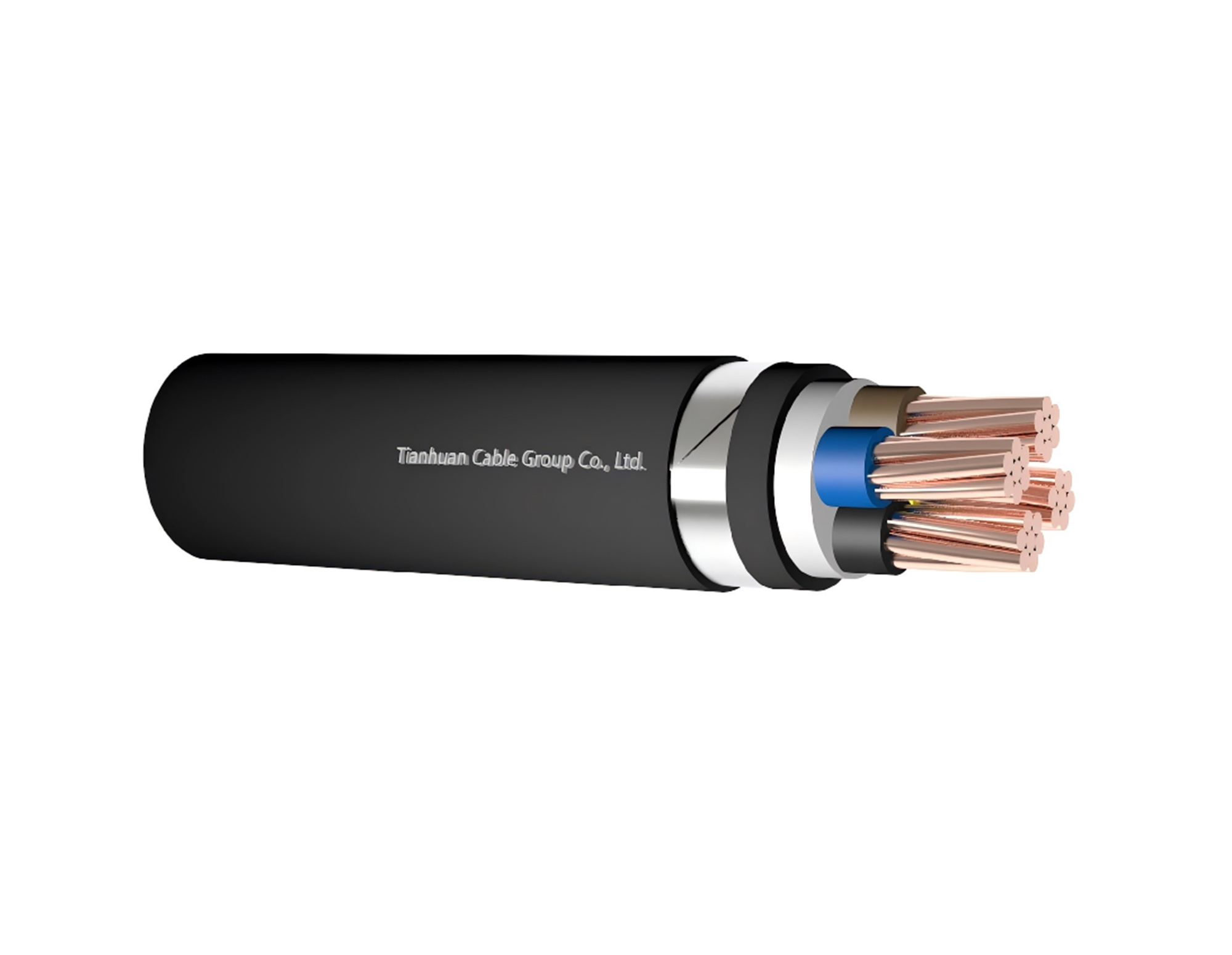

CABLE STRUCTURE:
Conductor: [re]round solid conductor
[rm]circular stranded conductor
[sm]Sector shape conductor
Insulation: PVC
Filler: PVC
Armour: Galvanized steel tape helically applied
Out Sheath: PVC or FR-PVC type ST2/ST8, black
Technical Data Voltage Rating: Uo/U 0.6/1kV
Test Voltage: 3.5KV
Temperature Rating Maximum Operating: +70℃
Maximum Short-Circuit: +160℃
Minimum Bending Radius: 12×overall diameter
| Nom.Cross- section Area | Nominal Thickness | Overall Diameter | Cable Weight | DC Resistance at 20℃ Insulation min | Current Carrying Capacity at 30℃ | ||
| Insulation | Outer Sheath | In Air | In Ground | ||||
| mm² | mm | mm | mm | km/kg | Ω/km | A | |
| 2×6 re | 1 | 1.8 | 16.7 | 557 | 9 | 59 | 48 |
| 2×6 rm | 1 | 1.8 | 17.5 | 587 | 8 | 59 | 48 |
| 2×10 re | 1 | 1.8 | 19 | 672 | 7 | 78 | 66 |
| 2×10 rm | 1 | 1.8 | 19.4 | 709 | 6 | 78 | 66 |
| 2×16 rm | 1 | 1.8 | 21.3 | 894 | 5 | 102 | 90 |
| 2×25 rm | 1.2 | 1.8 | 24.8 | 1248 | 5 | 134 | 120 |
| 2×35 rm | 1.2 | 1.8 | 27.2 | 1555 | 4 | 160 | 150 |
| 2×50 rm | 1.4 | 1.8 | 30.3 | 1952 | 4 | 187 | 180 |
| 2×70 rm | 1.4 | 1.9 | 34.5 | 2600 | 4 | 230 | 230 |
| 2×95 rm | 1.6 | 2.1 | 40.4 | 3745 | 4 | 280 | 275 |
| 2×120 rm | 1.6 | 2.2 | 43.8 | 4476 | 3 | 320 | 320 |
| 2×150 rm | 1.8 | 2.4 | 48.4 | 5418 | 3 | 355 | 379 |
| 2×185 rm | 2 | 2.5 | 53.3 | 6649 | 3 | 409 | 430 |
| 2×240 rm | 2.2 | 2.7 | 59.7 | 8524 | 3 | 472 | 510 |
| 2×300 rm | 2.4 | 2.9 | 65.8 | 10229 | 3 | 525 | 590 |
| 3×4 re | 1 | 1.8 | 16.4 | 499 | 10 | 41 | 34 |
| 3×4 rm | 1 | 1.8 | 17.2 | 534 | 9 | 41 | 34 |
| 3×6 re | 1 | 1.8 | 17.5 | 591 | 9 | 52 | 44 |
| 3×6 rm | 1 | 1.8 | 18.4 | 638 | 8 | 52 | 44 |
| 3×10 re | 1 | 1.8 | 20 | 807 | 7 | 69 | 60 |
| 3×10 rm | 1 | 1.8 | 20.4 | 835 | 6 | 69 | 60 |
| 3x16 rm | 1 | 1.8 | 22.5 | 1159 | 5 | 89 | 80 |
| 3×25 rm | 1.2 | 1.8 | 26.2 | 1517 | 5 | 116 | 105 |
| 3×35 rm | 1.2 | 1.8 | 28.6 | 1894 | 4 | 138 | 130 |
| 3×50 sm | 1.4 | 1.9 | 30.5 | 2238 | 4 | 165 | 160 |
| 3×95 sm | 1.6 | 2.2 | 38.9 | 4256 | 4 | 245 | 245 |
| 3×120 sm | 1.6 | 2.3 | 41.6 | 5124 | 3 | 285 | 285 |
| 3×150 sm | 1.8 | 2.4 | 45.6 | 6223 | 3 | 315 | 325 |
| 3×185 sm | 2 | 2.6 | 49.4 | 7613 | 3 | 355 | 370 |
| 3×240 sm | 2.2 | 2.8 | 54.8 | 9623 | 3 | 415 | 435 |
| 3×300 sm | 2.4 | 3 | 59.7 | 11588 | 3 | 465 | 500 |
| 3×150 sm | 1.8 | 2.4 | 48.9 | 7407 | 3 | 315 | 325 |
| 3×185 sm | 2 | 2.6 | 52.5 | 8774 | 3 | 355 | 370 |
| 3×240 sm | 2.2 | 2.8 | 57.9 | 11036 | 3 | 415 | 435 |
| 3×300 sm | 2.4 | 3 | 62.5 | 13137 | 3 | 465 | 500 |
| 4×2.5 re | 0.8 | 1.8 | 16.4 | 499 | 10 | 32 | 25 |
| 4×2.5 rm | 0.8 | 1.8 | 17.2 | 534 | 9 | 32 | 25 |
| 4×4 re | 1 | 1.8 | 16.4 | 499 | 10 | 41 | 34 |
| 4×4 rm | 1 | 1.8 | 17.2 | 534 | 9 | 41 | 34 |
| 4×6 re | 1 | 1.8 | 17.5 | 591 | 9 | 52 | 44 |
| 4×6rm | 1 | 1.8 | 18.4 | 638 | 8 | 52 | 44 |
| 4x10 re | 1 | 1.8 | 190 | 1075 | 7 | 69 | 60 |
| 4×10 rm | 1 | 1.8 | 19.4 | 1101 | 6 | 69 | 60 |
| 4×16 rm | 1 | 1.8 | 21.8 | 1455 | 5 | 89 | 80 |
| 4×25 rm | 1.2 | 1.8 | 25.9 | 2093 | 5 | 116 | 105 |
| 4×35 rm | 1.2 | 1.9 | 28.6 | 2602 | 4 | 138 | 130 |
| 4×70 sm | 1.4 | 2.2 | 34.1 | 4093 | 4 | 205 | 200 |
| 4×95 sm | 1.6 | 2.4 | 38.7 | 5370 | 4 | 245 | 245 |
| 4×120 sm | 1.6 | 2.5 | 42.6 | 6563 | 3 | 285 | 285 |
| 4×150 sm | 1.8 | 2.6 | 46.3 | 7938 | 3 | 315 | 325 |
| 4×185 sm | 2 | 2.8 | 52.2 | 9756 | 3 | 355 | 370 |
| 4×240 sm | 2.2 | 3 | 58.5 | 12409 | 3 | 415 | 435 |
| 4×300 sm | 2.4 | 3.2 | 65.4 | 15104 | 3 | 465 | 500 |
| 5×4 re | 1 | 1.8 | 18.7 | 656 | 10 | 41 | 34 |
| 5×4 rm | 1 | 1.8 | 19.7 | 704 | 9 | 41 | 34 |
| 5×6 re | 1 | 1.8 | 20.1 | 842 | 9 | 52 | 44 |
| 5×6 rm | 1 | 1.8 | 21.2 | 857 | 8 | 52 | 44 |
| 5×10 re | 1 | 1.8 | 23.3 | 1114 | 7 | 69 | 60 |
| 5×10 rm | 1 | 1.8 | 23.7 | 1149 | 6 | 69 | 60 |
| 5×16 rm | 1 | 1.8 | 26.3 | 1498 | 5 | 89 | 80 |
| 5×25 rm | 1.2 | 1.8 | 31 | 2365 | 4 | 116 | 105 |
| 5×35 rm | 1.2 | 2 | 34.6 | 2803 | 4 | 138 | 130 |
| 5×50 rm | 1.4 | 2.2 | 40.4 | 3909 | 3 | 165 | 160 |
| 5×16 rm | 1 | 1.8 | 28.3 | 1928 | 5 | 89 | 80 |
| 5×25 rm | 1.2 | 1.9 | 33.2 | 2641 | 5 | 116 | 105 |
| 5×35 rm | 1.2 | 2 | 37.4 | 3520 | 4 | 138 | 130 |
| 5×50 rm | 1.4 | 2.1 | 43 | 4921 | 4 | 165 | 160 |
Application The NYBY cable is suitable for installation indoors, in cable channels and in duct in ground in switchgear, power stations and industrial application, in harsh environments where a high level mechanical protection is required.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
