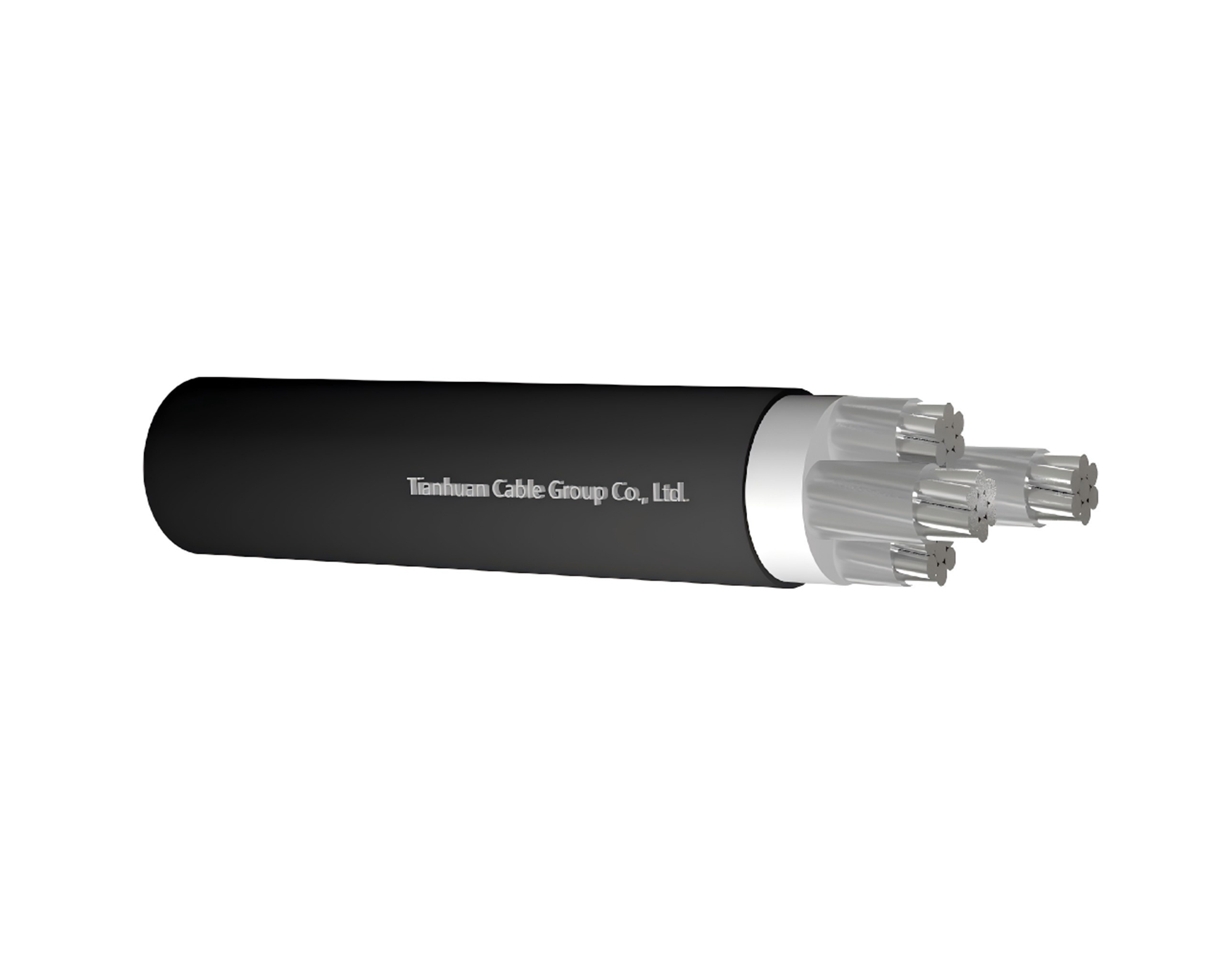

NA2XY Cu/XLPE/PVC 0.6/1 kV

Technical Data

Application

Get a quote

Technical Data

Voltage Rating: Uo/U 0.6/1(1.2)kV

Nominal Voltage DC(core-earth/core-core): 1.8/1.8kV

Test Voltage: 4kV

Temperature Rating: Flexed: 5℃ to +70℃

Fixed: -35℃ to+70℃

Maximum Short Circuit Temperature: +250℃(max 5 seconds)

Minimum Bend Radius:

Single core: 15×overall diameter

Multi core: 12×overall diameter

Nom.Cross-section Area	Nominal Thickness		Overall Diameter	Cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross-section Area	Insulation	Outer Sheath	Overall Diameter	Cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	Ω/km	A
1×16 rm	0.7	1.4	9.7	113	382	81	92
1×25 rm	0.9	1.4	10.8	150	394	109	118
1×35 rm	0.9	1.4	12	188	339	134	142
1×50 rm	1	1.4	13.6	240	313	165	168
1×70 rm	1.1	1.4	15.2	311	293	211	206
1×95 rm	1.1	1.6	17.7	426	255	260	245
1×120 rm	1.2	1.6	19.4	515	247	303	279
1×150 rm	1.4	1.6	21.4	628	259	353	313
1×185 rm	1.6	1.6	23.6	760	264	411	355
1×240 rm	1.7	1.8	26.8	983	246	494	412
1×300 rm	1.8	1.8	29.3	1195	234	571	465
1×400 rm	2	2	33.1	1525	228	688	536
1×500 rm	2.2	2.1	37.1	1923	225	796	609
1×630 rm	2.4	2.3	43.5	2473	223	932	692
2×25 rm	0.9	1.8	21.7	592	394	119	130
2×35 rm	0.9	1.8	24	735	339	145	157
2×50 rm	1	1.8	27.2	947	313	175	185
2×70 rm	1.1	1.8	30.8	1224	293	220	229
2×95 rm	1.1	2	35.4	1634	255	272	276
2×120 rm	1.2	2.1	39	1976	247	317	320
2×150 rm	1.4	2.2	43.2	2428	259	362	351
2×185 rm	1.6	2.3	48.2	3029	264	420	400
2×240 rm	1.7	2.5	54.2	3839	246	497	467
2×300 rm	1.8	2.7	60.1	4742	234	577	532
3×25rm	0.9	1.8	23	670	394	100	110
3×35rm	0.9	1.8	25.4	837	339	123	132
3×50 sm	1	1.8	27.5	913	313	149	156
3×70 sm	1.1	1.9	31.3	1225	293	189	193
3×95 sm	1.1	2	34.3	1539	255	233	232
3×120 sm	1.2	2.1	37.3	1888	247	271	268
3×150 sm	1.4	2.3	41.7	2371	259	310	296
3×185 sm	1.6	2.4	45.5	2846	264	359	336
3×240 sm	1.7	2.6	50.7	3637	246	429	429
3×300 sm	1.8	2.8	55.1	4393	234	496	447
4×25 rm	0.9	1.8	25	784	394	100	110
4×35 rm	0.9	1.8	27.7	986	339	123	132
4×50 sm	1	1.9	29.3	1115	313	149	156
4×70 sm	1.1	2	33.5	1517	293	189	193
4×95 sm	1.1	2.1	37.6	1949	255	233	232
4×120 sm	1.2	2.3	42	2477	247	271	268
4×150 sm	1.4	2.4	46.4	3034	259	310	296
4×185 sm	1.6	2.6	51.4	3699	264	359	336
4×240 sm	1.7	2.8	59	4851	246	429	429
4×300 sm	1.8	3	64.4	5757	234	496	447

Application

For Installations as underground, outdoor, indoor, in ducts and where mechanical protection is required or for higher tensile stresses during installation and operation.
