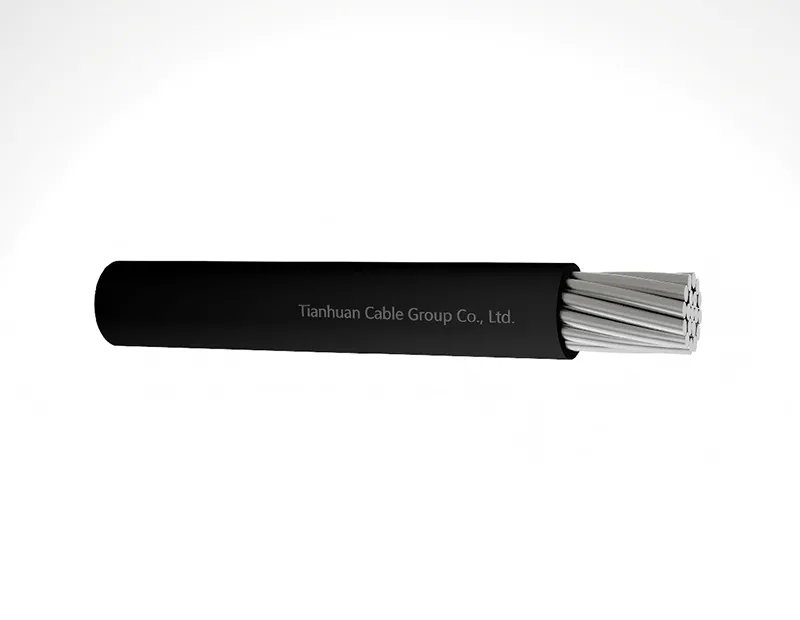

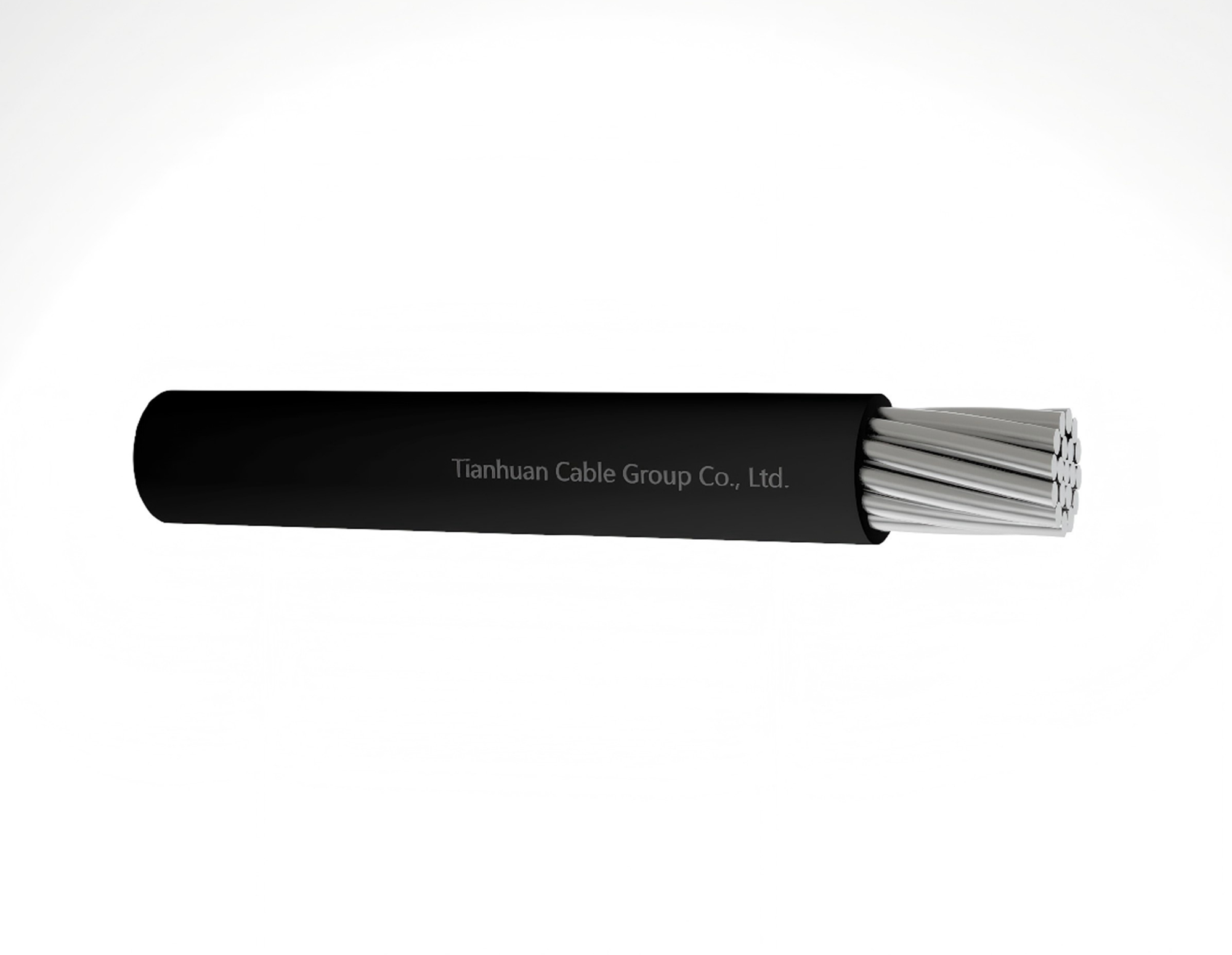

CABLE STRUCTURE:
Conductor: [rm]circular stranded conductor
Insulation: XLPE
Technical Data Voltage Rating Uo/U0.6/1kV
Temperature Rating:
Maximum Operating: +90℃
Maximum Short-Circuit: +250℃
Minimum Bending Radius:
Fixed: 15×overall diameter
| Nom.Cross- section Area | Nominal Thickness Insulation | overall diameter | cable Weight | DC Resistance at 20℃ Insulation min | Current Carrying Capacity at 30℃ in Air |
| mm² | mm | mm | km/kg | Ω/km | A |
| 1×35 rm | 0.9 | 9.3 | 112 | 1000 | 168 |
| 1×50 rm | 1 | 10.8 | 151 | 900 | 204 |
| 1×70 rm | 1.1 | 12.7 | 214 | 900 | 257 |
| 1×95 rm | 1.1 | 14.6 | 288 | 800 | 316 |
| 1×120 rm | 1.2 | 16.3 | 362 | 800 | 368 |
| 1×150 rm | 1.4 | 18.3 | 451 | 800 | 421 |
| 1×185 rm | 1.6 | 20.5 | 566 | 800 | 488 |
| 1×240 rm | 1.7 | 23.3 | 736 | 700 | 583 |
| 1×300 rm | 1.8 | 25.7 | 907 | 700 | 675 |
| 1×400 rm | 2 | 29.1 | 1165 | 700 | 790 |
| 1×500 rm | 2.2 | 32.8 | 1490 | 700 | 921 |
| 1×630 rm | 2.4 | 37.1 | 1910 | 600 | 1091 |
Application For installations as underground, outdoor, indoor, in ducts and where mechanical protection is required or for higher tensile stresses during installation and operation.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
