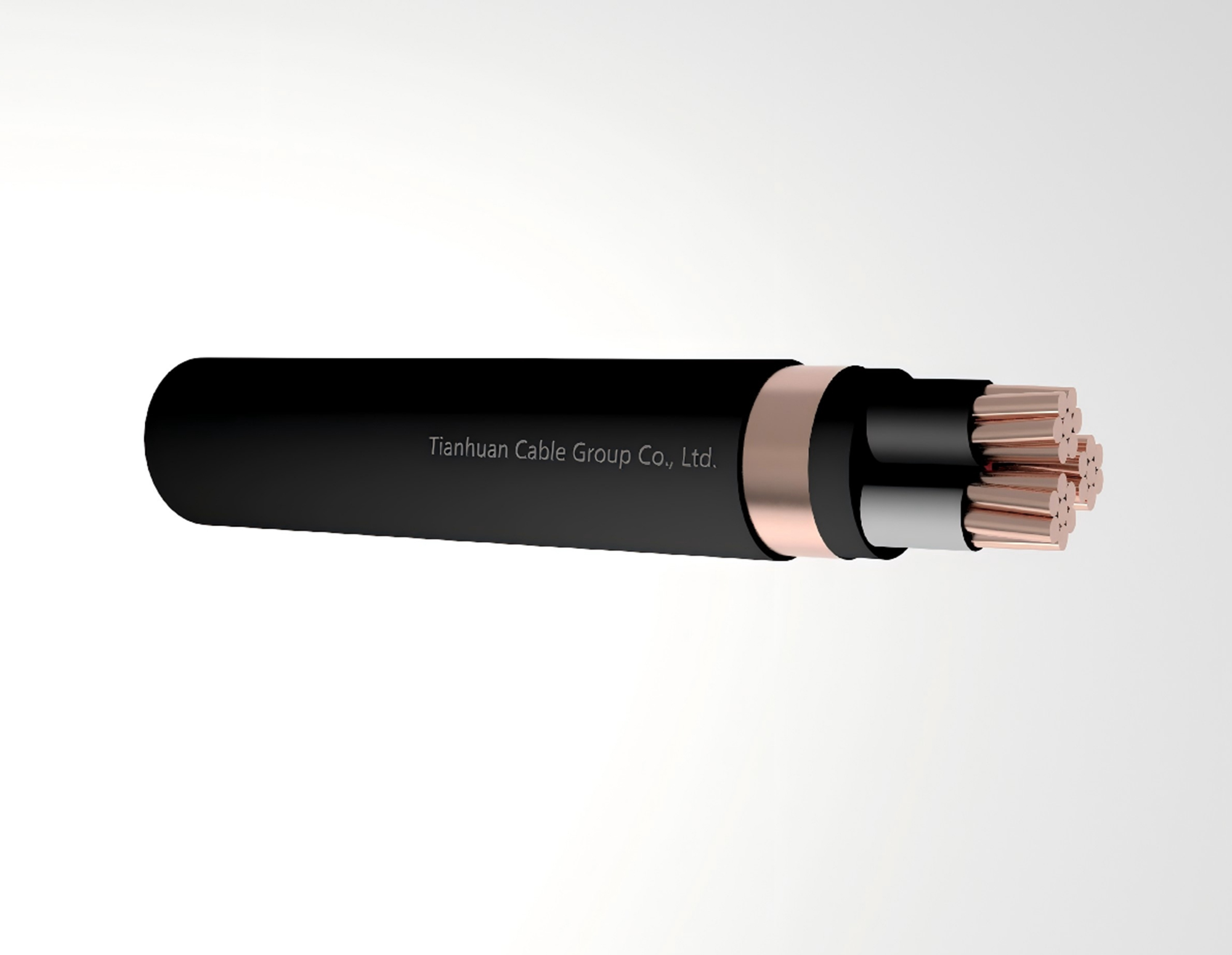

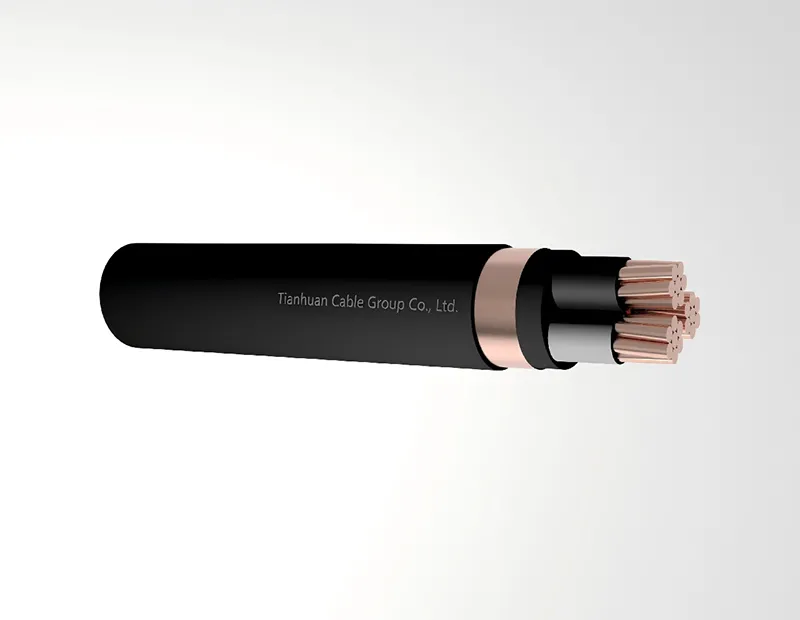

N2XSY Cu/XLPE/CTS/PVC 0.6/1 kV

Power cable 0.6/1 kV with Cu conductors, XLPE insulated, Copper tape screen shield and PVC sheathed

CABLE STRUCTURE:

Conductor: [re]Round solid conductor

[rm]Circular stranded conductor

[sm]Sector shape conductor

Insulation: XLPE

Filler: PVC

Shield: Helically copper tape screened with nominal thickness 0.1 mm

Out Sheath: PVC or FR-PVC type ST2/ST8, black

Inquire Now + Download +

Technical Data

Application

Get a quote

Technical Data

Voltage Rating Uo/U0.6/1kV

Test Voltage: 3.5kV

Temperature Rating Maximum Operating: +90℃

Maximum Short-Circuit: +250℃

Minimum Bending Radius: 15×overall diameter

Nom.Cross- section Area	Nominal Thickness		Overall Diameter	Cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Insulation	Outer Sheath	Overall Diameter	Cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	Ω/km	A
2×70 rm	1.1	19	34	2345	303	262	262
2×95 rm	1.1	2	38	3065	262	312	318
2×120 rm	1.2	2.1	41	3775	254	364	364
2×150 rm	1.4	2.2	46	4651	266	426	403
2×185 rm	1.6	2.4	51	5745	271	489	465
2×240 rm	1.7	2.5	58	7415	252	580	536
2×300 rm	1.8	2.7	64	9089	240	670	597
3×1.5 re	0.7	1.8	15	305	1120	21	28
3×1.5 rm	0.7	1.8	15	308	1020	21	28
3×2.5 re	0.7	1.8	15	320	940	29	37
3×2.5 rm	0.7	1.8	15	325	842	29	37
3×4 re	0.7	1.8	15	350	784	39	46
3×4 rm	0.7	1.8	16	374	704	39	46
3×6 re	0.7	1.8	16	429	667	49	59
3×6 rm	0.7	1.8	17	461	590	49	59
3×10 re	0.7	1.8	18	585	538	68	78
3×10 rm	0.7	1.8	19	628	473	68	78
3×16 rm	0.7	1.8	21	862	392	91	101
3×25 rm	0.9	1.8	25	1255	400	119	132
3×35 rm	0.9	1.8	27	1610	348	148	157
3×50 rm	1	1.8	31	2135	326	181	187
3×50 sm	1	1.8	26	1745	326	181	187
3×70 rm	1.1	1.9	36	2985	303	227	233
3×70 sm	1.1	1.9	31	2515	303	227	233
3×95 rm	1.1	2.1	40	3955	262	278	278
3×95 sm	1.1	2.1	35	3375	262	278	278
3×120 rm	1.2	2.2	45	4945	254	324	324
3×120 sm	1.2	2.2	39	4205	254	324	324
3×150 rm	1.4	2.3	50	6013	266	370	358
3×150 sm	1.4	2.3	42	5095	266	370	358
3×185 rm	1.6	2.5	55	7520	271	420	403
3×185 sm	1.6	2.5	47	6345	271	420	403
3×240 rm	1.7	2.7	62	9645	252	495	475
3×240 sm	1.7	2.7	52	8150	252	495	475
3×300 rm	1.8	2.8	68	11875	240	568	528
3×300 sm	1.8	2.8	57	10135	240	568	528
4×1.5 re	0.7	1.8	15	302	1120	21	28
4×1.5 rm	0.7	1.8	15	307	1020	21	28
4×2.5 re	0.7	1.8	15	329	940	29	37
4×2.5 rm	0.7	1.8	15	345	842	29	37
4×4 re	0.7	1.8	16	410	784	39	46
4×4 rm	0.7	1.8	17	425	704	39	46
4×6 re	0.7	1.8	17	510	667	49	59
4×6 rm	0.7	1.8	18	542	590	49	59
4×10 re	0.7	1.8	19	703	538	68	78
4×10 rm	0.7	1.8	20	750	473	68	78
4×16 rm	0.7	1.8	23	1045	392	91	101
4×25 rm	0.9	1.8	27	1534	400	119	132
4×35 rm	0.9	1.8	30	1995	348	148	157
4×50 rm	1	1.9	34	2702	326	181	187
4×50 sm	1	1.9	30	23010	326	181	187
4×70 rm	1.1	2	40	3745	303	227	233
4×70 sm	1.1	2	36	3345	303	227	233
4×95 rm	1.1	2.2	45	5025	262	278	278
4×95 sm	1.1	2.2	40	4450	262	278	278
4×120 rm	1.2	2.3	50	6225	254	324	324
4×120 sm	1.2	2.3	44	5555	254	324	324
4×150 rm	1.4	2.5	55	7652	266	370	358
4×150 sm	1.4	2.5	49	6810	266	370	358
4×185 rm	1.6	2.6	61	9485	271	420	403
4×185 sm	1.6	2.6	54	8410	271	420	403
4×240 rm	1.7	2.9	68	12195	252	495	475
4×240 sm	1.7	2.9	60	10895	252	495	475
4×300 rm	1.8	3	76	15145	240	568	528
4×300 sm	1.8	3	65	13460	240	568	528
5×1.5 re	0.7	1.8	16	315	1120	21	28
5×1.5 rm	0.7	1.8	16	319	1020	21	28
5×2.5 re	0.7	1.8	17	375	940	29	37
5×2.5 rm	0.7	1.8	17	389	842	29	37
5×4 re	0.7	1.8	18	475	784	39	46
5×4 rm	0.7	1.8	18	495	704	39	46
5×6 re	0.7	1.8	19	605	667	49	59
5×6 rm	0.7	1.8	20	640	590	49	59
5×10 re	0.7	1.8	22	840	538	68	78
5×10 rm	0.7	1.8	24	885	473	68	78
5×16 rm	0.7	1.9	26	1260	392	91	101
5×25 rm	0.9	1.9	29	1875	400	119	132
5×35 rm	0.9	2	34	2495	348	148	157
5×50 rm	1	2.2	38	3325	326	181	187

Application

The N2XSY cable is for indoor installation, in power and switching stations. as underground cable, for difficult installation where the low weight is particularly advantageous.
