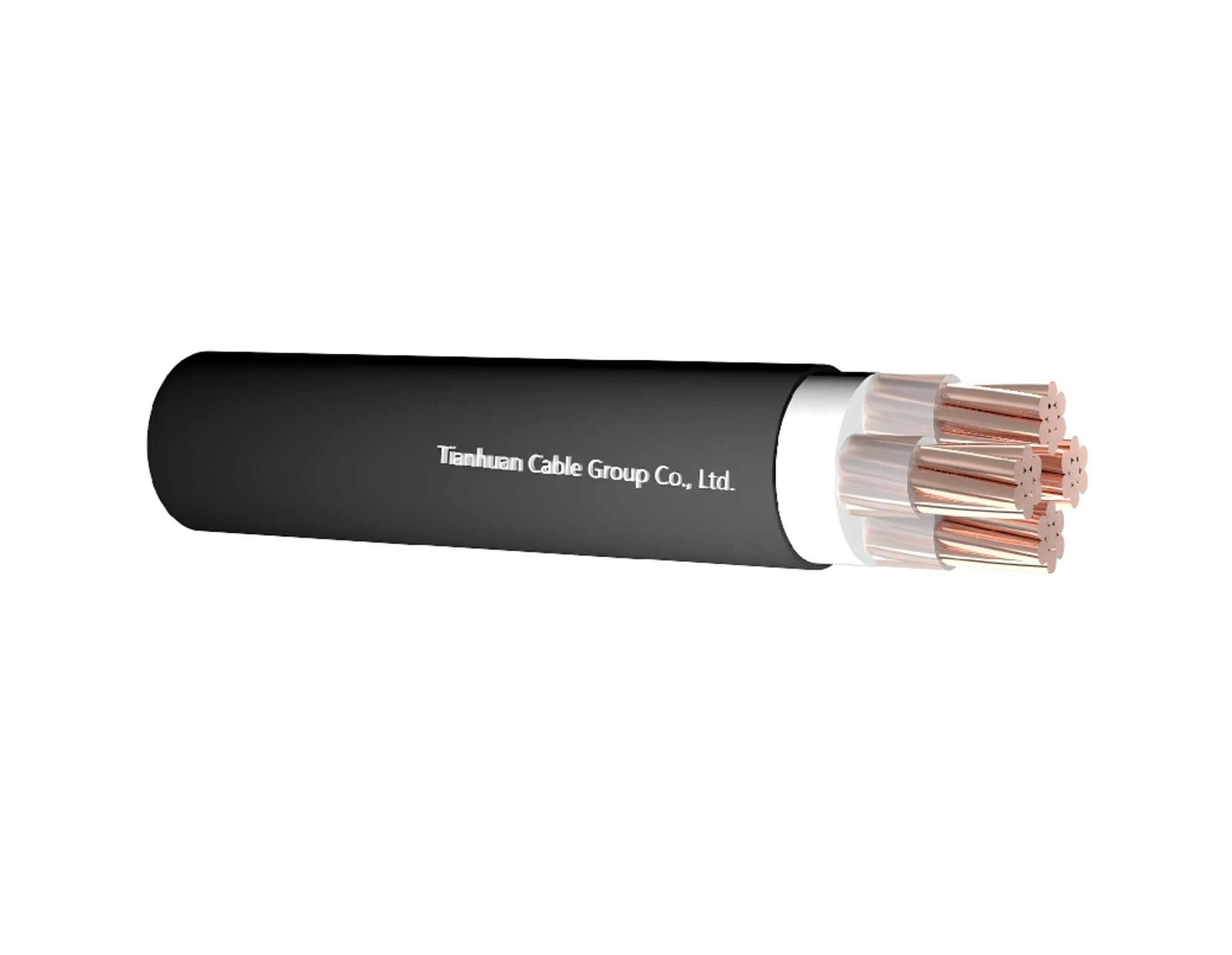

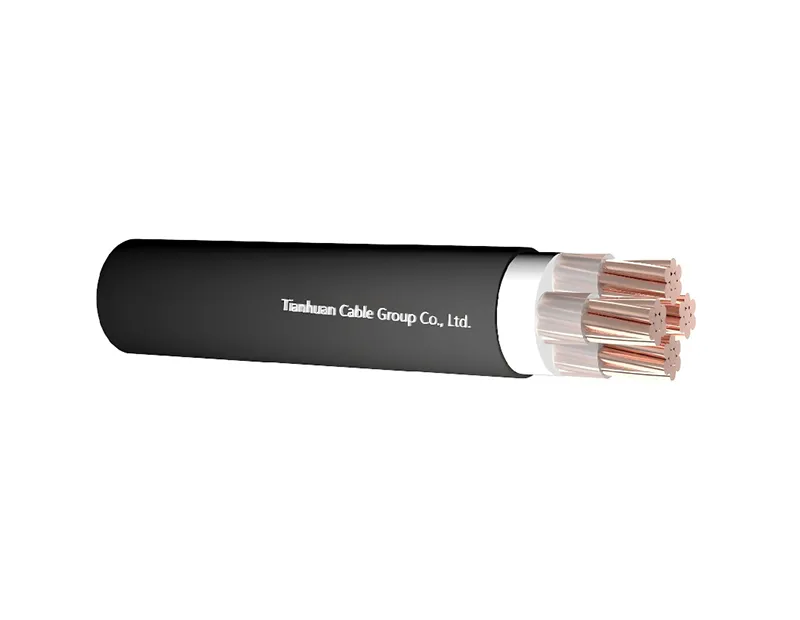

CABLE STRUCTURE:
Conductor: [re]Round solid conductor
[rm]Circular stranded conductor
[sm]Sector shape conductor
Insulation: XLPE
Filler: PVC
Out Sheath: LSZH-FRNC(Low Smoke Zero Halogen Flame Retardant Non Corrosive)
Technical Data Voltage Rating Uo/U:
Nominal voltage(AC)UO/U: 0.6/1kV
Max operating voltage(DC)UO/U: 0.9/1.8kV
Test Voltage: 3.5kV
Temperature Rating Maximum Operating: -40℃ to+90℃
Minimum Bending Radius: Fixed: 6×overall diameter
| Nom.Cross-section Area | Nominal Thickness | Overall Diameter | Cable Weight | DC Resistance at 20℃ min | Current carrying cap. in air | |
| Insulation | Outer Sheath | |||||
| mm² | mm | mm | mm | km/kg | MΩ/km | A |
| 1×10 re | 0.7 | 1.2 | 8 | 136 | 1.83 | 1021 |
| 1×16 re | 0.7 | 1.2 | 9 | 194 | 1.15 | 1354 |
| 1×25 rm | 0.9 | 1.2 | 11 | 297 | 0.727 | 1832 |
| 1×35 rm | 0.9 | 1.2 | 12 | 391 | 0.524 | 2261 |
| 1×50 rm | 1 | 1.2 | 13 | 514 | 0.387 | 2739 |
| 1×70 rm | 1.1 | 1.2 | 15 | 717 | 0.268 | 3482 |
| 1×95 rm | 1.1 | 1.3 | 17 | 970 | 0.193 | 4290 |
| 1×120 rm | 1.2 | 1.3 | 19 | 1206 | 0.153 | 4979 |
| 1×150 rm | 1.4 | 1.3 | 21 | 1460 | 0.124 | 5758 |
| 1×185 rm | 1.6 | 1.4 | 23 | 1821 | 0.0991 | 6667 |
| 1×240 rm | 1.7 | 1.4 | 25 | 2349 | 0.0754 | 7989 |
| 1×300 rm | 1.8 | 1.5 | 28 | 2928 | 0.0601 | 9258 |
| 1×400 rm | 2 | 1.5 | 32 | 3713 | 0.047 | 10954 |
| 1×500 rm | 2.2 | 1.6 | 36 | 4734 | 0.0366 | 12910 |
| 2×10 re | 0.7 | 1.2 | 13 | 361 | 1.83 | 896 |
| 2×16 re | 0.7 | 1.3 | 15 | 517 | 1.15 | 1194 |
| 2×25 rm | 0.9 | 1.3 | 20 | 840 | 0.727 | 1627 |
| 2×35 rm | 0.9 | 1.4 | 22 | 1104 | 0.524 | 2018 |
| 3×10 sm | 0.7 | 1.2 | 14 | 447 | 1.83 | 768 |
| 3×16 sm | 0.7 | 1.3 | 16 | 651 | 1.15 | 1024 |
| 3×25 sm | 0.9 | 1.3 | 21 | 1054 | 0.727 | 1401 |
| 3×35 sm | 0.9 | 1.4 | 24 | 1396 | 0.524 | 1736 |
| 3×50 sm | 1 | 1.4 | 23 | 1527 | 0.387 | 2022 |
| 3×70 sm | 1.1 | 1.5 | 27 | 2147 | 0.268 | 2565 |
| 3×95 sm | 1.1 | 1.6 | 30 | 2898 | 0.193 | 3157 |
| 3×120 sm | 1.2 | 1.7 | 33 | 3637 | 0.153 | 3676 |
| 3×150 sm | 1.4 | 1.7 | 37 | 4462 | 0.124 | 4251 |
| 3×185 sm | 1.6 | 1.8 | 41 | 5551 | 0.0991 | 4929 |
| 3×240 sm | 1.7 | 1.9 | 46 | 7196 | 0.0754 | 5839 |
| 3×25+16 rm/re | 0.9/0.7 | 1.4 | 22 | 1228 | 0.727 | 1420 |
| 3×35+16 sm/re | 0.9/0.7 | 1.4 | 22 | 1340 | 0.524 | 1723 |
| 3×50+25 sm/rm | 1.0/0.9 | 1.5 | 25 | 1818 | 0.387 | 2109 |
| 3×70+35 sm | 1.1/0.9 | 1.5 | 29 | 2513 | 0.268 | 2649 |
| 3×95+50 sm | 1.1/1.0 | 1.6 | 33 | 3400 | 0.193 | 3270 |
| 3×120+70 sm | 1.2/1.1 | 1.7 | 36 | 4318 | 0.153 | 3780 |
| 3×150+70 sm | 1.4/1.1 | 1.8 | 41 | 5181 | 0.124 | 4364 |
| 3×185+95 sm | 1.6/1.1 | 1.9 | 45 | 6511 | 0.0991 | 5010 |
| 3×240+120 sm | 1.7/1.2 | 2 | 51 | 8413 | 0.08 | 5923 |
| 4×10 re | 0.7 | 1.3 | 16 | 558 | 1.83 | 795 |
| 4×10 rm | 0.7 | 1.3 | 17 | 593 | 1.83 | 820 |
| 4×16 re | 0.7 | 1.3 | 18 | 822 | 1.15 | 1060 |
| 4×25 rm | 0.9 | 1.4 | 23 | 1342 | 0.727 | 1451 |
| 4×35 sm | 0.9 | 1.4 | 22 | 1525 | 0.524 | 1723 |
| 4×50 sm | 1 | 1.5 | 25 | 2016 | 0.387 | 2109 |
| 4×70 sm | 1.1 | 1.6 | 30 | 2839 | 0.268 | 2665 |
| 4×95 sm | 1.1 | 1.7 | 34 | 3849 | 0.193 | 3285 |
| 4×120 sm | 1.2 | 1.7 | 37 | 4785 | 0.153 | 3807 |
| 4×150 sm | 1.4 | 1.8 | 41 | 5910 | 0.124 | 4392 |
| 4×185 sm | 1.6 | 1.9 | 46 | 7355 | 0.0991 | 5064 |
| 4×240 sm | 1.7 | 2 | 52 | 9553 | 0.0754 | 5976 |
| 5×10 re | 0.7 | 1.3 | 17 | 704 | 1.83 | 824 |
| 5×16 re | 0.7 | 1.3 | 20 | 1028 | 1.15 | 1100 |
| 5×25 rm | 0.9 | 1.4 | 25 | 1673 | 0.727 | 1508 |
| 5×35 rm | 0.9 | 1.5 | 29 | 2230 | 0.524 | 1873 |
| 5×50 rm | 1 | 1.6 | 33 | 2998 | 0.387 | 2281 |
| 5×70 rm | 1.1 | 1.6 | 38 | 4183 | 0.268 | 2917 |
| 5×95 rm | 1.1 | 1.7 | 43 | 5602 | 0.193 | 3577 |
| 5×120 rm | 1.2 | 1.8 | 48 | 7048 | 0.153 | 4146 |
Application These power cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
