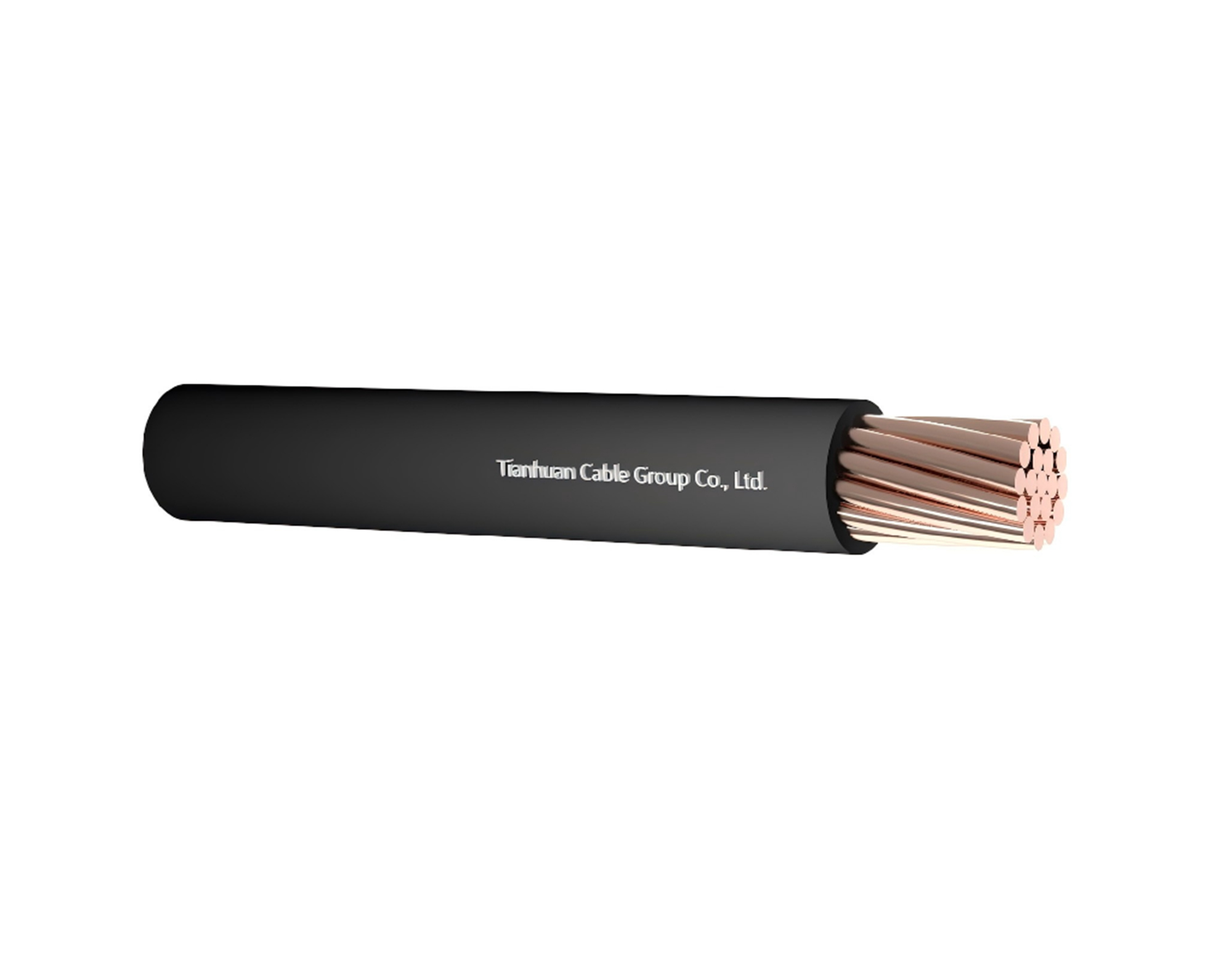

N2XA Cu/XLPE 0.6/1 kV

Technical Data

Application

Get a quote

Related Products

Technical Data

Voltage Rating: Uo/U

0.6/1kV

Temperature Rating Maximum Operating: +90℃

Maximum Short-Circuit: +250℃

Minimum Bending Radius: 15xoverall diameter

Nom.Cross- section Area	Nominal Thickness Insulation	Overall Diameter	Cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Nominal Thickness Insulation	Overall Diameter	Cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Pipe
mm²	mm	mm	km/kg	Ω/km	A
1×1.5 re	0.7	3.0	18	1121	27	17
1×1.5 rm	0.7	3.0	19	1020	27	17
1×2.5 re	0.7	3.2	28	940	37	23
1×2.5 rm	0.7	3.5	29	842	37	23
1×4 re	0.7	3.7	42	784	49	29
1×4 rm	0.7	4.0	44	704	49	29
1×6 re	0.7	4.2	61	667	62	36
1×6 rm	0.7	4.6	63	590	62	36
1×10 re	0.7	5.0	99	538	85	52
1×10 rm	0.7	5.5	103	473	85	52
1×16 rm	0.7	6.6	159	392	112	70
1×25 rm	0.9	8.3	253	400	161	95
1×35 rm	0.9	9.5	346	348	182	119
1×50 rm	1.0	11	462	326	226	151
1×70 rm	1.1	13	664	303	283	190
1×95 rm	1.1	15	912	262	336	227
1×120 rm	1.2	17	1147	254	396	271
1×150 rm	1.4	19	1413	266	449	——
1×185 rm	1.6	21	1775	271	514	——
1×240 rm	1.7	24	2332	252	607	——
1×300 rm	1.8	27	2904	240	669	——
1×400 rm	2.0	30	3710	235	831	——
1×500 rm	2.2	34	4673	228	950	——

Application

For installations as underground, outdoor, indoor, in ducts and where mechanical protection is required or for higher tensile stresses during installation and operation.
