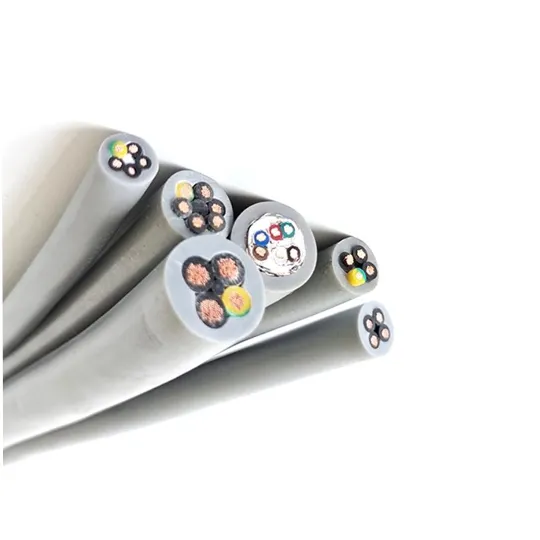

YSLY 300/500V With Cu Conductors,PVC Insulated and Sheathed Control Cable
Პარამეტრი
| ნომ.გაკვეთის ფართობი | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacites 30℃ Continous Loading | |
| იზოლაცია | Outer Sheath | |||||
| მმ² | მმ | მმ | მმ | km/kg | Ω/კმ | A |
| 2×0.5 | 0.40 | 0.7 | 4.8 | 36 | 39 | 9 |
| 2×0.75 | 0.40 | 0.7 | 5.2 | 46 | 26 | 12 |
| 2×1 | 0.40 | 0.7 | 5.6 | 56 | 19.5 | 15 |
| 2×1.5 | 0.40 | 0.8 | 6.4 | 73 | 13.3 | 18 |
| 2×2.5 | 0.50 | 0.9 | 7.6 | 113 | 7.98 | 26 |
| 3×0.5 | 0.40 | 0.7 | 5.1 | 44 | 39 | 9 |
| 3×0.75 | 0.40 | 0.7 | 5.5 | 55 | 26 | 12 |
| 3×1 | 0.40 | 0.8 | 6.1 | 69 | 19.5 | 15 |
| 3×1.5 | 0.40 | 0.8 | 6.8 | 91 | 13.3 | 18 |
| 3×2.5 | 0.50 | 0.9 | 8.3 | 140 | 7.98 | 26 |
| 3×4 | 0.60 | 1 | 10 | 210 | 4.95 | 34 |
| 3×6 | 0.65 | 1.10 | 11.5 | 293 | 3.3 | 44 |
| 3×10 | 0.75 | 1.40 | 14.9 | 500 | 1.91 | 61 |
| 3×16 | 0.75 | 1.50 | 16.8 | 704 | 1.21 | 82 |
| 3×25 | 0.90 | 1.80 | 21.1 | 1080 | 0.780 | 108 |
| 4×0.50 | 0.40 | 0.7 | 5.5 | 54 | 39 | 9 |
| 4×0.75 | 0.40 | 0.8 | 6.2 | 70 | 26 | 12 |
| 4×1 | 0.40 | 0.8 | 6.7 | 85 | 19.5 | 15 |
| 4×1.5 | 0.40 | 0.9 | 7.6 | 116 | 13.3 | 18 |
| 4×2.5 | 0.50 | 1 | 9.3 | 179 | 7.98 | 26 |
| 4×4 | 0.60 | 1.10 | 11.2 | 269 | 4.95 | 34 |
| 4×6 | 0.65 | 1.20 | 12.8 | 374 | 3.3 | 44 |
| 4×10 | 0.75 | 1.50 | 16.6 | 608 | 1.91 | 61 |
| 4×16 | 0.75 | 1.60 | 18.7 | 844 | 1.21 | 82 |
| 4×25 | 0.90 | 2 | 23.6 | 1327 | 0.780 | 108 |
| 4×35 | 0.95 | 2.20 | 27.2 | 1790 | 0.554 | 135 |
| 5×0.50 | 0.40 | 0.8 | 6.2 | 64 | 39 | 9 |
| 5×0.75 | 0.40 | 0.8 | 6.7 | 83 | 26 | 12 |
| 5×1 | 0.40 | 0.9 | 7.5 | 104 | 19.5 | 15 |
| 5×1.5 | 0.40 | 0.9 | 8.3 | 136 | 13.3 | 18 |
| 5×2.5 | 0.50 | 1.10 | 10.3 | 213 | 7.98 | 26 |
| 5×4 | 0.60 | 1.20 | 12.4 | 321 | 4.95 | 34 |
| 5×6 | 0.65 | 1.30 | 14.3 | 447 | 3.3 | 44 |
| 5×10 | 0.75 | 1.60 | 18.4 | 760 | 1.91 | 61 |
| 5×16 | 0.75 | 1.80 | 20.9 | 1064 | 1.21 | 82 |
| 5×25 | 0.90 | 2.20 | 26.4 | 1673 | 0.780 | 108 |
| 5×35 | 0.95 | 2.40 | 30.3 | 2252 | 0.554 | 135 |
| 7×0.5 | 0.40 | 0.8 | 6.7 | 81 | 39 | 9 |
| 7×0.75 | 0.40 | 0.9 | 7.5 | 108 | 26 | 12 |
| 7×1 | 0.40 | 0.9 | 8.1 | 130 | 19.5 | 15 |
| 7×1.5 | 0.40 | 1 | 9.2 | 177 | 13.3 | 18 |
| 7×2.5 | 0.50 | 1.10 | 11.2 | 277 | 7.98 | 26 |
| 7×4 | 0.60 | 1.30 | 13.7 | 423 | 4.95 | 34 |
| 7×6 | 0.65 | 1.40 | 15.7 | 593 | 3.3 | 44 |
| 8×0.75 | 0.40 | 0.9 | 8.1 | 120 | 26 | 12 |
| 8×1 | 0.40 | 1 | 9 | 150 | 19.5 | 15 |
| 8×1.5 | 0.40 | 1 | 10 | 200 | 13.3 | 18 |
| 12×0.5 | 0.40 | 1 | 9.1 | 139 | 39 | 9 |
| 12×0.75 | 0.40 | 1 | 9.9 | 179 | 26 | 12 |
| 12×1 | 0.40 | 1.10 | 10.9 | 225 | 19.5 | 15 |
| 12×1.5 | 0.40 | 1.20 | 12.4 | 302 | 13.3 | 18 |
| 12×2.5 | 0.50 | 1.40 | 15.3 | 478 | 7.98 | 26 |
| 18×0.5 | 0.40 | 1.10 | 10.7 | 201 | 39 | 9 |
| 18×0.75 | 0.40 | 1.20 | 11.9 | 230 | 26 | 12 |
| 18×1 | 0.40 | 1.20 | 12.9 | 324 | 19.5 | 15 |
| 18×1.5 | 0.40 | 1.40 | 14.8 | 446 | 13.3 | 18 |
| 18×2.5 | 0.50 | 1.60 | 18.2 | 704 | 7.98 | 26 |
| 25×0.5 | 0.40 | 1.20 | 12.9 | 285 | 39 | 9 |
| 25×0.75 | 0.40 | 1.30 | 14.3 | 372 | 26 | 12 |
| 25×1 | 0.40 | 1.40 | 15.7 | 462 | 19.5 | 15 |
| 25×1.5 | 0.40 | 1.60 | 18 | 627 | 13.3 | 18 |
| 25×2.5 | 0.50 | 1.90 | 22.3 | 997 | 7.98 | 26 |
| 34×0.75 | 0.40 | 1.50 | 16.3 | 492 | 26 | 12 |
| 34×1 | 0.40 | 1.60 | 17.9 | 617 | 19.5 | 15 |
| 34×1.5 | 0.40 | 1.70 | 20.2 | 833 | 13.3 | 18 |
| 34×2.5 | 0.50 | 2.10 | 25.2 | 1337 | 7.98 | 26 |
| 50×1 | 0.40 | 1.80 | 21 | 869 | 19.5 | 15 |
| 50×1.5 | 0.40 | 2 | 23.8 | 1186 | 13.3 | 18 |
| 50×2.5 | 0.50 | 2.40 | 29.6 | 1898 | 7.98 | 26 |
| 61×1 | 0.40 | 1.90 | 22.7 | 1031 | 19.5 | 15 |
საკაბელო სტრუქტურა
● Conductor:Class 5 flexible plain copper
● Insulation:PVC
● Sheath: PVC
კოდის აღნიშვნა
YSLY
განაცხადი
YY control cable for instrumentation and control equipment,for tooling machinery productionlines,and in flexibleapplications for free movementwithout tensile load.Suitable in dryambient andwet rooms.These indoor cables are not used for external or underground installation.
სტანდარტული
European standard: VDE 0207 - 363-3, VDE 0482 - 332-1-2, VDE819-102( TM54)
Flame Retardant according to IEC/ EN60332 - 1 - 2
სხვა სტანდარტები, როგორიცაა IEC, BS, DIN და ICEA მოთხოვნის შესაბამისად
Ტექნიკური მონაცემები
Voltage Rating Uo/U:300/500V
Temperature Rating:Fixed:-40℃ to+80℃
Flexed:-5℃ to+70℃
Minimum Bending Radius :Fixed:4×overall diameter
Flexed:12.5×overall diameter
სერთიფიკატები
CE, RoHS, CCC, KEMA და სხვა მოთხოვნით
