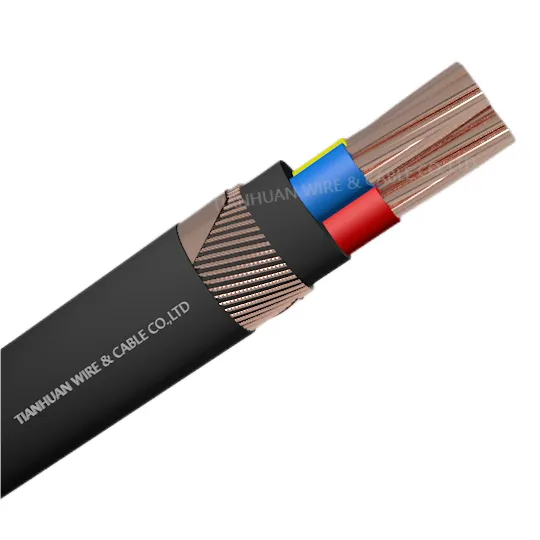

NYCY 0.6/1kv Cu conductors PVC insulated and sheathed ,with concentric protective Cu conductor power cable
Պարամետր
| Nom.Խաչհատվածի տարածք | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃Insulation min | Current Carrying Capacity at 30℃ | ||
| Մեկուսացում | Outer Sheath | In Air | In Ground | ||||
| մմ² | մմ | մմ | մմ | km/kg | M.Ω.km | A | A |
| 2 × 1.5 re/1.5 | 0.8 | 1.8 | 13.5 | 230 | 12 | 27 | 21 |
| 2 × 1.5 rm/1.5 | 0.8 | 1.8 | 13.9 | 242 | 11 | 27 | 21 |
| 2 × 2.5 re/2.5 | 0.8 | 1.8 | 14.5 | 281 | 10 | 36 | 29 |
| 2 × 2.5 rm/2.5 | 0.8 | 1.8 | 16.2 | 290 | 9 | 36 | 29 |
| 2 × 4 re/4 | 1.0 | 1.8 | 16.8 | 370 | 10 | 47 | 38 |
| 2 × 4 гm/4 | 1.0 | 1.8 | 17.2 | 395 | 9 | 47 | 38 |
| 2 × 6 re/6 | 1.0 | 1.8 | 17.8 | 454 | 9 | 59 | 48 |
| 2 × 6 rm/6 | 1.0 | 1.8 | 18.1 | 485 | 8 | 59 | 48 |
| 2 ×10 re/10 | 1.0 | 1.8 | 19.8 | 635 | 7 | 78 | 66 |
| 2 × 10 rm/10 | 1.0 | 1.8 | 20.2 | 658 | 6 | 78 | 66 |
| 2 × 16 rm/16 | 1.0 | 1.8 | 22 | 891 | 5 | 102 | 90 |
| 2 × 25 rm/16 | 1.2 | 1.8 | 25.6 | 1207 | 5 | 134 | 120 |
| 2 × 35 rm/16 | 1.2 | 1.8 | 27.8 | 1476 | 4 | 180 | 150 |
| 2 × 50 rm/25 | 1.4 | 1.9 | 31.3 | 1928 | 4 | 210 | 180 |
| 2 × 70 rm/35 | 1.4 | 2.0 | 35.8 | 2605 | 4 | 260 | 230 |
| 2 × 95 rm/50 | 1.6 | 2.2 | 40.4 | 3557 | 4 | 315 | 280 |
| 2 × 120 rm/70 | 1.6 | 2.3 | 43.6 | 4376 | 3 | 320 | 320 |
| 2 × 150 rm/70 | 1.8 | 2.4 | 48.5 | 5208 | 3 | 355 | 375 |
| 2 × 185 rm/95 | 2.0 | 2.6 | 53.8 | 6546 | 3 | 409 | 430 |
| 2 × 240 rm/120 | 2.2 | 2.8 | 60.6 | 8368 | 3 | 472 | 510 |
| 2 × 300 rm/150 | 2.4 | 3.0 | 67.5 | 10385 | 3 | 525 | 590 |
| 3 × 1.5 re/1.5 | 0.8 | 1.8 | 14.1 | 260 | 12 | 24 | 18 |
| 3 × 1.5 rm/1.5 | 0.8 | 1.8 | 14.4 | 271 | 11 | 24 | 18 |
| 3 × 2.5 re/2.5 | 0.8 | 1.8 | 14.9 | 322 | 10 | 32 | 25 |
| 3 × 2.5rm/2.5 | 0.8 | 1.8 | 15.5 | 339 | 9 | 32 | 25 |
| 3 × 4 re/4 | 1.0 | 1.8 | 16.9 | 427 | 10 | 41 | 34 |
| 3 × 4 rm/4 | 1.0 | 1.8 | 17.5 | 456 | 9 | 41 | 34 |
| 3 × 6 re/6 | 1.0 | 1.8 | 18.2 | 535 | 9 | 52 | 44 |
| 3 × 6 rm/6 | 1.0 | 1.8 | 19.1 | 568 | 8 | 52 | 44 |
| 3 × 10 re/10 | 1.0 | 1.8 | 20.9 | 759 | 7 | 69 | 60 |
| 3 × 10 rm/10 | 1.0 | 1.8 | 21.3 | 787 | 6 | 69 | 60 |
| 3 ×16 rm/16 | 1.0 | 1.8 | 23.2 | 1068 | 5 | 89 | 80 |
| 3 × 25 rm/16 | 1.2 | 1.8 | 26.8 | 1476 | 5 | 116 | 105 |
| 3 × 35 rm/16 | 1.2 | 1.8 | 29.5 | 1438 | 4 | 138 | 130 |
| 3 × 50 sm/25 | 1.4 | 1.9 | 29.7 | 2216 | 4 | 165 | 160 |
| 3 × 70 sm/35 | 1.4 | 2.0 | 32.4 | 2985 | 4 | 205 | 200 |
| 3 × 95 sm/50 | 1.6 | 2.2 | 36.6 | 4065 | 4 | 245 | 245 |
| 3 × 120 sm/70 | 1.6 | 2.3 | 40.2 | 5073 | 3 | 285 | 285 |
| 3 × 150 sm/70 | 1.8 | 2.4 | 43.7 | 6082 | 3 | 315 | 325 |
| 3 × 185 sm/95 | 2.0 | 2.6 | 49.4 | 7516 | 3 | 355 | 370 |
| 3 × 240sm/120 | 2.2 | 2.8 | 54.8 | 9768 | 3 | 415 | 435 |
| 3 × 300 sm/150 | 2.4 | 3.0 | 61.3 | 12186 | 3 | 465 | 500 |
| 4 × 1.5 re/1.5 | 0.8 | 1.8 | 14.7 | 236 | 12 | 24 | 18 |
| 4 x 1.5 rm/1.5 | 0.8 | 1.8 | 15.2 | 249 | 11 | 24 | 18 |
| 4 × 2.5 re/2.5 | 0.8 | 1.8 | 15.8 | 303 | 10 | 32 | 25 |
| 4 × 2.5 rm/2.5 | 0.8 | 1.8 | 16.4 | 324 | 9 | 32 | 25 |
| 4 × 4 re/4 | 1.0 | 1.8 | 18.1 | 428 | 10 | 41 | 34 |
| 4 × 4 rm/4 | 1.0 | 1.8 | 18.9 | 457 | 9 | 41 | 34 |
| 4 × 6 re/6 | 1.0 | 1.8 | 19.3 | 546 | 9 | 52 | 44 |
| 4 × 6 rm/6 | 1.0 | 1.8 | 20.2 | 585 | 8 | 52 | 44 |
| 4 × 10 re/10 | 1.0 | 1.8 | 22.7 | 789 | 7 | 69 | 60 |
| 4 × 10 rm/10 | 1.0 | 1.8 | 22.3 | 817 | 6 | 69 | 60 |
| 4 × 16 rm/16 | 1.0 | 1.8 | 25.3 | 1155 | 5 | 89 | 80 |
| 4 × 25 rm/16 | 1.2 | 1.8 | 29.2 | 1648 | 5 | 116 | 105 |
| 4 × 35 rm/16 | 1.2 | 1.8 | 31.8 | 2095 | 4 | 138 | 130 |
| 4 × 50 sm/25 | 1.4 | 2.0 | 33.7 | 2664 | 4 | 165 | 160 |
| 4 × 70 sm/35 | 1.4 | 2.1 | 40.2 | 3573 | 4 | 205 | 200 |
| 4 × 95 sm/50 | 1.6 | 2.3 | 42.6 | 4880 | 4 | 245 | 245 |
| 4 ×120 sm/70 | 1.6 | 2.4 | 47.4 | 6153 | 3 | 285 | 285 |
| 4 × 150 sm/70 | 1.8 | 2.6 | 50.6 | 7377 | 3 | 315 | 325 |
| 4 × 185 sm/95 | 2.0 | 2.8 | 57.5 | 9195 | 3 | 355 | 370 |
| 4 × 240 sm/120 | 2.2 | 3.0 | 63.8 | 11865 | 3 | 415 | 435 |
| 4 × 300 sm/150 | 2.4 | 3.2 | 71.6 | 14420 | 3 | 465 | 500 |
Մալուխի կառուցվածքը
● Conductor: [re] round solid conductor
[rm] circular stranded conductor
[Sm]Sector shape conductor
● Insulation: PVC
● Filler:PVC
●Shield: Helically copper wire with transverse helix of annealed copper tape
● Out Sheath: PVC or FR-PVC type ST1/ST2/ST8,black
Կոդի նշանակում
NYCY
Դիմում
For use indoors, in cable ducts, outdoors, in water, inconcrete and in ground for power plants,industrial plants,as well as in local power networks,if increased electricalprotection is required.
Ստանդարտ
European standards:VDE0276-603,VDE0276-627(≥5 cores)
Flame Retardant:VDE0482-332-1-2/IEC 60332-1-2UV Resistant HD 308
Indonesia standards:Conductor SNI IEC 60228/PVC Insulation SNI IEC 60502-1/
PVC Sheath grade ST1 to SNI IEC 60502-1
Տեխնիկական տվյալները
Rated voltage:U0/U 0.6/1 kV
Test Voltage:4kV
Temperature Rating Maximum Operating: +70℃
Maximum Short-Circuit:+250℃
Minimum. Bend Radius:15×overall diameter
Վկայականներ
CE, RoHS, CCC, KEMA և այլ խնդրանքով
