Paramadair
| Ainm.Cross-earrainn Raon | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃Insulation min | Current Carrying Capacity at 30℃ | ||
| Insaladh | Outer Sheath | In Air | In Ground | ||||
| mm² | mm² | mm | mm | km/kg | M.Ω.km | A | A |
| 1 × 16 rm | 0.7 | 1.4 | 9.7 | 113 | 382 | 81 | 92 |
| 1 × 25 rm | 0.9 | 1.4 | 10.8 | 150 | 394 | 109 | 118 |
| 1 × 35 rm | 0.9 | 1.4 | 12.0 | 188 | 339 | 134 | 142 |
| 1 × 50 rm | 1.0 | 1.4 | 13.6 | 240 | 313 | 165 | 168 |
| 1 × 70 rm | 1.1 | 1.4 | 15.2 | 311 | 293 | 211 | 206 |
| 1 × 95 rm | 1.1 | 1.6 | 17.7 | 426 | 255 | 260 | 245 |
| 1 × 120 rm | 1.2 | 1.6 | 19.4 | 515 | 247 | 303 | 279 |
| 1 × 150 rm | 1.4 | 1.6 | 21.4 | 628 | 259 | 353 | 313 |
| 1 × 185 rm | 1.6 | 1.6 | 23.6 | 760 | 264 | 411 | 355 |
| 1 × 240 rm | 1.7 | 1.8 | 26.8 | 983 | 246 | 494 | 412 |
| 1 × 300 rm | 1.8 | 1.8 | 29.3 | 1195 | 234 | 571 | 465 |
| 1 × 400 rm | 2.0 | 2.0 | 33.1 | 1525 | 228 | 688 | 536 |
| 1 × 500 rm | 2.2 | 2.1 | 37.1 | 1923 | 225 | 796 | 609 |
| 1 × 630 rm | 2.4 | 2.3 | 43.5 | 2473 | 223 | 932 | 692 |
| 2 × 25 rm | 0.9 | 1.8 | 21.7 | 592 | 394 | 119 | 130 |
| 2 × 35 rm | 0.9 | 1.8 | 24.0 | 735 | 339 | 145 | 157 |
| 2 × 50 rm | 1.0 | 1.8 | 27.2 | 947 | 313 | 175 | 185 |
| 2 × 70 rm | 1.1 | 1.8 | 30.8 | 1224 | 293 | 220 | 229 |
| 2 × 95 rm | 1.1 | 2.0 | 35.4 | 1634 | 255 | 272 | 276 |
| 2 × 120 rm | 1.2 | 2.1 | 39.0 | 1976 | 247 | 317 | 320 |
| 2 × 150 rm | 1.4 | 2.2 | 43.2 | 2428 | 259 | 362 | 351 |
| 2 × 185 rm | 1.6 | 2.3 | 48.2 | 3029 | 264 | 420 | 400 |
| 2 × 240 rm | 1.7 | 2.5 | 54.2 | 3839 | 246 | 497 | 467 |
| 2 × 300 rm | 1.8 | 2.7 | 60.1 | 4742 | 234 | 577 | 532 |
| 3 × 25 rm | 0.9 | 1.8 | 23.0 | 670 | 394 | 100 | 110 |
| 3 × 35 rm | 0.9 | 1.8 | 25.4 | 837 | 339 | 123 | 132 |
| 3 × 50 sm | 1.0 | 1.8 | 27.5 | 913 | 313 | 149 | 156 |
| 3 × 70 sm | 1.1 | 1.9 | 31.3 | 1225 | 293 | 189 | 193 |
| 3 × 95 sm | 1.1 | 2.0 | 34.3 | 1539 | 255 | 233 | 232 |
| 3 × 120 sm | 1.2 | 2.1 | 37.3 | 1888 | 247 | 271 | 268 |
| 3 × 150 sm | 1.4 | 2.3 | 41.7 | 2371 | 259 | 310 | 296 |
| 3 × 185 sm | 1.6 | 2.4 | 45.5 | 2846 | 264 | 359 | 336 |
| 3 × 240 sm | 1.7 | 2.6 | 50.7 | 3637 | 246 | 429 | 429 |
| 3 ×300 sm | 1.8 | 2.8 | 55.1 | 4393 | 234 | 496 | 447 |
| 4 × 25 rm | 0.9 | 1.8 | 25.0 | 784 | 394 | 100 | 110 |
| 4 × 35 rm | 0.9 | 1.8 | 27.7 | 986 | 339 | 123 | 132 |
| 4 × 50 sm | 1.0 | 1.9 | 29.3 | 1115 | 313 | 149 | 156 |
| 4 × 70 sm | 1.1 | 2.0 | 33.5 | 1517 | 293 | 189 | 193 |
| 4 × 95 sm | 1.1 | 2.1 | 37.6 | 1949 | 255 | 233 | 232 |
| 4 × 120 sm | 1.2 | 2.3 | 42.0 | 2477 | 247 | 271 | 268 |
| 4 × 150 sm | 1.4 | 2.4 | 46.4 | 3034 | 259 | 310 | 296 |
| 4 × 185 sm | 1.6 | 2.6 | 51.4 | 3699 | 264 | 359 | 336 |
| 4 × 240 sm | 1.7 | 2.8 | 59.0 | 4851 | 246 | 429 | 429 |
| 4 × 300 sm | 1.8 | 3.0 | 64.4 | 5757 | 234 | 496 | 447 |

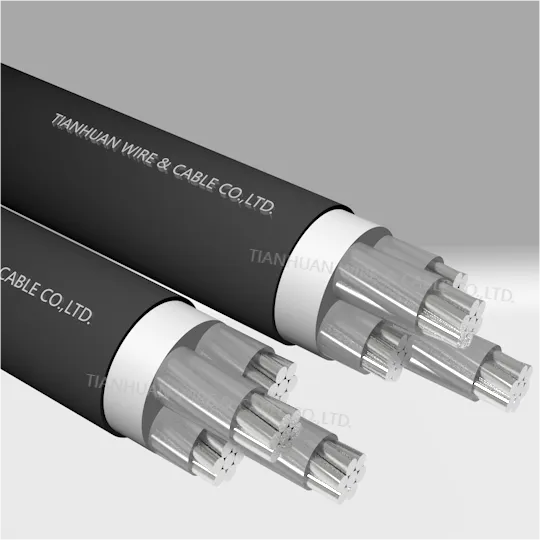

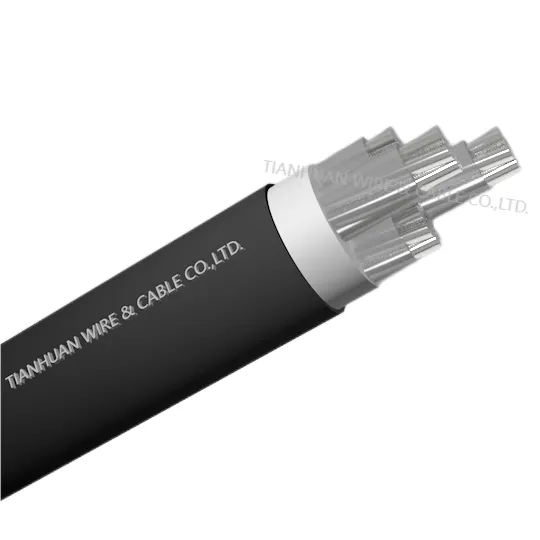

Structar càball
● Conductor: [re] round solid conductor
[rm] circular stranded conductor
● Insulation: XLPE
● Filler:PVC
● Out Sheath: PVC or FR-PVC type ST1/ST2/ST8,black
Ainm Còd
NA2XY
Iarrtas
For Installations as underground,outdoor ,indoor,in ducts and where mechanical protection is required or for higher tensile stresses during installation and operation.
Inbhe
European standards:IEC 60502-1,VDE 0276-603
Flame retardant according to IEC/EN 60332-1-2
Indonesia standards:Conductor SNI IEC 60228/XLPE insulation SNI IEC 60502-1
PVC Sheath grade ST2 to IEC 60502-1,Black
Dàta Teicnigeach
Rated voltage:U0/U(Um) 0.6/1(1.2) kV
Nominal Voltage DC(core-earth/core-core) 1.8/1.8kV
Test Voltage:4kV
Temperature Rating:Flexed :5℃ to +70℃
Fixed:-35℃ to +70℃
Maximum Short Circuit Temperature:+250℃(max 5 seconds)
Minimum. Bend Radius:Single core :15×overall diameter
Multi core:12×overall diameter
Teisteanasan
CE, RoHS, CCC, KEMA agus barrachd air iarrtas
