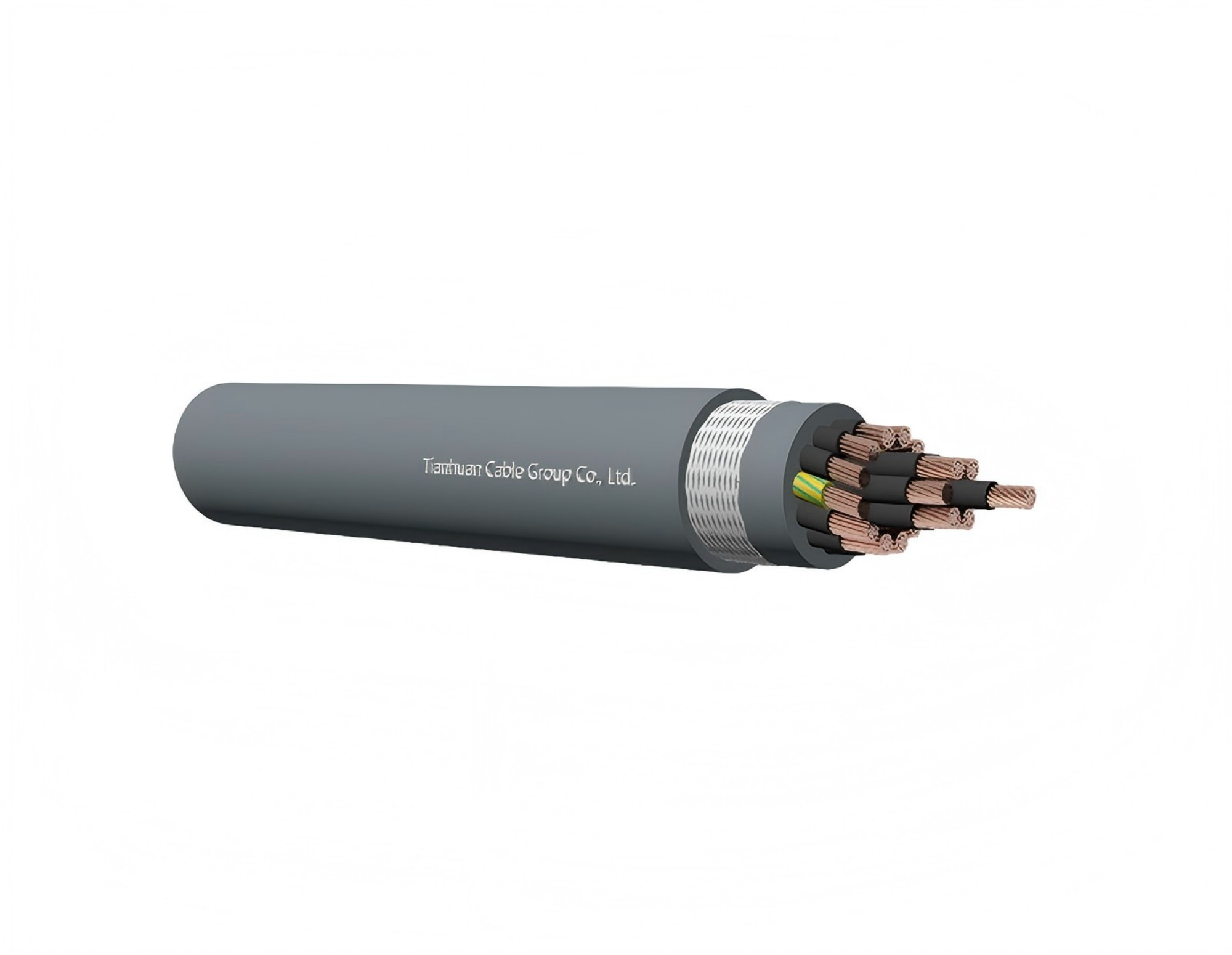

CABLE STRUCTURE:
Conductor:Class 5 flexible stranded bare copper
Insulation:PVC
Bedding:PVC
Screen:Copper Braided 70%Coverage Quter
Sheath:Special PVC Compound
Technical Data Voltage Rating Uo/U:0.6/1kV
Temperature Rating:Fixed:-20℃ to+70℃
Installation:-5℃ to +70℃
Minimum Bending Radius:Fixed:5x overall diameter
Flexed:10x overall diameter
| Nom.Cross- section Area | Overal l Diameter | Cable Weight | DC Resistance at 20℃ Conductor min | Nom.Cross- section Area | Overall Diameter | Cable Weight | DC Resistance at 20℃ Conductor min |
| mm² | mm | km/kg | Ω/km | mm² | mm | km/kg | Ω/km |
| 3×0.75 | 9 | 155 | 26 | 5×2.5 | 15.7 | 471 | 7.98 |
| 3×1 | 11.2 | 196 | 19.5 | 5×4 | 18.6 | 695 | 4.95 |
| 3×1.5 | 10.9 | 187 | 13.3 | 5×6 | 20.7 | 984 | 3.3 |
| 3×2.5 | 13.5 | 326 | 7.98 | 5×10 | 24.1 | 1635 | 1.91 |
| 3×4 | 15.1 | 391 | 4.95 | 5×16 | 28.8 | 2720 | 1.21 |
| 4×0.75 | 11.4 | 214 | 26 | 5×25 | 35.7 | 3490 | 0.78 |
| 4×1 | 11.8 | 231 | 19.5 | 7×0.75 | 13 | 319 | 26 |
| 4×1.5 | 12.2 | 265 | 13.3 | 7×1 | 14.5 | 289 | 19.5 |
| 4×2.5 | 14.6 | 379 | 7.98 | 7×1.5 | 16 | 416 | 13.3 |
| 4×4 | 16.7 | 557 | 4.95 | 7×2.5 | 17.9 | 590 | 7.98 |
| 4×6 | 18.7 | 723 | 3.3 | 12×0.75 | 15.8 | 437 | 26 |
| 4×10 | 21.9 | 1267 | 1.91 | 12×1 | 17.4 | 493 | 19.5 |
| 4×16 | 26.4 | 1763 | 1.21 | 12×1.5 | 19.6 | 641 | 13.3 |
| 4×25 | 32.5 | 2750 | 0.78 | 12×2.5 | 21.9 | 897 | 7.98 |
| 4×35 | 35.7 | 3497 | 0.554 | 18×0.75 | 18 | 588 | 26 |
| 4×50 | 41.1 | 4937 | 0.386 | 18×1 | 20.7 | 658 | 19.5 |
| 4×70 | 48 | 7480 | 0.272 | 18×1.5 | 23.4 | 872 | 13.3 |
| 4×95 | 51.2 | 10220 | 0.206 | 18×2.5 | 26.1 | 1355 | 7.98 |
| 5×0.75 | 12.1 | 250 | 26 | 25×0.75 | 22.8 | 746 | 26 |
| 5×1 | 12.6 | 270 | 19.5 | 25×1 | 24.8 | 870 | 19.5 |
| 5×1.5 | 13.3 | 289 | 13.3 | 25×1.5 | 28.2 | 1211 | 13.3 |
| 25×2.5 | 31.9 | 1995 | 7.98 |
Application The YSLYCY cable is resistant against most usual chemicals,oil and grease.This cable is suitable for indoor and outdoor application.
