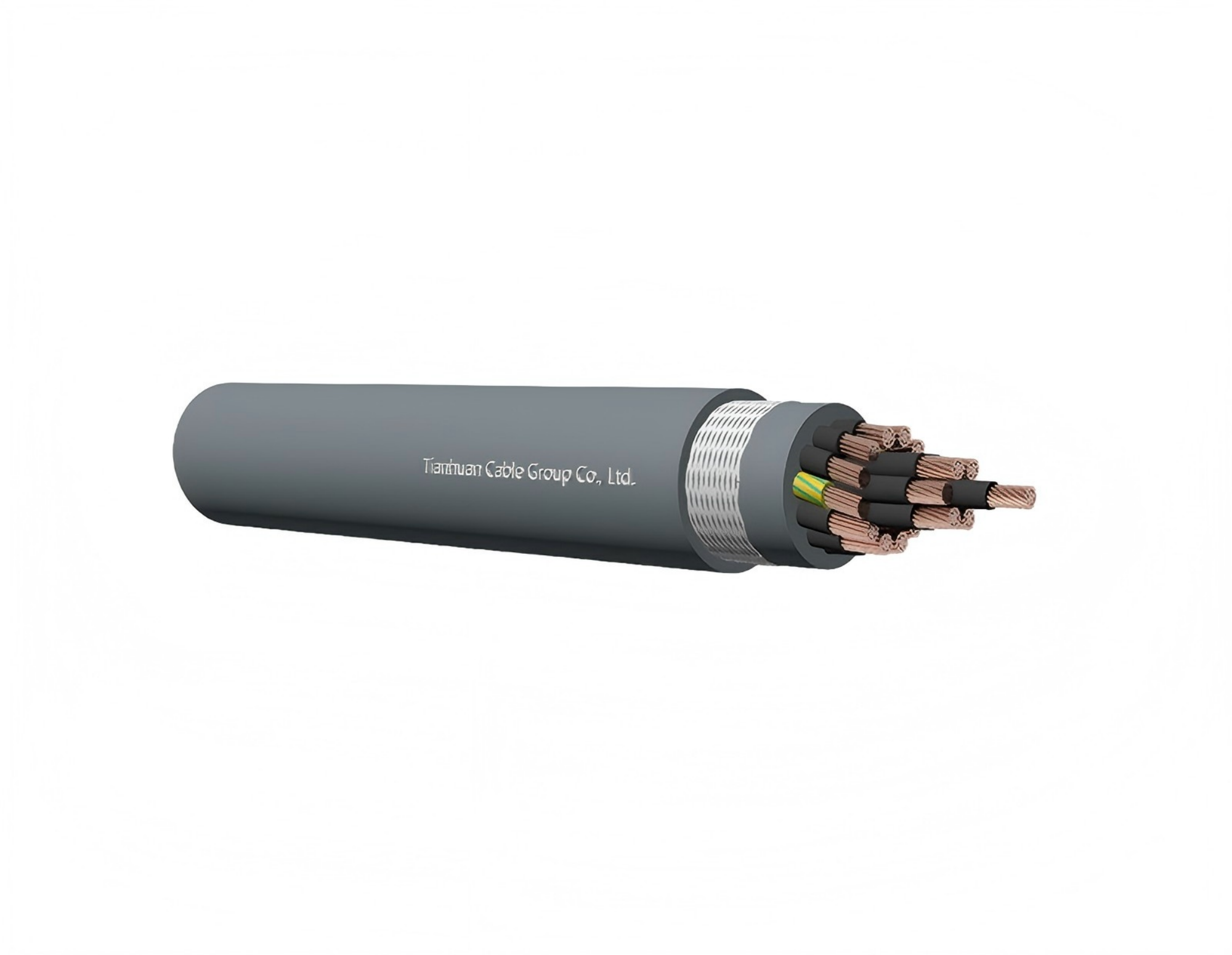

YSLY (CU/PVC/PVC,YY PVC 300/500V )Control Cable

Technical Data

Application

Get a quote

Related Products

Technical Data

Voltage Rating Uo/U:300/500V

Temperature Rating:Fixed:-40℃ to+80℃

Flexed:-5℃ to +70℃

Minimum Bending Radius:Fixed:4×overall diameter

Flexed:12.5×overall diameter

Nom.Cross- section Area	Nominal Thickness		overall diameter		DC Resistance at 20℃ Conductor min	Current Carrying Capacites 30℃ Continous
Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Conductor min	Current Carrying Capacites 30℃ Continous
mm²	mm	mm	mm	km/kg	Ω/km	A
2×0.5	0.40	0.7	4.8	36	39	9
2×0.75	0.40	0.7	5.2	46	26	12
2×1	0.40	0.7	5.6	56	19.5	15
2×1.5	0.40	0.8	6.4	73	13.3	18
2×2.5	0.50	0.9	7.6	113	7.98	26
3×0.5	0.40	0.7	5.1	44	39	9
3×0.75	0.40	0.7	5.5	55	26	12
3×1	0.40	0.8	6.1	69	19.5	15
3×1.5	0.40	0.8	6.8	91	13.3	18
3×2.5	0.50	0.9	8.3	140	7.98	26
3×4	0.60	1	10	210	4.95	34
3×6	0.65	1.10	11.5	293	3.3	44
3×10	0.75	1.40	14.9	500	1.91	61
3×16	0.75	1.50	16.8	704	1.21	82
3×25	0.90	1.80	21.1	1080	0.780	108
4×0.50	0.40	0.7	5.5	54	39	9
4×0.75	0.40	0.8	6.2	70	26	12
4×1	0.40	0.8	6.7	85	19.5	15
4×1.5	0.40	0.9	7.6	116	13.3	18
4×2.5	0.50	1	9.3	179	7.98	26
4×4	0.60	1.10	11.2	269	4.95	34
4×6	0.65	1.20	12.8	374	3.3	44
4×10	0.75	1.50	16.6	608	1.91	61
4×16	0.75	1.60	18.7	844	1.21	82
4×25	0.90	2	23.6	1327	0.780	108
4×35	0.95	2.20	27.2	1790	0.554	135

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Conductor min	Current Carrying Capacites 30℃ Continous
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Conductor min	Current Carrying Capacites 30℃ Continous
mm²	mm	mm	mm	km/kg	Ω/km	A
5×0.50	0.40	0.8	6.2	64	39	9
5×0.75	0.40	0.8	6.7	83	26	12
5×1	0.40	0.9	7.5	104	19.5	15
5×1.5	0.40	0.9	8.3	136	13.3	18
5×2.5	0.50	1.10	10.3	213	7.98	26
5×4	0.60	1.20	12.4	321	4.95	34
5×6	0.65	1.30	14.3	447	3.3	44
5×10	0.75	1.60	18.4	760	1.91	61
5×16	0.75	1.80	20.9	1064	1.21	82
5×25	0.90	2.20	26.4	1673	0.780	108
5×35	0.95	2.40	30.3	2252	0.554	135
7×0.5	0.40	0.8	6.7	81	39	9
7×0.75	0.40	0.9	7.5	108	26	12
7×1	0.40	0.9	8.1	130	19.5	15
7×1.5	0.40	1	9.2	177	13.3	18
7×2.5	0.50	1.10	11.2	277	7.98	26
7×4	0.60	1.30	13.7	423	4.95	34
7×6	0.65	1.40	15.7	593	3.3	44
8×0.75	0.40	0.9	8.1	120	26	12
8×1	0.40	1	9	150	19.5	15
8×1.5	0.40	1	10	200	13.3	18
12×0.5	0.40	1	9.1	139	39	9
12×0.75	0.40	1	9.9	179	26	12
12×1	0.40	1.10	10.9	225	19.5	15
12×1.5	0.40	1.20	12.4	302	13.3	18

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Conductor min	Current Carrying Capacites 30℃ Continous
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Conductor min	Current Carrying Capacites 30℃ Continous
mm²	mm	mm	mm	km/kg	Ω/km	A
12×2.5	0.50	1.40	15.3	478	7.98	26
18×0.5	0.40	1.10	10.7	201	39	9
18×0.75	0.40	1.20	11.9	230	26	12
18×1	0.40	1.20	12.9	324	19.5	15
18×1.5	0.40	1.40	14.8	446	13.3	18
18×2.5	0.50	1.60	18.2	704	7.98	26
25×0.5	0.40	1.20	12.9	285	39	9
25×0.75	0.40	1.30	14.3	372	26	12
25×1	0.40	1.40	15.7	462	19.5	15
25×1.5	0.40	1.60	18	627	13.3	18
25×2.5	0.50	1.90	22.3	997	7.98	26
34×0.75	0.40	1.50	16.3	492	26	12
34×1	0.40	1.60	17.9	617	19.5	15
34×1.5	0.40	1.70	20.2	833	13.3	18
34×2.5	0.50	2.10	25.2	1337	7.98	26
50×1	0.40	1.80	21	869	19.5	15
50×1.5	0.40	2	23.8	1186	13.3	18
50×2.5	0.50	2.40	29.6	1898	7.98	26
61×1	0.40	1.90	22.7	1031	19.5	15

Application

YY control cable for instrumentation and control equipment,for tooling machinery production ambient and wet rooms.These indoor cables are not used for external or underground installation.lines,and in flexible applications for free.
