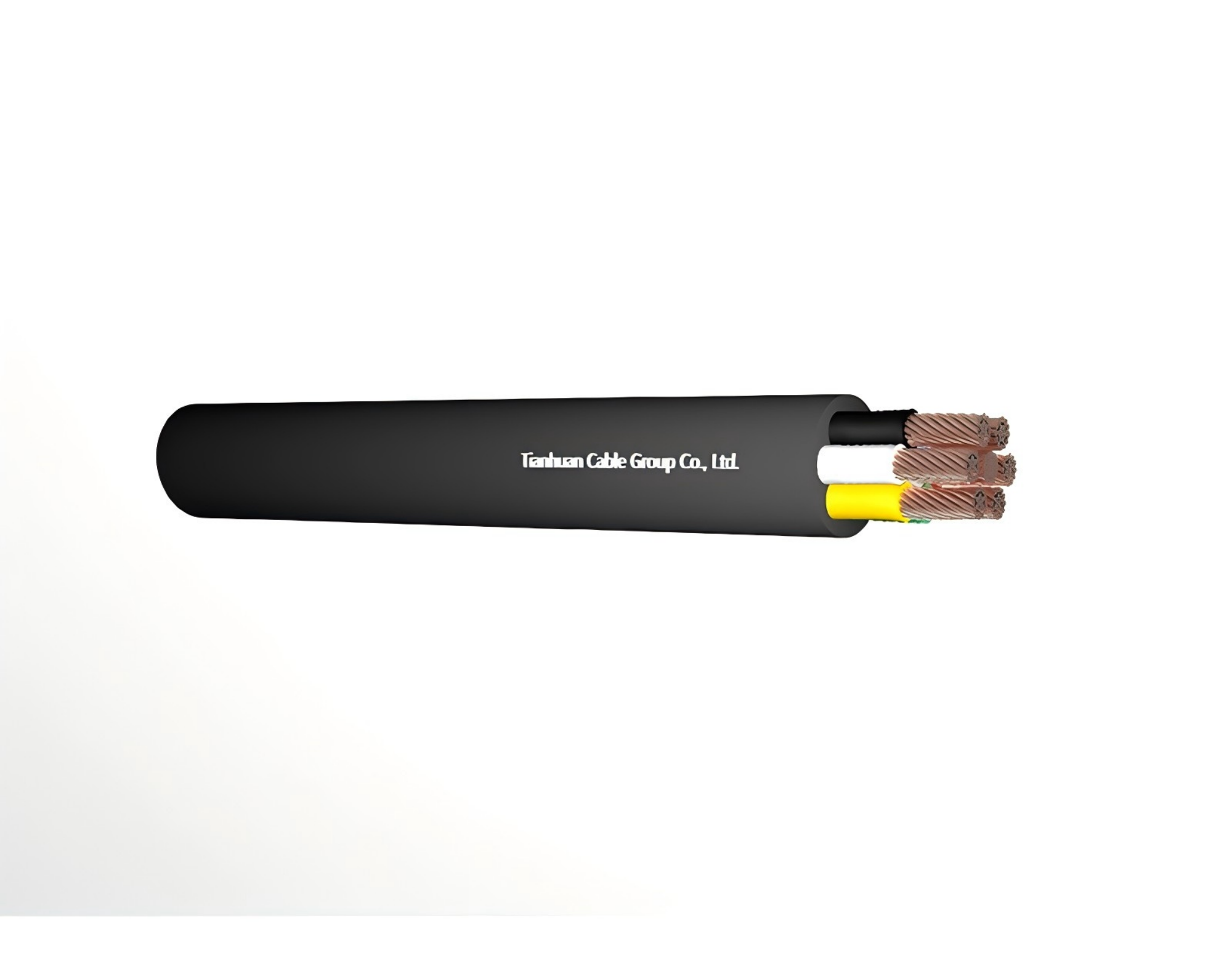

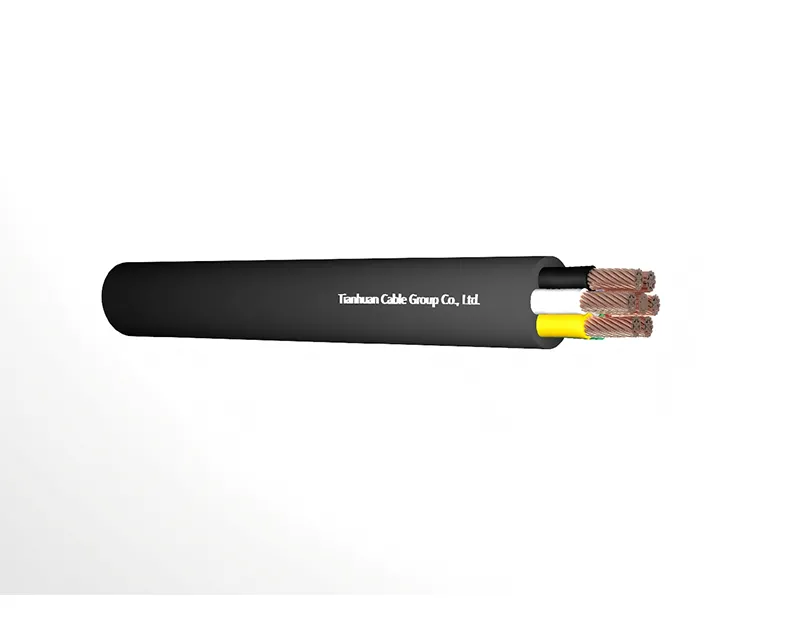

CABLE STRUCTURE:
Conductor:Flexible copper conductor,conform to IEC 60228 class 5
Insulation:PVC
Sheath:PVC or FR-PVC type STS,black
Technical Data Rate voltage:450/750V
Max.Conductor Temp.in normal use:70℃
Bending Radius:approx.8xcable diameter
| Nom.Cross- section Area | Maximum Diameter of Wire | Nominal Thickness | overall diameter | cable Weight | Resistance at 20℃ | ||
| Insulation | Outer sheath | DC conductor max | Insulation min | ||||
| mm² | mm | mm | mm | mm | km/kg | Ω/km | Ω/km |
| 5x0.75 | 0.2 | 0.6 | 0.9 | 8.1 | 98 | 26 | 11 |
| 5x1 | 0.2 | 0.6 | 0.9 | 8.5 | 112 | 19.5 | 10 |
| 5x1.5 | 0.25 | 0.7 | 1.1 | 10.1 | 164 | 13.3 | 10 |
| 5x2.5 | 0.25 | 0.8 | 1.2 | 12.2 | 246 | 7.98 | 9 |
| 5x4 | 0.3 | 0.8 | 1.2 | 13.5 | 334 | 4.95 | 8 |
| 5x6 | 0.3 | 0.8 | 1.4 | 15.4 | 334 | 3.3 | 7 |
| 5x10 | 0.4 | 1 | 1.6 | 19.7 | 767 | 1.91 | 7 |
| 7x0.75 | 0.2 | 0.6 | 1 | 9.1 | 125 | 26 | 11 |
| 7x1 | 0.2 | 0.6 | 1 | 9.5 | 144 | 19.5 | 10 |
| 7x1.5 | 0.25 | 0.7 | 1.2 | 11.3 | 203 | 13.3 | 10 |
| 7x2.5 | 0.25 | 0.8 | 1.2 | 13.6 | 314 | 7.98 | 9 |
| 10x0.75 | 0.2 | 0.6 | 1.1 | 11.7 | 183 | 26 | 11 |
| 10x1 | 0.2 | 0.6 | 1.1 | 12.2 | 211 | 19.5 | 10 |
| 10x1.5 | 0.25 | 0.7 | 1.3 | 14.5 | 305 | 13.3 | 10 |
| 10x2.5 | 0.25 | 0.8 | 1.5 | 17.6 | 465 | 7.98 | 9 |
| 12x0.75 | 0.2 | 0.6 | 1.1 | 12 | 208 | 26 | 11 |
| 12x1 | 0.2 | 0.6 | 1.2 | 12.8 | 247 | 19.5 | 10 |
| 12x1.5 | 0.25 | 0.7 | 1.3 | 14.9 | 349 | 13.3 | 10 |
| 12x2.5 | 0.25 | 0.8 | 1.5 | 18.1 | 535 | 7.98 | 9 |
Application Power cord or internal wiring with medium mechanical stress for electrical equipments, machineries,luminaires and other portable appliances used in dry indoor premises.Permanent exposed wiring in humid environment,installation in tray or under plaster for industrial three phase 380-415VAC or single phase220-240 VAC multipurpose applications,inherently flame retardent in compliance with IEC 60332-1.
