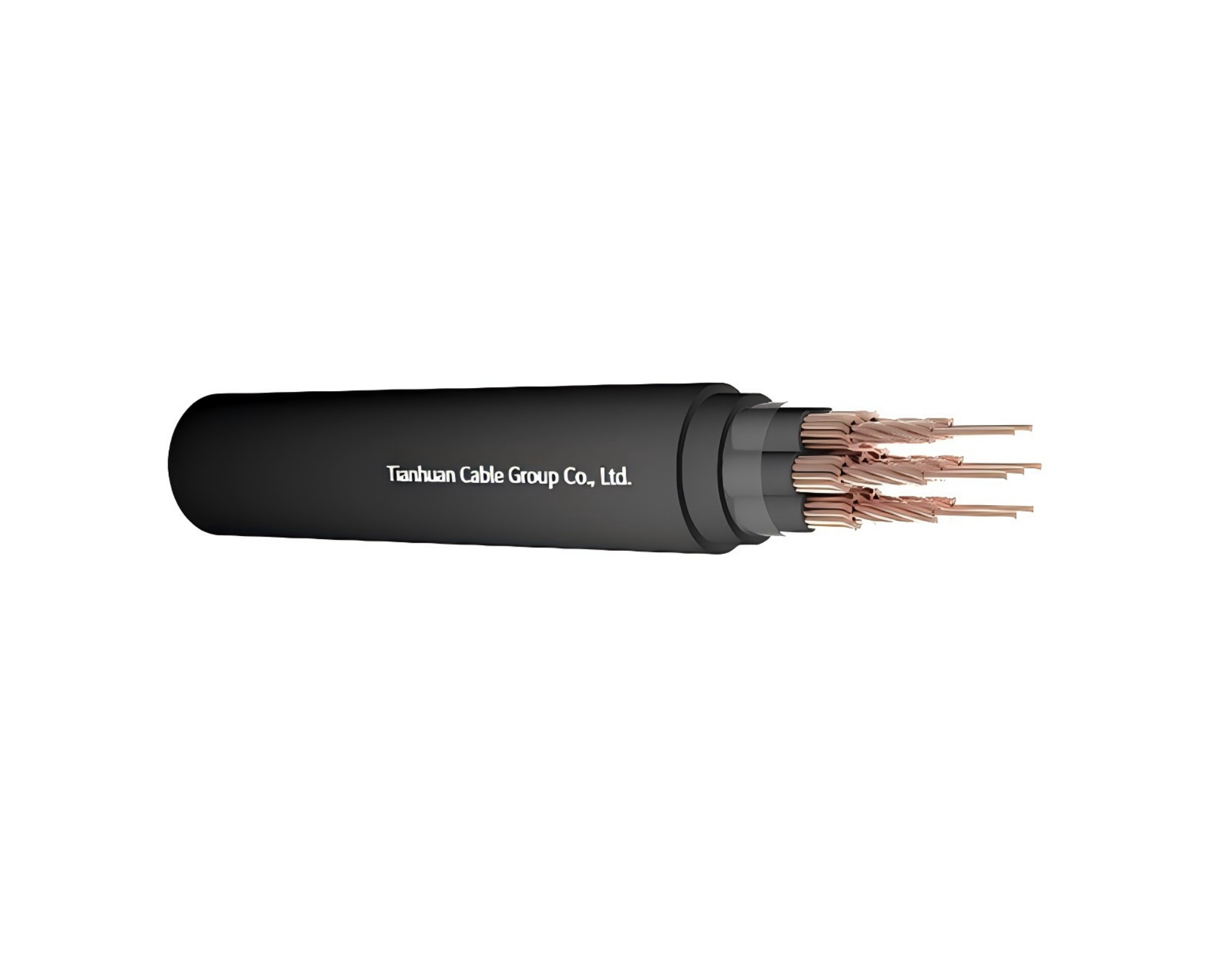

CABLE STRUCTURE:
Conductor:Annealed plain copper round solid or round circular stranded
[re]Round solid conductor
[rm]Circular stranded conductor
Insulation:PVC
Filler:PVC
Sheath:PVC or FR-PVC type ST1/ST2,black
Technical Data Voltage Rating Uo/U 0.6/1kV
Temperature Rating Maximum Operating:Fixed:-15℃ to +70℃
Flexed:-5℃ to+50℃
Minimum Bending Radius Fixed:12x overall diameter
| Nom.Cross-section Area | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃ Insulation min | Current Carrying Capacity at 30℃ | ||
| Insulation | Outer Sheath | In Air | In Ground | ||||
| mm² | mm | mm | mm | km/kg | MΩ/km | A | |
| 7×1.5 re | 0.8 | 1.8 | 14.5 | 324 | 12 | 17 | 13 |
| 7×1.5 rm | 0.8 | 1.8 | 15 | 341 | 11 | 17 | 13 |
| 8×1.5 re | 0.8 | 1.8 | 15.5 | 362 | 12 | 16 | 12 |
| 8×1.5 rm | 0.8 | 1.8 | 16 | 381 | 11 | 16 | 12 |
| 10×1.5 re | 0.8 | 1.8 | 17.4 | 434 | 12 | 15 | 12 |
| 10×1.5 rm | 0.8 | 1.8 | 18.1 | 458 | 11 | 15 | 12 |
| 12×1.5 re | 0.8 | 1.8 | 17.9 | 480 | 12 | 14 | 11 |
| 12×1.5 rm | 0.8 | 1.8 | 18.6 | 506 | 11 | 14 | 11 |
| 14×1.5 re | 0.8 | 1.8 | 18.7 | 542 | 12 | 13 | 11 |
| 14×1.5 rm | 0.8 | 1.8 | 19.5 | 572 | 11 | 13 | 11 |
| 16×1.5 re | 0.8 | 1.8 | 19.5 | 599 | 12 | 12 | 10 |
| 16×1.5 rm | 0.8 | 1.8 | 20.3 | 632 | 11 | 12 | 10 |
| 19×1.5 re | 0.8 | 1.8 | 20.4 | 670 | 12 | 12 | 9 |
| 19×1.5 rm | 0.8 | 1.8 | 21.3 | 707 | 11 | 12 | 9 |
| 21×1.5 re | 0.8 | 1.8 | 21.4 | 728 | 12 | 11 | 9 |
| 21×1.5 rm | 0.8 | 1.8 | 22.3 | 768 | 11 | 11 | 9 |
| 24×1.5 re | 0.8 | 1.8 | 23.4 | 821 | 12 | 11 | 8 |
| 24×1.5 rm | 0.8 | 1.8 | 24.4 | 866 | 11 | 11 | 8 |
| 30×1.5 re | 0.8 | 1.8 | 24.6 | 970 | 12 | 11 | 8 |
| 30×1.5 rm | 0.8 | 1.8 | 25.7 | 1024 | 11 | 11 | 8 |
| 40×1.5 re | 0.8 | 1.8 | 27.3 | 1226 | 12 | 11 | 8 |
| 40×1.5 rm | 0.8 | 1.8 | 28.5 | 1294 | 11 | 11 | 8 |
| 52×1.5 re | 0.8 | 1.9 | 32 | 1585 | 12 | 11 | 8 |
| 52×1.5 rm | 0.8 | 1.9 | 33.4 | 1673 | 11 | 11 | 8 |
| 61×1.5 re | 0.8 | 2 | 33 | 1815 | 12 | 11 | 8 |
| 61×1.5 rm | 0.8 | 2 | 34.6 | 1916 | 11 | 11 | 8 |
| Nom.Cross-section Area | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃ Insulation min | Current Carrying Capacity at 30℃ | ||
| Insulation | Outer Sheath | In Air | In Ground | ||||
| mm² | mm | mm | mm | km/kg | MΩ/km | A | |
| 7×2.5 re | 0.8 | 1.8 | 15.8 | 421 | 10 | 26 | 21 |
| 7×2.5 rm | 0.8 | 1.8 | 16.5 | 450 | 9 | 26 | 21 |
| 8×2.5 re | 0.8 | 1.8 | 16.9 | 471 | 10 | 23 | 18 |
| 8×2.5 rm | 0.8 | 1.8 | 17.7 | 505 | 9 | 23 | 18 |
| 10×2.5 re | 0.8 | 1.8 | 19.1 | 570 | 10 | 21 | 17 |
| 10×2.5 rm | 0.8 | 1.8 | 20.1 | 611 | 9 | 21 | 17 |
| 12×2.5 re | 0.8 | 1.8 | 19.7 | 637 | 10 | 20 | 16 |
| 12×2.5 rm | 0.8 | 1.8 | 20.7 | 682 | 9 | 20 | 16 |
| 14×2.5 re | 0.8 | 1.8 | 20.5 | 724 | 10 | 18 | 15 |
| 14×2.5 rm | 0.8 | 1.8 | 21.6 | 777 | 9 | 18 | 15 |
| 16×2.5 re | 0.8 | 1.8 | 21.5 | 804 | 10 | 17 | 14 |
| 16×2.5 rm | 0.8 | 1.8 | 22.6 | 863 | 9 | 17 | 14 |
| 19×2.5 re | 0.8 | 1.8 | 22.5 | 907 | 10 | 17 | 13 |
| 19×2.5 rm | 0.8 | 1.8 | 23.6 | 974 | 9 | 17 | 13 |
| 21×2.5 re | 0.8 | 1.8 | 23.6 | 989 | 10 | 16 | 12 |
| 21×2.5 rm | 0.8 | 1.8 | 24.9 | 1062 | 9 | 16 | 12 |
| 24×2.5 re | 0.8 | 1.8 | 25.9 | 1118 | 10 | 15 | 11 |
| 24×2.5 rm | 0.8 | 1.8 | 27.3 | 1200 | 9 | 15 | 11 |
| 30×2.5 re | 0.8 | 1.8 | 27.3 | 1335 | 10 | 14 | 11 |
| 30×2.5 rm | 0.8 | 1.8 | 28.8 | 1433 | 9 | 14 | 11 |
| 40×2.5 re | 0.8 | 1.9 | 30.5 | 1718 | 10 | 14 | 11 |
| 40×2.5 rm | 0.8 | 1.9 | 32.3 | 1846 | 9 | 14 | 11 |
| 52×2.5 re | 0.8 | 2 | 35.8 | 2220 | 10 | 14 | 11 |
| 52×2.5 rm | 0.8 | 2 | 37.9 | 2384 | 9 | 14 | 11 |
| 61×2.5 re | 0.8 | 2.1 | 37 | 2552 | 10 | 14 | 11 |
| 61×2.5 rm | 0.8 | 2.1 | 39.1 | 2741 | 9 | 14 | 11 |
Application Indoor and outdoor induct installation or of laying in the ground where not sustain mechanical damage.
