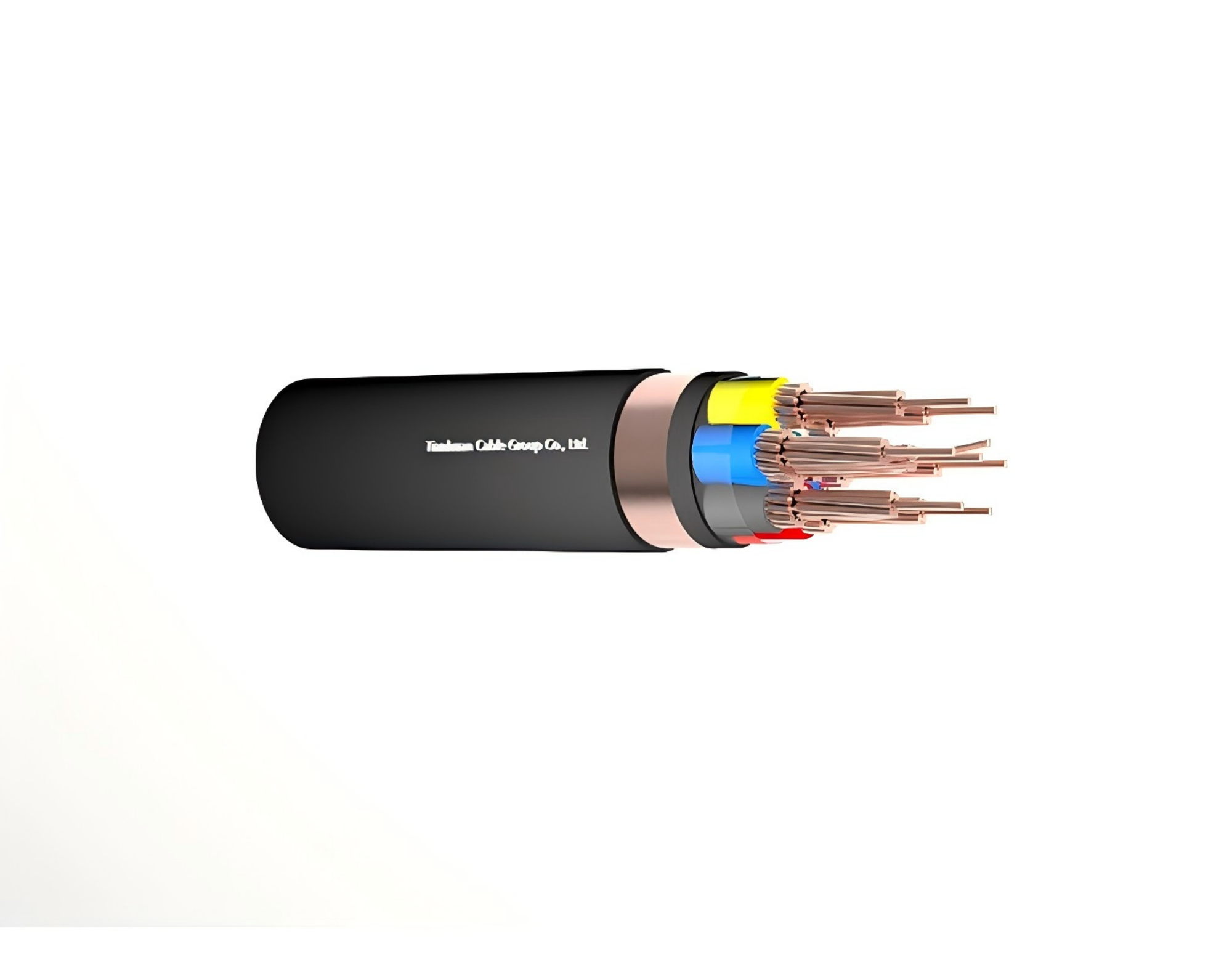

CABLE STRUCTURE:
Conductor:Annealed plain copper round solid or round circular stranded
[re]Round solid conductor
[rm]Circular stranded conductor
Insulation:PVC
Filler:PVC
Shield:Helically copper tape screened with nominal thickness 0.1 mm
Sheath:PVC or FR-PVC type STI/ST2,black
Technical Data Voltage Rating Uo/U 0.6/1kV
Test Voltage 4kV
Temperature Rating：Maximum Operating:+70℃
Maximum Short-Circuit:+250℃
| Nom.Cross-section Area | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃ Insulation min | Current Carrying Capacity at 30℃ | ||
| Insulation | Outer Sheath | In Air | In Ground | ||||
| mm² | mm | mm | mm | km/kg | MΩ/km | A | |
| 7×1.5 re | 0.8 | 1.8 | 14.9 | 357 | 12 | 17 | 13 |
| 7×1.5 rm | 0.8 | 1.8 | 15.5 | 372 | 11 | 17 | 13 |
| 8×1.5 re | 0.8 | 1.8 | 16.1 | 394 | 12 | 16 | 12 |
| 8×1.5 rm | 0.8 | 1.8 | 16.5 | 418 | 11 | 16 | 12 |
| 10×1.5 re | 0.8 | 1.8 | 18.2 | 475 | 12 | 15 | 11 |
| 10×1.5 rm | 0.8 | 1.8 | 18.6 | 496 | 11 | 15 | 11 |
| 12×1.5 re | 0.8 | 1.8 | 18.7 | 518 | 12 | 14 | 11 |
| 12×1.5 rm | 0.8 | 1.8 | 19.2 | 545 | 11 | 14 | 11 |
| 14×1.5 re | 0.8 | 1.8 | 19.4 | 586 | 12 | 13 | 10 |
| 14×1.5 rm | 0.8 | 1.8 | 20.2 | 613 | 11 | 13 | 10 |
| 16×1.5 re | 0.8 | 1.8 | 20.4 | 642 | 12 | 12 | 10 |
| 16×21.5 rm | 0.8 | 1.8 | 20.8 | 675 | 11 | 12 | 10 |
| 19×1.5 re | 0.8 | 1.8 | 21.2 | 718 | 12 | 12 | 9 |
| 19×1.5 rm | 0.8 | 1.8 | 21.8 | 757 | 11 | 12 | 9 |
| 21×1.5 re | 0.8 | 1.8 | 22.2 | 778 | 12 | 11 | 9 |
| 21×1.5 rm | 0.8 | 1.8 | 22.8 | 820 | 11 | 11 | 9 |
| 24×1.5 re | 0.8 | 1.8 | 23.8 | 872 | 12 | 11 | 8 |
| 24×1.5 rm | 0.8 | 1.8 | 25 | 928 | 11 | 11 | 8 |
| 30×1.5 re | 0.8 | 1.8 | 25.3 | 1026 | 12 | 11 | 8 |
| 30×1.5 rm | 0.8 | 1.8 | 26.7 | 1085 | 11 | 11 | 8 |
| 40×1.5 re | 0.8 | 1.8 | 27.6 | 1288 | 12 | 11 | 8 |
| 40×1.5 rm | 0.8 | 1.8 | 29.4 | 1356 | 11 | 11 | 8 |
| 52×1.5 re | 0.8 | 1.8 | 31.8 | 1656 | 12 | 11 | 8 |
| 52×1.5 rm | 0.8 | 1.8 | 33.4 | 1752 | 11 | 11 | 8 |
| 61×1.5 re | 0.8 | 1.8 | 33.7 | 1893 | 12 | 11 | 8 |
| 61×1.5 rm | 0.8 | 1.8 | 35.2 | 1990 | 11 | 11 | 8 |
| Nom.Cross-section Area | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃ Insulation min | Current Carrying Capacity at 30℃ | ||
| Insulation | Outer Sheath | In Air | In Ground | ||||
| mm² | mm | mm | mm | km/kg | MΩ/km | A | |
| 7×2.5 re | 0.8 | 1.8 | 15.8 | 458 | 10 | 23 | 18 |
| 7×2.5 rm | 0.8 | 1.8 | 16.6 | 486 | 9 | 23 | 18 |
| 8×2.5 re | 0.8 | 1.8 | 17.1 | 509 | 10 | 21 | 17 |
| 8×2.5 rm | 0.8 | 1.8 | 18.3 | 545 | 9 | 21 | 17 |
| 10×2.5 re | 0.8 | 1.8 | 19.3 | 617 | 10 | 20 | 16 |
| 10×2.5 rm | 0.8 | 1.8 | 20.5 | 656 | 9 | 20 | 16 |
| 12×2.5 re | 0.8 | 1.8 | 20.7 | 682 | 10 | 18 | 15 |
| 12×2.5 rm | 0.8 | 1.8 | 21.5 | 732 | 9 | 18 | 15 |
| 14×2.5 re | 0.8 | 1.8 | 21.8 | 775 | 10 | 17 | 14 |
| 14×2.5 rm | 0.8 | 1.8 | 22.5 | 826 | 9 | 17 | 14 |
| 16×2.5 re | 0.8 | 1.8 | 22.6 | 854 | 10 | 17 | 13 |
| 16×2.5 rm | 0.8 | 1.8 | 23.4 | 917 | 9 | 17 | 13 |
| 19×2.5 re | 0.8 | 1.8 | 23.6 | 962 | 10 | 16 | 13 |
| 19×2.5 rm | 0.8 | 1.8 | 24.8 | 1027 | 9 | 16 | 13 |
| 21×2.5 re | 0.8 | 1.8 | 25.1 | 1055 | 10 | 15 | 12 |
| 21×2.5 rm | 0.8 | 1.8 | 25.8 | 1136 | 9 | 15 | 12 |
| 24×2.5 re | 0.8 | 1.8 | 26.2 | 1210 | 10 | 14 | 11 |
| 24×2.5 rm | 0.8 | 1.8 | 26.8 | 1292 | 9 | 14 | 11 |
| 30×2.5 re | 0.8 | 1.8 | 28.3 | 1426 | 10 | 14 | 11 |
| 30×2.5 rm | 0.8 | 1.8 | 30.2 | 1535 | 9 | 14 | 11 |
| 40×2.5 re | 0.8 | 1.8 | 31.7 | 1840 | 10 | 14 | 11 |
| 40×2.5 rm | 0.8 | 1.8 | 33.5 | 1973 | 9 | 14 | 11 |
| 52×2.5 re | 0.8 | 1.8 | 37.4 | 2358 | 10 | 14 | 11 |
| 52×2.5 rm | 0.8 | 1.8 | 38.6 | 2534 | 9 | 14 | 11 |
| 61×2.5 re | 0.8 | 1.8 | 40.6 | 2701 | 10 | 14 | 11 |
| 61×2.5 rm | 0.8 | 1.8 | 41.4 | 2895 | 9 | 14 | 11 |
Application For indoor installation, in power and switching stations.As underground cable, for diffcult installation where the low weight is particularly advantageous.
