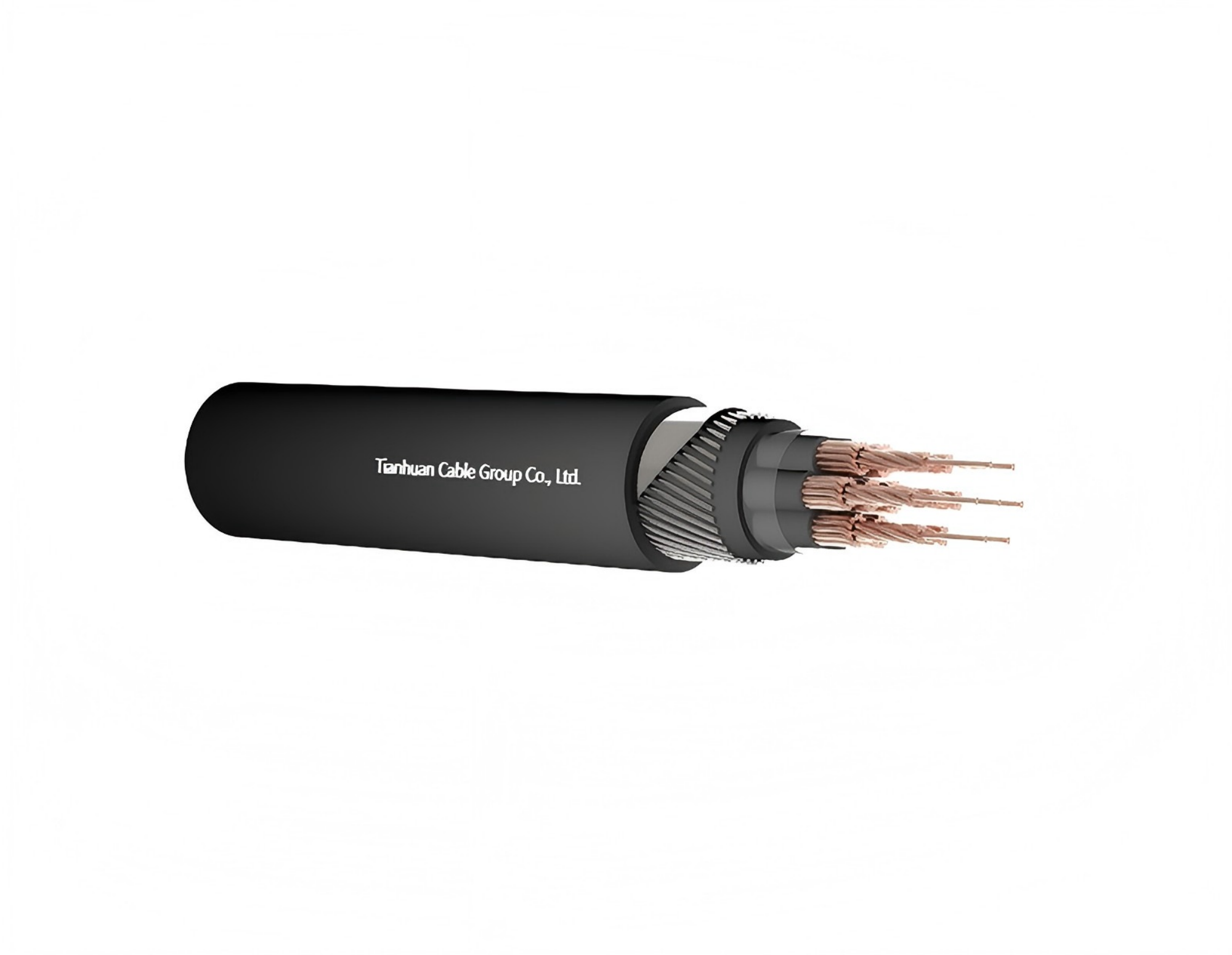

NYRGbY (Cu/PVC/SWA/PVC 0.6/1 kV) Control Cable

Copper Conductor PVC Insulated and PVC Sheathed Steel Wire Armoured Control Cable

CABLE STRUCTURE:

Conductor:Annealed plain copper round solid or round circular stranded

[re]Round solid conductor

[rm]Circular stranded conductor

Insulation:PVC

Filler:PVC

Armour:A layers of Galvanized round steel wires with a counter helix layer of galvanized steel tape

Sheath:PVC or FR-PVC type STI/ST2,black

Inquire Now + Download +

Technical Data

Application

Get a quote

Related Products

Technical Data

Voltage Rating Uo/U 0.6/1kV

Test Voltage 3.5KV

Temperature Rating：Maximum Operating:+70℃

Maximum Short-Circuit:+160℃

Nom.Cross-section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross-section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×1.5 re	0.8	1.8	18.6	727	12	17	13
7×1.5 rm	0.8	1.8	19.2	777	11	17	13
8×1.5 re	0.8	1.8	19.7	792	12	16	12
8×1.5 rm	0.8	1.8	20.3	848	11	16	12
10×1.5 re	0.8	1.8	21.7	929	12	15	11
10×1.5rm	0.8	1.8	22.6	997	11	15	11
12×1.5 re	0.8	1.8	23	1117	12	14	11
12×1.5rm	0.8	1.8	23.8	1199	11	14	11
14×1.5 re	0.8	1.8	24	1197	12	13	10
14×1.5rm	0.8	1.8	24.7	1287	11	13	10
16×1.5 re	0.8	1.8	25	1310	12	12	10
16×1.5rm	0.8	1.8	25.6	1382	11	12	10
19×1.5 re	0.8	1.8	26	1391	12	12	9
19×1.5rm	0.8	1.8	26.6	1504	11	12	9
21×1.5 re	0.8	1.8	27	1496	12	11	9
21×1.5 rm	0.8	1.8	27.7	1611	11	11	9
24×1.5 re	0.8	1.8	28.2	1629	12	11	8
24×1.5rm	0.8	1.8	29.3	1766	11	11	8
30×1.5 re	0.8	1.8	30	1857	12	11	8
30×1.5rm	0.8	1.8	31.4	2020	11	11	8
40×1.5 re	0.8	1.9	33.7	2420	12	11	8
40×1.5 rm	0.8	1.9	35.2	2635	11	11	8
52×1.5 re	0.8	2.1	37.6	2932	12	11	8
52×1.5 rm	0.8	2.1	39.3	3190	11	11	8
61×1.5 re	0.8	2.1	39.5	3215	12	11	8
61×1.5 rm	0.8	2.1	41.3	3518	11	11	8

Nom.Cross-section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross-section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×2.5 re	0.8	1.8	19.7	848	10	26	21
7×2.5 rm	0.8	1.8	20.6	918	9	26	21
8×2.5 re	0.8	1.8	21	928	10	23	18
8×2.5rm	0.8	1.8	21.8	1007	9	23	18
10×2.5 re	0.8	1.8	24	1228	10	21	17
10×2.5rm	0.8	1.8	25.2	1332	9	21	17
12×2.5 re	0.8	1.8	24.6	1317	10	20	16
12×2.5rm	0.8	1.8	25.7	1431	9	20	16
14×2.5 re	0.8	1.8	25.4	1421	10	18	15
14×2.5 rm	0.8	1.8	26.7	1548	9	18	15
16×2.5 re	0.8	1.8	26.9	1561	10	17	14
16×2.5 rm	0.8	1.8	27.7	1671	9	17	14
19×2.5 re	0.8	1.8	27.5	1675	10	17	13
19×2.5 rm	0.8	1.8	28.9	1833	9	16	13
21×2.5 re	0.8	1.8	28.6	1800	10	16	12
21×2.5 rm	0.8	1.8	30.2	1973	9	15	12
24×2.5 re	0.8	1.8	30.4	1980	10	15	11
24×2.5 rm	0.8	1.8	31.9	2173	9	14	11
30×2.5 re	0.8	1.9	32.5	2280	10	14	11
30×2.5rm	0.8	1.9	35.5	2823	9	14	11
40×2.5 re	0.8	2	37.3	3167	10	14	11
40×2.5rm	0.8	2	39.5	3389	9	14	11
52×2.5 re	0.8	2.1	41.6	3704	10	14	11
52×2.5 rm	0.8	2.1	43.2	4002	9	14	11
61×2.5 re	0.8	2.2	43.9	4121	10	14	11
61×2.5 rm	0.8	2.2	46.3	4970	9	14	11

Application

For general purpose power distribution in dry or wet location,best suitable for direct burying in ground. NYRGbY (Cu/PVC/SWA/PVC 0.6/1 kV) Control Cable
