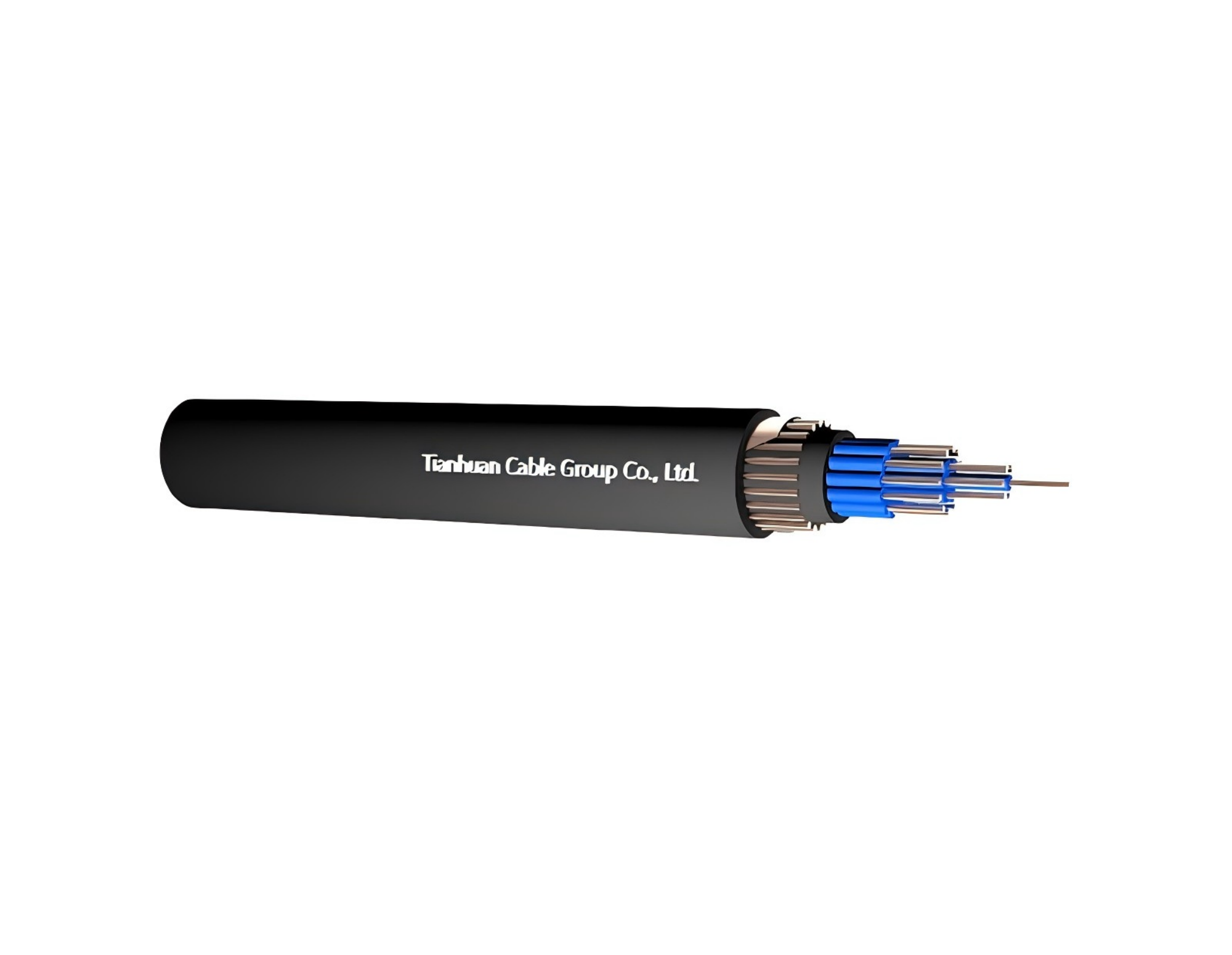

CABLE STRUCTURE:
Conductor:Annealed plain copper round solid or round circular stranded
[re]Round solid conductor
[rm]Circular stranded conductor
Insulation:PVC
Filler:PVC
Shield:Annealed copper wire with transverse helix of Annealed copper tape
Sheath:PVC or FR-PVC type ST1/ST2,black
Technical Data Voltage Rating Uo/U 0.6/1kVTest Voltage 4kV
Temperature Rating：Maximum Operating:+70℃
Maximum Short-Circuit:+250℃
Minimum Bending Radius15×overall diameter
| Nom.Cross-section Area | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃ Insulation min | Current Carrying Capacity at 30℃ | ||
| Insulation | Outer Sheath | In Air | In Ground | ||||
| mm² | mm | mm | mm | km/kg | MΩ/km | A | |
| 5×1.5 re/2.5 | 0.8 | 1.8 | 16.4 | 361 | 12 | 19 | 15 |
| 5×1.5 rm/2.5 | 0.8 | 1.8 | 16.6 | 372 | 11 | 19 | 15 |
| 7×1.5 re/2.5 | 0.8 | 1.8 | 17 | 407 | 12 | 17 | 13 |
| 7×1.5 rm/2.5 | 0.8 | 1.8 | 17.6 | 441 | 11 | 17 | 13 |
| 8×1.5 re/2.5 | 0.8 | 1.8 | 18 | 445 | 12 | 16 | 12 |
| 8×1.5 rm/2.5 | 0.8 | 1.8 | 18.7 | 485 | 11 | 16 | 12 |
| 10×1.5 re/2.5 | 0.8 | 1.8 | 20.1 | 542 | 12 | 15 | 11 |
| 10×1.5 rm/2.5 | 0.8 | 1.8 | 20.9 | 592 | 11 | 15 | 11 |
| 12×1.5 re/2.5 | 0.8 | 1.8 | 20.6 | 594 | 12 | 14 | 11 |
| 12×1.5 rm/2.5 | 0.8 | 1.8 | 21.5 | 649 | 11 | 14 | 11 |
| 14×1.5 re/2.5 | 0.8 | 1.8 | 21.4 | 647 | 12 | 13 | 10 |
| 14×1.5 rm/2.5 | 0.8 | 1.8 | 22.3 | 710 | 11 | 13 | 10 |
| 16×1.5 re/4 | 0.8 | 1.8 | 22.7 | 721 | 12 | 12 | 10 |
| 16×1.5 rm/4 | 0.8 | 1.8 | 23.3 | 775 | 11 | 12 | 10 |
| 19×1.5 re/4 | 0.8 | 1.8 | 23.2 | 784 | 12 | 12 | 9 |
| 19×1.5 rm/4 | 0.8 | 1.8 | 24.3 | 865 | 11 | 12 | 9 |
| 21×1.5 re/6 | 0.8 | 1.8 | 24.2 | 866 | 12 | 11 | 9 |
| 21×1.5 rm/6 | 0.8 | 1.8 | 25.3 | 955 | 11 | 11 | 9 |
| 24×1.5 re/6 | 0.8 | 1.8 | 25.8 | 958 | 12 | 11 | 8 |
| 24×1.5 rm/6 | 0.8 | 1.8 | 27 | 1058 | 11 | 11 | 8 |
| 30×1.5 re/6 | 0.8 | 1.8 | 27.7 | 1125 | 12 | 11 | 8 |
| 30×1.5 rm/6 | 0.8 | 1.8 | 29 | 1247 | 11 | 11 | 8 |
| 40×1.5 re/10 | 0.8 | 1.8 | 30.7 | 1417 | 12 | 11 | 8 |
| 40×1.5 rm/10 | 0.8 | 1.8 | 32.2 | 1576 | 11 | 11 | 8 |
| 52×1.5 re/10 | 0.8 | 1.8 | 34.8 | 1785 | 12 | 11 | 8 |
| 52×1.5 rm/10 | 0.8 | 1.8 | 36.5 | 1988 | 11 | 11 | 8 |
| 61×1.5 re/10 | 0.8 | 1.8 | 37 | 2025 | 12 | 11 | 8 |
| 61×1.5 rm/10 | 0.8 | 1.8 | 38.7 | 2259 | 11 | 11 | 8 |
| Nom.Cross-section Area | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃ Insulation min | Current Carrying Capacity at 30℃ | ||
| Insulation | Outer Sheath | In Air | In Ground | ||||
| mm² | mm | mm | mm | km/kg | M.Q.km | A | |
| 5x2.5 re/2.5 | 0.8 | 1.8 | 17.5 | 432 | 10 | 26 | 21 |
| 5x2.5 rm/2.5 | 0.8 | 1.8 | 17.8 | 453 | 9 | 26 | 21 |
| 7x2.5 re/2.5 | 0.8 | 1.8 | 18.1 | 514 | 10 | 23 | 18 |
| 7x2.5 rm/2.5 | 0.8 | 1.8 | 18.9 | 564 | 9 | 23 | 18 |
| 8x2.5 re/2.5 | 0.8 | 1.8 | 19.3 | 565 | 10 | 21 | 17 |
| 8x2.5 rm/2.5 | 0.8 | 1.8 | 20.2 | 620 | 9 | 21 | 17 |
| 10x2.5 re/4 | 0.8 | 1.8 | 21.6 | 672 | 10 | 20 | 16 |
| 10x2.5 rm/4 | 0.8 | 1.8 | 22.7 | 741 | 9 | 20 | 16 |
| 12x2.5 re/4 | 0.8 | 1.8 | 22.2 | 743 | 10 | 18 | 15 |
| 12x2.5 rm/4 | 0.8 | 1.8 | 23.3 | 822 | 9 | 18 | 15 |
| 14x2.5 re/6 | 0.8 | 1.8 | 23.1 | 818 | 10 | 17 | 14 |
| 14x2.5 rm/6 | 0.8 | 1.8 | 24.3 | 907 | 9 | 17 | 14 |
| 16x2.5 re/6 | 0.8 | 1.8 | 25.5 | 914 | 10 | 17 | 13 |
| 16x2.5 rm/6 | 0.8 | 1.8 | 25.4 | 997 | 9 | 17 | 13 |
| 19x2.5 re/6 | 0.8 | 1.8 | 25.2 | 1007 | 10 | 16 | 13 |
| 19x2.5 rm/6 | 0.8 | 1.8 | 26.5 | 1122 | 9 | 16 | 13 |
| 21x2.5 re/10 | 0.8 | 1.8 | 26.4 | 1153 | 10 | 15 | 12 |
| 21x2.5 rm/10 | 0.8 | 1.8 | 27.8 | 1281 | 9 | 15 | 12 |
| 24x2.5 re/10 | 0.8 | 1.8 | 28.1 | 1278 | 10 | 14 | 11 |
| 24x2.5 rm/10 | 0.8 | 1.8 | 29.7 | 1338 | 9 | 14 | 11 |
| 30x2.5 re/10 | 0.8 | 1.8 | 30.3 | 1510 | 10 | 14 | 11 |
| 30x2.5 rm/10 | 0.8 | 1.8 | 32 | 1687 | 9 | 14 | 11 |
| 40x2.5 re/10 | 0.8 | 1.8 | 34.1 | 1917 | 10 | 14 | 11 |
| 40x2.5 rm/10 | 0.8 | 1.8 | 36.1 | 2145 | 9 | 14 | 11 |
| 52x2.5 re/10 | 0.8 | 1.8 | 38.4 | 2402 | 10 | 14 | 11 |
| 52x2.5 rm/10 | 0.8 | 1.8 | 40.7 | 2694 | 9 | 14 | 11 |
| 61 x2.5 re/10 | 0.8 | 1.8 | 40.5 | 2716 | 10 | 14 | 11 |
| 61x2.5 rm/10 | 0.8 | 1.8 | 43 | 3053 | 9 | 14 | 11 |
Application For indoor installation,in power and switching stations.As underground cable,for diffcult installation where the low weight is particularly advantageous
